Battery Storage

Key Features of the Pylontech US2000C 2.4kWh Solar Storage Battery: Technology: Lithium iron phosphate LiFePo4 Life: 6000 cycles at 90% depth of discharge Rated voltage: 48V Rated Capacity: 2400Wh Charge Voltage range: 52.5 - 53.2V Recommended charge current / discharge current: 25A Maximum charge current / discharge current: 50A (peak 100A for 15 seconds) Capacity: 50Ah What's in the box? 1 x PylonTech LiFePo4 module 48V 2.4 kWh US2000C with BMS 1 x Positive (+) Battery Module Connection Cable 1 x Negative (-) Battery Module Connection Cable Voltage: 48V Scalable: Yes Technology: LiFePO4 Brand: Pylontech IP (Ingress Protection) rating: : IP20 Warranty: 7 Years Model: US2000C Dimensions: 442 x 410 x 89 mm Battery Capacity: 2400Wh

Read more less

Cable Pack For The Pylon US2000/3000/5000 Each battery includes connection cables, these cables should be used for connection to the charger. One cable pack per system to a max of 5 2 x 2m long power cables 1 x 3.5m RJ45 Communication cable (Not for CAN communication)

Read more less

Part No: PYLON-US5000-1C Storage Systems - Li-ion Battery Pack Product Features Modular design for ease of expansion Higher usable capacity resulting in less battery modules installed Usable capacity 4 560Wh Parallel Capability of up to 16 units Allows for large installation of up to 72.96kWh with no LV Hub Intelligent BMS protecting battery cells 95% DoD with more usable capacity RS485 and CAN compatible Comes with a 7-year warranty extendable to 10 if registered online, using the link below. Long cycle life and superior performance Compatible with tier 1 inverter brands To get the full 10 year warranty (3 years extra) you have to register here: http://en.pylontech.com.cn/service/support.   Supplier Part No: US5000 1C Weight: 40.4 kg Battery Type: Lithium Ion Nominal Energy: 4800 Wh Depth of discharge: 95.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 2400 W Maximum Discharge Rate (5 Minutes): 4800 W Surge Discharge Rate (15 Seconds): 5808 W Maximum Charge Rate (5 Minutes): 4800 W

Read more less

Part No: BRACK-US5000 Storage Systems - Accessory Supplier Part No: BW0PLUSUS5KBZJ01 Weight: 2.37 kg

Read more less

Pylon US3000C LiFePo4 Battery 3.5kWh for Solar Product Features: Modular design for ease of expansion. 95% Depth of Discharge (DoD). Usable capacity 3374Wh. Parallel capability of up to 16 units. Intelligent BMS protecting battery cells. 6000 Cycles. RS485 and CAN compatible. Comes with 7-year standard warranty which is extendable to 10-years upon registration. Installation flexibility (Rack mount or Wall-mount). You can register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.  The US3000C can be used to expand an existing US3000 bank. Please note, the US3000C needs to be used as the master battery when used to expand an existing US3000 bank. This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Powerland will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Read more less

Part No: BRACK-US3000 Storage Systems - Accessory Supplier Part No: BW0PLUSUS3KAZJ01 Weight: 2.7 kg

Read more less

Part No: BRACK-US2000 Storage Systems - Accessory Supplier Part No: WJ0ZU2000B01 Weight: 2.36 kg

Read more less

Part No: PYL-F-H2-BATT-96V Storage Systems - Li-ion Battery Pack Flexible Module Design Reliable Performance 90% DoD with more usable capacity IP 55 class protection To extend the warranty from 3 to 10 years you have to register here: http://en.pylontech.com.cn/service/support. Important MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS Please ensure that you check the inverter settings are below the maximum allowed voltage BEFORE plugging in the UTILITY/SOLAR to the inverter.

Read more less

Part No: PYL-PELIO-L-5.12 Storage Systems - Li-ion Battery Pack Pylontech Pelio-L-5.12 LV Battery Module High energy density cells makes for lightweight but high capacity batteries Smaller footprint and indoor/outdoor compatible to save your valuable space Secured by self-developed cells. modules and BMS Dual active protection mechanism enhances safety significantly Designed for 15+ years or >8000 charging cycles Compatible with Solis low voltage hybrid/AC inverters (see attached document) Remote monitoring of the battery system via a plug-in wifi module (supplied with the installation kit, not with the battery itself)   Supplier Part No: 11RAYBWZZZA-00004 Weight: 45 kg Rated Power: 5,120 W Battery Type: Lithium Ion Nominal Energy: 5120 Wh Depth of discharge: 95.00 % Voltage: 51 V Continuous Discharge Rate (Normal Use): 4096 W Maximum Discharge Rate (5 Minutes): 5120 W Surge Discharge Rate (15 Seconds): 6144 W Maximum Charge Rate (5 Minutes): 5120 W

Read more less

Part No: PYL-L2-BATT Storage Systems - Li-ion Battery Pack The Force L2 is another addition to the HESS(home energy storage system) from Pylontech. Inherit with Pylontech's modular design concept, combined with easy installation, simple connectors and outdoor compatibility it is the ideal storage solution that blends in with a home feeling or small commercial environment. The stacking system provides flexibles configurations from 7.1kWh to 14.21kWh capacity. In other words, 2 to 4 modules can be used per system and the base PYL-L2-BMU-BASE is required.  Flexible Module Design Reliable Performance Quick connector to save installation time 90% DoD with more usable capacity IP 55 class protection Important Please ensure that you check the inverter settings are below the maximum allowed voltage BEFORE plugging in the UTILITY/SOLAR to the inverter. Supplier Part No: FL4874MA02V00101 Weight: 38 kg Battery Type: Lithium Ion Nominal Energy: 3550 Wh Depth of discharge: 90.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 1776 W Maximum Discharge Rate (5 Minutes): 1776 W Surge Discharge Rate (15 Seconds): 1776 W Maximum Charge Rate (5 Minutes): 1776 W

Read more less

Part No: PYL-PELIO-GROUND-MOUNT Storage Systems - Accessory

Read more less

RT12100G31 - new to Pylontech. The Pylontech RT12V is an all-purpose 12V Lithium-ion battery. Each battery incorporates its own battery management system with over/undervoltage and high/low temperature protection. Monitoring is available through Bluetooth or a Canbus connection.  This battery weighs 12 KG. For systems of 24 or 48V, batteries can be connected in series.  Up to 16 batteries can be connected together to increase the systems capacity. The Pylon RT12 battery has a built-in heating film which automatically heats the battery to enable its use in minus temperature environments. The elements operates via the external charger connection.    ManufacturerPylon Technologies CommunicationCanbus or Bluetooth Dimensions (mm) (H x W x D)325 x 173.5 x 226 IP RatingIP67 Nominal Voltage12.8 Volts Recommended charge/discharge50A Max charge/discharge100A Working temperature-40℃ to 60℃ Nominal Capacity100ah

Read more less

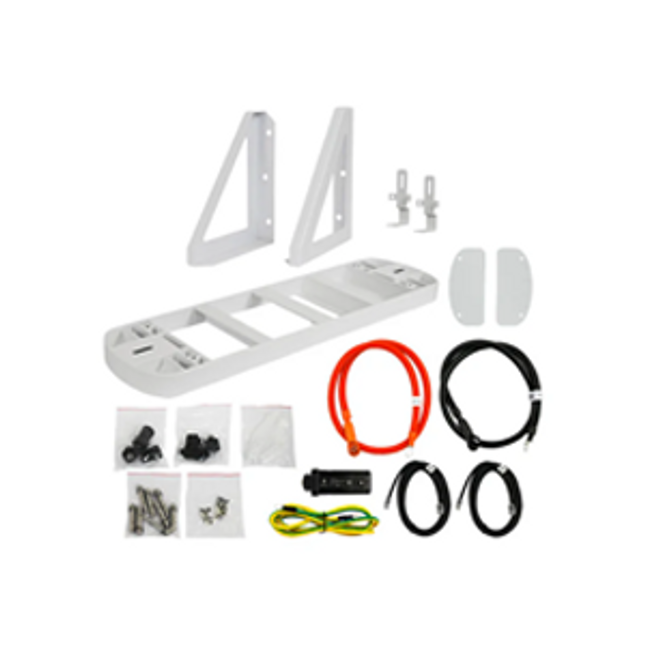

Part No: PYL-PELIO-WALL-MOUNT Storage Systems - Accessory

Read more less
