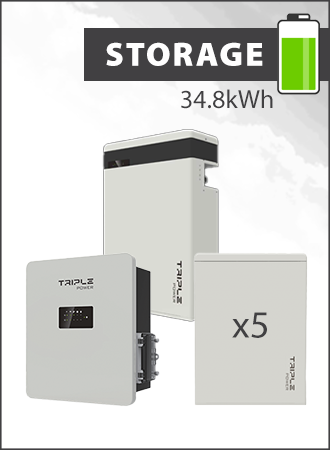

Package of: Solax BMS Parallel Box and SolaX Triple Power 5.8 Master and Slave Batteries
The Solax BMS Parallel Box is an advanced battery management system that enables seamless parallel connection of multiple batteries, ensuring efficient energy utilisation and enhanced performance. With its cutting-edge technology and robust design, this parallel box is the ideal choice for residential and commercial applications.
Possible System Configurations
T58
- X1 – Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries.
- X3 – Three Phase: 4, 6, 8 Triple Power 5.8kWh batteries.
BMS Parallel Box II G2 Installation Video
Please note:
- Unlike G1 version of BMS-Parallel Box this G2 now works with T58 Master batteries, meaning it is easier to retro-fit to existing systems
- A minimum of 2 batteries (single phase) and 4 batteries (three-phase) must be used with this product.
- Weight:
- 441.9 kg
- Battery Type:
- Lithium Ion
- Nominal Energy:
- 35200 Wh
- Depth of discharge:
- 90.00 %
- Voltage:
- 690 V
- Continuous Discharge Rate (Normal Use):
- 17250 W
- Maximum Discharge Rate (5 Minutes):
- 3500 W
- Surge Discharge Rate (15 Seconds):
- 24000 W
- Maximum Charge Rate (5 Minutes):
- 3500 W
