Pylontech

A new battery in the US series from Pylontech. The US5000 is a 48V battery with incredible features to provide a competitive edge in the market.  Product Features Modular design for ease of expansion Higher usable capacity resulting in less battery modules installed Usable capacity 4 560Wh Parallel Capability of up to 16 units Allows for large installation of up to 72.96kWh with no LV Hub Intelligent BMS protecting battery cells 95% DoD with more usable capacity RS485 and CAN compatible Comes with a 5-year warranty extendable Long cycle life and superior performance Compatible with tier 1 inverter brands Supplier Part No: US5000 Weight: 38 kg Battery Type: Lithium Ion Nominal Energy: 4800 Wh Depth of discharge: 95.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 2400 W Maximum Discharge Rate (5 Minutes): 4800 W Surge Discharge Rate (15 Seconds): 5808 W Maximum Charge Rate (5 Minutes): 4800 W Data Sheet US2000C, US3000C and US5000 Click Here For Spec Sheet

Read more less

Cable Pack For The Pylon US2000/3000 Each battery includes connection cables, these cables should be used for connection to the charger. One cable pack per system to a max of 5 2 x 2m long power cables 1 x 3.5m RJ45 Communication cable (Not for CAN communication)

Read more less

Part No: PYLON-US2000C Storage Systems - Li-ion Battery Pack          The newest 2.4kWh battery from Pylontech now boasts 95% DoD and a 10 year warranty. The batteries are modular so banks can be built up in units of 2.4kWh and they are simply daisy chained together. Key features 95% Depth of discharge (80% recommended when paired with a Sofar ME3000) Up to 16 batteries in a single stack, allowing a total capacity of 38.4kWh without additional hardware. >6000 Life Cycles The Pylontech US2000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle.  The Pylontech US2000C has an incredible DoD of 95%  Supplier Part No:PYLON-US2000C Weight:24 kg Battery Type:Lithium Ion Nominal Energy:2400 Wh Depth of discharge:95.00 % Voltage:48 V Continuous Discharge Rate (Normal Use):1200 W Maximum Discharge Rate (5 Minutes):2400 W Surge Discharge Rate (15 Seconds):4320 W Maximum Charge Rate (5 Minutes):2400 W   Data Sheet US2000C, US3000C and US5000

Read more less

Part No: BRACK-US5000 Storage Systems - Accessory   A set of battery brackets which allows vertical stacking of the Pylon battery unit. 1 set required per additional battery added Supplier Part No: BW0PLUSUS5KBZJ01 Weight: 2.37 kg

Read more less

Pylon US3000C LiFePo4 Battery 3.5kWh for Solar Part No: PYLON-US3000C Storage Systems - Li-ion Battery Pack The US3000C is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed BMS protects the cell from abormal temperature, current, voltage, SoC and SoH. The Pylontech US3000C has an incredible DoD of 95%.  You can now register the Pylon US3000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page. Supplier Part No: PYLON-US3000C Weight: 32 kg Battery Type: Lithium Ion Nominal Energy: 3552 Wh Depth of discharge: 95.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 1776 W Maximum Discharge Rate (5 Minutes): 3552 W Surge Discharge Rate (15 Seconds): 4320 W Maximum Charge Rate (5 Minutes): 1776 W Data Sheet US2000C, US3000C and US5000

Read more less

Part No: BRACK-US3000 Storage Systems - Accessory   A set of battery brackets which allows vertical stacking of the Pylon battery unit. 1 set required per additional battery added. Supplier Part No: BW0PLUSUS3KAZJ01 Weight: 2.7 kg

Read more less

Details This parallel cable set has been designed for Pylon battery installations where the batteries have not been connected together in a single stack. It has been designed to make it easier to extend such systems without having to manually modify cable. Please note for standard installations where the pylon batteries are rack mounted, it is still advisable to use the interlink cables which are still included inside every Pylon battery box.

Read more less

Part No: BRACK-US2000 Storage Systems - Accessory A set of battery brackets which allows vertical stacking of the Pylon battery unit. 1 set required per additional battery added. Supplier Part No: WJ0ZU2000B01 Weight: 2.36 kg

Read more less

Part No: PYL-F-H2-BMU-BASE-H10.66 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 3 x PYL-F-H2-BATT-96V Force-H2 Lithium 3.55kWh battery FH9637 module 96V 37AH   1 x PYL-F-H2-BMU-BASE Force H2 BMS with basement and cables (FC0500M)     Pylontech's Force-H2 is a home energy storage system (HESS) using a modern, modular design combined with easy installation, simple connectors and outdoor compatibility. Benefits Of The Force-H2 System Modular design enables quick and secure installation with no exposed wiring and connectors Stylish design suits both indoor and outdoor installation (with appropriate protection) Proven BMS with wide inverter compatibility Important MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS Weight: 118.5 kg Data Sheet Pylontech H1 & H2 Product Compatibility V.2.02 Update December 2021 Warranty Force-H1 and-H2

Read more less

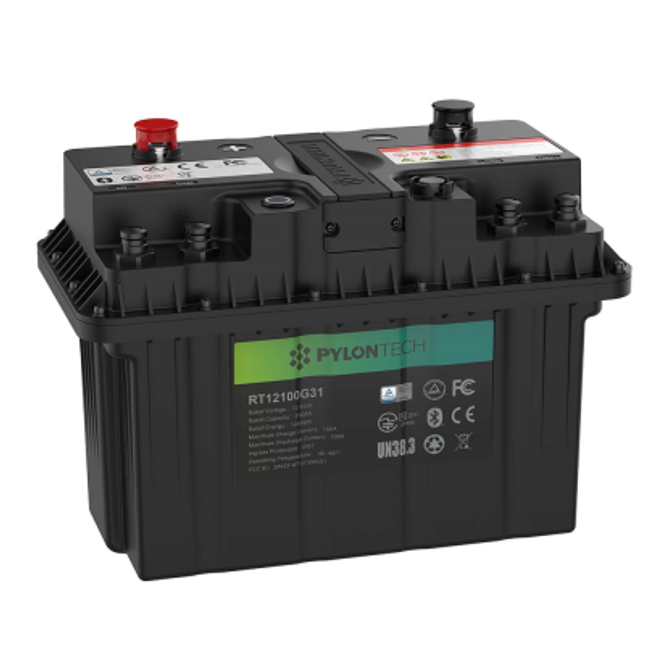

RT12100G31 - new to Pylontech. The Pylontech RT12V is an all-purpose 12V Lithium-ion battery. Each battery incorporates its own battery management system with over/undervoltage and high/low temperature protection. Monitoring is available through Bluetooth or a Canbus connection.  This battery weighs 12 KG. For systems of 24 or 48V, batteries can be connected in series.  Up to 16 batteries can be connected together to increase the systems capacity. The Pylon RT12 battery has a built-in heating film which automatically heats the battery to enable its use in minus temperature environments. The elements operates via the external charger connection.    ManufacturerPylon Technologies CommunicationCanbus or Bluetooth Dimensions (mm) (H x W x D)325 x 173.5 x 226 IP RatingIP67 Nominal Voltage12.8 Volts Recommended charge/discharge50A Max charge/discharge100A Working temperature-40℃ to 60℃ Nominal Capacity100ah

Read more less

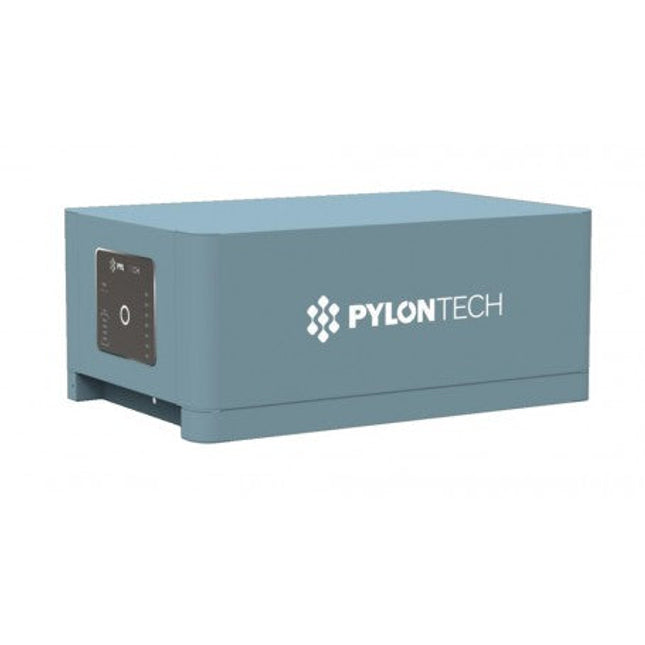

Part No: PYL-F-H2-BMU-BASE Storage Systems - Battery Base External BMU for the Force H2 Batteries. Each BMU can take 2 to 4 Force H2 batteries and it is required for comunication between the batteries. Supplier Part No: FC0500MA01V00101 Weight: 13.5 kg

Read more less

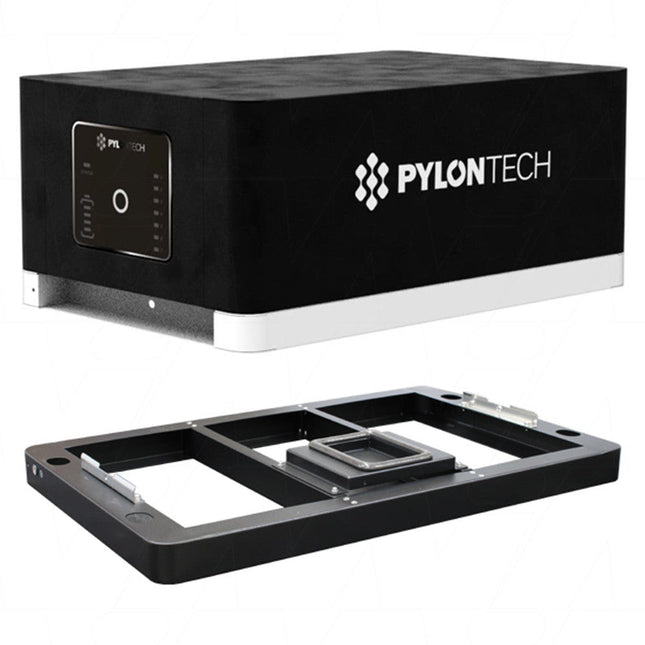

Part No: PYL-L2-BMU-BASE Storage Systems - Battery Base External BMU for the Force L2 Batteries. Each BMU can take 2 to 4 Force L2 batteries and it is required for comunication between the batteries for all Force L2 system. Supplier Part No: FC0048MA02V00101 Weight: 17.5 kg

Read more less

ManufacturerPylon Technologies Accessory Product TypeCommunication Commodity Code85367000 Dimensions (mm) (H x W x D)44 x 442 x 150 The Pylontech LV-Hub is essential for communication and connectivity of either US2000 or US3000 batteries.    The Hub is for connecting up to five stacks of Pylontech batteries, connecting to the first ‘master battery’ of each stack. Each battery stack can configure max 8pcs of US2000 & max. 12pcs of US3000 battery modules. When each battery group’s current is 120A, the battery group must configure 2 pairs of external power cables. The Hub connects vis RS485/CAN Communication cables.  LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection. The LV-Hub can manage up to 5 groups of 8 x Pylon US2000B Plus or 8 x Pylon US3000B battery modules for up to 140kWh's of storage.  The LV-Hub is required when 9 or more solar batteries are used with a system that requires communication.  NOTE: For warranty purposes, the LV-Hub is considered a component of the solar battery system and is therefore covered by the battery warranty terms.   CLICK HERE FOR SPEC SHEET

Read more less

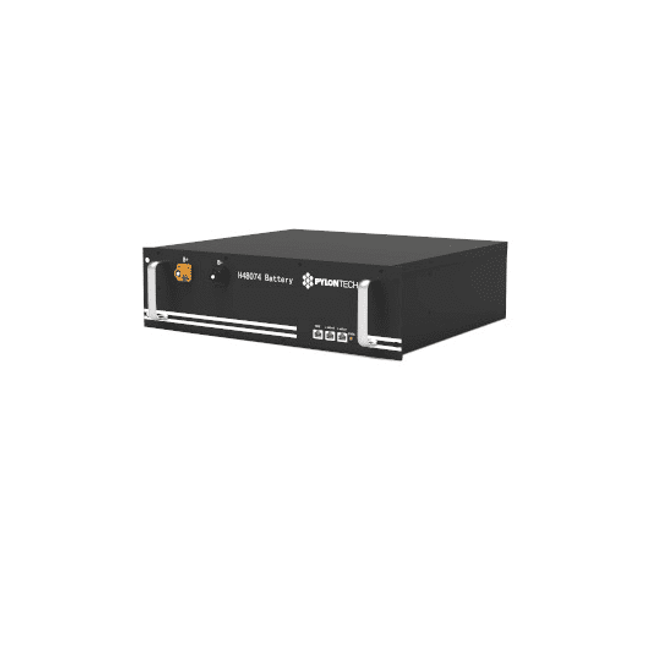

Part No: PYL-PC-H2-BATT Storage Systems - Li-ion Battery Pack Powercube series products with its modular design concept, enables the highest flexibility both for rack mounted and container based constructions, giving the flexibilities for customer to deploy the system. Configurable from units of 5 - 12 modules per system, the system can supply 240 - 864V for high Voltage applications.  Product features -Modular and Scalable         5 – 12 modules per rack and up to 6 racks in series -Flexible BMS voltage range         From 240VDC to 864VDC -LiFePO4 technology         For safety and long cycle life -High System Safety         BMS has charge, current and temperature protection -Flexible configuration options         Rack mounted or container-based systems Each Battery module comes with 1 x Communication Cable and 1 x Orange Power Cable NB. Please note:   A BMS unit and external cable kit is required for each individual stack of batteries.    A minimum of 5x battery modules is required for BMS operation.   For installations with two BMS units and more an MBMS is required.       You can register the Pylon Powercube for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.   Supplier Part No: H48074NA01V00101 Weight: 30 kg Battery Type: Lithium Ion Nominal Energy: 3552 Wh Depth of discharge: 90.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 1776 W Maximum Discharge Rate (5 Minutes): 3552 W Surge Discharge Rate (15 Seconds): 3552 W Maximum Charge Rate (5 Minutes): 3552 W Data Sheet Powercube H2

Read more less

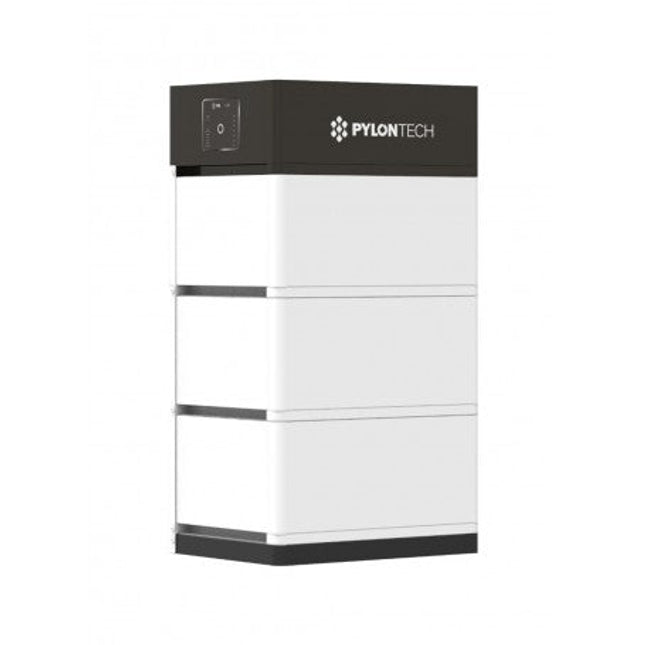

3 UNITS IN STOCK Part No: PYL-L2-BMU-BASE-L10.65 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 3 x PYL-L2-BATT Pylon Force-L2 Li-ion Battery Module 3.55kWh FL4874M   1 x PYL-L2-BMU-BASE Pylon Force-L2 BMU with Base FC0048M-100   Pylon Force-L2 Low Voltage System 10.65kWh This product package consists of 3x Force-L2 battery modules with 3.55kWh capacity each plus 1x Force-L2 base with BMU. Pylontech's Force-L2 is a home energy storage system (HESS) using a modern, modular design combined with easy installation, simple connectors and outdoor compatibility. Benefits Of The Force-L2 System Modular design enables quick and secure installation with no exposed wiring and connectors LFP technology provides long cell life and high safety Stylish design suits both indoor and outdoor installation (with appropriate protection) Proven BMS with wide inverter compatibility Pylontech Force-L2 is a home energy storage system (HESS) using a modern, modular design combined with easy installation, simple connectors and outdoor compatibility.   Weight: 131.5 kg Battery Type: Lithium Ion Nominal Energy: 10650 Wh Depth of discharge: 90.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 4800 W Maximum Discharge Rate (5 Minutes): 4800 W Surge Discharge Rate (15 Seconds): 5040 W Maximum Charge Rate (5 Minutes): 4800 W Data Sheet Force-L1 and Force L-2 data

Read more less

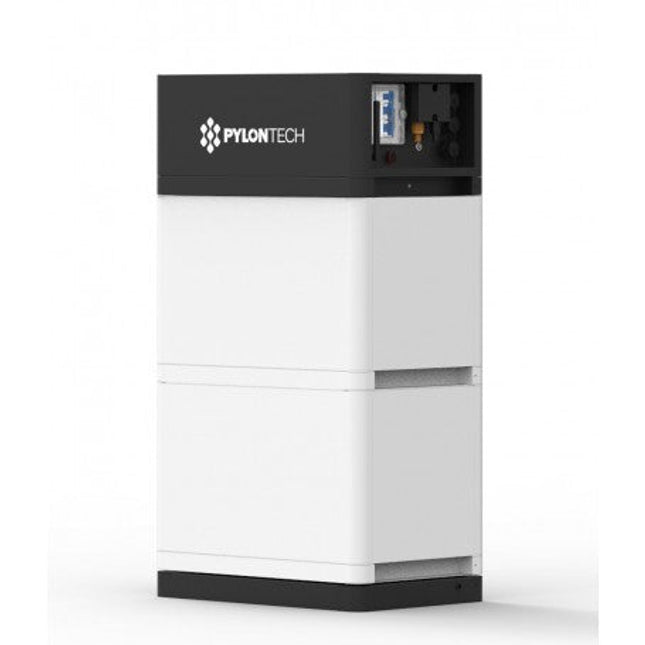

3 Units in stock for next day delivery (pre 2pm) Part No: PYL-L2-BMU-BASE-L7.10 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 2 x PYL-L2-BATT Pylon Force-L2 Li-ion Battery Module 3.55kWh FL4874M   1 x PYL-L2-BMU-BASE Pylon Force-L2 BMU with Base FC0048M-100   Pylon Force-L2 Low Voltage System 7.10kWh This product package consists of 2x Force-L2 battery modules with 3.55kWh capacity each plus 1x Force-L2 base with BMU. Pylontech's Force-L2 is a home energy storage system (HESS) using a modern, modular design combined with easy installation, simple connectors and outdoor compatibility. Benefits Of The Force-L2 System Modular design enables quick and secure installation with no exposed wiring and connectors LFP technology provides long cell life and high safety Stylish design suits both indoor and outdoor installation (with appropriate protection) Proven BMS with wide inverter compatibility   Weight: 93.5 kg Battery Type: Lithium Ion Nominal Energy: 7100 Wh Depth of discharge: 90.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 3552 W Maximum Discharge Rate (5 Minutes): 3552 W Surge Discharge Rate (15 Seconds): 5040 W Maximum Charge Rate (5 Minutes): 3552 W Data Sheet Force-L1 and Force L-2 data

Read more less

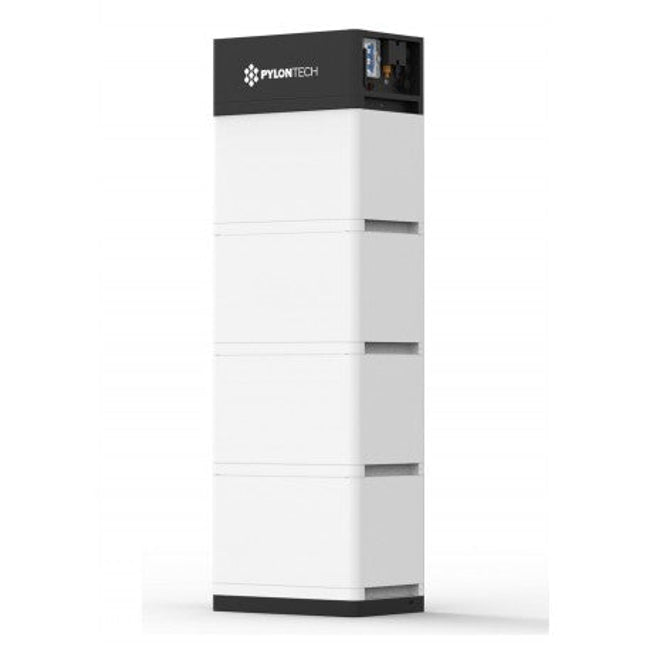

6 UNITS IN STOCK Part No: PYL-L2-BMU-BASE-L14.20 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 4 x PYL-L2-BATT Pylon Force-L2 Li-ion Battery Module 3.55kWh FL4874M   1 x PYL-L2-BMU-BASE Pylon Force-L2 BMU with Base FC0048M-100   Pylon Force-L2 Low Voltage System 14.2kWh This product package consists of 4x Force-L2 battery modules with 3.55kWh capacity each plus 1x Force-L2 base with BMU. Pylontech's Force-L2 is a home energy storage system (HESS) using a modern, modular design combined with easy installation, simple connectors and outdoor compatibility. Benefits Of The Force-L2 System Modular design enables quick and secure installation with no exposed wiring and connectors LFP technology provides long cell life and high safety Stylish design suits both indoor and outdoor installation (with appropriate protection) Proven BMS with wide inverter compatibility Weight: 169.5 kg Battery Type: Lithium Ion Nominal Energy: 14210 Wh Depth of discharge: 90.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 4800 W Maximum Discharge Rate (5 Minutes): 4800 W Surge Discharge Rate (15 Seconds): 5040 W Maximum Charge Rate (5 Minutes): 4800 W Data Sheet Force-L1 and Force L-2 data

Read more less

Part No: PYL-F-H2-BATT-96V Storage Systems - Li-ion Battery Pack The Force H2 is the latest version of High voltage battery storage system from Pylontech. The new system design provides an easy to connect that saves time for installers. Ideal for large home and small commercial applications, the stacking system provides flexibles configurations from 96V to 384V and 7.1kWh to 14.21kWh capacity. In other words, 2 to 4 modules can be used per system and the base PYL-F-H2-BMU-BASE is required.  Flexible Module Design Reliable Performance 90% DoD with more usable capacity IP 55 class protection Important MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS Please ensure that you check the inverter settings are below the maximum allowed voltage BEFORE plugging in the UTILITY/SOLAR to the inverter. Weight: 35 kg Battery Type: Lithium Ion Nominal Energy: 3552 Wh Depth of discharge: 90.00 % Voltage: 96 V Continuous Discharge Rate (Normal Use): 1776 W Maximum Discharge Rate (5 Minutes): 3840 W Surge Discharge Rate (15 Seconds): 3840 W Maximum Charge Rate (5 Minutes): 1776 W

Read more less

Part No: PYL-L2-BATT Storage Systems - Li-ion Battery Pack The Force L2 is another addition to the HESS(home energy storage system) from Pylontech. Inherit with Pylontech's modular design concept, combined with easy installation, simple connectors and outdoor compatibility it is the ideal storage solution that blends in with a home feeling or small commercial environment. The stacking system provides flexibles configurations from 7.1kWh to 14.21kWh capacity. In other words, 2 to 4 modules can be used per system and the base PYL-L2-BMU-BASE is required.  Flexible Module Design Reliable Performance Quick connector to save installation time 90% DoD with more usable capacity IP 55 class protection Important Please ensure that you check the inverter settings are below the maximum allowed voltage BEFORE plugging in the UTILITY/SOLAR to the inverter. Supplier Part No: FL4874MA02V00101 Weight: 38 kg Battery Type: Lithium Ion Nominal Energy: 3550 Wh Depth of discharge: 90.00 % Voltage: 48 V Continuous Discharge Rate (Normal Use): 1776 W Maximum Discharge Rate (5 Minutes): 1776 W Surge Discharge Rate (15 Seconds): 1776 W Maximum Charge Rate (5 Minutes): 1776 W

Read more less

2 UNITS IN STOCK Part No: PYL-F-H2-BMU-BASE-H7.10 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 2 x PYL-F-H2-BATT-96V Force-H2 Lithium 3.55kWh battery FH9637 module 96V 37AH   1 x PYL-F-H2-BMU-BASE Force H2 BMS with basement and cables (FC0500M)     Pylontech's Force-H2 is a home energy storage system (HESS) using a modern, modular design combined with easy installation, simple connectors and outdoor compatibility. Benefits Of The Force-H2 System Modular design enables quick and secure installation with no exposed wiring and connectors Stylish design suits both indoor and outdoor installation (with appropriate protection) Proven BMS with wide inverter compatibility Important MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS Weight:83.5 kg Data Sheet Pylontech H1 & H2

Read more less

The PylonTech FORCE H2 14.21KWh Li-Ion Solar Panel Battery Storage is both for grid tie and off-grid solar battery storage solutions Nominal Energy: 14.2 Kwh DOD: 90% This product package consists of 4 x Pylontech Force-H2 Lithium battery FH9637 module. 96V 37A each plus 1 x Force H2 BMS with basement and cables.   The PylonTech FORCE H2 14.21KWh Li-Ion Solar Panel Battery Storage is the latest version of HESS (home energy storage system), inherit with our modular design concept, combined wih easy installation, simple connectors and outdoor compatibility, the furniture type of equipment is your ideal place to hold your valuable force – the electricity. Vertical industry integration of the 14.21 energy storage ensures more than 90% DoD Compact and fashionable design fits in your sweet home environment Modular design gives the end customers the power of choice of capacity Pylontech Force H2 14.21 is compatible with large number of Hybrid inverters Simple buckle fixing minimize the installation time and cost Safety Cert.TÜV CE UN38.3 BENEFITS OF THE PYLONTECH PYLON FORCE H2 14.21 Modular design enables quick and secure installation with no exposed wiring and connectors LFP technology provides long cell life and high safety Stylish design suits both indoor and outdoor installation Pylontech Force H2 14.21 has a proven BMS with wide inverter compatibility MAX DISCHARGE RATE OF THE 14.21 KWH BATTERY IS ONLY APPLICABLE FOR +- 60 SECONDS !!! Pylon Technologies, Co. Ltd, founded in 2009, is pioneering the LIB (lithium ion battery) ESS (energy storage system) and EV (electrical vehicle) market globally. With self-developed core technologies in the cathode material, battery cell and BMS (battery management system), Pylontech is among the very few companies who had vertically integrated the whole lithium battery industrial chain. Starting from 2010, Pylontech’s solutions had been widely deployed with residential/ commercial/grid tied storage systems, vehicle starting battery, emergency power for iCloud. We will continue serving our high end customers with stable qualities and non-stop innovation.  The best li-ion solar batteries from NASDAQ, Bloomberg and Fortune 500 listed battery manufacturers at best price; suitable for all weather conditions. Data Sheet Pylontech H1 & H2

Read more less
