Canadian Solar EP Cube 7.6kW Single-Phase Hybrid Inverter + 5kWh storage system

Ideal for new and existing solar panel installations, the EP Cube from renowned manufacturer Canadian Solar offers excellent flexibility and intelligent software management. This 7.6kW single-phase hybrid inverter is designed to work with a modular battery which delivers 5kWh of solar battery storage.

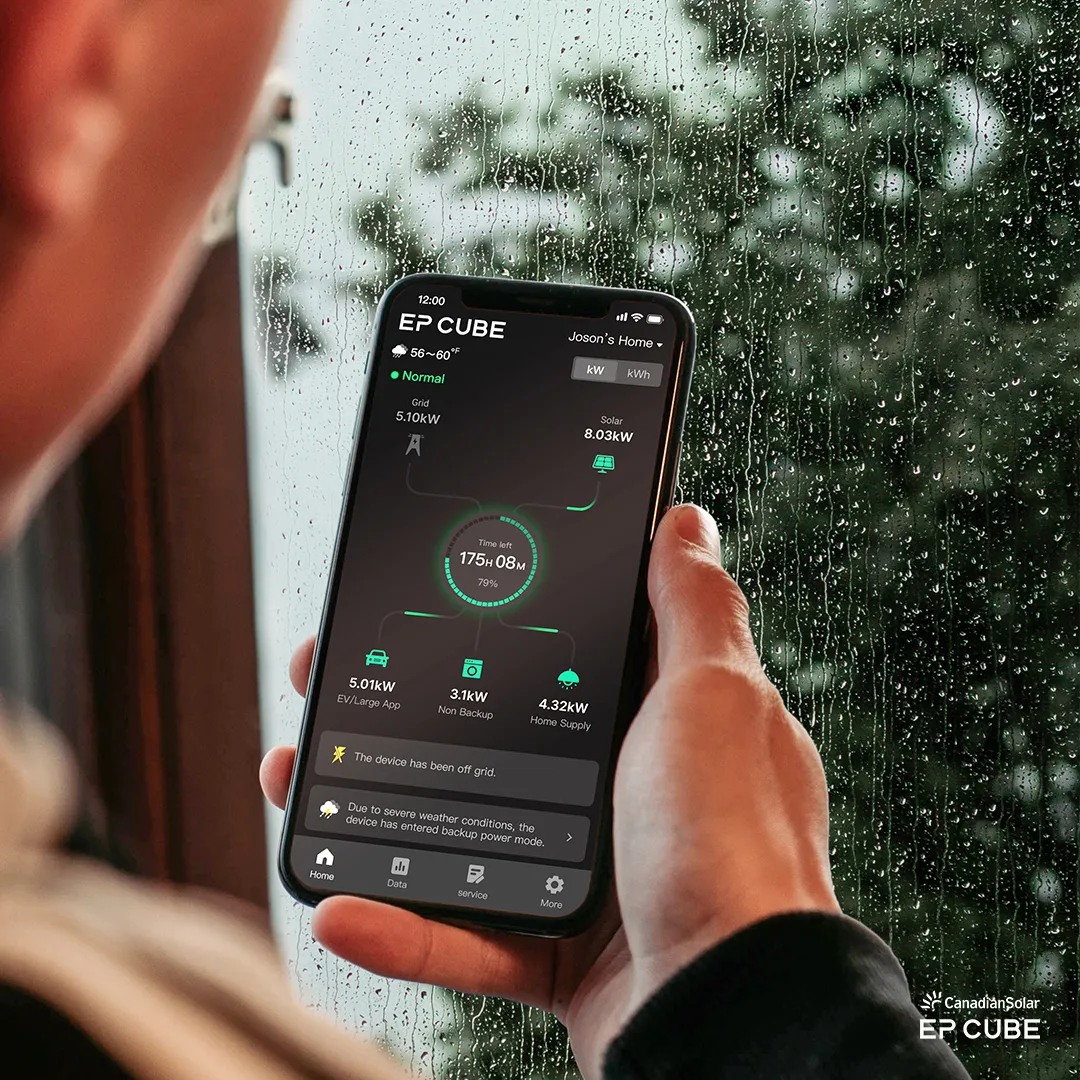

Its modular setup makes it easy to transport and install, and gives you the flexibility to scale up your battery storage when you need to. With over-the-air upgrades, its firmware is always up-to-date, while the mobile app offers real-time monitoring and management.

Key features:

1. Flexible and intelligent hybrid inverter
2. Compatible with the EP Cube modular battery
3. Two MPPTs each with one string
4. Allows up to 16A DC PV input per MPPT
5. Automated power supply in case of grid outage
6. Compatible with new and existing PV systems
7. Easy to manage with an LED display and mobile app
8. Real-time monitoring generation, storage and consumption of electricity
9. Automatic weather alerts to manage storage capacity
10. Over-the-air firmware updates
11. Integrated protection against overcurrent, short circuit anti-islanding and many more
12. Compatible with EV chargers up to 7.4kW
13. Ingress protection: IP67 (once stacked together)
14. Weight: 40kg
15. 10-year warranty

Battery -

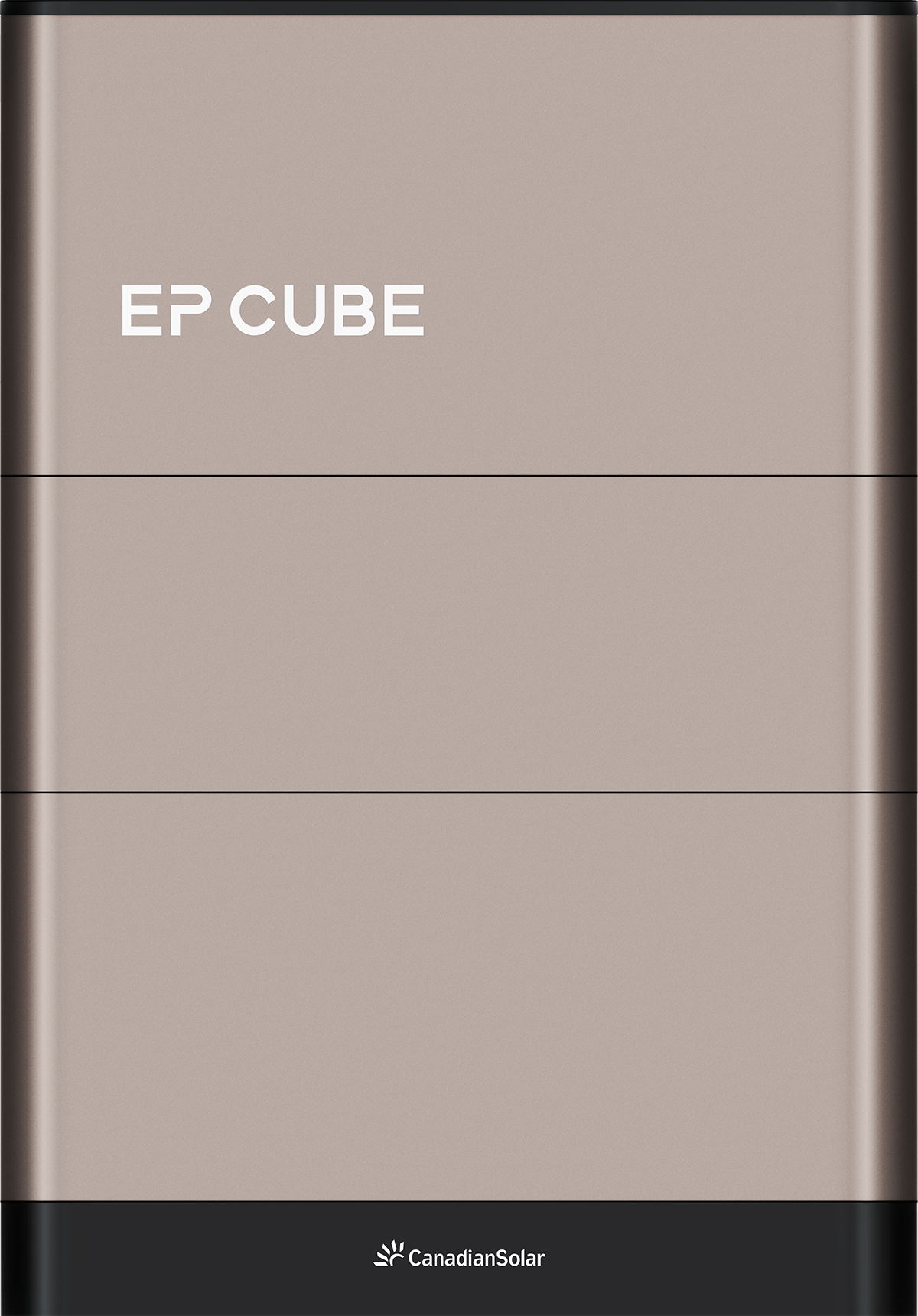

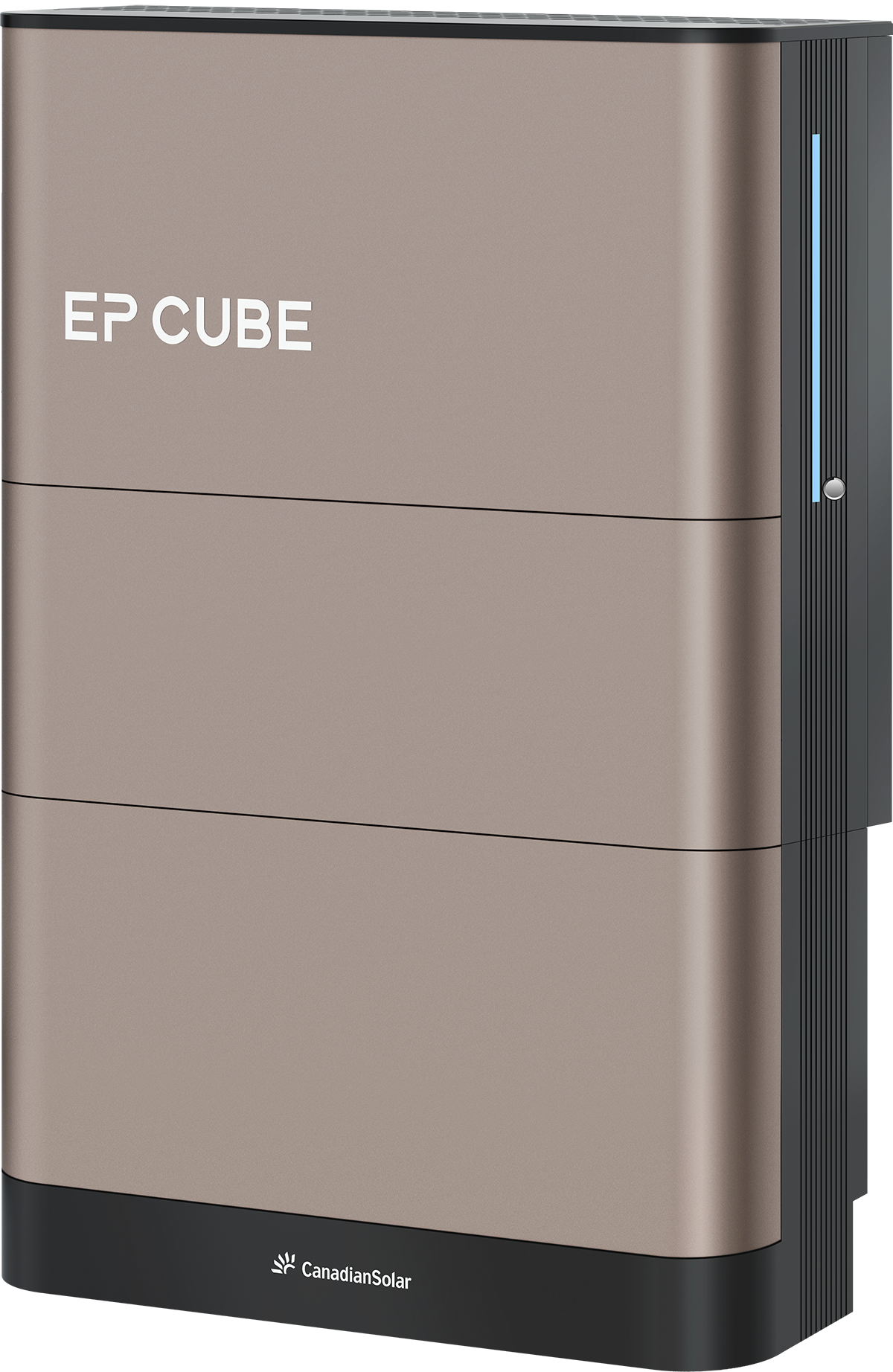

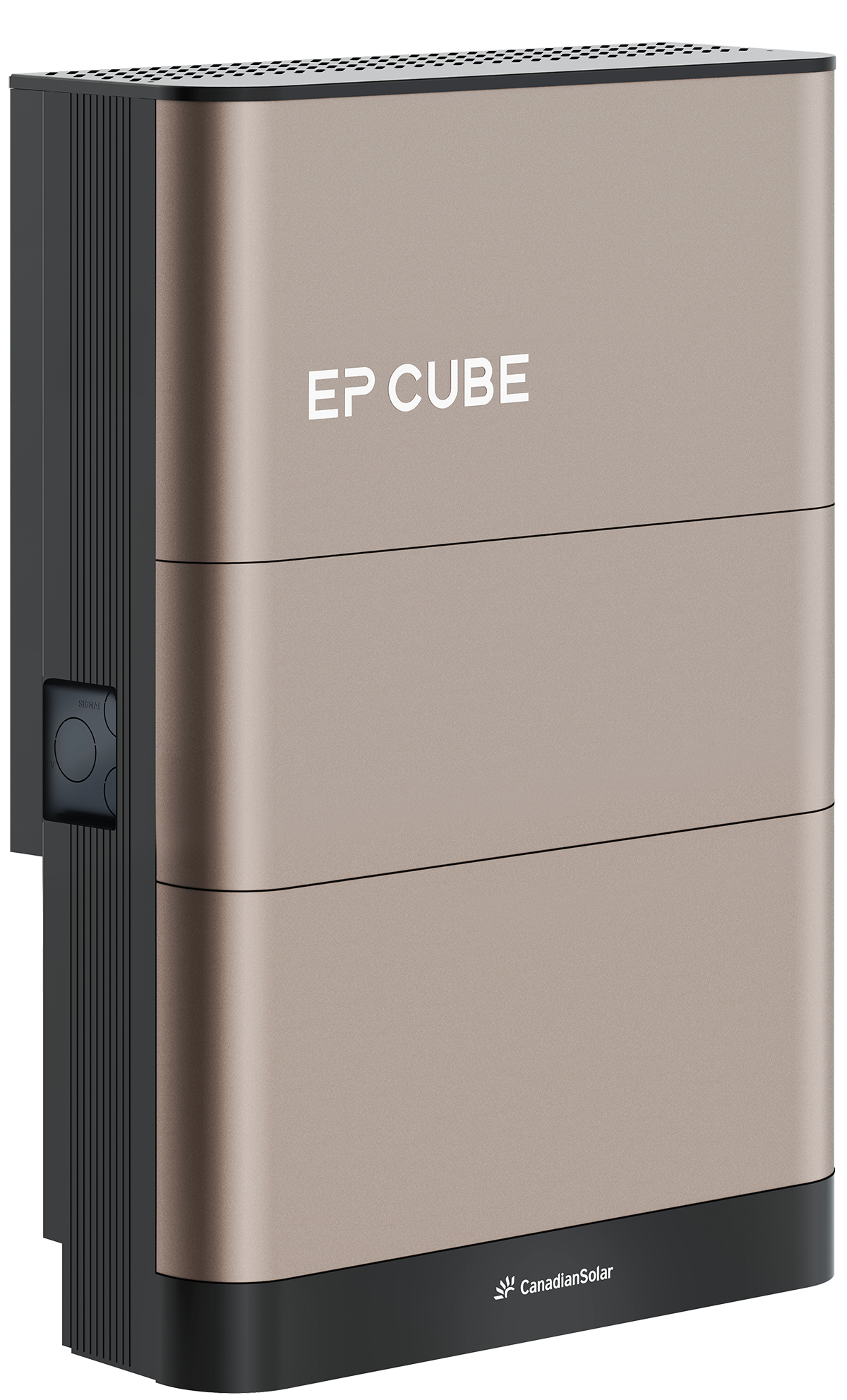

Ideal for new and existing solar panel installations, the EP Cube from renowned manufacturer Canadian Solar offers excellent flexibility and intelligent software management. This 5kWh solar battery is designed to work with the 7.6kW hybrid inverter.

Its modular setup makes it easy to transport and install, and gives you the flexibility to scale up your battery storage when you need to. With over-the-air upgrades, its firmware is always up-to-date, while the mobile app offers real-time monitoring and management.

Key features:

1. Flexible and intelligent solar battery module
2. Compatible with the EP Cube hybrid inverter
3. Made with LiFEPO4 cell technology
4. Automated power supply in case of grid outage
5. Compatible with new and existing PV systems
6. Easy to manage with an LED display and mobile app
7. Real-time monitoring generation, storage and consumption of electricity
8. Automatic weather alerts to manage storage capacity
9. Over-the-air firmware updates
10. Integrated protection against overcurrent, short circuit anti-islanding and many more
11. Compatible with EV chargers up to 7.4kW
12. Ingress protection: IP67 (once stacked together)
13. Depth of discharge: 100%
14. Dimensions: 600mm (W) x 266mm (H) x 200mm (D)
15. Weight: 42kg
16. 10-year warranty
