Hanchu ESS Inverters

Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh Ultra Performance High PV Input Capability Supports up to 150% oversizing to allow maximum annual generation. Peak Efficiency Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output. Powerful Charge and Discharge Handles up to 100A (5kW) charge/discharge from batteries allowing fast charging and covering larger loads. Reliable Operation Emergency Power Supply (EPS) Backup power is available for critical installations that require uninterrupted operation during power outages. Rapid Switch Time Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages. Shadow Scan Feature Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade. Smart Energy Management Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.   Octopus Tariff Integration Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates. Smart Weather Compensation Automatically adjusts settings in response to weather conditions to maximise energy efficiency.   HANCHU ESS - SINGLE PHASE HYBRID INVERTER - CLICK HERE FOR FEATURES   12 Years Warranty On All Hanchu Products. All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more. HESS-HY-S-6.0K The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios. Technical Specifications PV Input Max. PV array power : 9000Wp Max. input voltage : 550V MPPT voltage range / rated input voltage : 40V to 530V/380V Min. input voltage / start voltage : 40V/50V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 16A Max. short-circuit current per MPP tracker : 20A Battery Input Nominal battery voltage : 48V/51.2V Battery voltage range : 40V to 60V Max. charging / discharge power : 5000W/5000W Max. charging current / Max. discharging current : 100A/100A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 180V to 280V/230V Rated AC grid frequency : 50Hz / 60Hz Rated apparent power : 6000VA Max. apparent power : 6000VA Rated grid output current (@230V) : 26.1A Max. grid output current : 27.3A AC Input Rated grid voltage : a.c.230V Rated apparent power : 6000VA Max. input apparent power from grid : 6000VA Rated input curent from grid : a.c.26.1 A Max. input current from grid : a.c.27.3 A EPS Output Nominal output voltage : 230V Nominal output frequency : 50 Hz/ 60Hz Rated apparent power : 5000VA Max. output apparent power : 5000VA Peak output apparent power : 7500 VA | 10s Max. output current : 21.7A Max. switch time : ≤10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97%/97.6% Max. battery to load efficiency : 94.70% General Data Dimensions (W*H*D) (mm) : 483*455*193.5 Device weight : 25.1Kg Operating temperature range : -25℃ ~60℃ Noise emissions (typical) : 30 dB(A) Standby consumption : ＜10 W Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : RS485 / CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/4G/Bluetooth Other communication : DRM Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/G98/G99/G100/VDE 4105/VFR 2019/NRS 097/CEI 0-21/NTS/IEC 61683/IEC 61727/IEC 62116 Warranty : 12 years

Read more less

Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh   Ultra Performance High PV Input Capability Supports up to 150% oversizing to allow maximum annual generation. Peak Efficiency Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output. Powerful Charge and Discharge Handles up to 100A (5kW) charge/discharge from batteries allowing fast charging and covering larger loads. Reliable Operation Emergency Power Supply (EPS) Backup power is available for critical installations that require uninterrupted operation during power outages. Rapid Switch Time Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages. Shadow Scan Feature Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade. Smart Energy Management Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.   Octopus Tariff Integration Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates. Smart Weather Compensation Automatically adjusts settings in response to weather conditions to maximise energy efficiency.   HANCHU ESS - SINGLE PHASE HYBRID INVERTER - CLICK HERE FOR FEATURES   12 Years Warranty On All Hanchu Products. All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more. HESS-HY-S-5.0K The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios. Technical Specifications PV Input Max. PV array power : 7500Wp Max. input voltage : 550V MPPT voltage range / rated input voltage : 40V to 530V/380V Min. input voltage / start voltage : 40V/50V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 16A Max. short-circuit current per MPP tracker : 20A Battery Input Nominal battery voltage : 48V/51.2V Battery voltage range : 40V to 60V Max. charging / discharge power : 5000W/5000W Max. charging current / Max. discharging current : 100A/100A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 180V to 280V/230V Rated AC grid frequency : 50Hz / 60Hz Rated apparent power : 5000VA Max. apparent power : 5000VA Rated grid output current (@230V) : 21.7A Max. grid output current : 22.7A AC Input Rated grid voltage : a.c.230V Rated apparent power : 6000VA Max. input apparent power from grid : 6000VA Rated input curent from grid : a.c.26.1 A Max. input current from grid : a.c.27.3 A EPS Output Nominal output voltage : 230V Nominal output frequency : 50 Hz/ 60Hz Rated apparent power : 5000VA Max. output apparent power : 5000VA Peak output apparent power : 7500 VA | 10s Max. output current : 21.7A Max. switch time : ≤10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97%/97.6% Max. battery to load efficiency : 94.70% General Data Dimensions (W*H*D) (mm) : 483*455*193.5 Device weight : 25.1Kg Operating temperature range : -25℃ ~60℃ Noise emissions (typical) : 30 dB(A) Standby consumption : ＜10 W Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : RS485 / CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/4G/Bluetooth Other communication : DRM Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/G98/G99/G100/VDE 4105/VFR 2019/NRS 097/CEI 0-21/NTS/IEC 61683/IEC 61727/IEC 62116 Warranty : 12 years

Read more less

Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh Ultra Performance High PV Input Capability Supports up to 150% oversizing to allow maximum annual generation. Peak Efficiency Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output. Powerful Charge and Discharge Handles up to 100A (5kW) charge/discharge from batteries allowing fast charging and covering larger loads. Reliable Operation Emergency Power Supply (EPS) Backup power is available for critical installations that require uninterrupted operation during power outages. Rapid Switch Time Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages. Shadow Scan Feature Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade. Smart Energy Management Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.   Octopus Tariff Integration Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates. Smart Weather Compensation Automatically adjusts settings in response to weather conditions to maximise energy efficiency.  HANCHU ESS - SINGLE PHASE HYBRID INVERTER - CLICK HERE FOR FEATURES   12 Years Warranty On All Hanchu Products. All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more. HESS-HY-S-3.68K The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios. Technical Specifications PV Input Max. PV array power : 6180Wp Max. input voltage : 550V MPPT voltage range / rated input voltage : 40V to 530V/380V Min. input voltage / start voltage : 40V/50V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 16A Max. short-circuit current per MPP tracker : 20A Battery Input Nominal battery voltage : 48V/51.2V Battery voltage range : 40V to 60V Max. charging / discharge power : 5000W/5000W Max. charging current / Max. discharging current : 100A/100A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 180V to 280V/230V Rated AC grid frequency : 50Hz / 60Hz Rated apparent power : 3680VA Max. apparent power : 3680VA Rated grid output current (@230V) : 16A Max. grid output current : 16A AC Input Rated grid voltage : a.c.230V Rated apparent power : 6000VA Max. input apparent power from grid : 6000VA Rated input curent from grid : a.c.26.1 A Max. input current from grid : a.c.27.3 A EPS Output Nominal output voltage : 230V Nominal output frequency : 50 Hz/ 60Hz Rated apparent power : 5000VA Max. output apparent power : 5000VA Peak output apparent power : 7500 VA | 10s Max. output current : 21.7A Max. switch time : ≤10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97%/97.6% Max. battery to load efficiency : 94.70% General Data Dimensions (W*H*D) (mm) : 483*455*193.5 Device weight : 25.1Kg Operating temperature range : -25℃ ~60℃ Noise emissions (typical) : 30 dB(A) Standby consumption : ＜10 W Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : RS485 / CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/4G/Bluetooth Other communication : DRM Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/G98/G99/G100/VDE 4105/VFR 2019/NRS 097/CEI 0-21/NTS/IEC 61683/IEC 61727/IEC 62116 Warranty : 12 years

Read more less

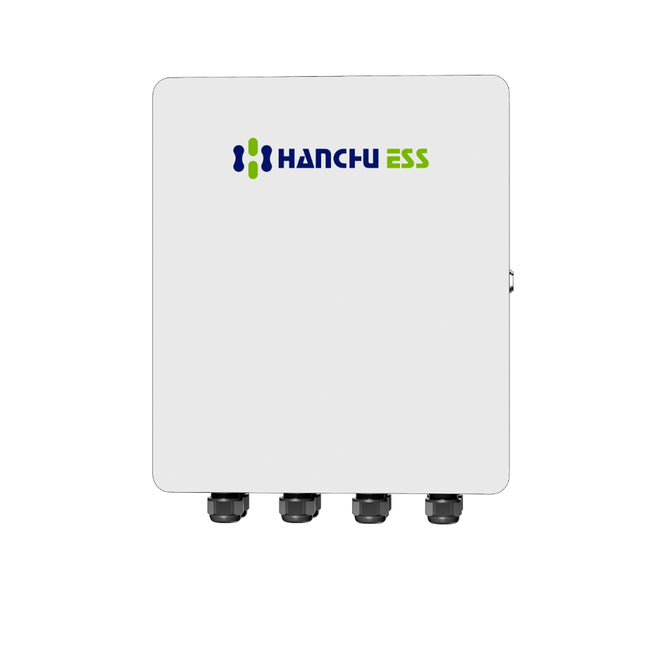

Superior Performance HESS-Gateway-M1 supports whole-home backup power and tiered backup power and 80ms UPS-level switching. User-Friendly Pre-installed meters make installation easier, and supports connection to heat pumps, EV chargers, and other controllable loads. Greater Functionality Supports PV Inverter for load power supply and bypass load function Technical Specifications Model: HESS-Gateway-M1 Nominal AC Input Voltage Range: 220/230/240V Max. AC Input Current (Grid): 100A Max. AC Input Current (PV INV): 32A Max. AC Output Current (Load): 100A Max. AC Output Current (Backup): 32A Max. AC Output Current (EV Charger): 32A Activation Methods: Grid Startup + Inverter Startup Operating Modes: On Grid + Off Grid Bypass Mode: Manual Ingress Protection Degree: IP65

Read more less

Compatible Products Hanchu High Voltage Battery 9.4kWh Hanchu High Voltage Battery 9.4kWh - BMS   Ultra Performance Exceptional Efficiency Achieves up to 98.8% peak efficiency, maximising the conversion of generated energy into usable power and significantly reducing energy costs. Robust Power Handling Supports up to 110% AC output overloading and up to 120% back-up output overloading for 60 seconds, ensuring reliable performance even during peak demand. Advanced Multi-MPPT Support Equipped with 4 MPPTs, enabling optimal solar energy capture across multiple roof orientations and shading conditions to maximise overall solar utilization. Reliable Operation Ultra-Fast Switching Time With EPS switching time of less than 20 milliseconds, it ensures continuity of critical operations without interruption during power outages. Broad Voltage Compatibility Supports an extensive battery voltage range from 135V to 750V, making it compatible with various high-voltage battery systems for greater versatility. Comprehensive Safety Protection Offers built-in surge protection, insulation resistance monitoring, and multi-layered safeguards against over-temperature and residual currents, ensuring protection for both the equipment and the premises. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Installation The horizontal design and quick plug-in terminals enable fast and convenient installation, minimising labour time and reducing complexity. Advanced Connectivity Offers simple configuration through WiFi via the iESS platform, streamlining setup and integration into existing systems. PV Input Max. PV array power : 54.0kW Max. input voltage : 1000V MPPT voltage range / rated input voltage : 200-850V Min. input voltage / start voltage : 135V No. of independent MPPT trackers / strings per MPPT input : 4 Max. input current per MPP tracker : 30A Max. short-circuit current per MPP tracker : 40A Battery Input Nominal battery voltage : / Battery voltage range : 135-750V Max. charging / discharge power : 36000W Max. charging current / Max. discharging current : 100A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 3L/N/PE;220/380V;230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 36.0kW Max. apparent power : 39.6kVA Rated grid output current (@230V) : / Max. grid output current : 60.0A AC Input Rated grid voltage : 3L/N/PE;220/380V;230/400V;240/415V Rated apparent power : 36.0kW Max. input apparent power from grid : 43.5kVA Rated input curent from grid : / Max. input current from grid : / EPS Output Nominal output voltage : 3L/N/PE;220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 36.0kW Max. output apparent power : 33.0kVA Peak output apparent power : 43.5kVA | 60S Max. output current : 60.0A Max. switch time : ＜20ms Efficiency MPPT efficiency : 98.80% Euro efficiency / Max. efficiency : 98.30% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 800*620*300 Device weight : 76.0Kg Operating temperature range : -30℃~+60℃ Noise emissions (typical) : ＜50dB Standby consumption : ＜15W Degree of protection (as per lEC 60529) : IP65 Features User interface : OLED&LED&APP Communication with BMS : / Communication with meter : / Communication with portal : / Other communication : / Communication : RS485/CAN/WiFi/LAN(Optional) Integrated power control / Zero export control : Integrated/Integrated Certifications : IEC 62109/EN 61000/EN 50549-1/NTS/VDE-4105/G99/G100/CEI/NRS 097/CEI 0-21/NEN Warranty : 12 years

Read more less

Compatible Products Hanchu High Voltage Battery 5.12kWh Hanchu High Voltage Battery 5.12kWh - BMS Hanchu High Voltage Battery 2.7kWh Hanchu High Voltage Battery 2.7kWh - BMS Ultra Performance 150% PV Array Over-Sizing Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design. 100% Unbalanced Three Phase Output Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency. Bifacial and High-Power PV Module Support Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings. Reliable Operation Robust IP66 Enclosure Provides high level of protection against dust and water, making it suitable for outdoor installations. Ultra-Fast Switching Time With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations. Shadow Scan Feature Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Fix DC Connections Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections. Wide Compatibility Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems. PV Input Max. PV array power : 18000Wp Max. input voltage : 1100V MPPT voltage range / rated input voltage : 200V to 950V/630V Min. input voltage / start voltage : 60V/180V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 20A Max. short-circuit current per MPP tracker : 30A Battery Input Nominal battery voltage : / Battery voltage range : 120V to 600V Max. charging / discharge power : 12000W Max. charging current / Max. discharging current : 36A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 270V to 480V /3/N/PE | 220/380V; 230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 12000VA Max. apparent power : 12000VA Rated grid output current (@230V) : 17.4A Max. grid output current : 19.2A AC Input Rated grid voltage : 3/N/PE | 220/380V;230/400V;240/415V Rated apparent power : 24000W Max. input apparent power from grid : / Rated input curent from grid : / Max. input current from grid : 34.8A EPS Output Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 12000VA Max. output apparent power : / Peak output apparent power : 2 times of rated power | 10s Max. output current : 17.4A Max. switch time : ＜10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97.9%/98.4% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 545*465*205 Device weight : 24.5Kg Operating temperature range : -25℃~+60℃ Noise emissions (typical) : / Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/5G/Bluetooth Other communication : / Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/ G98/G99/G100/CEI 0-21/NEN Warranty : 12 years

Read more less

Compatible Products Hanchu High Voltage Battery 5.12kWh Hanchu High Voltage Battery 5.12kWh - BMS Hanchu High Voltage Battery 2.7kWh Hanchu High Voltage Battery 2.7kWh - BMS Ultra Performance 150% PV Array Over-Sizing Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design. 100% Unbalanced Three Phase Output Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency. Bifacial and High-Power PV Module Support Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings. Reliable Operation Robust IP66 Enclosure Provides high level of protection against dust and water, making it suitable for outdoor installations. Ultra-Fast Switching Time With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations. Shadow Scan Feature Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Fix DC Connections Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections. Wide Compatibility Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems. PV Input Max. PV array power : 9000Wp Max. input voltage : 1100V MPPT voltage range / rated input voltage : 150V to 950V/630V Min. input voltage / start voltage : 60V/180V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 20A Max. short-circuit current per MPP tracker : 30A Battery Input Nominal battery voltage : / Battery voltage range : 120V to 600V Max. charging / discharge power : 6000W Max. charging current / Max. discharging current : 36A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 270V to 480V /3/N/PE | 220/380V; 230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 6000VA Max. apparent power : 6000VA Rated grid output current (@230V) : 8.7A Max. grid output current : 9.6A AC Input Rated grid voltage : 3/N/PE | 220/380V;230/400V;240/415V Rated apparent power : 12000W Max. input apparent power from grid : / Rated input curent from grid : / Max. input current from grid : 17.4A EPS Output Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 6000VA Max. output apparent power : / Peak output apparent power : 2 times of rated power | 10s Max. output current : 8.7A Max. switch time : ＜10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97.5%/98.2% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 545*465*205 Device weight : 24.5Kg Operating temperature range : -25℃~+60℃ Noise emissions (typical) : / Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/5G/Bluetooth Other communication : / Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/ G98/G99/G100/CEI 0-21/NEN Warranty : 12 years

Read more less

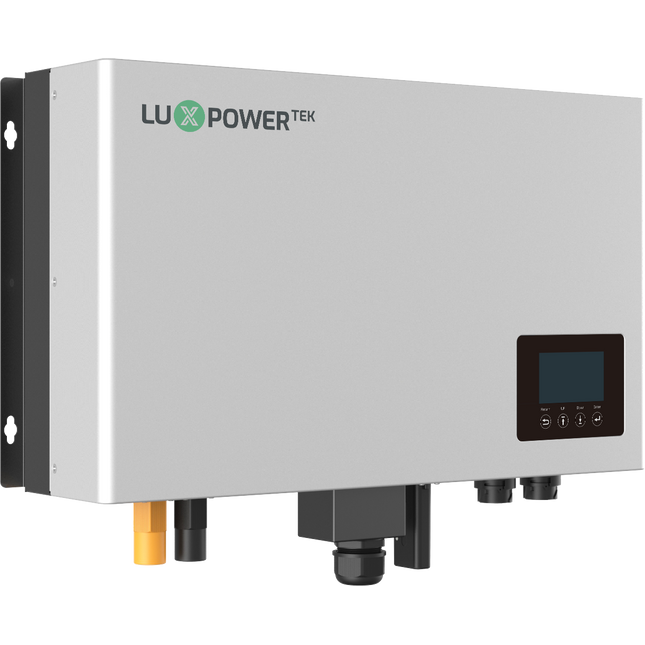

Manufacturer Code: ACS 3600 Order Code: LUX-AC-STANDARD Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh Introduction Luxpower’s ACS Inverter is a retrofit solution designed for transforming existing on-grid systems into efficient energy storage systems. This lightweight and compact inverter serve as the ideal choice for retrofitting and upgrading your current on-grid setup. While it cannot directly connect to PV panels, its primary purpose is to facilitate the transformation of your existing grid-tied system. Key Features Retrofit any on-grid/micro-grid system to energy storage system Allows up to eight batteries connected Battery charging/discharging current: 70A Compatible with dynamic Octopus energy pricing Advanced weather compensation programming On/off grid seamless switching Separate EPS port for flexible load management Free monitoring – For mobile & web portal (PC)   PV Input Max. PV array power : N/A Max. input voltage : N/A MPPT voltage range / rated input voltage : N/A Min. input voltage / start voltage : N/A No. of independent MPPT trackers / strings per MPPT input : N/A Max. input current per MPP tracker : N/A Max. short-circuit current per MPP tracker : N/A Battery Input Nominal battery voltage : 48V Battery voltage range : 40V to 60V Max. charging / discharge power : 3600W Max. charging current / Max. discharging current : 70A Battery type : Lithium-ion AC Output AC voltage range / Nomlnal AC voltage : 230V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 3600W Max. apparent power : Rated grid output current (@230V) : 16A Max. grid output current : AC Input Rated grid voltage : 230V Rated apparent power : 6000W Max. input apparent power from grid : Rated input curent from grid : Max. input current from grid : 26A EPS Output Nominal output voltage : 230V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : Max. output apparent power : 3600w Peak output apparent power : 4500W | 30s Max. output current : 16A Max. switch time : 20ms Efficiency MPPT efficiency : Euro efficiency / Max. efficiency : 97.0%/97.3% Max. battery to load efficiency : 94.50% General Data Dimensions (W*H*D) (mm) : 550*320*110 Device weight : 15.6Kg Operating temperature range : -25℃~+60℃ Noise emissions (typical) : <25dB Standby consumption : <10 Degree of protection (as per lEC 60529) : IP65 Features User interface : LCD & APP Communication with BMS : RS485/WiFi/CAN Communication with meter : Communication with portal : Other communication : Wi-Fi Communication : LCD/ LED/RS485/ Wi-Fi/ CAN Integrated power control / Zero export control : Certifications : IEC62109-1 | IEC62040| EN 61000-6-1:2007 | EN 61000-6-3:2007+A1:2011+ AC:2012 | EN 61000-3-2:2014 | EN 61000-3-3:2013 | VDE-AR-N 4105 Warranty : 12 years

Read more less

Manufacturer Code: HESS-HY-T-20K Order Code: HC-20kW-3 Phase Controller Ultra Performance 150% PV Array Over-Sizing Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design. 100% Unbalanced Three Phase Output Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency. Bifacial and High-Power PV Module Support Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings. Reliable Operation Robust IP65 Enclosure Provides high level of protection against dust and water, making it suitable for outdoor installations. Ultra-Fast Switching Time With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations. Shadow Scan Feature Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Fix DC Connections Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections. Wide Compatibility Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems.

Read more less

Compatible Products Hanchu High Voltage Battery 5.12kWh Hanchu High Voltage Battery 5.12kWh - BMS Hanchu High Voltage Battery 2.7kWh Hanchu High Voltage Battery 2.7kWh - BMS   Manufacturer Code: HESS-HY-T-8K Order Code: HC-8kW-3 Phase Controller Ultra Performance 150% PV Array Over-Sizing Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design. 100% Unbalanced Three Phase Output Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency. Bifacial and High-Power PV Module Support Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings. Reliable Operation Robust IP66 Enclosure Provides high level of protection against dust and water, making it suitable for outdoor installations. Ultra-Fast Switching Time With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations. Shadow Scan Feature Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Fix DC Connections Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections. Wide Compatibility Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems.   PV Input Max. PV array power : 12000Wp Max. input voltage : 1100V MPPT voltage range / rated input voltage : 200V to 950V/630V Min. input voltage / start voltage : 60V/180V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 20A Max. short-circuit current per MPP tracker : 30A Battery Input Nominal battery voltage : / Battery voltage range : 120V to 600V Max. charging / discharge power : 8000W Max. charging current / Max. discharging current : 36A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 270V to 480V /3/N/PE | 220/380V; 230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 8000VA Max. apparent power : 8000VA Rated grid output current (@230V) : 11.6A Max. grid output current : 12.8A AC Input Rated grid voltage : 3/N/PE | 220/380V;230/400V;240/415V Rated apparent power : 16000W Max. input apparent power from grid : / Rated input curent from grid : / Max. input current from grid : 23.2A EPS Output Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 8000VA Max. output apparent power : / Peak output apparent power : 2 times of rated power | 10s Max. output current : 11.6A Max. switch time : ＜10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97.9%/98.4% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 545*465*205 Device weight : 24.5Kg Operating temperature range : -25℃~+60℃ Noise emissions (typical) : / Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/5G/Bluetooth Other communication : / Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/ G98/G99/G100/CEI 0-21/NEN Warranty : 12 years

Read more less

Compatible Products Hanchu High Voltage Battery 5.12kWh Hanchu High Voltage Battery 5.12kWh - BMS Hanchu High Voltage Battery 2.7kWh Hanchu High Voltage Battery 2.7kWh - BMS Ultra Performance 150% PV Array Over-Sizing Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design. 100% Unbalanced Three Phase Output Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency. Bifacial and High-Power PV Module Support Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings. Reliable Operation Robust IP66 Enclosure Provides high level of protection against dust and water, making it suitable for outdoor installations. Ultra-Fast Switching Time With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations. Shadow Scan Feature Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Fix DC Connections Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections. Wide Compatibility Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems. PV Input Max. PV array power : 15000Wp Max. input voltage : 1100V MPPT voltage range / rated input voltage : 200V to 950V/630V Min. input voltage / start voltage : 60V/180V No. of independent MPPT trackers / strings per MPPT input : 2 / 1 Max. input current per MPP tracker : 20A Max. short-circuit current per MPP tracker : 30A Battery Input Nominal battery voltage : / Battery voltage range : 120V to 600V Max. charging / discharge power : 10000W Max. charging current / Max. discharging current : 36A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 270V to 480V /3/N/PE | 220/380V; 230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 10000VA Max. apparent power : 10000VA Rated grid output current (@230V) : 14.5A Max. grid output current : 16A AC Input Rated grid voltage : 3/N/PE | 220/380V;230/400V;240/415V Rated apparent power : 20000W Max. input apparent power from grid : / Rated input curent from grid : / Max. input current from grid : 29.0A EPS Output Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 10000VA Max. output apparent power : / Peak output apparent power : 2 times of rated power | 10s Max. output current : 14.5A Max. switch time : ＜10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97.9%/98.4% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 545*465*205 Device weight : 24.5Kg Operating temperature range : -25℃~+60℃ Noise emissions (typical) : / Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/5G/Bluetooth Other communication : / Communication : / Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/ G98/G99/G100/CEI 0-21/NEN Warranty : 12 years

Read more less

Manufacturer Code: HESS-HY-T-15K Order Code: HC-15kW 3 Phase Controller Ultra Performance 150% PV Array Over-Sizing Supports up to 150% over-sizing of the photovoltaic (PV) array, enabling greater energy generation and flexibility in system design. 100% Unbalanced Three Phase Output Ensures reliable and stable operation with full output capacity, even when loads are uneven across three phases, maximising system efficiency. Bifacial and High-Power PV Module Support Accommodates input currents up to 20A, making it ideal for modern bifacial and high-power PV modules that require higher current ratings. Reliable Operation Robust IP65 Enclosure Provides high level of protection against dust and water, making it suitable for outdoor installations. Ultra-Fast Switching Time With EPS switching time of less than 10 milliseconds, it ensures minimal interruption during power outages, crucial for sensitive electronics and critical operations. Shadow Scan Feature Enhances solar panel performance by optimising output even in non-ideal conditions, such as partial shading. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Fix DC Connections Equipped with Phoenix Contact connectors for quick and secure connections, streamlining the installation process with a hassle-free, push and click connections. Wide Compatibility Supports high-voltage batteries and offers straightforward interfaces for integrating batteries, smart meters, and current transformers (CTs), ensuring seamless compatibility with a variety of existing systems.

Read more less

Compatible Products Hanchu High Voltage Battery 9.4kWh Hanchu High Voltage Battery 9.4kWh - BMS   Ultra Performance Exceptional Efficiency Achieves up to 98.8% peak efficiency, maximising the conversion of generated energy into usable power and significantly reducing energy costs. Robust Power Handling Supports up to 110% AC output overloading and up to 120% back-up output overloading for 60 seconds, ensuring reliable performance even during peak demand. Advanced Multi-MPPT Support Equipped with 4 MPPTs, enabling optimal solar energy capture across multiple roof orientations and shading conditions to maximise overall solar utilization. Reliable Operation Ultra-Fast Switching Time With EPS switching time of less than 20 milliseconds, it ensures continuity of critical operations without interruption during power outages. Broad Voltage Compatibility Supports an extensive battery voltage range from 135V to 750V, making it compatible with various high-voltage battery systems for greater versatility. Comprehensive Safety Protection Offers built-in surge protection, insulation resistance monitoring, and multi-layered safeguards against over-temperature and residual currents, ensuring protection for both the equipment and the premises. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Installation The horizontal design and quick plug-in terminals enable fast and convenient installation, minimising labour time and reducing complexity. Advanced Connectivity Offers simple configuration through WiFi via the iESS platform, streamlining setup and integration into existing systems. PV Input Max. PV array power : 37.5kW Max. input voltage : 1000V MPPT voltage range / rated input voltage : 200-850V Min. input voltage / start voltage : 135V No. of independent MPPT trackers / strings per MPPT input : 4 Max. input current per MPP tracker : 30A Max. short-circuit current per MPP tracker : 40A Battery Input Nominal battery voltage : / Battery voltage range : 135-750V Max. charging / discharge power : 25000W Max. charging current / Max. discharging current : 100A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 3L/N/PE;220/380V;230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 25.0kW Max. apparent power : 27.0kVA Rated grid output current (@230V) : / Max. grid output current : 42.0A AC Input Rated grid voltage : 3L/N/PE;220/380V;230/400V;240/415V Rated apparent power : 25.0kW Max. input apparent power from grid : 30.0kVA Rated input curent from grid : / Max. input current from grid : / EPS Output Nominal output voltage : 3L/N/PE;220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 25.0kW Max. output apparent power : 27.5kVA Peak output apparent power : 30kVA | 60s Max. output current : 42.0A Max. switch time : ＜20ms Efficiency MPPT efficiency : 98.80% Euro efficiency / Max. efficiency : 98.30% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 800*620*300 Device weight : 76.0Kg Operating temperature range : -30℃~+60℃ Noise emissions (typical) : ＜50dB Standby consumption : ＜15W Degree of protection (as per lEC 60529) : IP65 Features User interface : OLED&LED&APP Communication with BMS : / Communication with meter : / Communication with portal : / Other communication : / Communication : RS485/CAN/WiFi/LAN(Optional) Integrated power control / Zero export control : Integrated/Integrated Certifications : IEC 62109/EN 61000/EN 50549-1/NTS/VDE-4105/G99/G100/CEI/NRS 097/CEI 0-21/NEN Warranty : 12 years

Read more less

Unparalleled Safety Short-Circuit Safeguards Integrated fuses ensure instant disconnection in the event of short circuits, minimising risks to personnel and property. Comprehensive Fire Protection Equipped with a non-toxic perfluorohexanone gas fire suppression system, and optional water spray pipelines for enhanced safety measures. Battery Safety Uses high-temperature-resistant and environmentally friendly LFP batteries to establish a robust safety barrier for the system. Flexible and Adaptable Modular and Quick Installation Delivered as a fully integrated unit, supporting modular deployment for fast delivery and easy scalability. Compact Design Saves 20% of the required space compared to traditional systems, offering flexibility for constrained industrial and commercial applications. Durability and Environmental Resilience With IP54 protection, the cabinet is built to withstand harsh environments, ensuring stable and reliable operation even in challenging conditions. Optimal Performance Increased Energy Density The energy density has been significantly enhanced, saving 20% of the footprint compared to traditional systems. Eco-Friendly and Energy-Efficient Designed to optimise performance while prioritising environmental sustainability. Instantaneous Response With millisecond-level reaction time, it can rapidly respond to sudden load changes or disruptions, ensuring system stability and reliability in various scenarios. DC Side Rated Battery Energy Storage Capacity: 418kWh System Rated Voltage: 1331.2V System Voltage Range: 1164.8V~1497.6V Battery Type: LFP(LiFePO4) Battery String in Series Parallel Mode: 1P*52S*8S Max Charge & Discharge Current: 157A Conventional Parameter Protection Level: IP54 Relative Humidity: 0°C~95°C (non-condensing) Operating Temperature: -30°C~55°C Cooling Mode: Liquid-cooling Altitude: 3000m (De-rating over 2000m) BMS Communication Interface: Ethernet/RS485/CAN Dimension (W*D*H): 1250*1350*2335mm Weight: 3400kg

Read more less

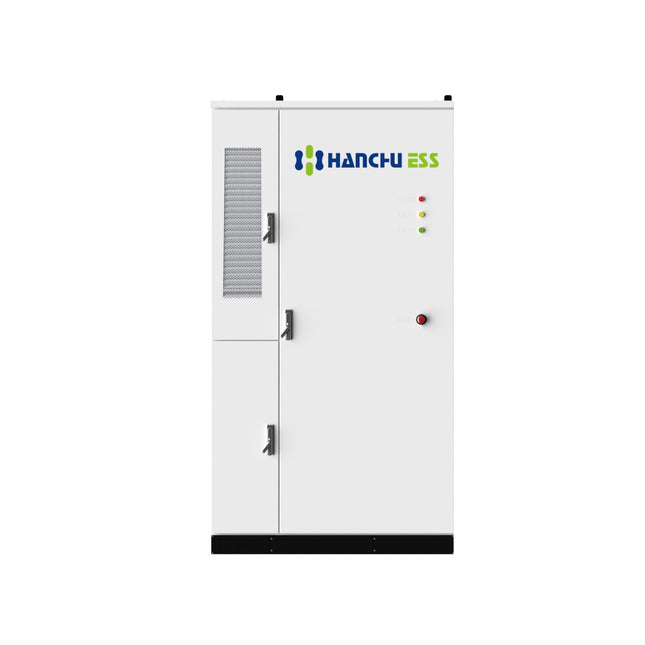

Unparalleled Safety Multi-Layer Safety Protection Comprehensive safety design, including high-quality LFP cells, dual-level BMS management, and hardware protection with built-in DC contactors and fuses to ensure stable and safe performance. Advanced Fire Protection Equipped with a non-toxic perfluorohexanone gas fire suppression system, along with additional water spray pipes for enhanced safety measures. Intelligent Monitoring Local EMS (Energy Management System) continuously communicates with the inverter and battery system, implementing secure operational strategies for real-time safety. Flexible and Adaptable Modular Design Key components like PCS (Power Conversion System) and battery packs are modular, making maintenance, expansion, and replacement simple and efficient. Compact Design Features a compact design, minimising space usage and making it ideal for industrial and commercial sites with limited space. Multi-Scenario Applications Supports various use cases, including peak shaving, distribution capacity expansion, microgrid integration, and off-grid systems. Smart Management Local EMS Control Provides comprehensive energy management and monitoring, ensuring optimal energy distribution and system operation. Intelligent Cooling System Features a smart industrial air conditioning system with optimised airflow design based on thermal simulations, ensuring batteries operate at optimal temperatures. Remote Monitoring and Communication Supports Modbus TCP communication protocol for seamless integration into customers’ energy management systems, enabling remote monitoring and data analysis. Battery Parameter Rated Capacity: 215kWh Rated Voltage: 768Vdc Max Charge & Discharge Current: 140A Battery Type: LFP(LiFePO4) AC Parameter Rated AC Power: 105kW Rated Grid Voltage: 400V 3P4W Rated Grid Frequency: 50Hz Total Harmonic Distortion of Current(%): <3%(Rated Power) Power Factor: 0.99 Conventional Parameter Protection Level: IP54 Operating Temperature: -30°C~50°C Cooling Mode: Smart air cooling (rated cooling capacity 3.2kW) Max Working Altitude: 3000m(De-rating over 2000m) EMS Communication Interface: Modbus TCP Dimension (W*D*H): 1500*1490*2348mm Weight: 2500kg

Read more less

Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh Ultra Performance High PV Input Capability Supports up to 200% oversizing to allow maximum annual generation. Peak Efficiency Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output. Powerful Charge and Discharge Handles up to 210A (10kW) charge/discharge from batteries allowing fast charging and covering larger loads. Reliable Operation Emergency Power Supply (EPS) Backup power is available for critical installations that require uninterrupted operation during power outages. Rapid Switch Time Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.   Shadow Scan Feature Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade. Smart Energy Management Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Octopus Tariff Integration Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates. Smart Weather Compensation Automatically adjusts settings in response to weather conditions to maximise energy efficiency. PV Input Max. PV array power : 20000Wp Max. input voltage : 550V MPPT voltage range / rated input voltage : 40V to 530V/380V Min. input voltage / start voltage : 40V/50V No. of independent MPPT trackers / strings per MPPT input : 3 | 1 Max. input current per MPP tracker : 20A/10000W Max. short-circuit current per MPP tracker : 25A Battery Input Nominal battery voltage : 48V/51.2V Battery voltage range : 40V to 60V Max. charging / discharge power : 10000W Max. charging current / Max. discharging current : 210A Battery type : LFP AC Output AC voltage range / Nominal AC voltage : 154V to 276V / 220/230/240/ L/N Rated AC grid frequency : 50Hz / 60Hz Rated apparent power : 10000VA Max. apparent power : 10000VA Rated grid output current (@230V) : 43.5A Max. grid output current : 47.8A AC Input Rated grid voltage : 220/230/240/ L/N Rated apparent power : Max. input apparent power from grid : 18000W Rated input curent from grid : 43.5A Max. input current from grid : 78.3A EPS Output Nominal output voltage : 220/230/240/ L/N Nominal output frequency : 50Hz / 60Hz Rated apparent power : 10000VA Max. output apparent power : 10000VA Peak output apparent power : 20000VA Max. output current : 47.8A Max. switch time : <10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97%/97.6% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 484mm*679*230 Device weight : 34.5kg Operating temperature range : -25C ~+60C Noise emissions (typical) : 50 dB(A) Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/Bluetooth Other communication : Communication : Dongle - WiFi(2.4 GHz)/LAN (100 Mbps); Inverter -RS485(ModBus RTU)/LAN (100Mbps/Modbus TCP only) Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/G99/G100 Warranty : 12 years

Read more less

Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh Ultra Performance High PV Input Capability Supports up to 200% oversizing to allow maximum annual generation. Peak Efficiency Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output. Powerful Charge and Discharge Handles up to 190A (8kW) charge/discharge from batteries allowing fast charging and covering larger loads. Reliable Operation Emergency Power Supply (EPS) Backup power is available for critical installations that require uninterrupted operation during power outages. Rapid Switch Time Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages. Shadow Scan Feature Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade. Smart Energy Management Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Octopus Tariff Integration Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates. Smart Weather Compensation Automatically adjusts settings in response to weather conditions to maximise energy efficiency. PV Input Max. PV array power : 16000Wp Max. input voltage : 550V MPPT voltage range / rated input voltage : 40V to 530V/380V Min. input voltage / start voltage : 40V/50V No. of independent MPPT trackers / strings per MPPT input : 3 | 1 Max. input current per MPP tracker : 20A/10000W Max. short-circuit current per MPP tracker : 25A Battery Input Nominal battery voltage : 48V/51.2V Battery voltage range : 40V to 60V Max. charging / discharge power : 8000W Max. charging current / Max. discharging current : 190A Battery type : LFP AC Output AC voltage range / Nominal AC voltage : 154V to 276V / 220/230/240/ L/N Rated AC grid frequency : 50Hz / 60Hz Rated apparent power : 8000VA Max. apparent power : 8000VA Rated grid output current (@230V) : 34.8A Max. grid output current : 38.3A AC Input Rated grid voltage : 220/230/240/ L/N Rated apparent power : Max. input apparent power from grid : 16000W Rated input curent from grid : 34.8A Max. input current from grid : 69.6A EPS Output Nominal output voltage : 220/230/240/ L/N Nominal output frequency : 50Hz / 60Hz Rated apparent power : 8000VA Max. output apparent power : 8000VA Peak output apparent power : 16000VA Max. output current : 38.3A Max. switch time : <10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97%/97.6% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 484mm*679*230 Device weight : 34.5kg Operating temperature range : -25C ~+60C Noise emissions (typical) : 50 dB(A) Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/Bluetooth Other communication : Communication : Dongle - WiFi(2.4 GHz)/LAN (100 Mbps); Inverter -RS485(ModBus RTU)/LAN (100Mbps/Modbus TCP only) Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/G99/G100 Warranty : 12 years

Read more less

Compatible Products Hanchu Low Voltage Battery 3.2kWh Hanchu Low Voltage Battery 3.68kWh Hanchu Low Voltage Battery 5.12kWh Hanchu Low Voltage Battery 9.4kWh Ultra Performance High PV Input Capability Supports up to 200% oversizing to allow maximum annual generation. Peak Efficiency Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output. Powerful Charge and Discharge Handles up to 165A (7kW) charge/discharge from batteries allowing fast charging and covering larger loads. Reliable Operation Emergency Power Supply (EPS) Backup power is available for critical installations that require uninterrupted operation during power outages. Rapid Switch Time Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages. Shadow Scan Feature Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade. Smart Energy Management Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Octopus Tariff Integration Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates. Smart Weather Compensation Automatically adjusts settings in response to weather conditions to maximise energy efficiency. PV Input Max. PV array power : 14000Wp Max. input voltage : 550V MPPT voltage range / rated input voltage : 40V to 530V/380V Min. input voltage / start voltage : 40V/50V No. of independent MPPT trackers / strings per MPPT input : 3 | 1 Max. input current per MPP tracker : 20A/10000W Max. short-circuit current per MPP tracker : 25A Battery Input Nominal battery voltage : 48V/51.2V Battery voltage range : 40V to 60V Max. charging / discharge power : 7000W Max. charging current / Max. discharging current : 165A Battery type : LFP AC Output AC voltage range / Nominal AC voltage : 154V to 276V / 220/230/240/ L/N Rated AC grid frequency : 50Hz / 60Hz Rated apparent power : 7000VA Max. apparent power : 7000VA Rated grid output current (@230V) : 30.4A Max. grid output current : 32A AC Input Rated grid voltage : 220/230/240/ L/N Rated apparent power : Max. input apparent power from grid : 14000W Rated input curent from grid : 30.4A Max. input current from grid : 60.9A EPS Output Nominal output voltage : 220/230/240/ L/N Nominal output frequency : 50Hz / 60Hz Rated apparent power : 7000VA Max. output apparent power : 7000VA Peak output apparent power : 14000VA Max. output current : 32A Max. switch time : <10ms Efficiency MPPT efficiency : 99.90% Euro efficiency / Max. efficiency : 97%/97.6% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 484mm*679*230 Device weight : 34.5kg Operating temperature range : -25C ~+60C Noise emissions (typical) : 50 dB(A) Standby consumption : / Degree of protection (as per lEC 60529) : IP66 Features User interface : LED & APP Communication with BMS : CAN Communication with meter : RS485 Communication with portal : WiFi/LAN/Bluetooth Other communication : Communication : Dongle - WiFi(2.4 GHz)/LAN (100 Mbps); Inverter -RS485(ModBus RTU)/LAN (100Mbps/Modbus TCP only) Integrated power control / Zero export control : Integrated/Integrated Certifications : EN 61000/IEC 62109/EN 50549/G99/G100 Warranty : 12 years

Read more less

Manufacturer Code: LCX-1200M-03 Order Code: HC-Wi-Fi Repeater Introduction The HANCHU WiFi Repeater provides comprehensive coverage through obstacles, ensuring reliable WiFi for energy systems in any location. It’s compatible with 2.4 GHz and 5GHz networks, and fits into existing networks without security issues.

Read more less

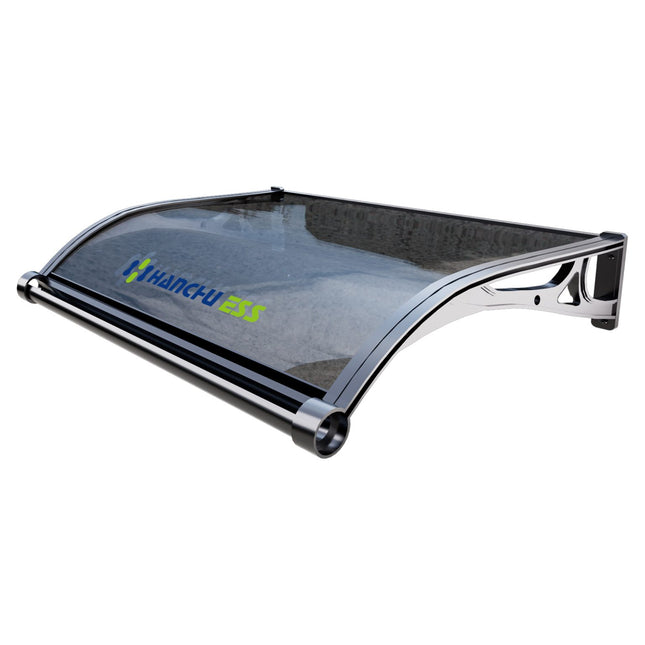

Manufacturer Code: HESS-Shelter Order Code: HC-Canopy Introduction HANCHU Hybrid units are IP65 and can be installed externally. However there is a requirement that the units have additional protection from direct sunlight and direct rainfall. The HANCHU rain shelter is the ideal solution to achieve this protection.

Read more less

Manufacturer Code: Outdoor-Box-X3 Order Code: HC-Multi-Unit-Cabinet-X3 Introduction HANCHU IP65 batteries can be installed externally where necessary. When installed externally it is recommended that they are not exposed to direct sunlight. In addition, there are clear security issues potentially if installing high value batteries outside. The HANCHU outdoor enclosure cabinets allow for flexible installations using the range of available batteries. Capacity Hanchu single phase inverter + 2 x 3.68kWh Hanchu single phase inverter + 2 x 5.12kWh Hanchu single phase inverter + 1 x 9.4kWh

Read more less

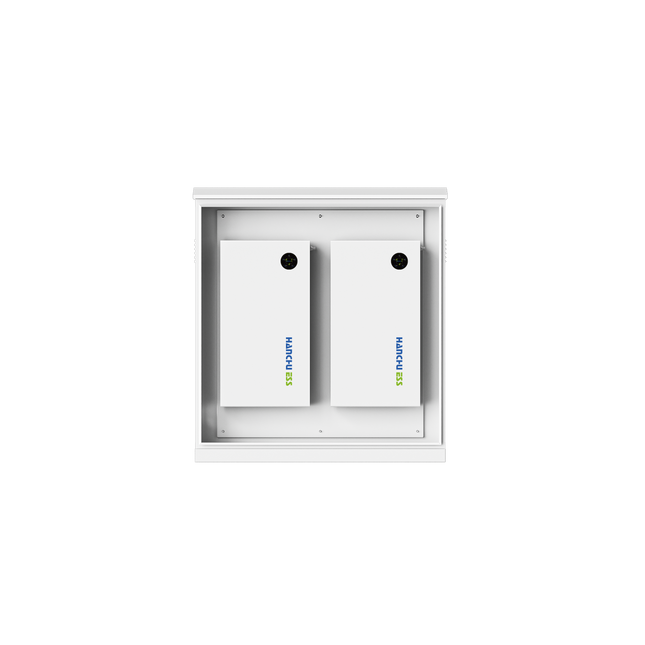

Manufacturer Code: Outdoor-Box-X2 Order Code: HC-Multi-Unit-Cabinet Introduction HANCHU IP65 batteries can be installed externally where necessary. When installed externally it is recommended that they are not exposed to direct sunlight. In addition, there are clear security issues potentially if installing high value batteries outside. The HANCHU outdoor enclosure cabinets allow for flexible installations using the range of available batteries. Capacity 3 x 3.2kWh 2 x 5.12kWh 2 x 9.4kWh

Read more less

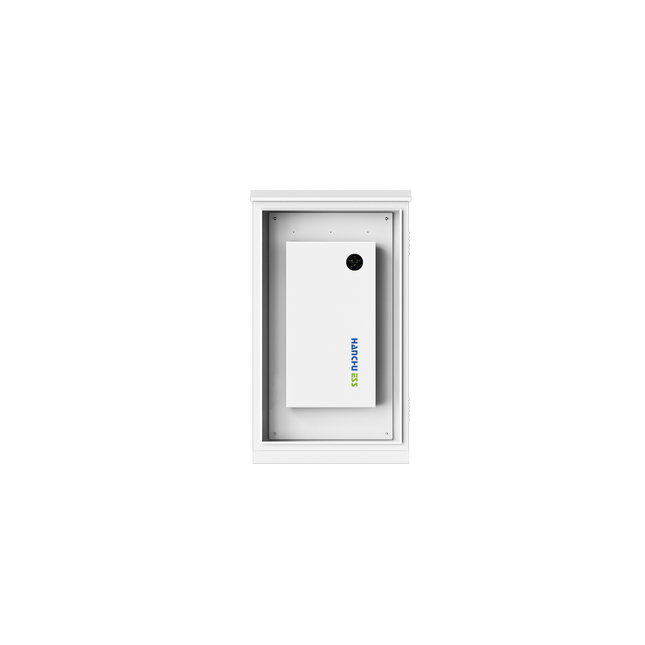

Manufacturer Code: Outdoor-Box-X1 Order Code: HC-Single-Unit-Cabinet Introduction HANCHU IP65 batteries can be installed externally where necessary. When installed externally it is recommended that they are not exposed to direct sunlight. In addition, there are clear security issues potentially if installing high value batteries outside. The HANCHU outdoor enclosure cabinets allow for flexible installations using the range of available batteries. Capacity 3 x 3.2kWh 1 x 5.12kWh 1 x 9.4kWh

Read more less

Compatible Products Hanchu High Voltage Battery 9.4kWh Hanchu High Voltage Battery 9.4kWh - BMS   Ultra Performance Exceptional Efficiency Achieves up to 98.8% peak efficiency, maximising the conversion of generated energy into usable power and significantly reducing energy costs. Robust Power Handling Supports up to 110% AC output overloading and up to 120% back-up output overloading for 60 seconds, ensuring reliable performance even during peak demand. Advanced Multi-MPPT Support Equipped with 4 MPPTs, enabling optimal solar energy capture across multiple roof orientations and shading conditions to maximise overall solar utilization. Reliable Operation Ultra-Fast Switching Time With EPS switching time of less than 20 milliseconds, it ensures continuity of critical operations without interruption during power outages. Broad Voltage Compatibility Supports an extensive battery voltage range from 135V to 750V, making it compatible with various high-voltage battery systems for greater versatility. Comprehensive Safety Protection Offers built-in surge protection, insulation resistance monitoring, and multi-layered safeguards against over-temperature and residual currents, ensuring protection for both the equipment and the premises. Easy Maintenance Remote Management Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control. Easy Installation The horizontal design and quick plug-in terminals enable fast and convenient installation, minimising labour time and reducing complexity. Advanced Connectivity Offers simple configuration through WiFi via the iESS platform, streamlining setup and integration into existing systems. PV Input Max. PV array power : 75.0kW Max. input voltage : 1000V MPPT voltage range / rated input voltage : 200-850V Min. input voltage / start voltage : 135V No. of independent MPPT trackers / strings per MPPT input : 4 Max. input current per MPP tracker : 30A Max. short-circuit current per MPP tracker : 40A Battery Input Nominal battery voltage : / Battery voltage range : 135-750V Max. charging / discharge power : 50000W Max. charging current / Max. discharging current : 100A Battery type : LFP AC Output AC voltage range / Nomlnal AC voltage : 3L/N/PE;220/380V;230/400V;240/415V Rated AC grid frequency : 50Hz/ 60Hz Rated apparent power : 50.0kW Max. apparent power : 55.0kVA Rated grid output current (@230V) : / Max. grid output current : 83.0A AC Input Rated grid voltage : 3L/N/PE;220/380V;230/400V;240/415V Rated apparent power : 50.0kW Max. input apparent power from grid : 60.0kVA Rated input curent from grid : / Max. input current from grid : / EPS Output Nominal output voltage : 3L/N/PE;220/380V;230/400V;240/415V Nominal output frequency : 50Hz/ 60Hz Rated apparent power : 50.0kW Max. output apparent power : 55.0kVA Peak output apparent power : 60kVA | 60s Max. output current : 83.0A Max. switch time : ＜20ms Efficiency MPPT efficiency : 98.80% Euro efficiency / Max. efficiency : 98.30% Max. battery to load efficiency : / General Data Dimensions (W*H*D) (mm) : 800*620*300 Device weight : 76.0Kg Operating temperature range : -30℃~+60℃ Noise emissions (typical) : ＜50dB Standby consumption : ＜15W Degree of protection (as per lEC 60529) : IP65 Features User interface : OLED&LED&APP Communication with BMS : / Communication with meter : / Communication with portal : / Other communication : / Communication : RS485/CAN/WiFi/LAN(Optional) Integrated power control / Zero export control : Integrated/Integrated Certifications : IEC 62109/EN 61000/EN 50549-1/NTS/VDE-4105/G99/G100/CEI/NRS 097/CEI 0-21/NEN Warranty : 12 years
