Solax Batteries

BMU Master Box for the TP3.0 3kWh SolaX batteries. One of these is essential per stack of batteries being installed (1-4 batteries per Master Box). Please note that the BMU includes a wall mounting bracket and battery base for up to 2 batteries (1 vertical stack).

Read more less

The perfect match to X1-Hybrid, X3-Hybrid and X1-AC, the SolaX Triple Power LFP battery is available as a Master Battery 5.8kWh and a Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.    Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 1, 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).   Additional features: Scalable to 23.2kWh Up to 4kW charge/discharge High Voltage means thinner cables are required. Compact Design 100% Depth of discharge 6000 life cycles Easy installation – plug and play with all cables supplied Need more storage capacity? Take a look at the SOLAX BMS Parallel box for increased capacity. This product enables the installation of 2, 4, or 6 batteries in single-phase setups, and 4, 6, or 8 batteries in three-phase configurations, all without the need for a Master. This is a HV11550-58 Extension (Slave) Battery only, it requires HV-T-BAT-H-58 Main Battery(Master) to work and can only be matched with LFP 5.8kWh Master batteries.  Please note:  There are no compatibility issues between mixing the V1 and V2 generations of Solax batteries. In rare instances when an update is required, this may need to be done manually using a USB in cases where mixed versions are used. Supplier Part No: Triple Power 5.8kWh Slave V2 Weight: 72.2 kg Battery Type: Lithium Ion Nominal Energy: 5800 Wh Depth of discharge: 100.00 % Voltage: 115 V Continuous Discharge Rate (Normal Use): 2875 W Maximum Discharge Rate (5 Minutes): 4000 W Surge Discharge Rate (15 Seconds): 4000 W Maximum Charge Rate (5 Minutes): 4000 W

Read more less

Designed for commerce and industry, this highly integrated all-in-one inverter and battery system is made up of a 100kW inverter plus a battery storage capacity of 215kWh. What's more, as your energy needs grow, the system is modular to allow you to use five units in parallel to achieve 1mWh. Multiple smart functions allow you to take advantage of local electricity prices, and manage a system of solar panels, EV chargers and energy storage systems. Meanwhile, the air-cooling technology and four-level fire protection deliver high levels of safety and peace of mind. Key features: All-in-one inverter and battery system designed for commerce and industry Consists of 100kW inverter and 215kWh battery Intelligent air cooling function to manage heat dissipation Four-level fire protection High-power, high-density LFP cells Energy Management System (EMS) monitors working status in real-time Smart functionality allows for autonomous scheduling to take advantage of local electricity pricing and management of PV systems and EV charging Local data storage for one year for data analysis and verification Supports on-grid and off-grid solutions Ingress protection rating: IP55 Dimensions: 1680mm x 2420mm x 1200mm Weight: 2800kg

Read more less

This is the Series Box Kit for the new SolaX T-BAT-SYS-HV-S2.5/3.6 battery offering from SolaX Power.  This product is required for the 2nd battery stack (9-13 batteries). This is the Series Box for use with the TP-HS25 and TP-HS36 Battery Modules from SolaX Power.   Battery Limits (Important) Minimum Battery Requirements Single Phase: 2x TP-HS Batteries Three Phase: 4x TP-HS Batteries Maximum Battery Limit Single Phase: 8x TP-HS Batteries Three Phase: 13x TP-HS Batteries X3-ULTRA: 26x TP-HS Batteries These batteries are stackable for installation, but please note the maximum quantity is 9 units for one stack and there is a maximum of 2 stacks per inverter.  Series box is required for second stack. Included in kit: 1x SolaX TP-HS Series Box Kit Series Box Base Anti-tipping Bracket Accessory Kit This Series Box is for use with either the TP-HS25 or TP-HS36 battery modules.  Batteries sold separately, please contact us for guidance if needed. Features of the SolaX BMU for TP-HS25/36 Batteries: Scalable to 47+kWh Storage Capacity Easy Installation – Stackable battery modules & pre-wired cables Unique Heating Technology for enhanced performance in lower temperature IP65 Protection Level Soft Start Protection Remote fault diagnosis, upgrade and maintenance Compact Design 10-year Warranty Dimensions (LxWxH) – 510 x 365 x 152mm (Series Box) Weight – 8.8kg (Series Box) Product Code: TP-HS-SERIESBOX

Read more less

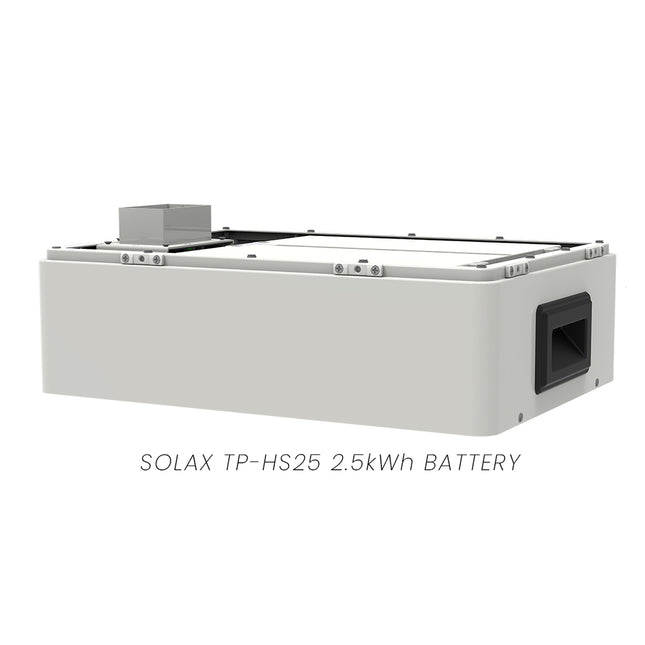

The SolaX TP-HS25 2.5kWh Battery System (T-BAT-SYS-HV-S2.5) is a new offering from SolaX Power which uses stackable 2.5kWh high-voltage battery modules. Featuring a maximum 45A charging/discharging rate,  IP65 protection and the ability to be scaled up to 32.5kWh this is a very versatile battery system suitable for many different use cases. Battery Limits (Important) Minimum Battery Requirements Single Phase: 2x TP-HS25 Batteries Three Phase: 4x TP-HS25 Batteries Maximum Battery Limit Single Phase: 8x TP-HS25 Batteries Three Phase: 13x TP-HS25 Batteries X3-ULTRA: 26x TP-HS25 Batteries These batteries are stackable for installation, but please note the maximum quantity is 9 units for one stack and there is a maximum of 2 stacks per inverter.  Series box is required for second stack.   Features of the SolaX Triple Power T-BAT-SYS-HV-S2.5 Battery: Scalable to 32.5kWh Storage Capacity Easy Installation – Stackable battery modules & pre-wired cables Unique Heating Technology for enhanced performance in lower temperature IP65 Protection Level Soft Start Protection Safest LiFeP04 Battery Remote fault diagnosis, upgrade and maintenance Compact Design 90% Depth of Discharge (DOD) Upwards of 6000 life cycles 10-year Warranty Dimensions (LxWxH) – 510 x 365 x 152mm Weight – 28kg Product Code: TP-HS25

Read more less

The SolaX TP-HS36 3.68kWh Battery System (T-BAT-SYS-HV-S3.6) is a new offering from SolaX Power which uses stackable 3.68kWh high-voltage battery modules. Featuring a maximum 50A charging/discharging rate,  IP65 protection and the ability to be scaled up to 47.92kWh this is a very versatile battery system suitable for many different use cases. Battery Limits (Important) Minimum Battery Requirements Single Phase: 2x TP-HS36 Batteries Three Phase: 4x TP-HS36 Batteries Maximum Battery Limit Single Phase: 8x TP-HS36 Batteries Three Phase: 13x TP-HS36 Batteries X3-ULTRA: 26x TP-HS36 Batteries These batteries are stackable for installation, but please note the maximum quantity is 9 units for one stack and there is a maximum of 2 stacks per inverter.  Series box is required for second stack.   Features of the SolaX Triple Power T-BAT-SYS-HV-S3.6 Battery: Scalable to 47.92kWh Storage Capacity Easy Installation – Stackable battery modules & pre-wired cables Unique Heating Technology for enhanced performance in lower temperature IP65 Protection Level Soft Start Protection Safest LiFeP04 Battery Remote fault diagnosis, upgrade and maintenance Compact Design 90% Depth of Discharge (DOD) Upwards of 6000 life cycles 10-year Warranty Dimensions (Battery) (LxWxH) – 510 x 365 x 152mm Weight (Battery) – 33.5kg Product Code: T-BAT-SYS-HV-S3.6 / TP-HS36

Read more less

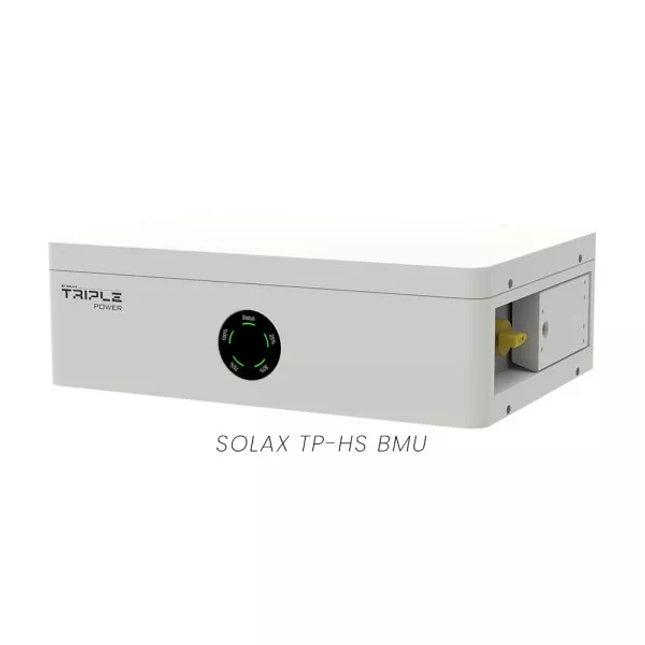

This BMU (Battery Management Unit) is for use with the TP-HS25 and TP-HS36 Battery Modules from SolaX Power.   This product is for the BMU and Base ONLY – batteries are not included and must be purchased separately.  Compatible with TP-HS36 and TP-HS25 Batteries.  Battery Limits (Important) Minimum Battery Requirements Single Phase: 2x TP-HS Batteries Three Phase: 4x TP-HS Batteries Maximum Battery Limit Single Phase: 8x TP-HS Batteries Three Phase: 13x TP-HS Batteries X3-ULTRA: 26x TP-HS Batteries These batteries are stackable for installation, but please note the maximum quantity is 9 units for one stack and there is a maximum of 2 stacks per inverter.  Series box is required for second stack. Included in kit: 1x SolaX TP-HS BMU (TBMS-MCS0800) Battery Kit / Base This BMU is for use with either the TP-HS25 or TP-HS36 battery modules.   Features of the SolaX BMU for TP-HS25/36 Batteries: Scalable to 47+kWh Storage Capacity Easy Installation – Stackable battery modules & pre-wired cables Unique Heating Technology for enhanced performance in lower temperature IP65 Protection Level Soft Start Protection Remote fault diagnosis, upgrade and maintenance Compact Design 10-year Warranty Dimensions (LxWxH) – 510 x 365 x 157mm Weight – 10kg Product Code: TBMS-MCS0800

Read more less

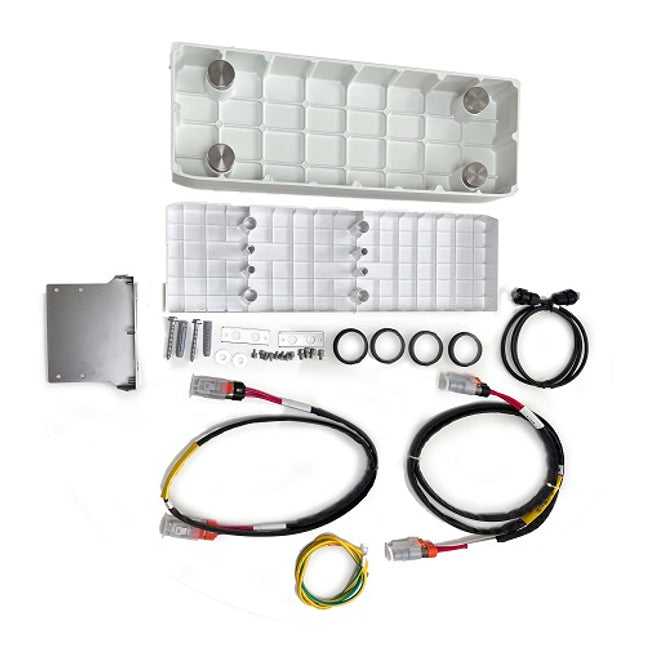

SolaX Triple Power  3.0 Install Kit The battery kit must be purchased alongside the TP3.0 batteries when purchasing 3 or 4 batteries. This will already be included when purchasing the hybrid inverter in the 3 and 4 battery bundle. Kit Includes: 1 x 1.2m Communication Cable 1 x 1.2m Power Cable 1 x 1.8m Power Cable 1 x Solax Battery Base 1 x Solax Wall Bracket 1 x Solar Top Cover 1x Earth Cable with small bag of screws.

Read more less

Part No: HV10230 Storage Systems - Li-ion Battery Pack Solax - HV10230 Triple Power 3.0 Battery Module   Please note: This is the Battery Module only - a BMS: MC0600 is required for this system to work. Battery BMS: MC0600 - One MC0600 can be connected to 1-4 HV10230 Triple Power 3.0 Battery modules  Safest LiFePO4 battery (30 Ah)  Working Temperature Range : -30 ~ 50 Smart temperature balancing cycle life > 6000 times  IP 65 Protection  Less Self Consulption  Quick Installation  Need more storage capacity? Take a look at the SOLAX BMS Parallel Box G2 for increased capacity. This product enables the installation of 2, 4, or 6 batteries in single-phase setups, and 4, 6, or 8 batteries in three-phase configurations. Compatible with T58 and T30 series batteries.  MC0600 purchased separately.    Supplier Part No: Triple Power X-ESS 3kWh Weight: 34.5 kg Battery Type: Lithium Ion Nominal Energy: 2500 Wh Depth of discharge: 90.00 % Voltage: 102 V Continuous Discharge Rate (Normal Use): 3072 W Maximum Discharge Rate (5 Minutes): 3072 W Surge Discharge Rate (15 Seconds): 3100 W Maximum Charge Rate (5 Minutes): 3072 W

Read more less

With the latest Triple Power 3.0kWh battery, SolaX have designed and developed the future of residential energy storage. A wider temperature tolerance and the ability to fully charge the batteries in one hour give the G4 systems great flexibility. Up to four of these batteries can be connected to each other to give a 12kWh system depending on the inverter used in combination. BMS Master Box for the TP3.0 3kWh SolaX batteries includes a wall mounting bracket and battery base. This Kit includes:  1x SolaX Triple Power 3.0kWh Battery 1x SolaX Master Box BMU 1x Cable kit Weight: 42 kg Battery Type: Lithium Ion Nominal Energy: 3000 Wh Depth of discharge: 90.00 % Voltage: 102 V Continuous Discharge Rate (Normal Use): 3000 W Maximum Discharge Rate (5 Minutes): 3000 W Surge Discharge Rate (15 Seconds): 5000 W Maximum Charge Rate (5 Minutes): 3000 W

Read more less

Part No: T-BAT-H-12.0 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 4 x Triple Power 3.0 Battery Module  1 x Triple Power 3.0 BMS  1 x Triple Power X-ESS 3 and 4 battery install kit - cable and base     Weight: 150.5 kg Rated Power: 12,000 W Battery Type: Lithium Ion Nominal Energy: 12300 Wh Depth of discharge: 90.00 % Voltage: 409 V Continuous Discharge Rate (Normal Use): 12300 W Maximum Discharge Rate (5 Minutes): 12300 W Surge Discharge Rate (15 Seconds): 12300 W Maximum Charge Rate (5 Minutes): 12300 W

Read more less

Part No: T-BAT-H-9.0 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 3 x Triple Power 3.0 Battery Module 1 x Triple Power 3.0 BMS  1 x Triple Power X-ESS 3 and 4 battery install kit - cable and base  Weight: 116 kg Rated Power: 9,000 W Battery Type: Lithium Ion Nominal Energy: 9200 Wh Depth of discharge: 90.00 % Voltage: 307 V Continuous Discharge Rate (Normal Use): 9200 W Maximum Discharge Rate (5 Minutes): 9200 W Surge Discharge Rate (15 Seconds): 9200 W Maximum Charge Rate (5 Minutes): 9200 W

Read more less

Part No: T-BAT-H-6.0 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 2 x  Triple Power 3.0 Battery Module   1 x  Triple Power 3.0 BMS Weight: 76.5 kg Rated Power: 6,000 W Battery Type: Lithium Ion Nominal Energy: 6100 Wh Depth of discharge: 90.00 % Voltage: 204 V Continuous Discharge Rate (Normal Use): 6000 W Maximum Discharge Rate (5 Minutes): 5500 W Surge Discharge Rate (15 Seconds): 8000 W Maximum Charge Rate (5 Minutes): 6100 W

Read more less

This part is made up of the following items: 3 X SOLAX SLAVE 5.8KWH SLAVE - V2 1 X SOLAX MASTER 5.8KWH MASTER - V2 Weight: 286.5 kg Battery Type: Lithium Ion Nominal Energy: 23200 Wh Depth of discharge: 90.00 % Voltage: 460 V Continuous Discharge Rate (Normal Use): 1150 W Maximum Discharge Rate (5 Minutes): 3500 W Surge Discharge Rate (15 Seconds): 16000 W Maximum Charge Rate (5 Minutes): 3500 W

Read more less

Part No: HV-58-3-17.6-V2 Storage Systems - Li-ion Battery PackThis part is made up of the following items:   2 x  SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2   1 x  SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2 Weight: 218 kg Battery Type: Lithium Ion Nominal Energy: 17600 Wh Depth of discharge: 90.00 % Voltage: 345 V Continuous Discharge Rate (Normal Use): 8625 W Maximum Discharge Rate (5 Minutes): 3500 W Surge Discharge Rate (15 Seconds): 12000 W Maximum Charge Rate (5 Minutes): 3500 W

Read more less

Part No: HV-58-2-11.6-V2 Storage Systems - Li-ion Battery Pack This part is made up of the following items: 1 X Solax Master 5.8kWh V2 1 X Solax Slave 5.8kWh V2 Weight: 149.5 kg Battery Type: Lithium Ion Nominal Energy: 11600 Wh Depth of discharge: 90.00 % Voltage: 230 V Continuous Discharge Rate (Normal Use): 5750 W Maximum Discharge Rate (5 Minutes): 3500 W Surge Discharge Rate (15 Seconds): 8000 W Maximum Charge Rate (5 Minutes): 3500 W

Read more less

Designed and manufactured in partnership with SolaX, Triple Power encompasses the very latest in LFP technology which ensures much safer installations with wider temperature tolerances. With a 10-year warranty and 90% depth of discharge, the new Triple Power battery is a flexible, practical, high-performance energy storage solution. In order to scale the system and have it operating effectively a Master console with battery management system (BMS) is connected to Slave consoles that it controls. Please ensure that all systems bought have a Master console for effective compatibility with inverters.  Need more storage capacity? Take a look at the Solax BMS Parallel Box G2 for increased capacity. This product enables the installation of 2, 4, or 6 batteries in single-phase setups, and 4, 6, or 8 batteries in three-phase configurations. Compatible with T58 and T30 series batteries.  Please note:  There are no compatibility issues between mixing the V1 and V2 generations of Solax batteries. In rare instances when an update is required, this may need to be done manually using a USB in cases where mixed versions are used. Features Nominal capacity: 5.8 kWh Usable capacity: 5.2 kWh Depth of discharge (DoD): 90% Max power: 4 kW Round trip efficiency: 95% Operating voltage range: 100 - 131V Max Charge/discharge current: 35A Cycles: >6,000 Dimensions: 474 x 193 x 708 mm Weight: 72.2 kg IP65 protection grade Warranty of 10 years Supplier Part No: HV-T-BAT-H-58-MASTER-V2 Weight: 72.2 kg Battery Type: Lithium Ion Nominal Energy: 5800 Wh Depth of discharge: 100.00 % Voltage: 115 V Continuous Discharge Rate (Normal Use): 2875 W Maximum Discharge Rate (5 Minutes): 4000 W Surge Discharge Rate (15 Seconds): 4000 W Maximum Charge Rate (5 Minutes): 4000 W Data Sheet Solax Battery Blue 5.8kWh EN

Read more less
