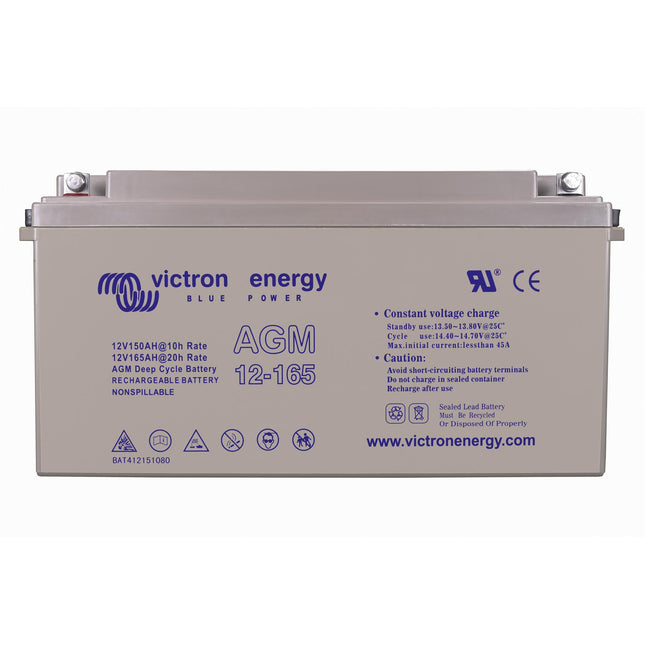

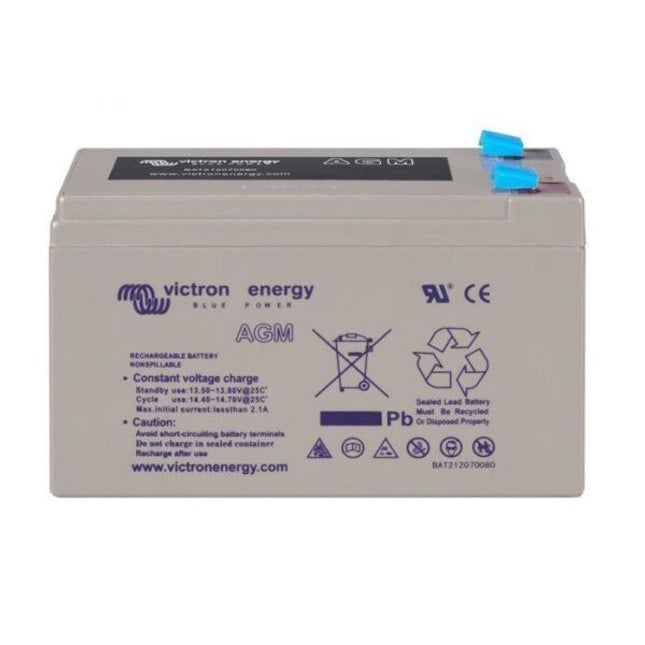

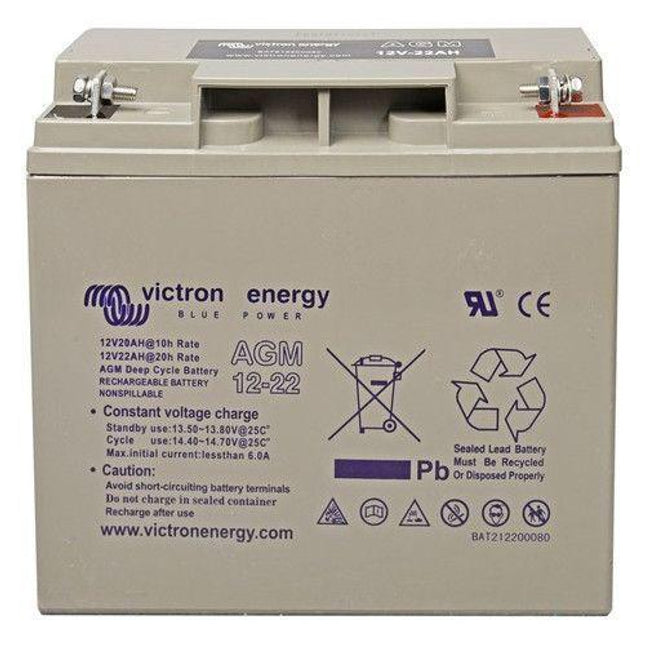

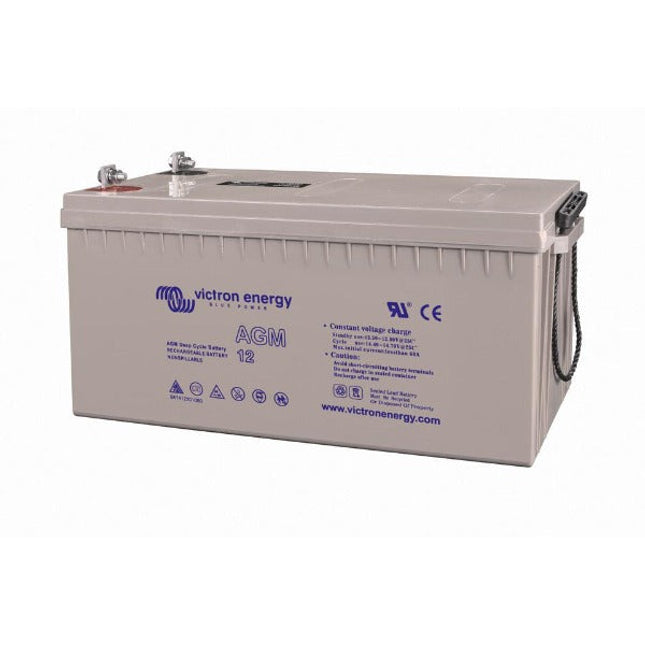

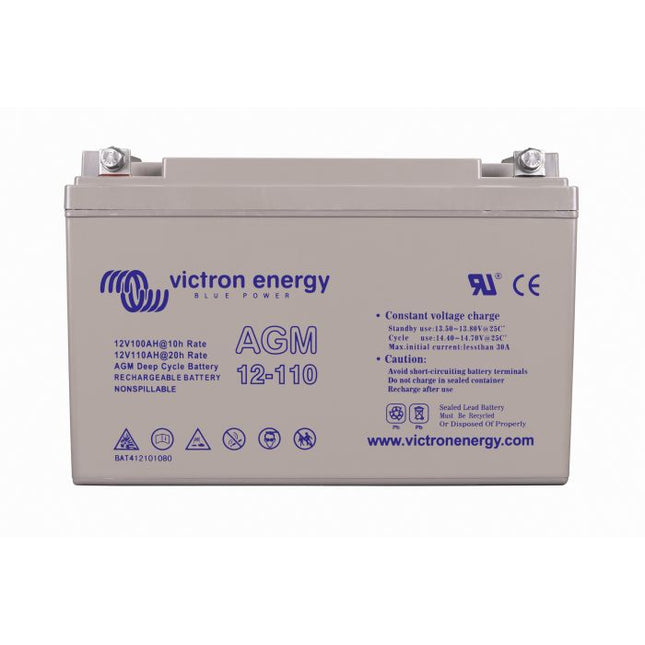

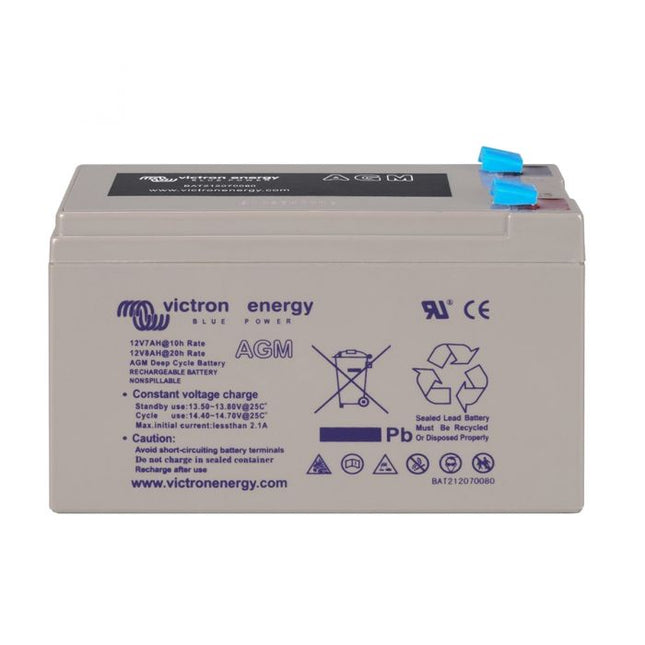

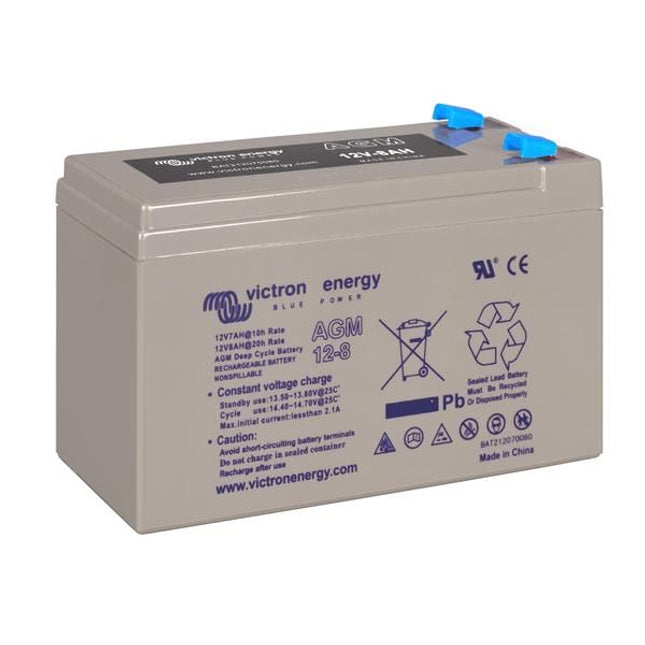

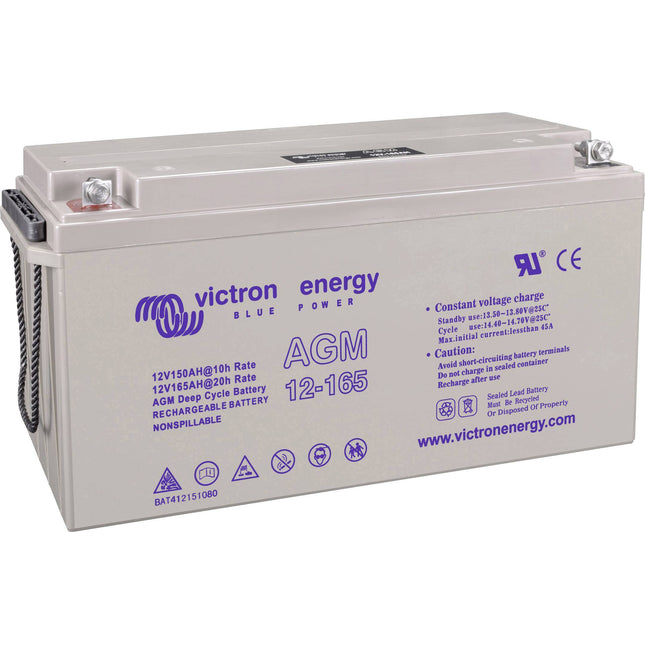

Features VRLA technology VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure. VRLA batteries are maintenance free for life. Sealed (VRLA) AGM Batteries AGM stands for Absorbent Glass Mat. In these batteries the electrolyte is absorbed into a glass-fibre mat between the plates by capillary action. As explained in our book ‘Energy Unlimited’, AGM batteries are more suitable for short-time delivery of high currents than gel batteries. Low Self-Discharge Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C. Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions. Exceptional Deep Discharge Recovery Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge. Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception. Battery Discharging Characteristics The rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current (see table 1). Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.  All Prices Include VAT   Brand Victron Energy Manufacturer Part Number BAT412101084 GTIN 8719076036968 Voltage 12V Battery Capacity (C20) 110Ah Cold Cranking 500CCA Terminal Type M8 Terminal Layout Left Hand Positive Dimensions (Including Terminals) L330 x W171 x H220mm Weight 32Kg Warranty 2 Years Country of Manufacture Vietnam Battery Technology AGM Battery Application Dual Purpose

Read more less

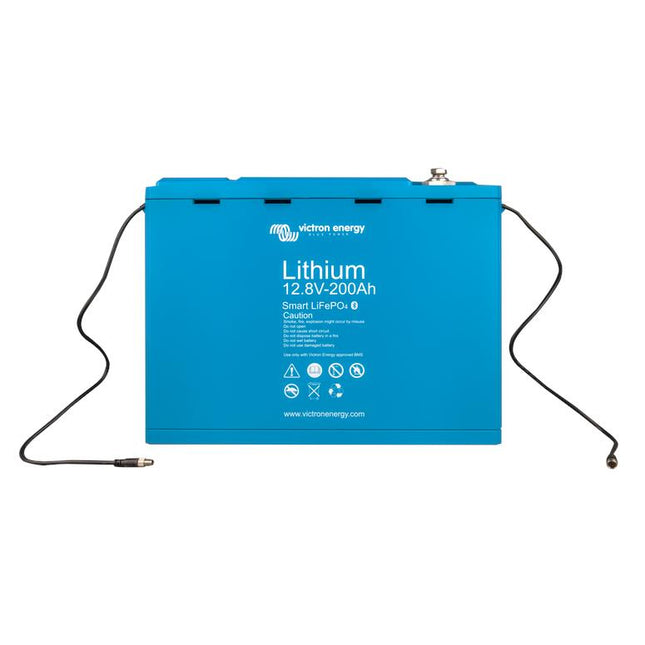

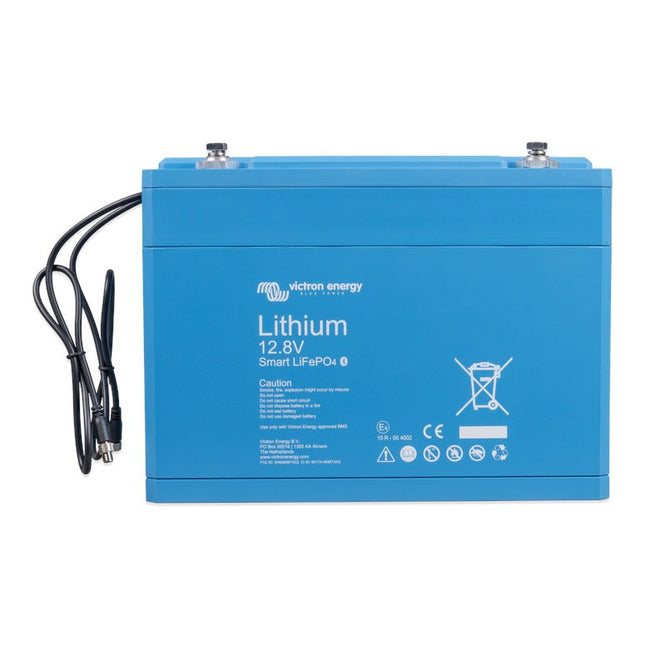

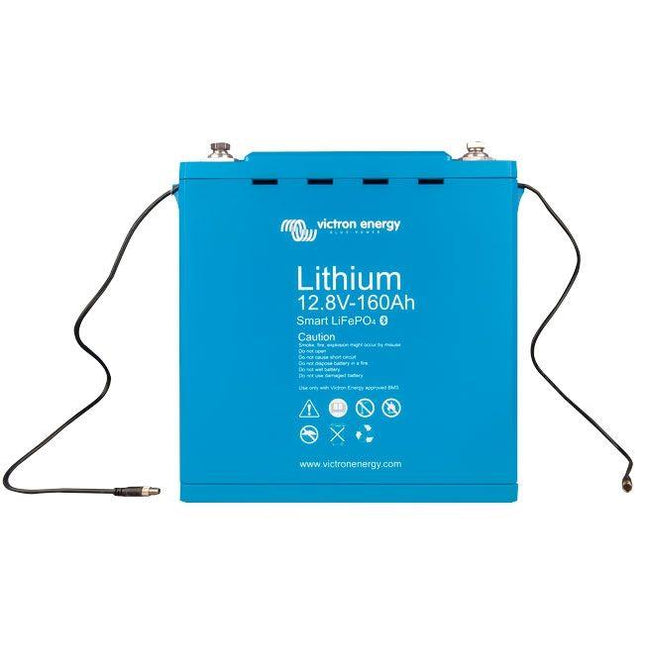

FeaturesRuggedA lead-acid battery will fail prematurely due to sulfation:If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime).A LFP battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of LFP compared to lead-acid. Other advantages are the wide operating temperature range, excellent cycling performance, low internal resistance and high efficiency (see below).LFP is therefore the chemistry of choice for demanding applications.EfficientIn several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average leadacid battery is 80%.The round-trip energy efficiency of a LFP battery is 92%.The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy is required (battery operating in 70% to 100% charged state). In contrast, a LFP battery will still achieve 90% efficiency under shallow discharge conditions.Size and weightSaves up to 70% in space Saves up to 70% in weightExpensive?LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.BluetoothWith Bluetooth cell voltages, temperature and alarm status can be monitored. Very useful to localize a (potential) problem, such as cell imbalance.BMSOur LFP batteries have integrated cell balancing and cell monitoring. Up to 5 batteries can be paralleled and up to four 12V batteries or two 24V batteries can be series connected, so that a 48V battery bank of up to 1500Ah can be assembled. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS). GTIN 8719076051633 Voltage 12.8V Battery Capacity (C20) 50Ah Terminal Type M8 Terminal Layout Right Hand Positive Dimensions (Including Terminals) H199 x W188 x D147mm Weight 7Kg Warranty 3 Years Country of Manufacture China Battery Technology Lithium Battery Application Deep Cycle

Read more less

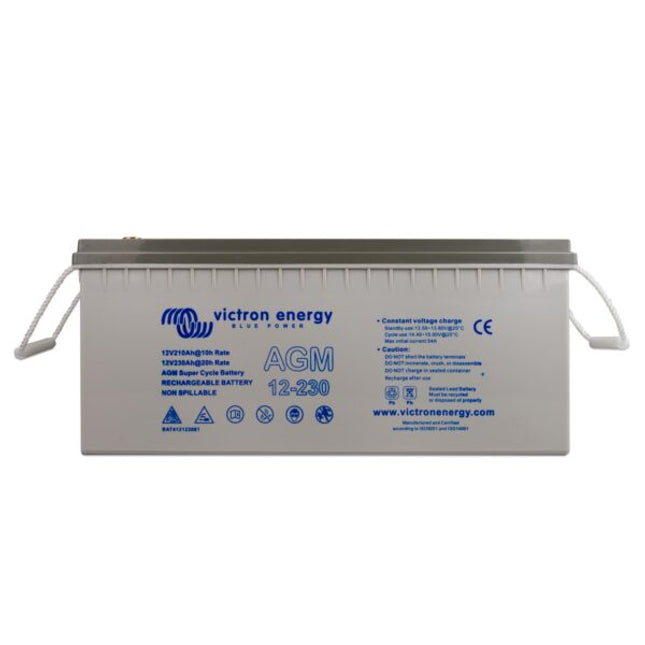

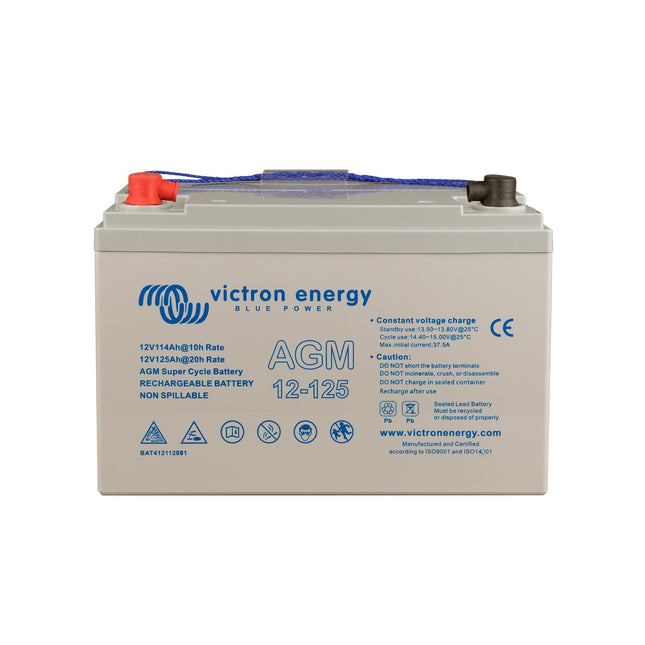

Features A truly innovative battery The AGM Super Cycle batteries are the result of recent battery electrochemistry developments. The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge. Exceptional 100% depth of discharge (DoD) performance Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles. The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20. The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery. We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected. Smaller and lighter An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries. Low internal resistance The internal resistance is also slightly lower compared to our standard deep cycle AGM batteries Brand Victron Energy Manufacturer Part Number BAT412117081 Voltage 12 Capacity (C20) 170 Cold Cranking (EN) 600 Terminal Type M8 Insert Terminal Layout LH+ Dimensions (Including Terminals) L336 x W172 x H280mm Weight (kg) 45 Warranty 2 Years Battery Technology AGM Battery Application Super Cycle

Read more less

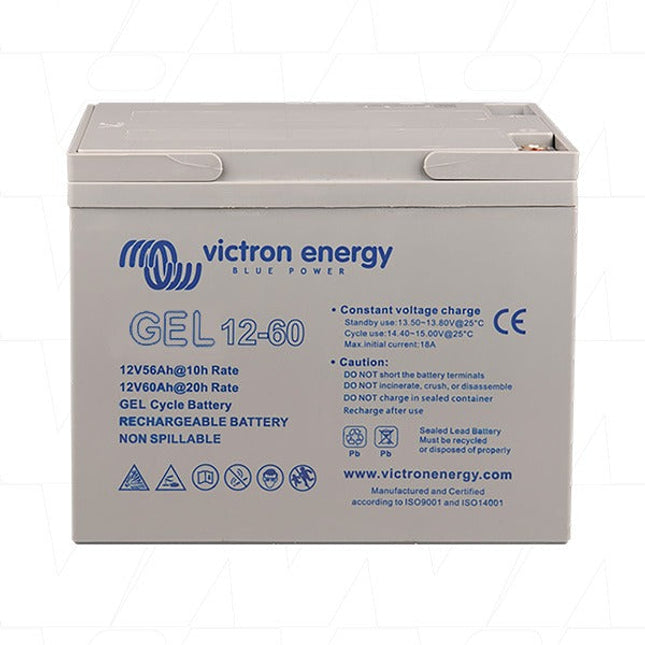

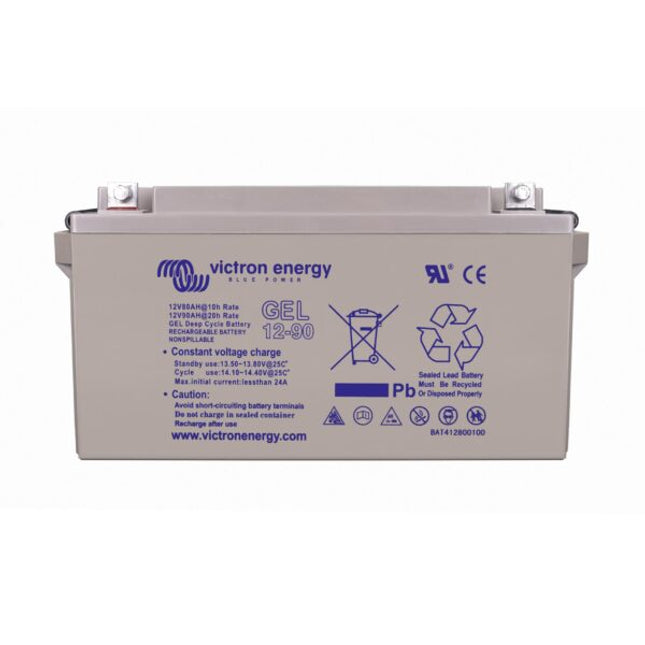

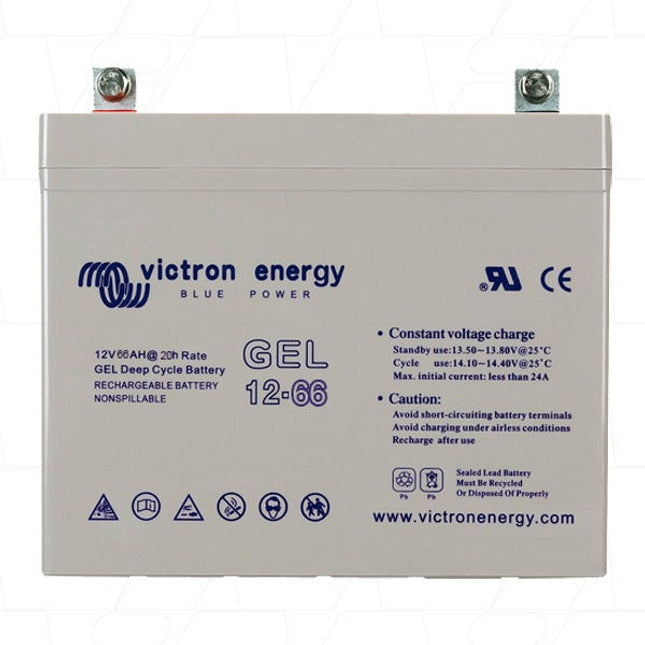

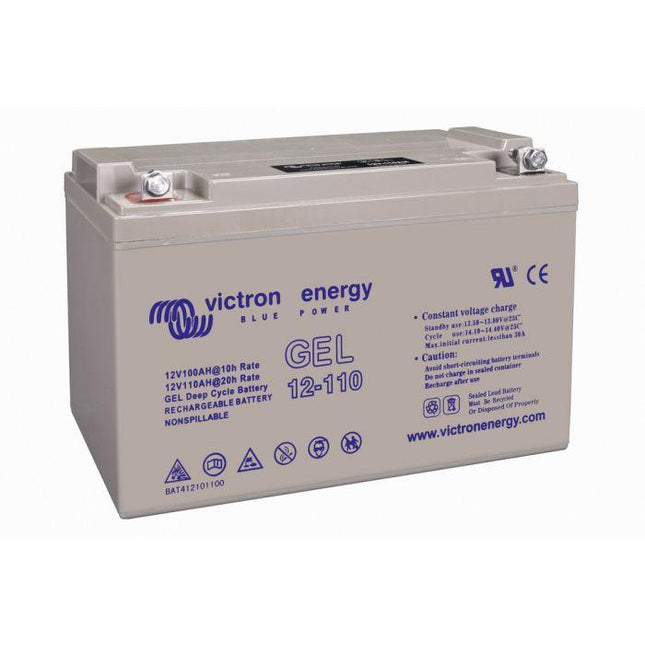

Features VRLA technology VRLA stands for Valve Regulated Lead Acid, which means that the batteries are sealed. Gas will escape through the safety valves only in case of overcharging or cell failure. VRLA batteries are maintenance free for life.   Sealed (VRLA) GEL Batteries Here the electrolyte is immobilized as gel. Gel batteries in general have a longer service life and better cycle capacity than AGM batteries.   Low Self-Discharge Because of the use of lead calcium grids and high purity materials, Victron VRLA batteries can be stored during long periods of time without recharge. The rate of self-discharge is less than 2% per month at 20°C. The self-discharge doubles for every increase in temperature by 10°C. Victron VRLA batteries can therefore be stored for up to a year without recharging, if kept under cool conditions.   Exceptional Deep Discharge Recovery Victron VRLA batteries have exceptional discharge recovery, even after deep or prolonged discharge. Nevertheless repeatedly deep and prolonged discharge has a very negative effect on the service life of all lead acid batteries, Victron batteries are no exception.   Battery Discharging Characteristics The rated capacity of Victron AGM and Gel Deep Cycle batteries refers to 20 hour discharge, in other words: a discharge current of 0,05 C. The rated capacity of Victron Tubular Plate Long Life batteries refers to 10 hours discharge. The effective capacity decreases with increasing discharge current (see table 1). Please note that the capacity reduction will be even faster in case of a constant power load, such as an inverter.  All Prices Include VAT   Brand Victron Energy Manufacturer Part Number BAT412201104 GTIN 8719076037101 Voltage 12V Battery Capacity (C20) 220Ah Cold Cranking 600CCA Terminal Type M8 Terminal Layout Side Dimensions (Including Terminals) L522 x W238 x H240mm Weight 66Kg Warranty 2 Years Country of Manufacture Vietnam Battery Technology Gel Battery Application Dual Purpose

Read more less

Features A truly innovative battery The AGM Super Cycle batteries are the result of recent battery electrochemistry developments. The paste of the positive plates is less sensitive to softening, even in case of repeated 100% discharge of the battery, and new additives to the electrolyte reduce sulfation in case of deep discharge. Exceptional 100% depth of discharge (DoD) performance Tests have shown that the Super Cycle battery does withstand at least three hundred 100% DoD cycles. The tests consist of a daily discharge to 10,8V with I = 0,2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C20. The two hours rest period in discharged condition will damage most batteries within 100 cycles, but not the Super Cycle battery. We recommend the Super Cycle battery for applications where an occasional discharge to 100% DoD, or frequent discharge to 60- 80% DoD is expected. Smaller and lighter An additional advantage of the new chemistry is a slightly smaller size and less weight compared to our standard deep cycle AGM batteries. Low internal resistance The internal resistance is also slightly lower compared to our standard deep cycle AGM batteries Brand Victron Energy Manufacturer Part Number BAT412123081 Voltage 12 Capacity (C20) 230 Cold Cranking (EN) 700 Terminal Type M8 Insert Terminal Layout Side Dimensions (Including Terminals) L532 x W207 x 226mm Weight (kg) 57 Warranty 2 Years Battery Technology AGM Battery Application Super Cycle
