Renusol GmbH based in Cologne (Germany) and is among the fastest growing businesses on the European market for PV mounting systems. The manufacturer of high-quality mounting solutions is successful with its 4 core mounting options, VarioSole, MetaSole, InterSole and ConSole in many European countries.
Renusol Mounting
Renusol ConSole+ (incl. Mounting material and U-Profile)
The ConSole+ provides an angle of 15 degrees. The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+. The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual. Details: Colour: black Suitable for flat-roof- and ground mounting installations For framed PV-modules Technical Data: Material: HDPE, Aluminium and stainless steel Weight: 7,900 kg Max# module length: 1550-2400 mm Holes gap - width: 895-1014 mm Holes gap - length: 690-1180 mm Other Contents: 1 x 500075 ConSole+ 2 x 400005 ConSole U-Profile 1035 mm 4 x 900027 Hexag# screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag# nut DIN985-M6-A2 4 x 900106 ConSole Clip 4 x 900115 Hexag# screw DIN7504-ST5,5x25-A2-SW8
£76.88 Exc. VAT
£92.26 Inc. VAT
164 in stock
Renusol NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+
This rail enables modules of different widths to be mounted on the ConSole+. 2 x rail; 4 x hexagon head screw DIN933-M6x20 A2-70, 4 x washer DIN9021-6,4-A2, 4 x self-locking hexagon nut DIN985-M6-A2 Material: Aluminum, stainless steel Weight: 0.127 kg Dimensions: 175 x 25 x 12 mm (2x)
£7.12 Exc. VAT
£8.54 Inc. VAT
262 in stock

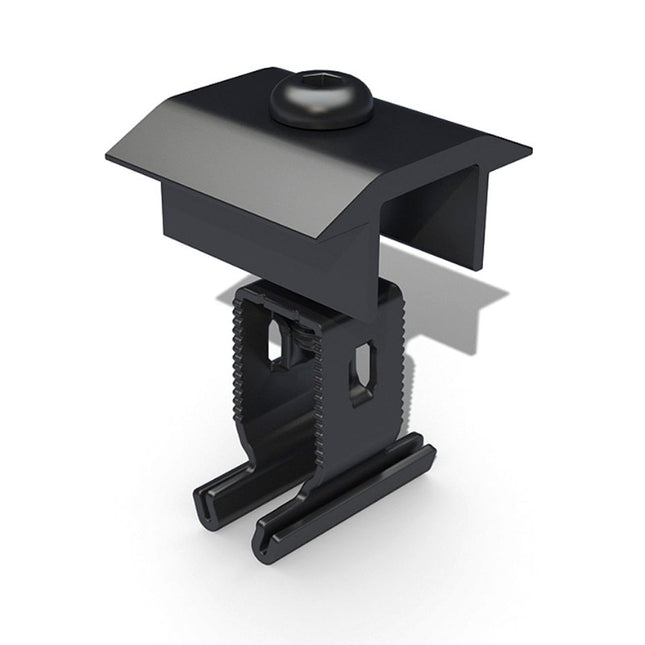

Renusol Renusol Middle Clamp+ 30 - 50mm Black
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£2.56 Exc. VAT
£3.07 Inc. VAT
62 in stock

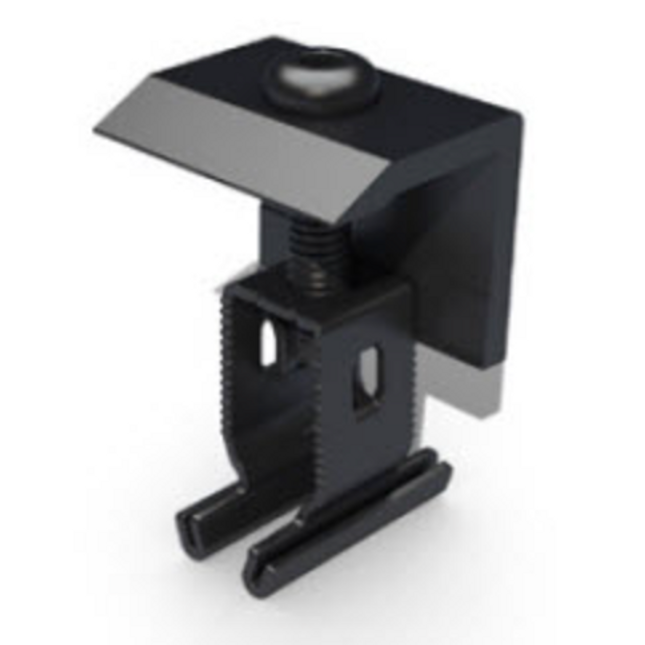

Renusol Renusol End Clamp+ 30 - 50mm Black
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£2.56 Exc. VAT
£3.07 Inc. VAT
In stock

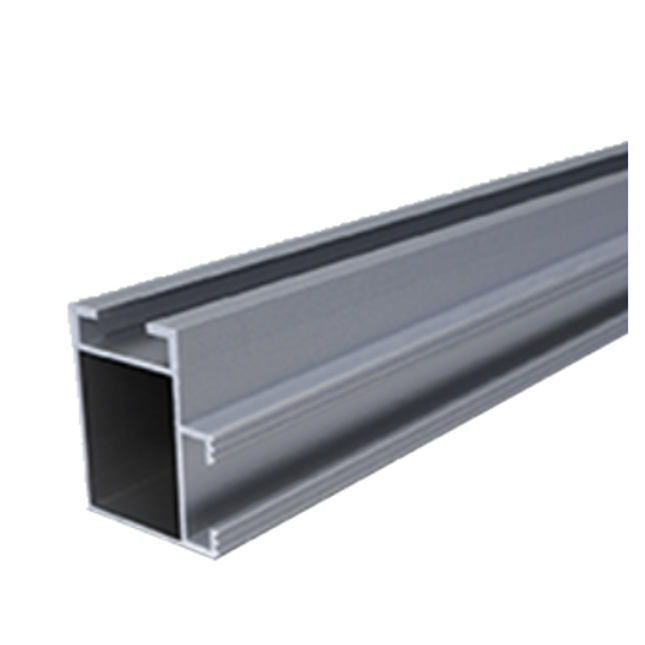

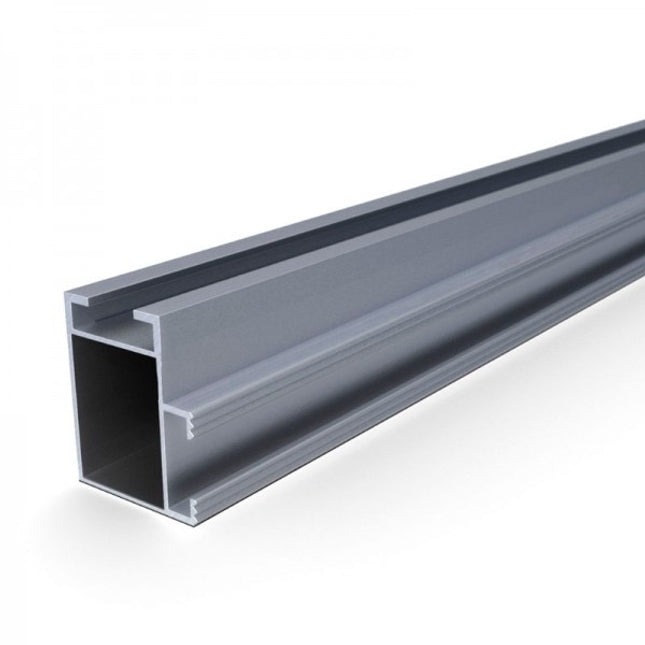

Renusol VarioSole+ Mounting rail 41 x 35 x 3600 mm
VS+ Mounting Rail 41 x 35 x 3600 mm Weight: 0.593 kg per m Material: Aluminum Certification: TÜV ID: 1111212485; MCS012 IK0197/03
£21.03 Exc. VAT
£25.24 Inc. VAT
86 in stock

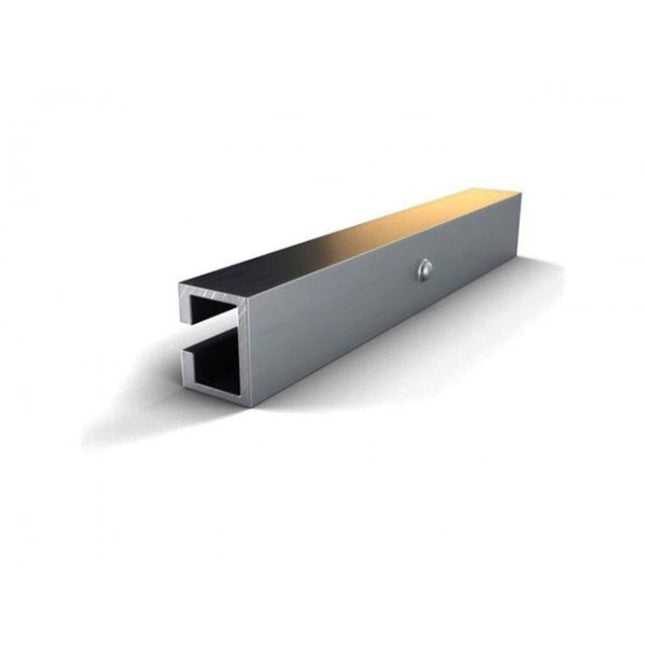

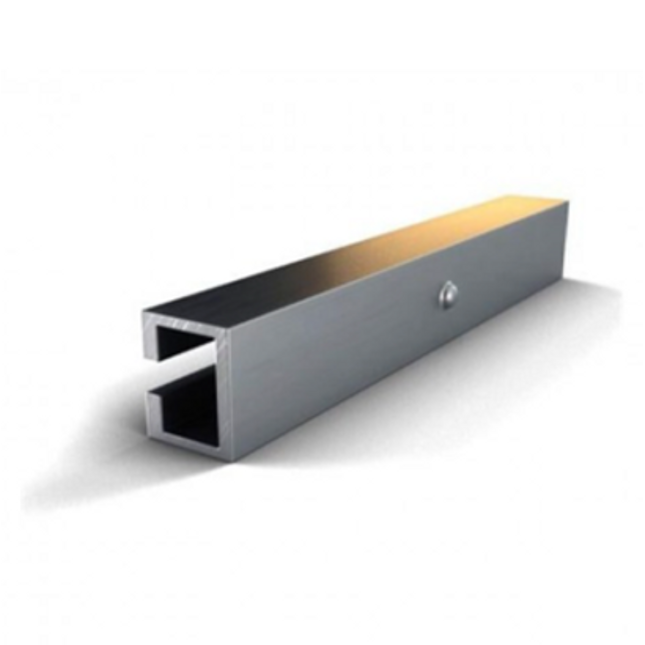

Renusol VarioSole+ Rail connector for rail 41 x 35 mm
Technical Data: Dimensions: 195 x 24,1 x 30 Weight: 0.151kg Rail Length: 195,0mm Material: Aluminium Certification: TUV ID:48970; MCS012 IK0197/03 Useable with: VS+ Mounting rail 41 x 35mm
£4.38 Exc. VAT
£5.26 Inc. VAT
190 in stock
Renusol Aluminium U-Profile 1035 mm ConSole 4.2, 5.2,6.2, CS+, single
Details: Colour: silber / grey ConSole 4.2, 5.2, 6.2 and CS+ Compatible with: 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium EN-AW-6063 T6 Weight: 0,203 kg Material thicknesss 2 mm Two required per console
£5.80 Exc. VAT
£6.96 Inc. VAT
In stock
Renusol Hanger bolt M10 x 200 offset connection (for Timber Purlins)
Material: stainless steel; aluminium Suitable for Timber Purlins ONLY. Certification: MCS012 IK0197/04; TÜV ID: 1111212485; DIBt Z-14.4-602 Screw Ø: M10; 9.0 mm Thread length: 65.0 mm Weight: 0,249 kg Adjustment range: 81 mm Dimensions: M10 x 200 (Offset connection)
£4.83 Exc. VAT
£5.80 Inc. VAT
In stock
Renusol Mounting material for ConSole 4.1, 4.2, 5.2, 6.2, CS+
Details: ConSole 4.1, 4.2, 5.2, 6.2 and CS+ Compatible with: 520041-K, 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium and stainless steel Other Contents: 1 x 900115 Hexag. screw DIN7504-ST5,5x25-A2-SW8 4 x 900027 Hexag. screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag. nut DIN985-M6-A2 4 x 900106 ConSole Clip
£4.13 Exc. VAT
£4.96 Inc. VAT
In stock

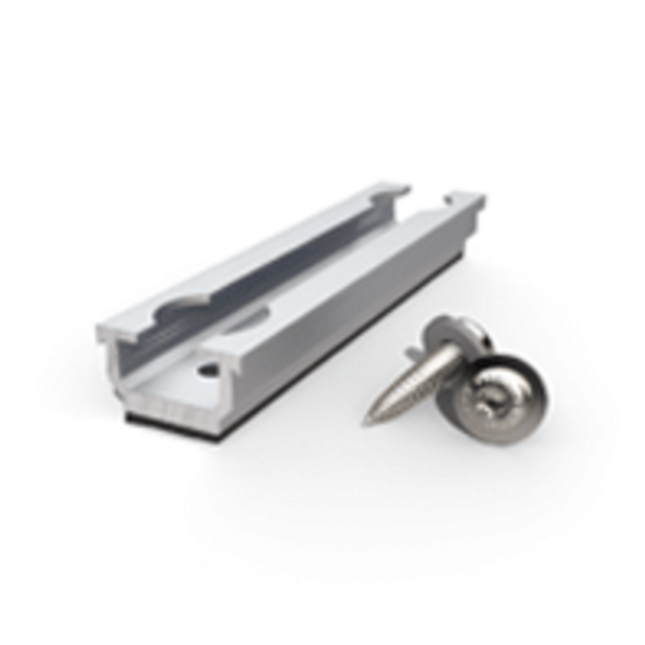

Renusol MetaSole+ Sheet thickness: FE 0.50-1.50 mm, AL 0.5-2.00mm 2 x screws included
Renusol Metasole mounting system for trapezoidal/IBR and corrugated sheet metal roofs. This roof anchor is suitable for landscape panel mounting solutions. The roof anchor is suitable for PV systems with framed pv-modules from 30 to 50 mm frame height. Installation is made directly into the metal roofing using self-tapping and thread-forming screws that come as standard with the mounting bracket. If more panel-to-roof clearance is required, the following roof anchor can be used as an alternative: REN-420423 2x mounting screws included (REN-400301) Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
£3.80 Exc. VAT
£4.56 Inc. VAT
In stock

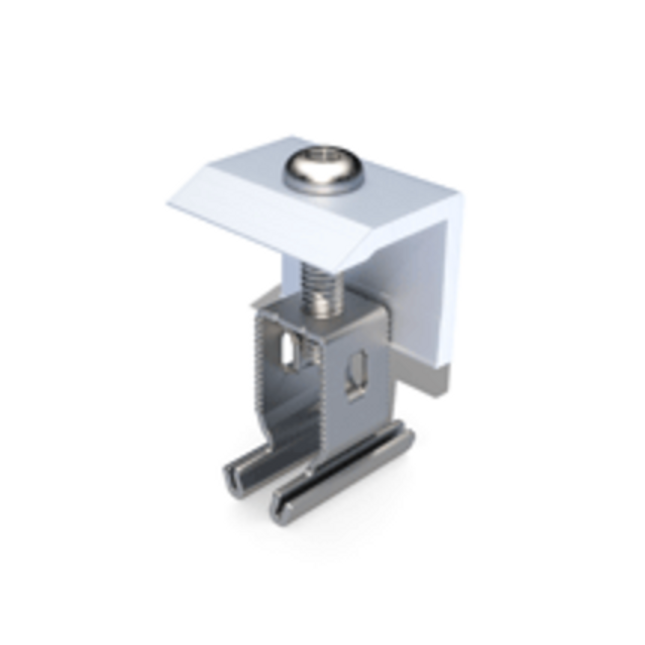

Renusol End Clamp+ 30 - 50mm Silver
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£1.85 Exc. VAT
£2.22 Inc. VAT
In stock

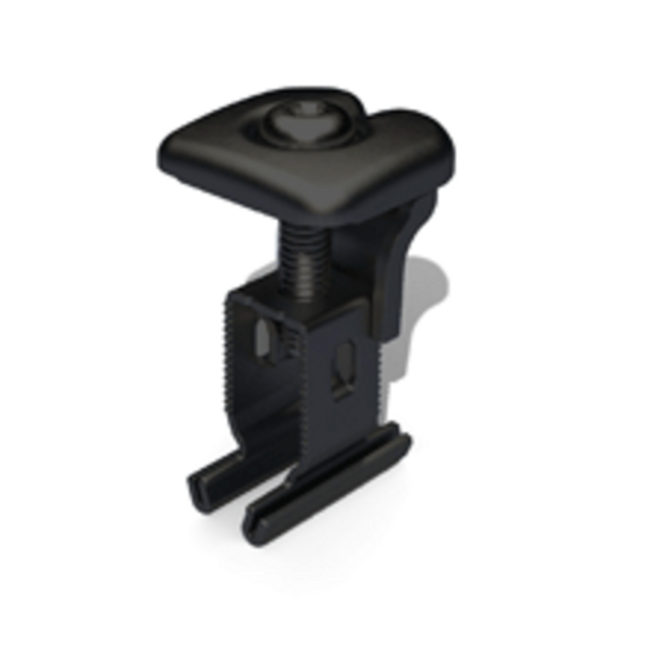

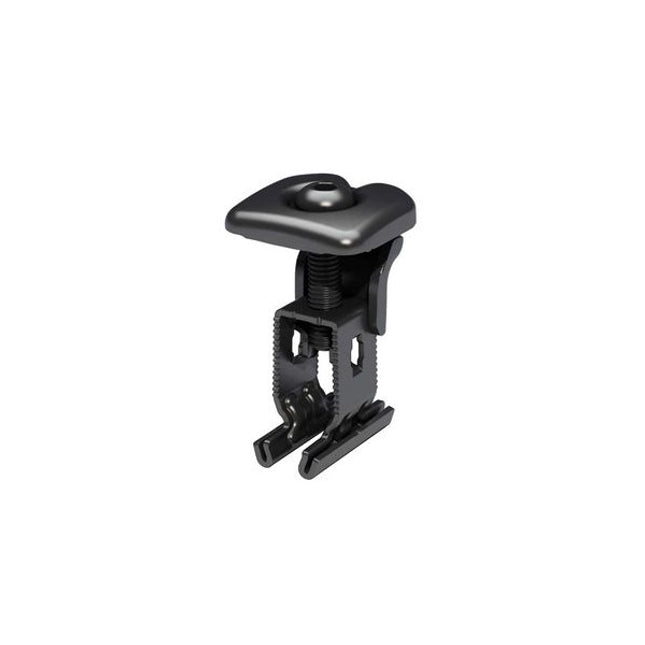

Renusol RS1 Universal End and Mid Clamp 30 - 50mm Black ONE FOR ALL
This innovative masterpiece makes your next PV-project a whole lot easier. The RS1 works as mid- and end clamp. It is heigth adjustable and secures any framed PV panel starting from 30 mm up to 50 mm height. Twisting the RS1‘s head changes the functionality from end- to mid-clamp. Installation and positioning works one handed. At the same time it minimizes needed storage space and saves administrational costs in item management. The RS1 is a real time saver and generates savings over your entire value chain. Technical Data: Dimensions: 35x36.5x60 Weight: 0.083kg Set: complete pre-assembled set Material: Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£3.80 Exc. VAT
£4.56 Inc. VAT
In stock

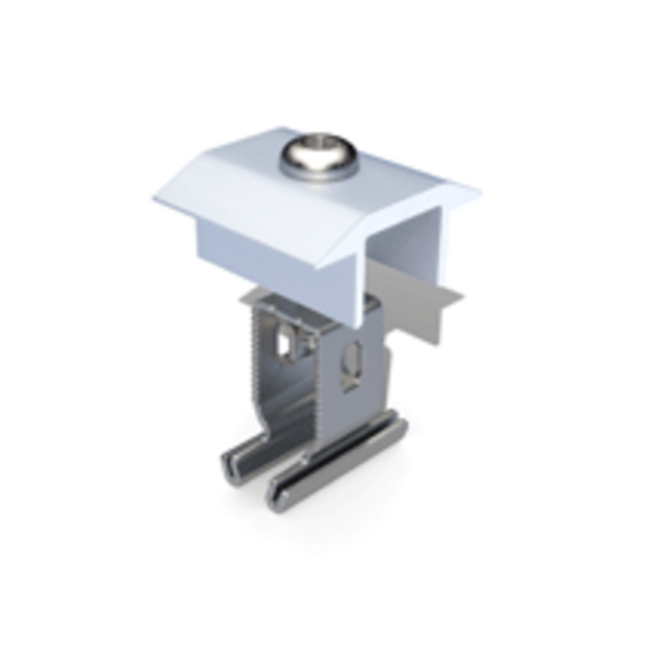

Renusol Middle Clamp+ 30 - 50mm Silver
Technical Data: Dimensions: 35x40x60 Weight: 0.064kg Set: complete pre-assembled set Material: Aluminium; Corrosion resistant steel Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197 Module Types: Framed modules only Module Thickness: Between 30.0mm and 50.0mm Maximum Torque: 12,00 Nm Driver: Hexagon socket 5mm
£1.85 Exc. VAT
£2.22 Inc. VAT
In stock

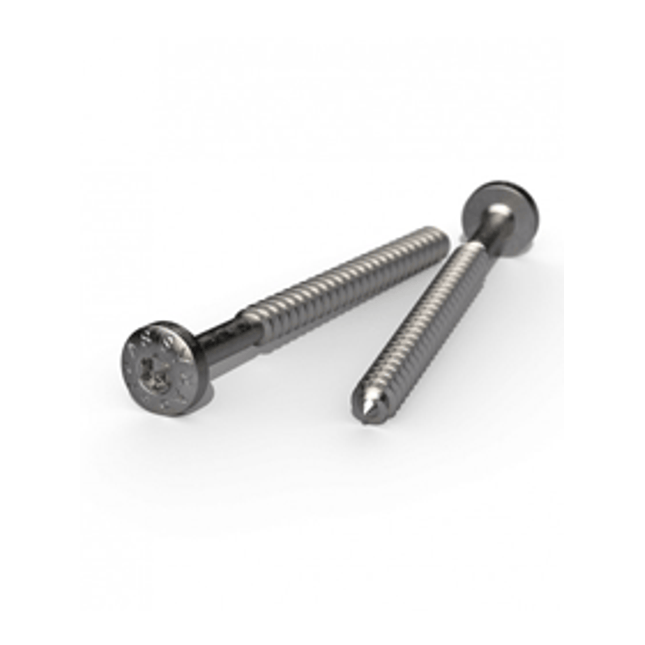

Renusol Renusol Wood screw pan head 6 x 80 SIT30 (Pack of 100)
Part No: REN-900333-100 Mounting - Wood Screws Renusol wood screw pan-head made from stainless steel. Dimensions: Diameter - 6mm Length - 80mm Weight - 0.009kg Suitable for the following Renusol tile roof anchors: REN-420150 REN-420181 REN-420182 REN-420180 REN-420183 The screws are supplied in single units. Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
£37.75 Exc. VAT
£45.30 Inc. VAT
29 in stock

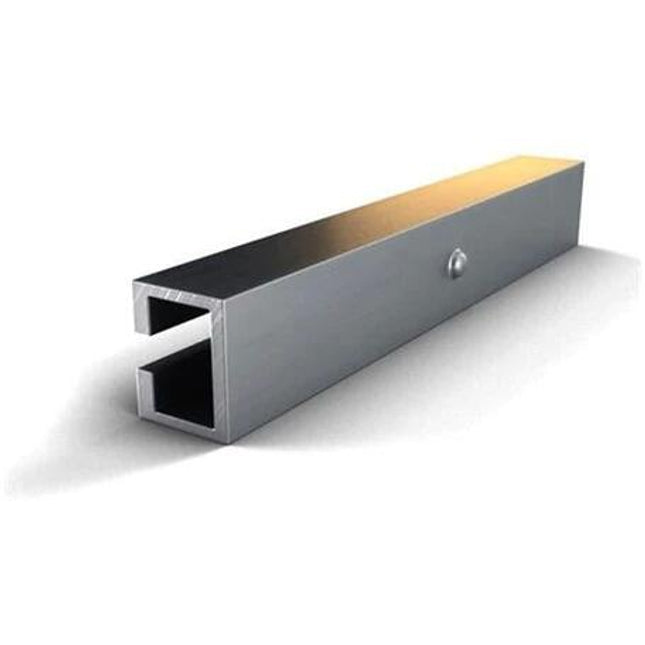

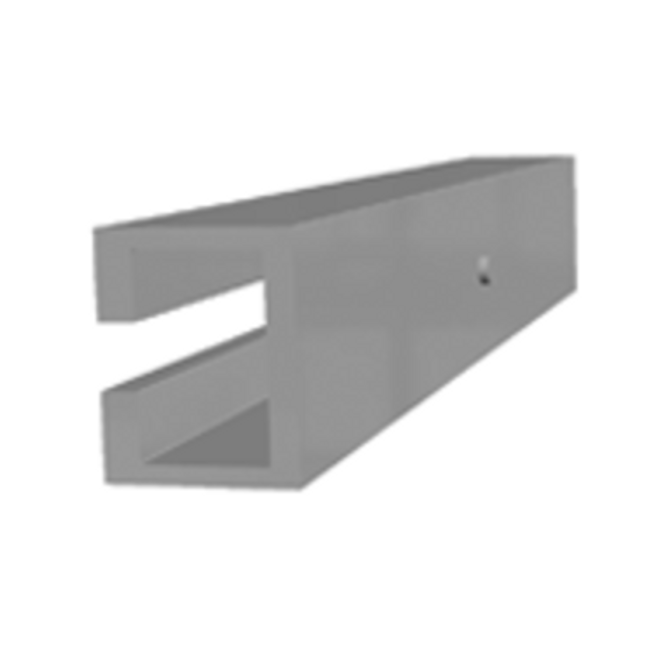

Renusol VarioSole+ Rail connector for rail 50 x 37 mm.
Technical Data: Dimensions: 195 x 27,9 x 38,8mm Weight: 0.193kg Rail Length: 195,0mm Material: Aluminium Certification: TUV ID:48970; MCS012 IK0197/03 Useable with: VS+ Mounting rail 50 x 37mm
£4.11 Exc. VAT
£4.93 Inc. VAT
In stock

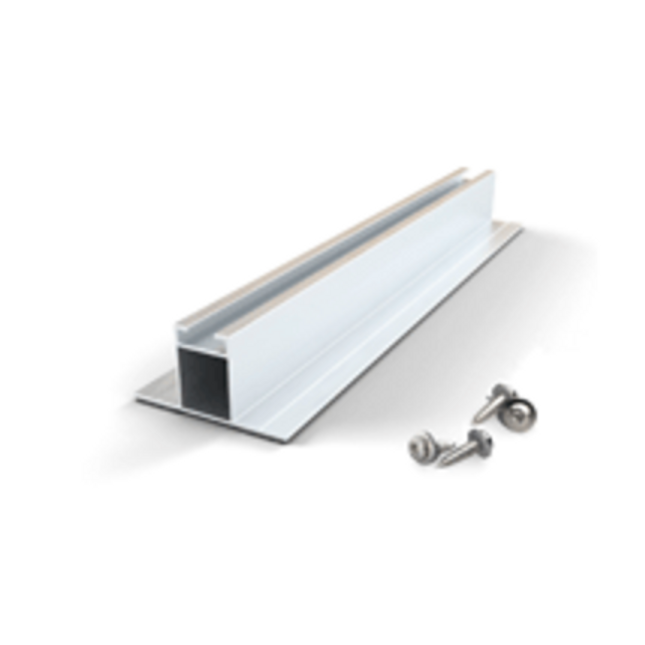

Renusol MetaSole+ PORTRAIT rail 400mm long
SHORT 400mm RAIL Material saving solar installation on trapezoidal sheet. Without continuous rails. Suitable for maximum 370mm distance between centres of raised trapezoidal ridges. VERTICAL PV MODULE ORIENTATION PV modules with a frame height of 30 to 50 mm are attached to the MS + P mounting system in portrait (standing) on the trapezoidal sheet. INSTALLATION WITHOUT PILOT DRILLING Self-tapping screws fix the MS+P PV mounting system directly to the trapezoidal sheet. FOR TRAPEZOIDAL STEEL AND ALUMINUM METAL SHEET Readymade kits are suitable for the installation of PV systems on trapezoidal sheet steel and / or aluminum in various thicknesses. Metasole Portrait kit: consist of 1x 400mm long rail and 4x REN-400301
£6.35 Exc. VAT
£7.62 Inc. VAT
In stock

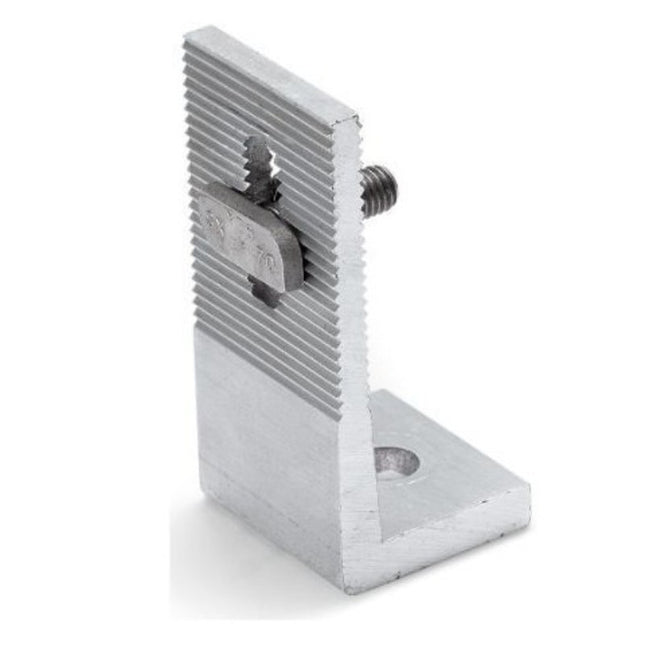

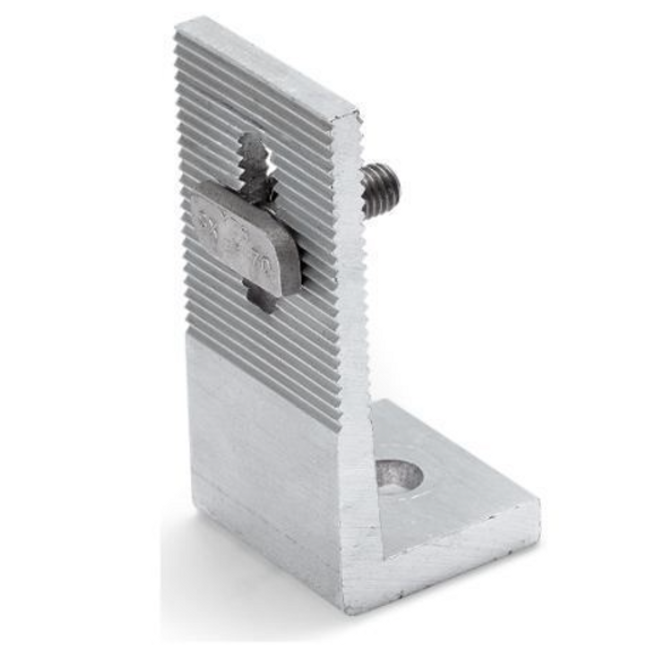

Renusol VarioSole Bracket M10
Description Material Dimensions Weight Compatible Components Identical functionality given with M12 bracket Aluminium, Stainless steel 40 x 38 x 85 mm 0,098 kg 900181 - 900192, 400011, 400081, 400094, 400230, 420015, 420019, 420020, 430009, 490018, 900138, 900163 1 x Bracket M10 1 x Hammerhead bolt M8 x 25 1 x Hexagon Nut w. serration DIN6923 - M8 A2-70
£2.43 Exc. VAT
£2.92 Inc. VAT
In stock

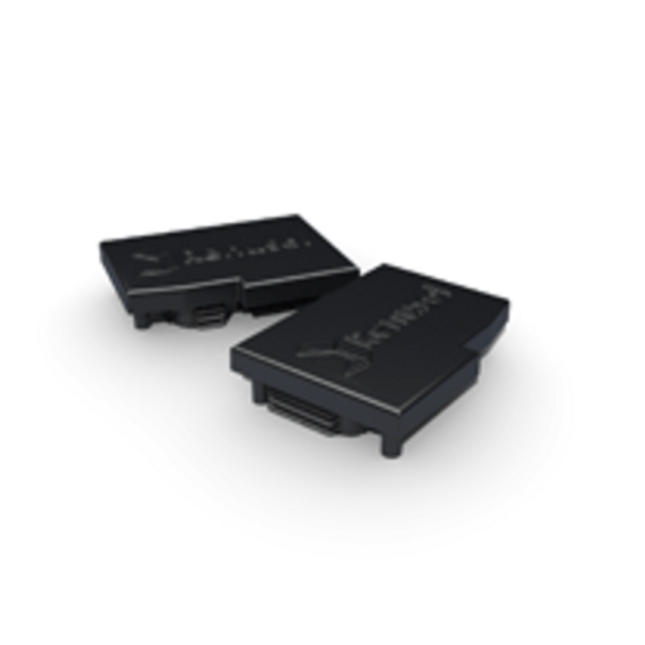

Renusol VarioSole + End Cap 50X37 rail - RIGHT/LEFT Black (1 pair)
Technical Data Material Dimensions Weight Compatible Components Average thicknesss 2,00 mm Coulour: black PPH 1102 50 x 37 x 15 mm 0,007 kg 1 x End cap left (black) 1 x End cap right
£1.54 Exc. VAT
£1.85 Inc. VAT
In stock

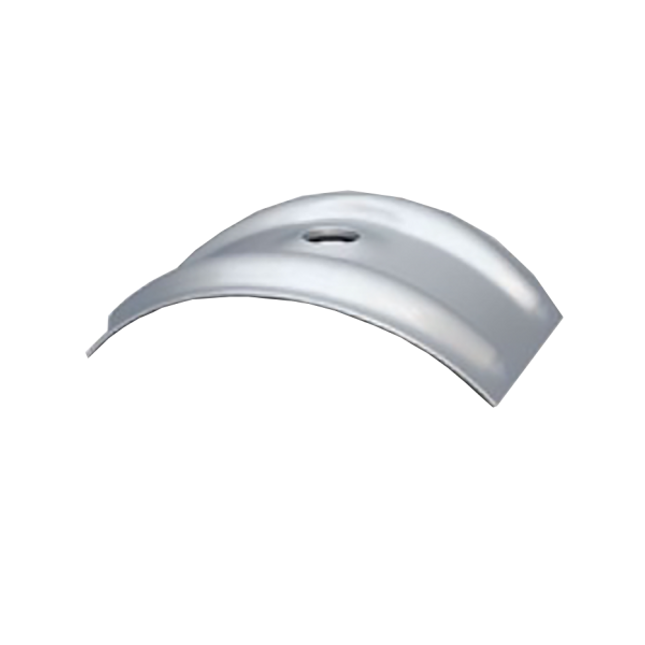

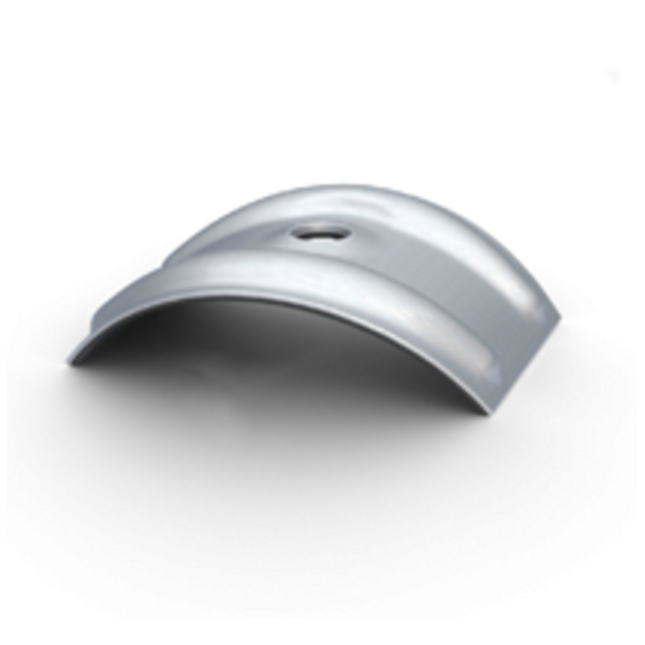

Renusol Storm washer for corrugated sheet R24mm/37mm
Technical Data Applicational Data Material Dimensions Weight Compatible EPDM pre-assembled Port diameter 7.3 mm Radius: 24 mm Aluminium EPDM 45 x 40 x 12 mm 0,008 kg Solar fasteners
£0.65 Exc. VAT
£0.78 Inc. VAT
In stock

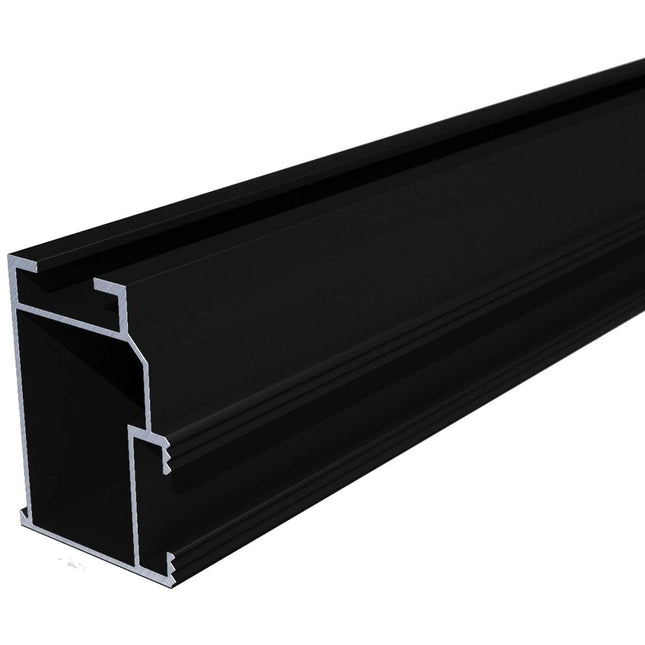

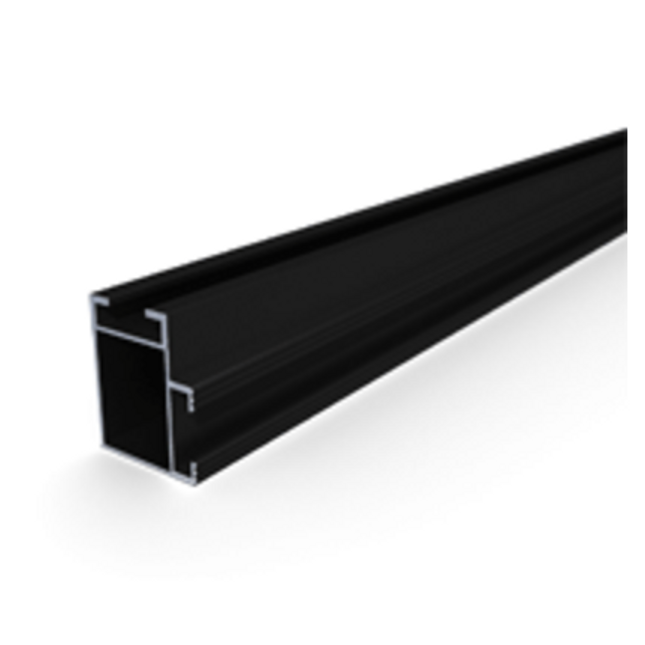

Renusol VarioSole+ Mounting rail 50 x 37 x 3600 mm black
VS+ Mounting Rail 50 x 37 x 3600 mm - black 0,703 kg/m Material: Aluminum Certification: TÜV ID: 1111212485; MCS012 IK0197/03
£37.90 Exc. VAT
£45.48 Inc. VAT
In stock

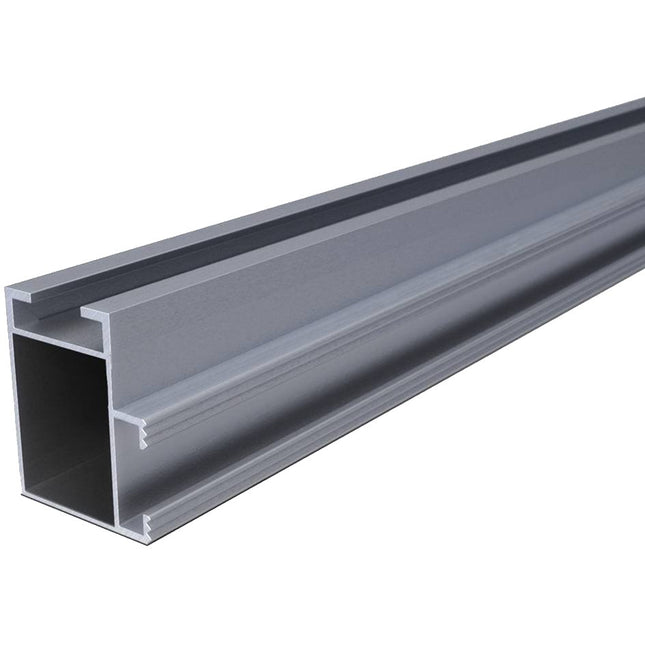

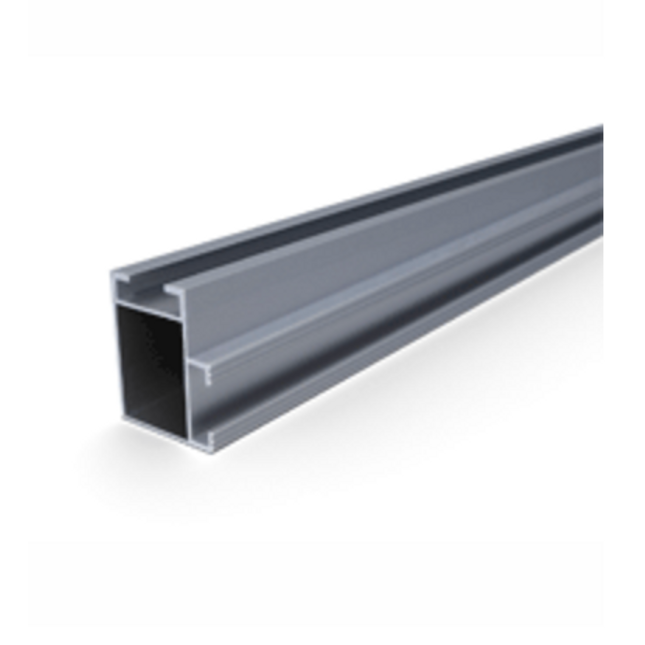

Renusol VarioSole+ Mounting rail 50 x 37 x 3600 mm
VS+ Mounting Rail 50 x 37 x 3600 mm 0,703 kg/m Material: Aluminum Certification: TÜV ID: 1111212485; MCS012 IK0197/03
£24.20 Exc. VAT
£29.04 Inc. VAT
In stock

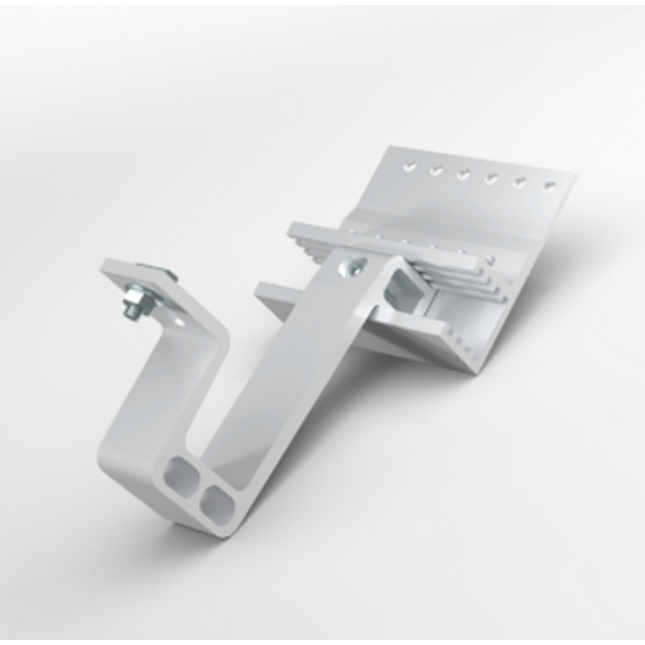

Renusol Variosole RH1 roof hook Aluminium adjustable 100 mm (without wood screws)
This new hook has an extraordinarily high load capacity and is 25% stronger than their previously strongest model. The strength of this hook reduces mounting costs on-site, and its universal application allows for extensive configuration possibilities. Thanks to its adjustable base plate, you can position the hook optimally between the rafters or tiles. What’s more, the height of the roof hook is also adjustable in four steps to a total of 25mm, ensuring a secure and flush fitment. You can even use the hook on uneven roofs as the product’s arm has a vertical adjustment range of 25mm on the mounting rail.16,00 mm.
£9.78 Exc. VAT
£11.74 Inc. VAT
In stock

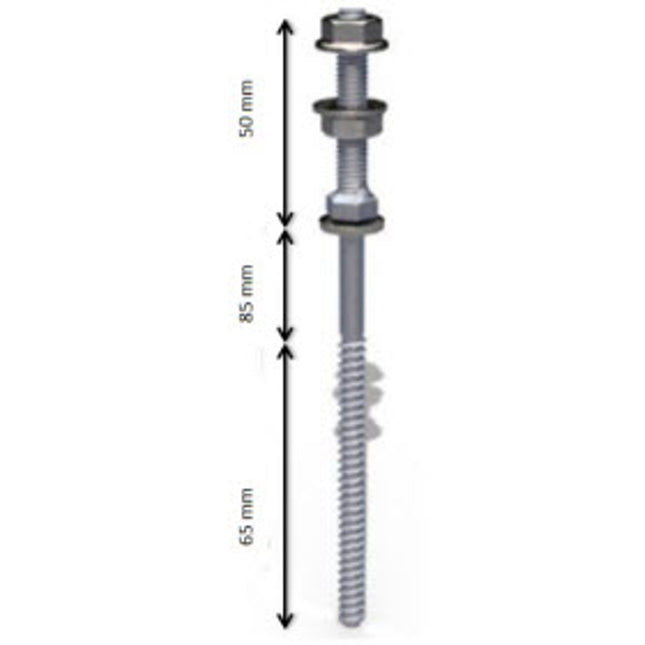

Renusol Solar Fastener for steel substructure 150mm/50mm
Technical Data Applicational Data Material Dimensions Weight Compatible Thread length: 150/50 Hexagon socket 5 mm with building approval Z-14.4 - 555 Setscrew: M10 Clamping range: 80 - 130 mm pre-drilling necessary Stainless steel 8,4 x 206 mm 0,093 kg 420012, 420014, 420130, 420131, 900193, 900205 - 900222 REN900184, Renusol, PV Mounting, Roof Anchor- Hanger Bolt Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system. Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system. REN-900184
£5.75 Exc. VAT
£6.90 Inc. VAT
179 in stock

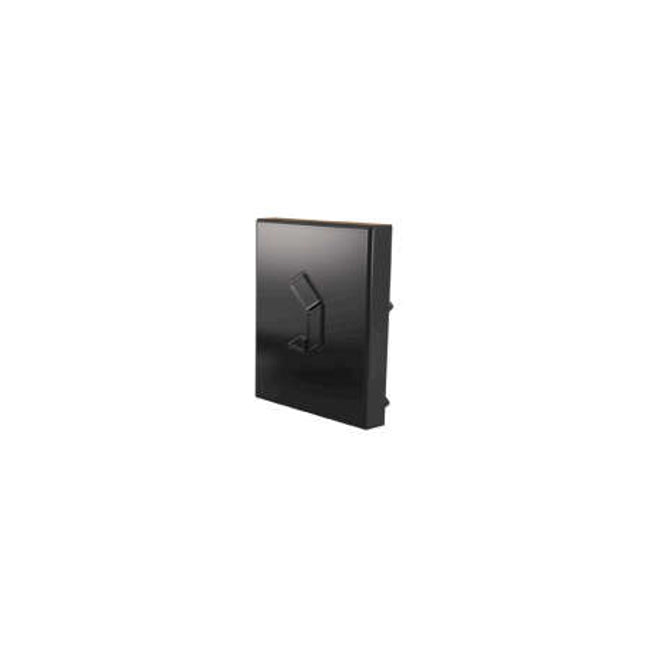

Renusol VarioSole + End Cap 41x35 & 50x37 rails Single - Black
Part No: REN-900276 Mounting - Rail End Caps End cap for VarioSole + 41x35 & 50x37mmrail, black
£0.89 Exc. VAT
£1.07 Inc. VAT
In stock
Renusol MetaSole+ PORTRAIT rail 350mm long
SHORT 350mm RAIL Material saving solar installation on trapezoidal sheet. Without continuous rails. Suitable for maximum 320mm distance between centres of raised trapezoidal ridges. VERTICAL PV MODULE ORIENTATION PV modules with a frame height of 30 to 50 mm are attached to the MS + P mounting system in portrait (standing) on the trapezoidal sheet. INSTALLATION WITHOUT PILOT DRILLING Self-tapping screws fix the MS+P PV mounting system directly to the trapezoidal sheet. FOR TRAPEZOIDAL STEEL AND ALUMINUM METAL SHEET Readymade kits are suitable for the installation of PV systems on trapezoidal sheet steel and / or aluminum in various thicknesses. Metasole Portrait kit: consist of 1x 350mm long rail, 4x REN-400301 screws : M10 x 200 (Offset connection)
£5.46 Exc. VAT
£6.55 Inc. VAT
In stock

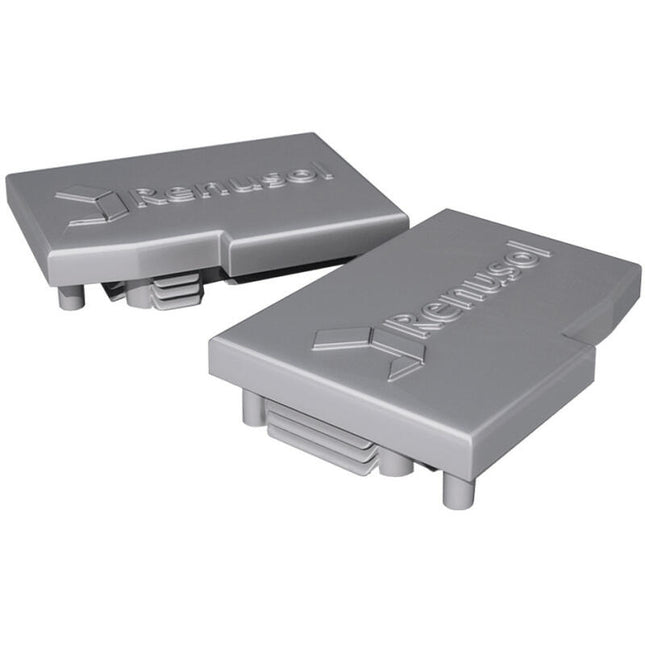

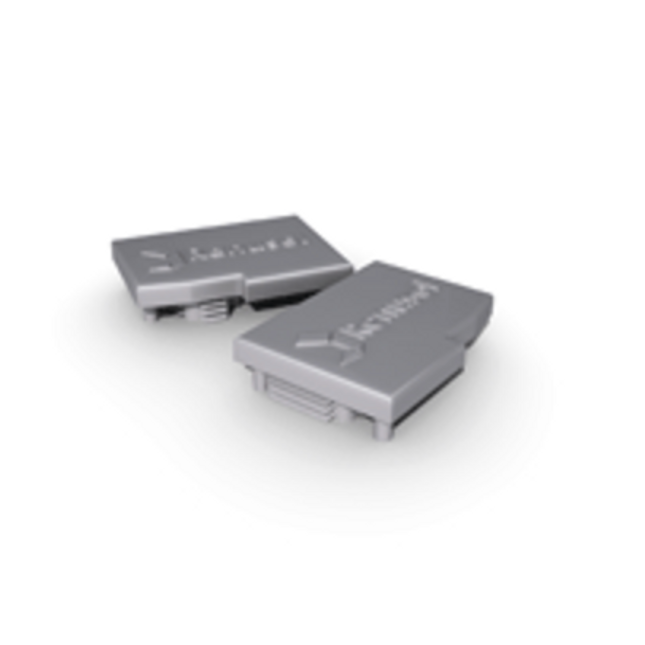

Renusol VarioSole + End Cap 50X37 rail - RIGHT/LEFT Grey (1 pair)
Technical Data Material Dimensions Weight Compatible Components Average thicknesss 2,00 mm Colour: grey PPH 1102 50 x 37 x 15 mm 0,007 kg 400011, 400081, 400094, 430009, 490018, 900138, 900163 1 x End cap left (grey) 1 x End cap right (grey) Keywords: REN920044, Renusol, PV Mounting, Rail End Caps
£1.54 Exc. VAT
£1.85 Inc. VAT
In stock

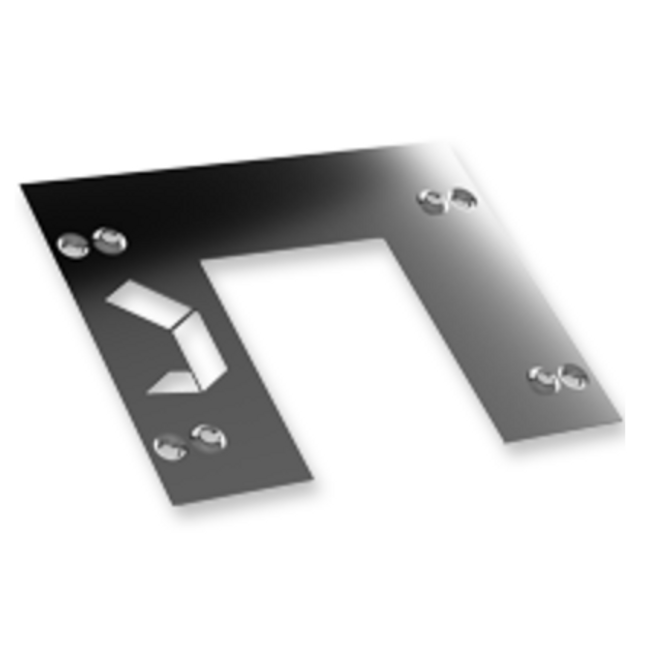

Renusol P-Clip Potential Equalization Clip
Potential equalization clip for a conductive connection between solar modules and substructure.
£0.65 Exc. VAT
£0.78 Inc. VAT
In stock

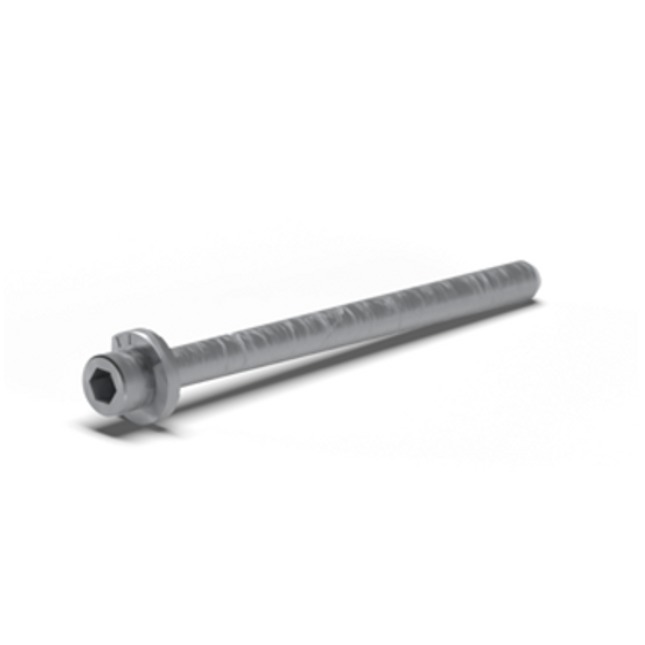

Renusol FS Pro Securing bolt
R500227 Material: Aluminum Weight: 0.007 kg Dimensions: 76 x 14 x 14 mm
£0.59 Exc. VAT
£0.71 Inc. VAT
In stock

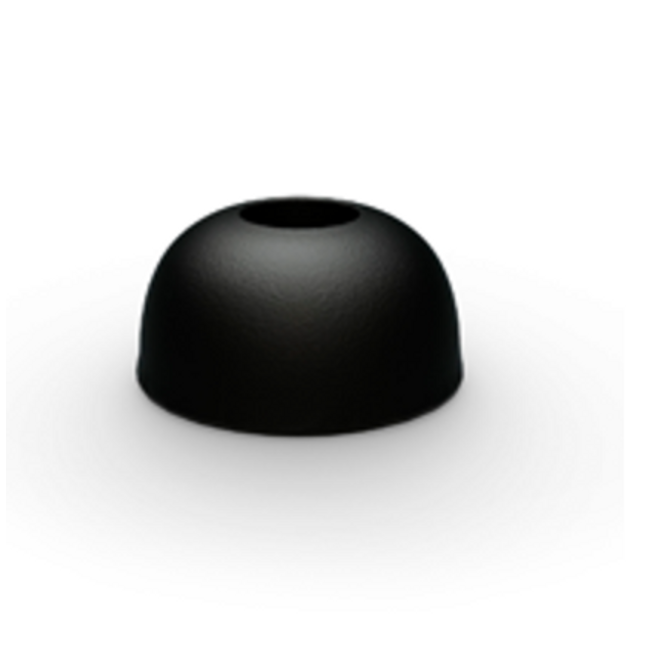

Renusol EPDM gasket 8.4mm/25mm. Screen seal for solar fastener
Dimensions: 25x25x15 mm Weight: 0,004 kg Material: EPDM Certification: TÜV ID: 1111212485 MCS012IK0197/04 Usable with: Solar fastener Screw Ø: 8,4 mm
£0.54 Exc. VAT
£0.65 Inc. VAT
In stock

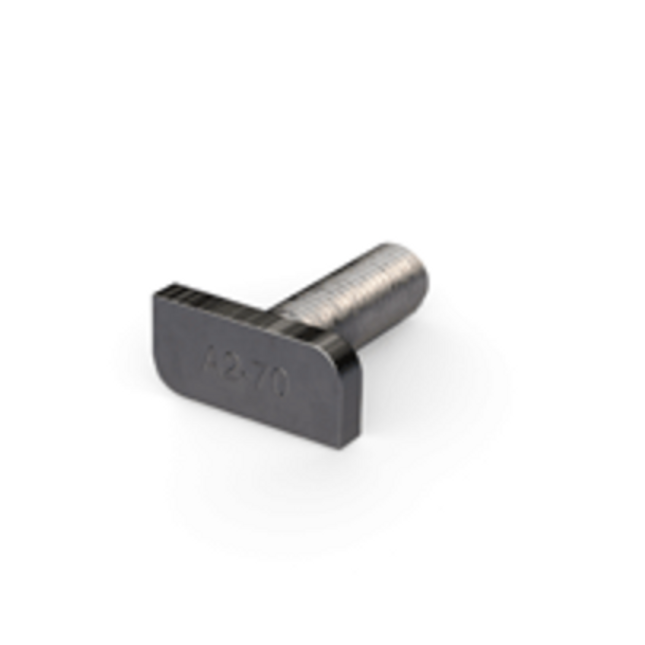

Renusol Hammerhead bolt M8x25
Hammerhead bolt M8x25
£0.23 Exc. VAT
£0.28 Inc. VAT
In stock

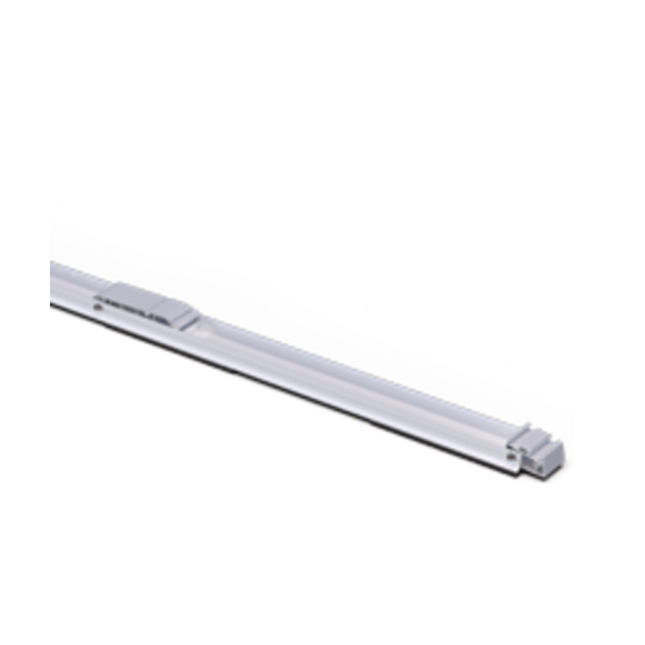

Renusol FS Pro 10-S Base rail 1500 (Set)
R520220 Material: Aluminum, Stainless Steel, Polyethylene (PE) Weight: 1.776 kg Dimensions: 1546 x 98 x 61 mm Angle of inclination: 10° maximum module width: FS Pro 10-S: 990-1.230 mm , FS Pro 10-S-LS: 990-1.210 mm maximum module length: FS Pro 10-S: Check module clamping range FS Pro 10-S-LS: no limitation Module Orientation: Landscape
£31.07 Exc. VAT
£37.28 Inc. VAT
In stock

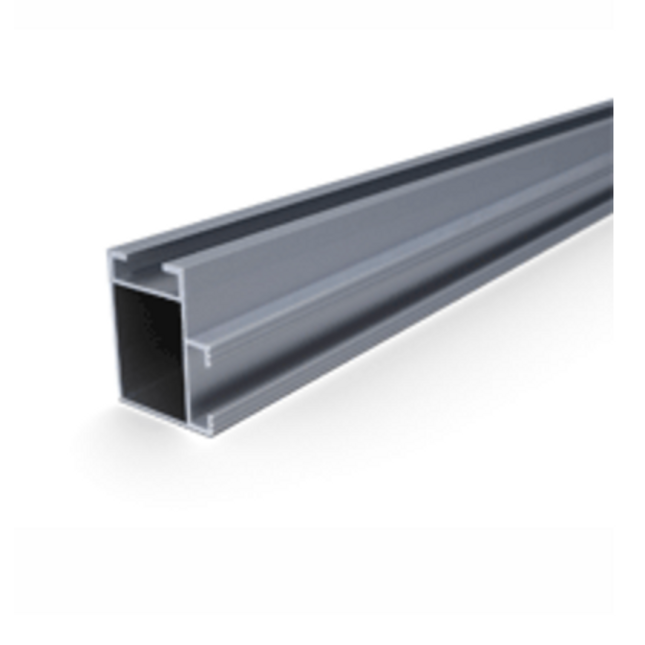

Renusol VarioSole+ Mounting rail 41 x 35 x 2400 mm
Renusol Mounting Rail, to be used with the VarioSole product range. Now supplied in longer 2.4m lengths. - 1 x GEN-FT-TILE - 1 x REN-420352
£13.68 Exc. VAT
£16.42 Inc. VAT
In stock

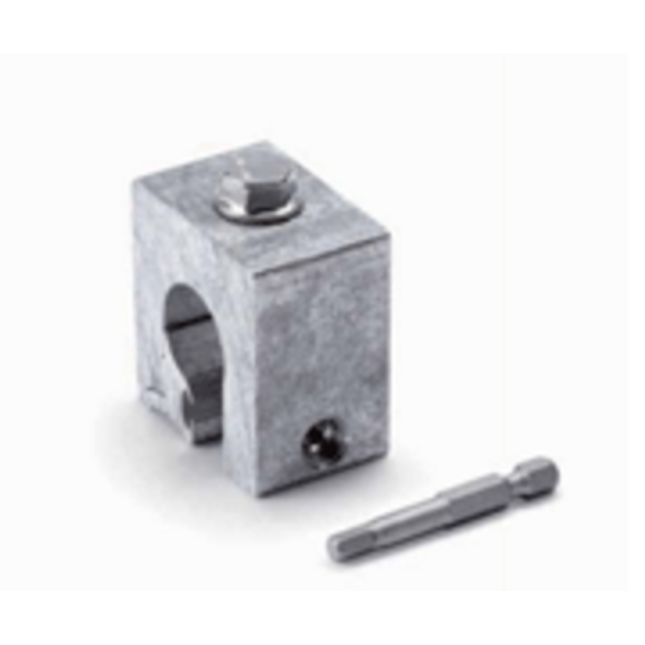

Renusol Renusol Seam Clamp Z-Mini
UK only: These clamps are now MCS012 certified with Renusol Variosole +
£7.54 Exc. VAT
£9.05 Inc. VAT
In stock

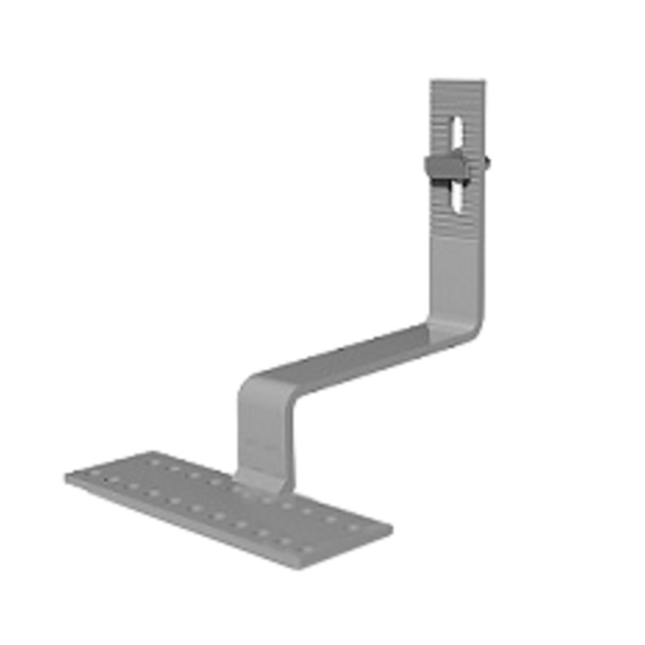

Renusol Roof Hook Eco Basic (no wood screws)
ROOF HOOK ECO BASIC (WITHOUT WOOD SCREW) Size: 150x180x170 mm Weight: 0,55 kg Set pre-assembled Dimensions base plate: 50 x 150 mm Material: Galvanised steel Material thickness: 5,0 / 4,0 mm Hammerhead Bolt Ø: M8 Applicable with: Wood Roof decking: Tiled roof No of screws: 2/3 x 6,0 Horizontal adjustment: 60,0 mm Height adjustment: 37,50 mm
£6.44 Exc. VAT
£7.73 Inc. VAT
In stock

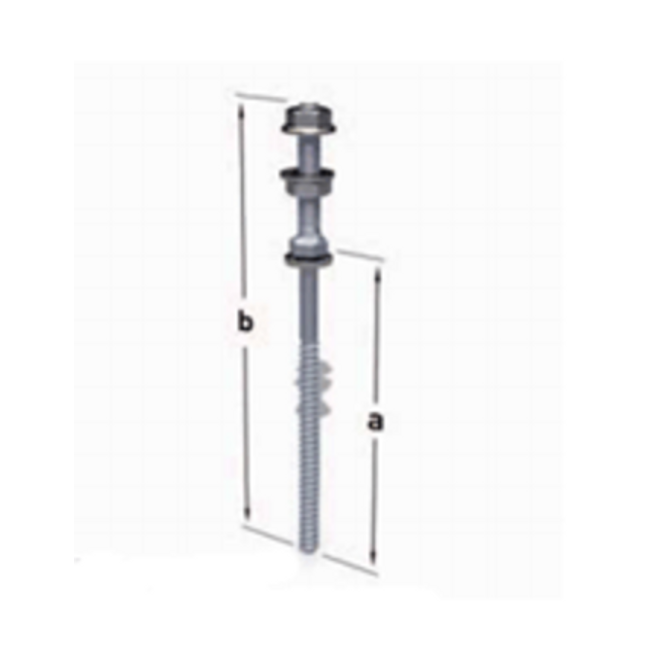

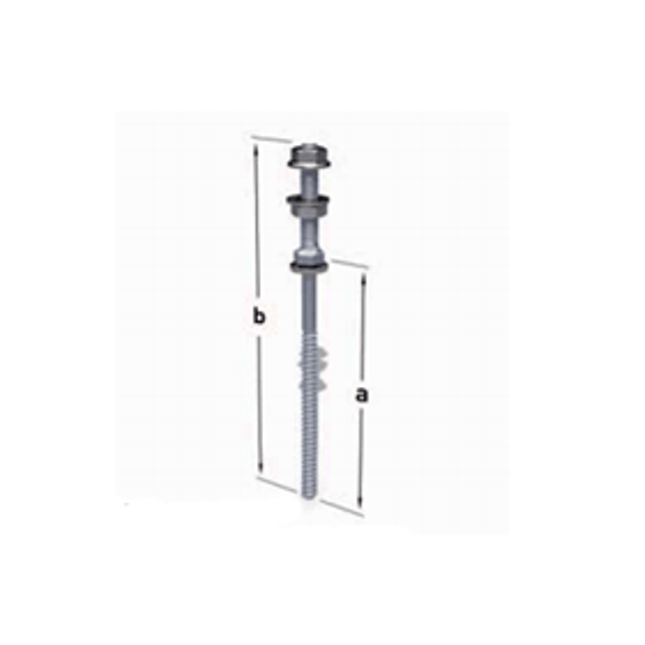

Renusol Solar Fastener for steel substructure 100mm/50mm
Solar Fastener for steel substructure 100mm/50mm
£5.52 Exc. VAT
£6.62 Inc. VAT
In stock

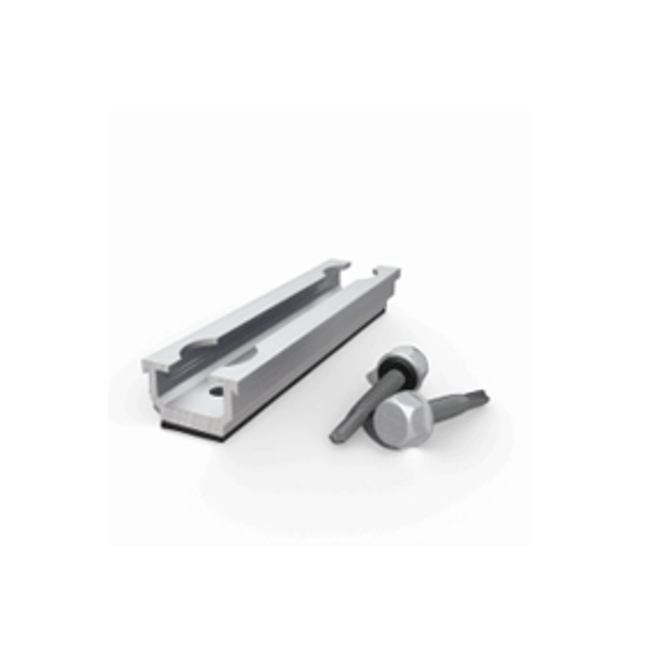

Renusol MetaSole+ metal sheet thickness with 2 x 6.3x 38 screws.
For use on pitched roofs in landscape with the MetaSole and MS+ range.
£3.80 Exc. VAT
£4.56 Inc. VAT
In stock
Renusol Rear grip clamp for CS
The Rear grip clamp for CS (REN-420023) + enables the mounting of solar modules which do not have mounting holes in their frames on the ConSole. PV-Modules without mounting holes or modules which have the module holes on unfavourable positions (e.g. 72 cell modules) can be mounted with this item. This was not possible before with the CS+ solution. Due to that the classical (iconic) system Renusol CS+ can be used in even more cases.
£2.27 Exc. VAT
£2.72 Inc. VAT
In stock

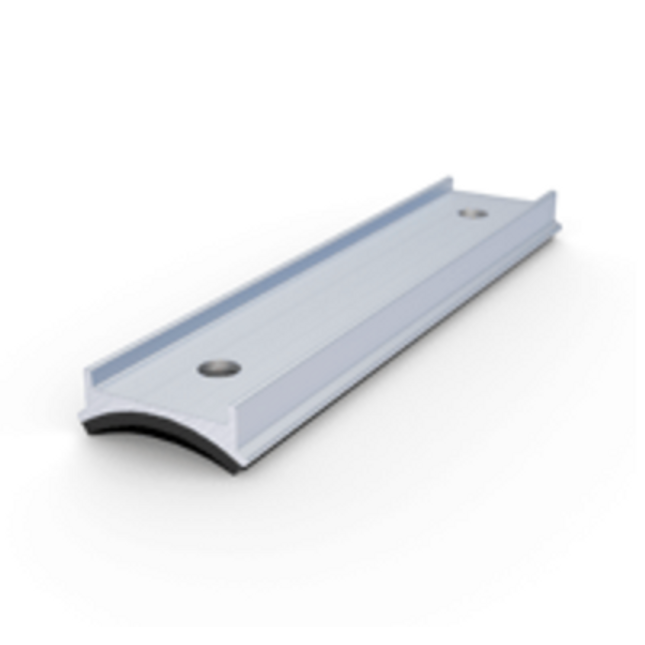

Renusol Renusol MetaSole Corrugated Roof Adaptor
Corrugated adaptor for Renusol MetaSole. This part allows MetaSole designs to be compatble with corrugated metal roof areas and enables your system to be attached to the roof with self-tapping screws, rather than drilling through the sheet into the substructure with hanger bolts. The added bonus is that no mounting rail is required, which reduces the cost of the mounting dramaticdally. Simple, secure and supremely affordable. It must be used in conjunction with the MetaSole sheets REN-420402.
£1.73 Exc. VAT
£2.08 Inc. VAT
In stock

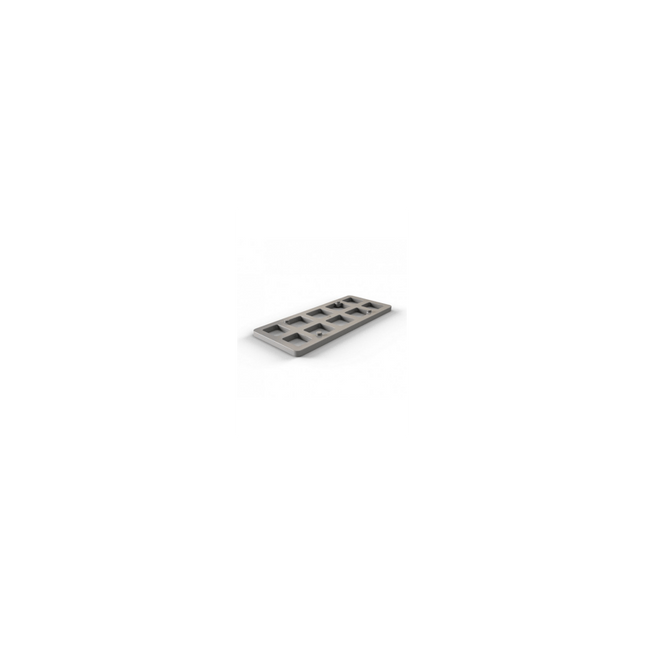

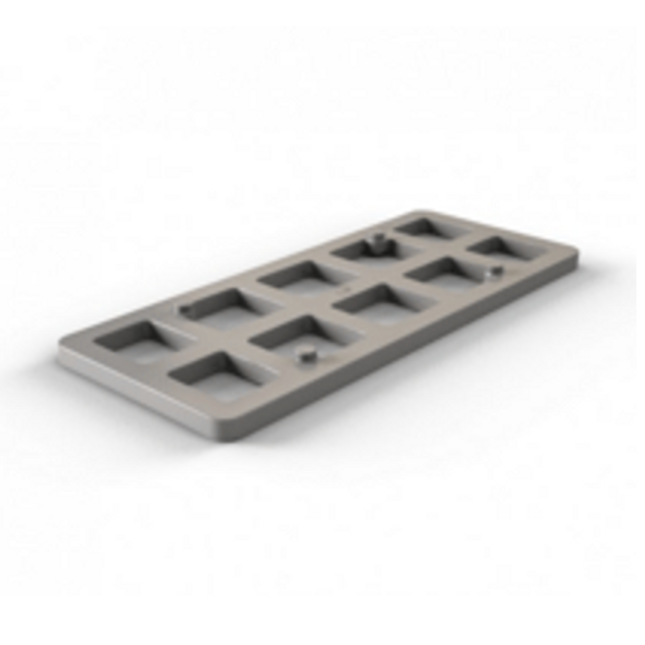

Renusol 5-mm spacer plate
5-mm spacer plate
£0.61 Exc. VAT
£0.73 Inc. VAT
In stock

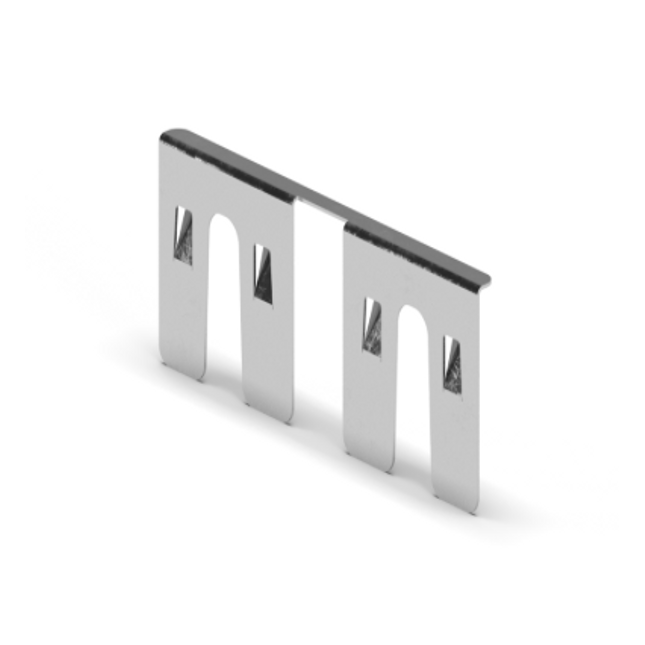

Renusol FS Pro Potential equalisation clip S
R500260 Material: Stainless Steel Weight: 0.007 kg Dimensions: 75 x 30 x 4 mm
£0.23 Exc. VAT
£0.28 Inc. VAT
In stock

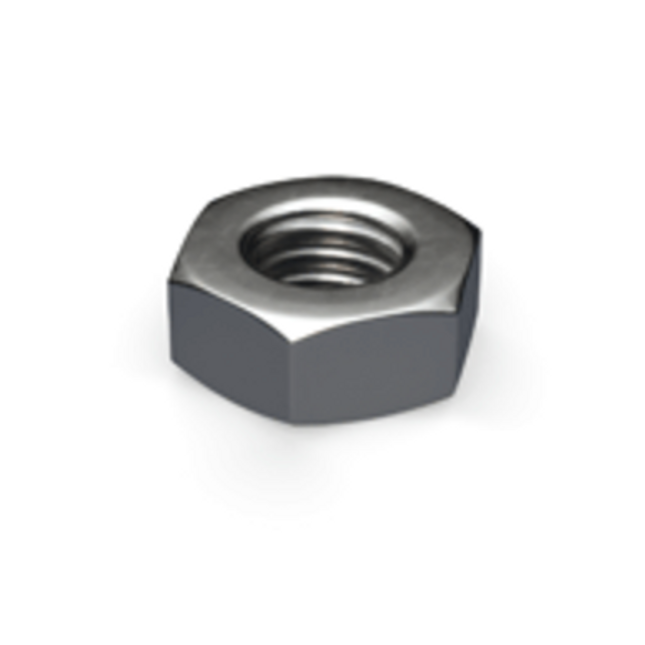

Renusol Hexagon nut ISO 4032 - M8 A2-70
Keywords: REN900036, Renusol, PV Mounting, Fixings
£0.09 Exc. VAT
£0.11 Inc. VAT
In stock

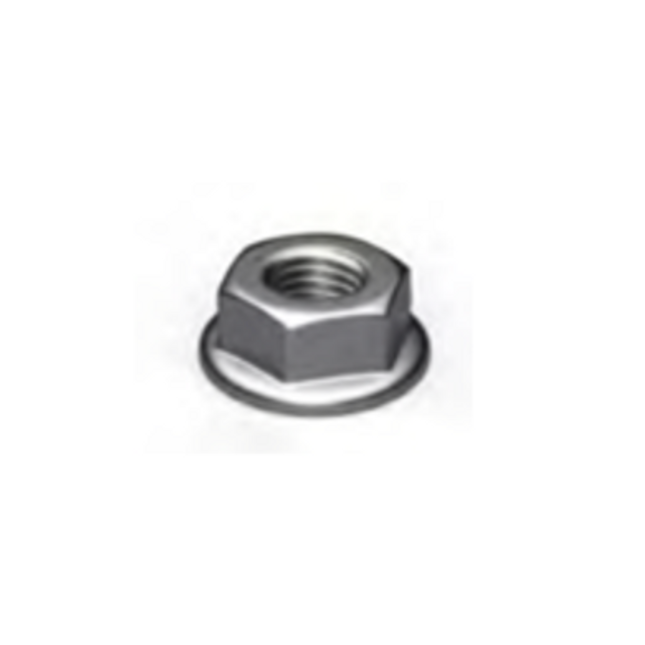

Renusol Hexag. Flange Nut w. serration M8
Hexagon Flange Nut With Serration
£0.09 Exc. VAT
£0.11 Inc. VAT
In stock

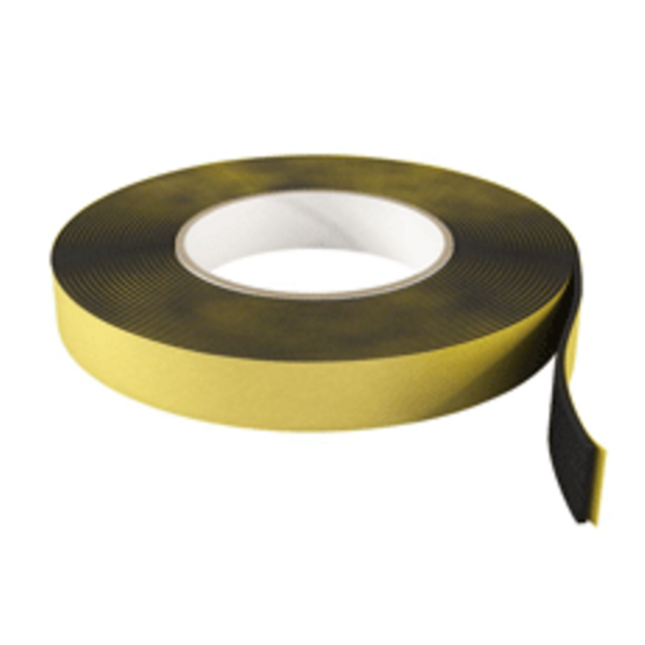

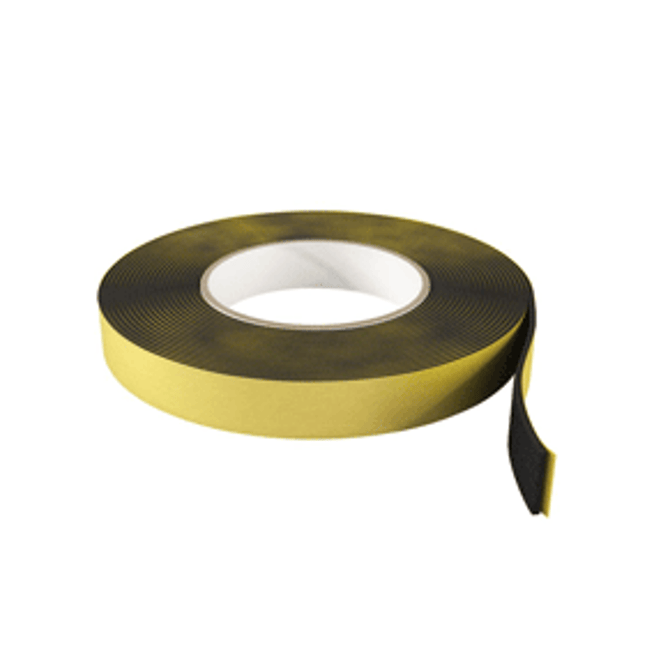

Renusol MetaSole + EPDM Roll 5m ( for MS+P 3.6 - 4.2m)
EPDM rubber seal on a roll to be used with Metasole + Portrait 3.6m REN-400405 or 4.2m REN-400406
£13.72 Exc. VAT
£16.46 Inc. VAT
In stock

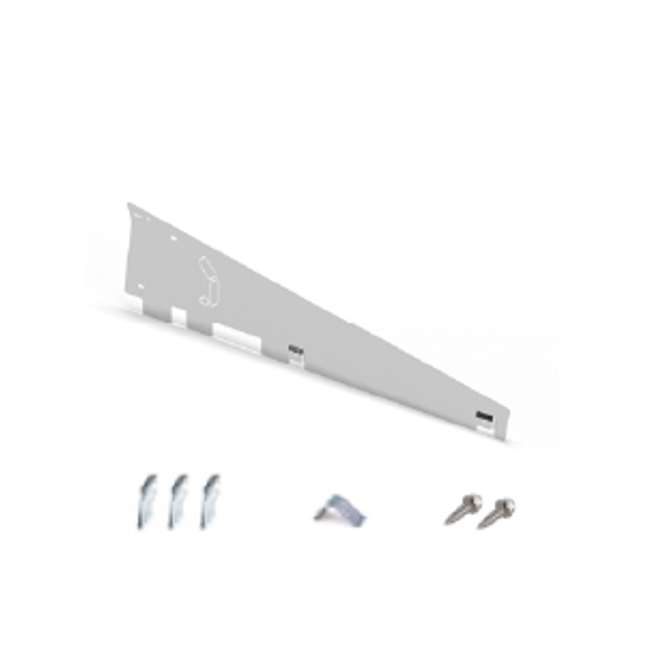

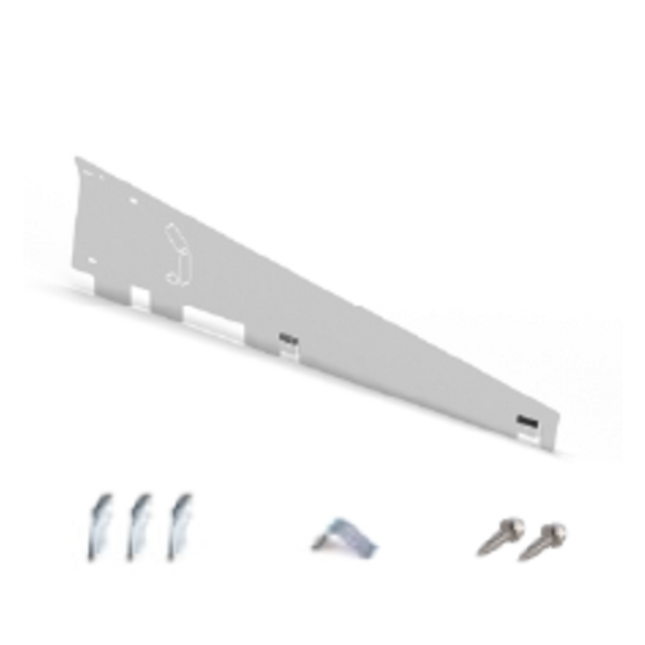

Renusol FS Pro Side deflector 10 (Set)
R520265 The set contains of: 1x R500265 - FS Pro Side deflector 10 3 x R500267 - FS Pro clip Side deflector 1 x R500268 - FS Pro clip Streamliner 2 x R900229 - Self Drilling Screw 4.8 x 19 A2
£10.49 Exc. VAT
£12.59 Inc. VAT
In stock
Genius Roof Solutions Renusol slate solution with Genius flashing - No Hall Hooks
This part is made up of the following items: 1 x REN-420181 Roof hook UK Plain tiles/slates (without wood screw) 1 x GEN-SLATE-NEW Genius Roof - Slate Kit for New Build Renusol plain roof anchor with Genius Roofing slate refit kit. This part contains: - 1 x REN-420181 - 1 x GEN-SLATE-NEW Gen-Slate-New Parts included are: 1 x Large SolarFlash (364mm by 364mm) 1 x Weather stop Foam 2 x Shims
£10.25 Exc. VAT
£12.30 Inc. VAT
In stock

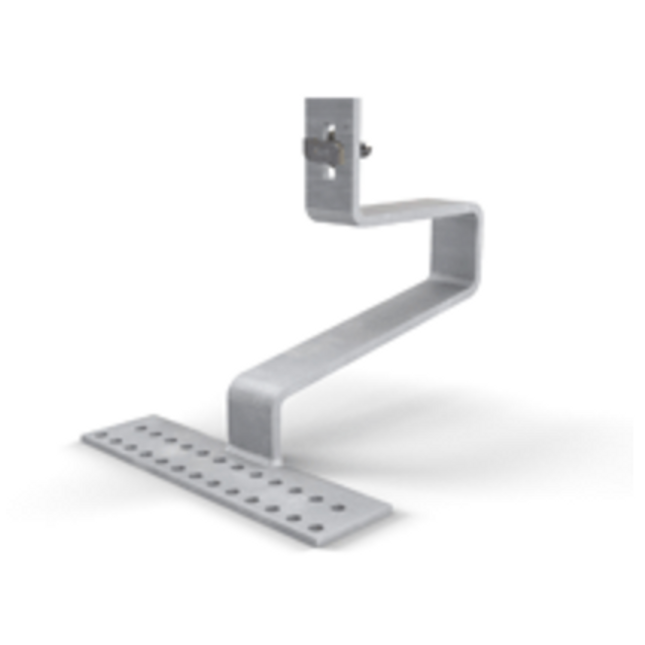

Renusol Roof hook UK Flexible (without wood screw)
Renusol have created this roof hook specifically for the UK market. It is compatible with S-Shaped, Modern interlocking, Flat and Slate tiles, and can be used with the VarioSole product range. This roof hook is compatible with the following Genius Roof Solutions: Plain tile- GEN-FT-TILE Slate tile- GEN-SLATE-NEW
£9.54 Exc. VAT
£11.45 Inc. VAT
In stock
Renusol Variosole Roof Hook RH Flat adjustable (without wood screws)
Flexible. Adjustable. Universal. Renusol’s RH Flat universal roof hook has been designed to suit UK/IE for pitched roofs with the installer in mind. It has a shorter, narrower base plate and adjustable arm — allowing installers to set the product to their preferred dimensions for a vast range of different projects while requiring less roof hooks per installation Another clever feature of the RH Flat is its adjustable arm, which can be set to 5 or 11 degrees by simply turning the base plate 180 degrees, and its adjustable height, which can be set to 25.6mm, 31.9mm or 38.2mm With a lower height of 23.5 mm and a narrower width of 58 mm, this product fits seamlessly into installations with smaller battens and thinner tiles. Additionally, such an array of configuration options reduces the need to use spacers, which is particularly beneficial to installers working on uneven roofs. Plus, fewer tiles need to be cut, which maintains the integrity of the roof surface.
£11.60 Exc. VAT
£13.92 Inc. VAT
300 in stock

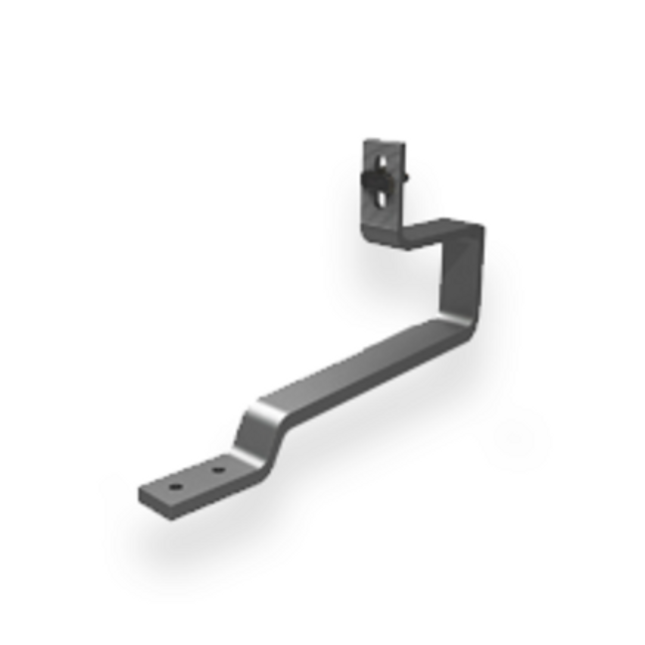

Renusol Roof hook UK Plain tiles/slates HIGH LOAD (without wood screw)
Renusol have created roof hooks specifically for the UK market. This New roof hook can be used with Slate tiles, where higher snow loads capacity is required, and is compatible with the VarioSole product range. This brand-new version of the roof hook is both thicker and manufactured using stronger steel, offering a higher load capacity for areas with more snow. This is the UK Plain Tile HL (please note ‘HL’ stands for ‘high load’). The primary benefit of this new hook is the sizeable gain in the load capacity compared to the existing UK plain roof hook: 130% increase for suction loads (wind), 112% increase for pressure loads (self-weight and snow) and 53% more capacity for combined loads.
£8.61 Exc. VAT
£10.33 Inc. VAT
In stock
