Features A MultiPlus-II with LCD and GX functionality The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display. Display and Wi-Fi The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. GX device The integrated GX device includes: A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery. A USB port. A Ethernet port. A VE.Direct port. Applications The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Parallel and three phase operation Only one GX unit is needed in case of Parallel and three phase operation Brand Victron Energy Manufacturer Part Number PMP482306000 Voltage 48 Transfer Switch (A) 32 Cont. Output Power at 25°C (W) 2400 Peak Power (W) 5500 Max Efficiency 95% Zero Load Power (W) 11 Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H506 x W275 x D147mm Weight (kg) 26 Warranty 5 Years Country of Manufacture China

Read more less

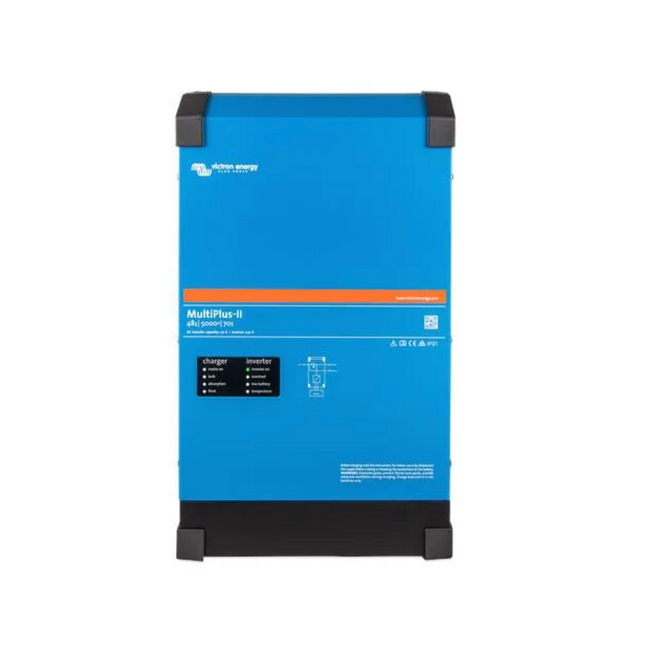

FeaturesA MultiPlus, plus ESS (Energy Storage System) functionalityThe MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.PowerControl and PowerAssist - Boosting the capacity of the grid or a generatorA maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.Solar energy: AC power available even during a grid failureThe MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.Two AC OutputsThe main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel and three phase operation (not available for the 8k and 10k models)Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.On-site system configuring, monitoring and controlSettings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.Remote configuring and monitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

Read more less

FeaturesA MultiPlus, plus ESS (Energy Storage System) functionalityThe MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.PowerControl and PowerAssist - Boosting the capacity of the grid or a generatorA maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.Solar energy: AC power available even during a grid failureThe MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.Two AC OutputsThe main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output. Virtually unlimited power thanks to parallel and three phase operation (not available for the 8k and 10k models)Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.On-site system configuring, monitoring and controlSettings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.Remote configuring and monitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

Read more less

Features A MultiPlus-II with LCD and GX functionality The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display. Display and Wi-Fi The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. GX device The integrated GX device includes: A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery. A USB port. A Ethernet port. A VE.Direct port. Applications The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Parallel and three phase operation Only one GX unit is needed in case of Parallel and three phase operation Brand Victron Energy Manufacturer Part Number PMP482506000 Voltage 48 Transfer Switch (A) 50 Cont. Output Power at 25°C 5000VA Battery Temperature Sensor Yes Programmable Relay Yes Remote on-off Yes Protection Category IP21 Dimensions H506 x W275 x D147mm Weight (kg) 26 Warranty 5 Years Country of Manufacture India

Read more less

Features A MultiPlus-II with LCD and GX functionality The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display. Display and Wi-Fi The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. GX device The integrated GX device includes: A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery. A USB port. A Ethernet port. A VE.Direct port. Applications The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Parallel and three phase operation Only one GX unit is needed in case of Parallel and three phase operation Brand Victron Energy Manufacturer Part Number PMP242306000 GTIN 8719076051695 Voltage 24V Transfer Switch 32A Cont. output power at 25 °C 3000VA Cont. output power at 40 °C 2200W Peak power 5500W Efficiency 94% Zero load power 13W Maximum battery charge current 70A Battery Temperature Sensor Yes Programmable Relay Yes Protection Category IP22 Battery-Connection M8 Bolts Dimensions H506 x W275 x D147mm Weight 19Kg Warranty 5 Years Country of Manufacture India

Read more less
