Renusol Flat Roof Mounting

23 products

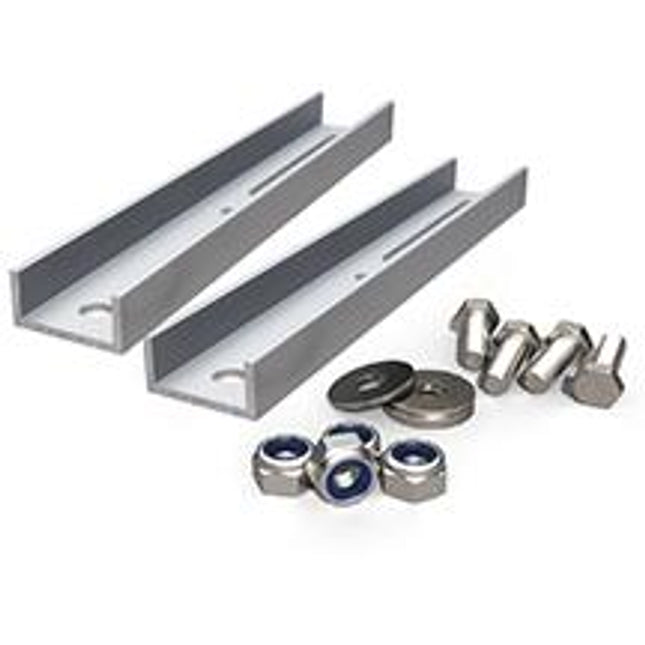

  • NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+

    Renusol NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+

    This rail enables modules of different widths to be mounted on the ConSole+. 2 x rail; 4 x hexagon head screw DIN933-M6x20 A2-70, 4 x washer DIN9021-6,4-A2, 4 x self-locking hexagon nut DIN985-M6-A2 Material: Aluminum, stainless steel Weight: 0.127 kg Dimensions: 175 x 25 x 12 mm (2x)

    Read more

    £7.12 Exc. VAT

    £8.54 Inc. VAT

    262 in stock

  • ConSole+ (incl. Mounting material and U-Profile)

    Renusol ConSole+ (incl. Mounting material and U-Profile)

    The ConSole+ provides an angle of 15 degrees. The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+. The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual. Details: Colour: black Suitable for flat-roof- and ground mounting installations For framed PV-modules Technical Data: Material: HDPE, Aluminium and stainless steel Weight: 7,900 kg Max# module length: 1550-2400 mm Holes gap - width: 895-1014 mm Holes gap - length: 690-1180 mm Other Contents: 1 x 500075 ConSole+ 2 x 400005 ConSole U-Profile 1035 mm 4 x 900027 Hexag# screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag# nut DIN985-M6-A2 4 x 900106 ConSole Clip 4 x 900115 Hexag# screw DIN7504-ST5,5x25-A2-SW8

    Read more

    £76.88 Exc. VAT

    £92.26 Inc. VAT

    164 in stock

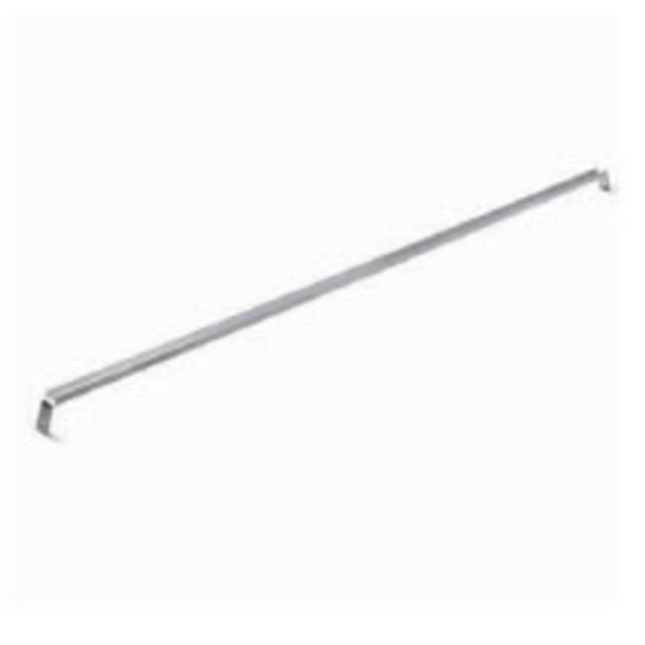

  • Aluminium U-Profile 1035 mm ConSole 4.2, 5.2,6.2, CS+, single

    Renusol Aluminium U-Profile 1035 mm ConSole 4.2, 5.2,6.2, CS+, single

    Details: Colour: silber / grey ConSole 4.2, 5.2, 6.2 and CS+ Compatible with: 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium EN-AW-6063 T6 Weight: 0,203 kg Material thicknesss 2 mm   Two required per console

    Read more

    £5.58 Exc. VAT

    £6.70 Inc. VAT

    In stock

  • Mounting material for ConSole 4.1, 4.2, 5.2, 6.2, CS+

    Renusol Mounting material for ConSole 4.1, 4.2, 5.2, 6.2, CS+

    Details: ConSole 4.1, 4.2, 5.2, 6.2 and CS+ Compatible with: 520041-K, 520042-K, 520052-K, 520062-K, 520075-K Technical Data: Material: Aluminium and stainless steel Other Contents: 1 x 900115 Hexag. screw DIN7504-ST5,5x25-A2-SW8 4 x 900027 Hexag. screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag. nut DIN985-M6-A2 4 x 900106 ConSole Clip

    Read more

    £3.98 Exc. VAT

    £4.78 Inc. VAT

    In stock

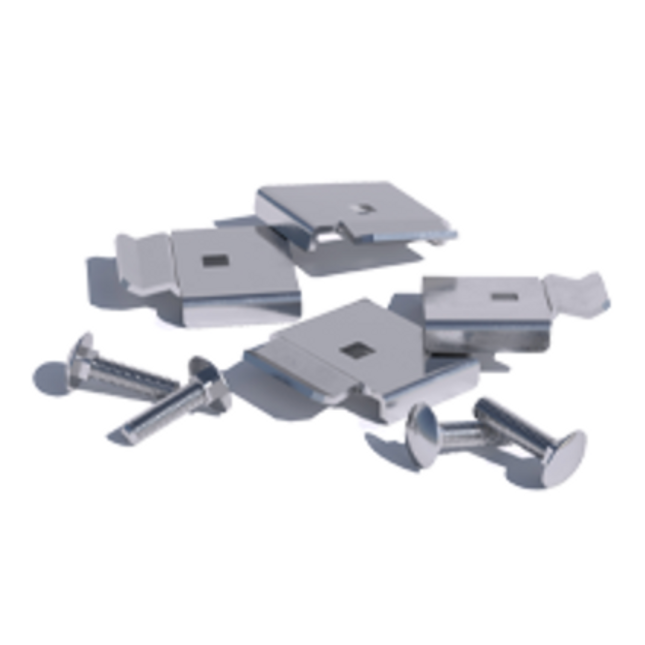

  • Rear grip clamp for CS

    Renusol Rear grip clamp for CS

    The Rear grip clamp for CS (REN-420023) + enables the mounting of solar modules which do not have mounting holes in their frames on the ConSole. PV-Modules without mounting holes or modules which have the module holes on unfavourable positions (e.g. 72 cell modules) can be mounted with this item. This was not possible before with the CS+ solution. Due to that the classical (iconic) system Renusol CS+ can be used in even more cases.

    Read more

    £2.19 Exc. VAT

    £2.63 Inc. VAT

    In stock

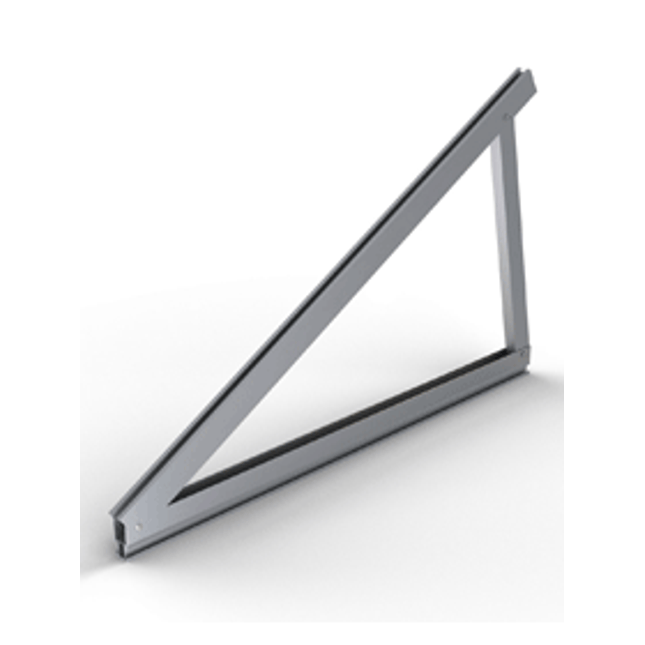

  • TriSole+ Triangle 30° assembly

    Renusol TriSole+ Triangle 30° assembly

    Part No: REN-410556 Mounting - Flat Roof TriSole + Triangle 30° assembly of.

    Read more

    £37.89 Exc. VAT

    £45.47 Inc. VAT

    In stock

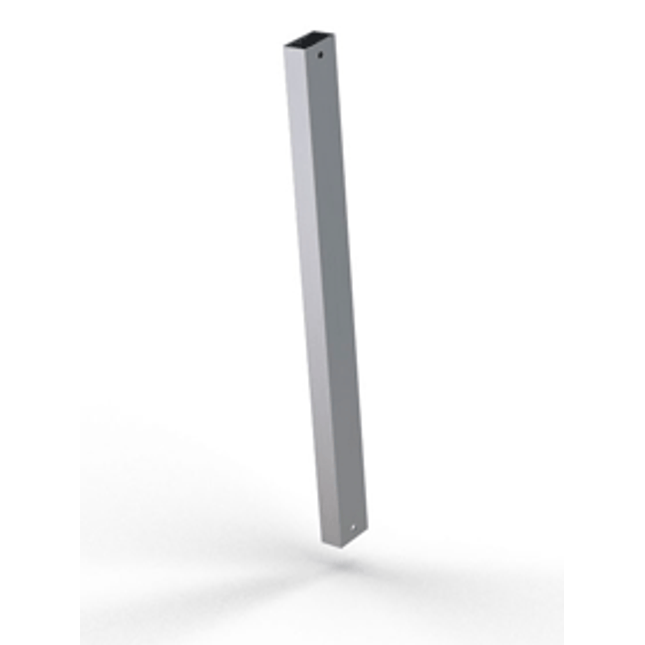

  • TriSole+ Vertical Support 30 degrees

    Renusol TriSole+ Vertical Support 30 degrees

    Part No: REN-400556 Mounting - Flat Roof Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

    Read more

    £5.91 Exc. VAT

    £7.09 Inc. VAT

    In stock

  • Renusol FS Pro Ballast Plate

    Part No: REN-500273 Mounting - Others

    Read more

    £6.73 Exc. VAT

    £8.08 Inc. VAT

    In stock

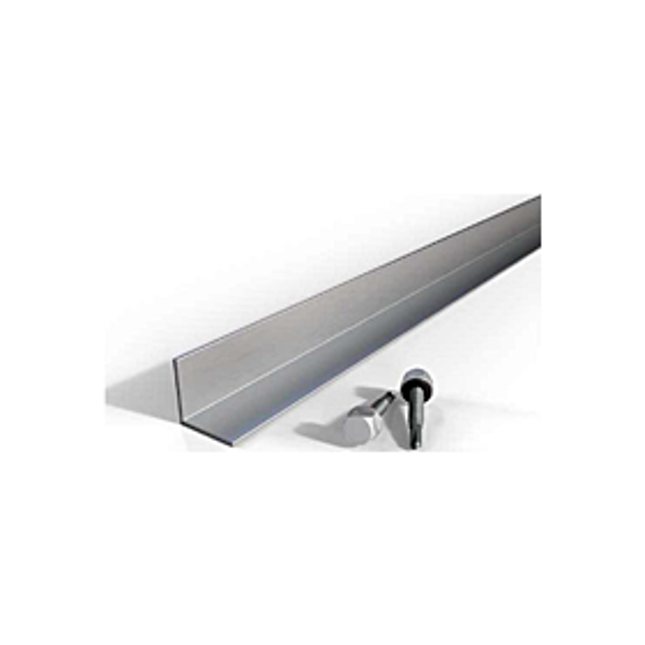

  • TriSole + L-Profile cross striving profile LONG 1900mm (SET) Bifacial

    Renusol TriSole + L-Profile cross striving profile LONG 1900mm (SET) Bifacial

    Part No: REN-420601 Mounting - Flat Roof Bifacial TS+ L-Profile cross striving profile LONG 1900mm (SET)

    Read more

    £21.71 Exc. VAT

    £26.05 Inc. VAT

    In stock

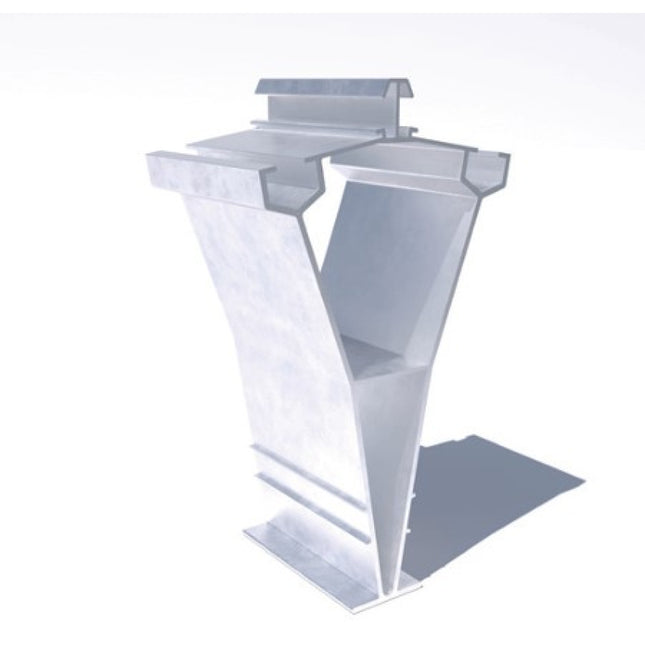

  • Ridge support 10 deg XL

    Renusol Ridge support 10 deg XL

    Part No: REN-500423 Mounting - Flat Roof

    Read more

    £8.15 Exc. VAT

    £9.78 Inc. VAT

    In stock

  • TriSole + L-Profile cross striving profile (SET)

    Renusol TriSole + L-Profile cross striving profile (SET)

    Part No: REN-420600 Mounting - Flat Roof TS+ L-Profile cross striving profile (SET)   Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

    Read more

    £13.99 Exc. VAT

    £16.79 Inc. VAT

    In stock

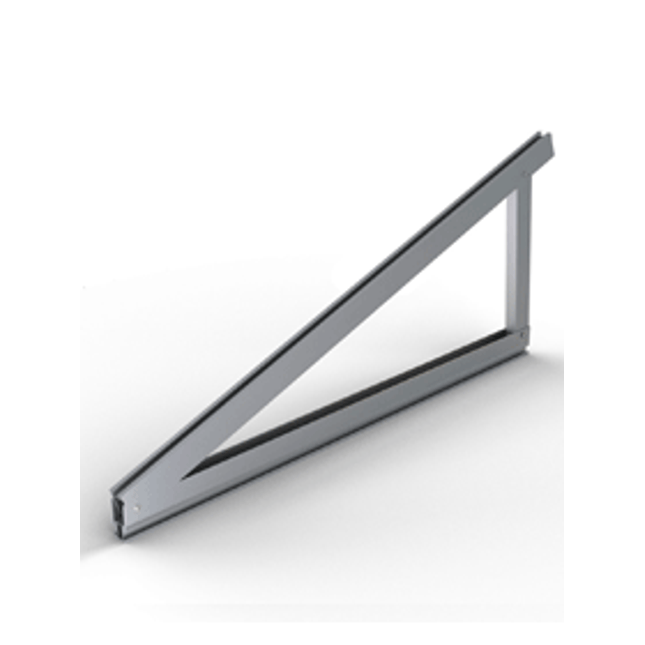

  • TriSole+ Triangle 20° assembled

    Renusol TriSole+ Triangle 20° assembled

    Part No: REN-410554 Mounting - Flat Roof TriSole + Triangle 20° assembled

    Read more

    £36.29 Exc. VAT

    £43.55 Inc. VAT

    In stock

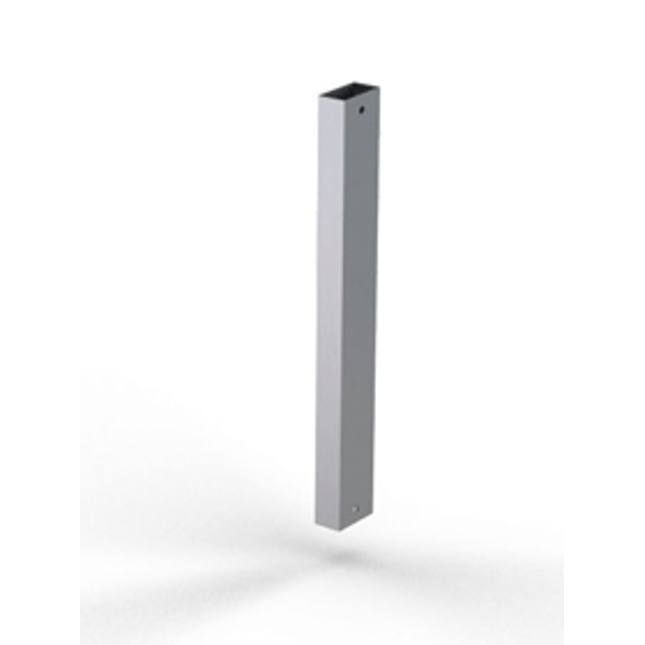

  • TriSole+ Vertical Support 20 degrees

    Renusol TriSole+ Vertical Support 20 degrees

    Part No: REN-400554 Mounting - Flat Roof

    Read more

    £4.33 Exc. VAT

    £5.20 Inc. VAT

    In stock

  • TriSole + Triangle 10%B0 assembled

    Renusol TriSole + Triangle 10%B0 assembled

    Part No: REN-410552 Mounting - Flat Roof TriSole + Triangle 10° assembled

    Read more

    £35.30 Exc. VAT

    £42.36 Inc. VAT

    In stock

  • FS Pro 10-EW Base rail 2300 (Set) IFP

    £38.06 Exc. VAT

    £45.67 Inc. VAT

    In stock

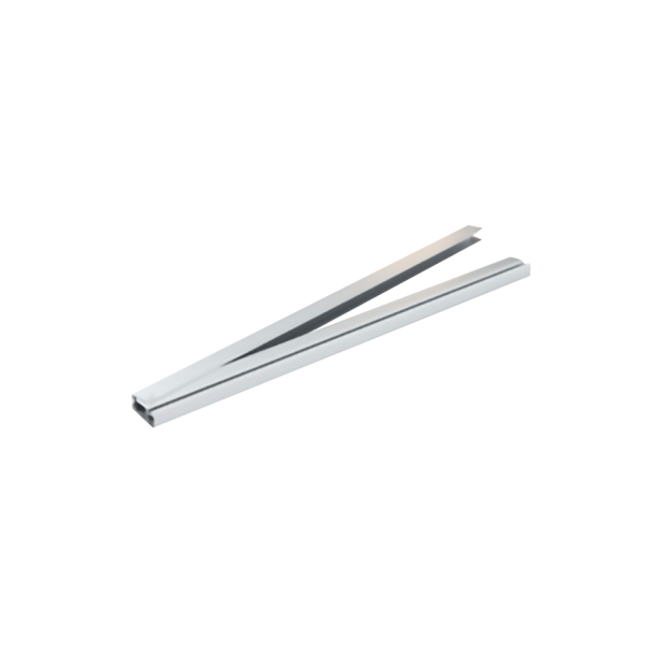

  • TriSole+ V-frame Assembled

    Renusol TriSole+ V-frame Assembled

    Part No: REN-420550 Mounting - Flat Roof TS+ V-frame assembled (SET) This part is the same as REN-410550

    Read more

    £24.53 Exc. VAT

    £29.44 Inc. VAT

    In stock

  • ECO Ballast set FS 2100 mm

    Renusol ECO Ballast set FS 2100 mm

    Part No: REN-520502 Mounting - Flat Roof   Each SET Composed of: 2x 500529 Eco Ballast Rail 2100mm (size 2100x40x40) 2x 900074  Stainless Steel Cable ties 2x 900229 Self Drilling Screw 4.8x19 A2 2x 500413 Roof Protection pad 500x40x11mm for ballast set (size 500x400x11)

    Read more

    £34.94 Exc. VAT

    £41.93 Inc. VAT

    In stock

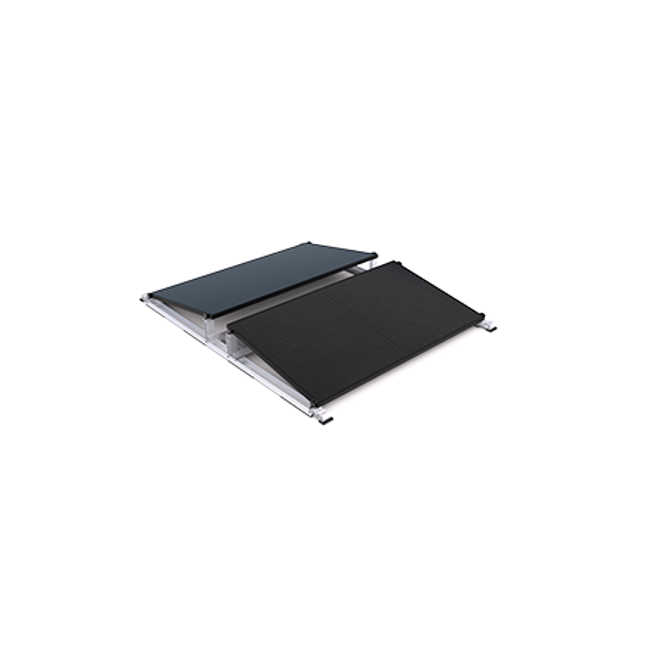

  • FS Pro 10-EW Base rail 2380 (Set)

    Renusol FS Pro 10-EW Base rail 2380 (Set)

    Part No: REN-520244 Mounting - Mounting Rails R520223 Material: Aluminum, Stainless Steel, Polyethylene (PE) Weight: 2.748 kg Dimensions: 2480 x 98 x 61 mm Angle of inclination: 10° maximum module width: FS Pro 10-EW: 1.071-1.150 mm , FS Pro 10-EW-LS: 1.050-1.134 mm maximum module length:  FS Pro 10-EW: Check module clamping range FS Pro 10-EW-LS: no limitation Module Orientation: Landscape Assembly variant: East-West The same as REN-520223, but rails are 80mm longer to provide maintenance route between modules.

    Read more

    £43.95 Exc. VAT

    £52.74 Inc. VAT

    In stock

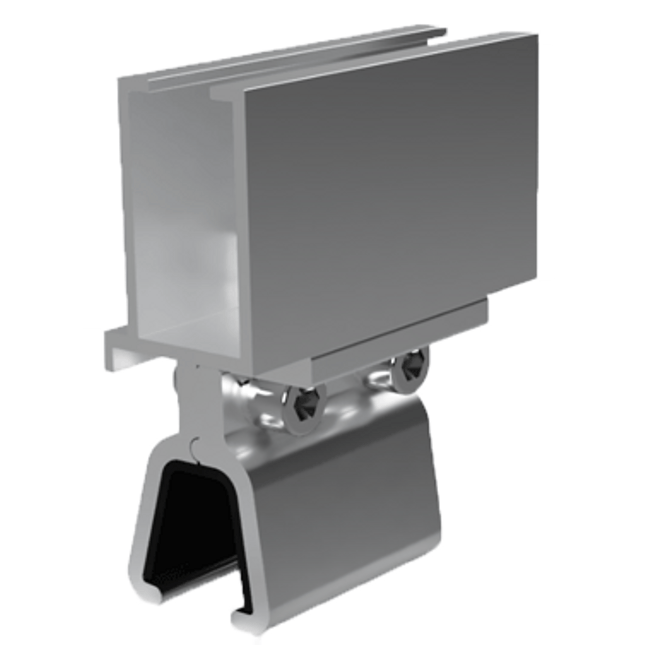

  • Renusol Seam Clamp KL+

    Renusol Renusol Seam Clamp KL+

    Part No: REN-400602 Mounting - Roof Anchor- Seam Clamps Renusol Seam Clamp KL+   Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

    Read more

    £6.62 Exc. VAT

    £7.94 Inc. VAT

    In stock

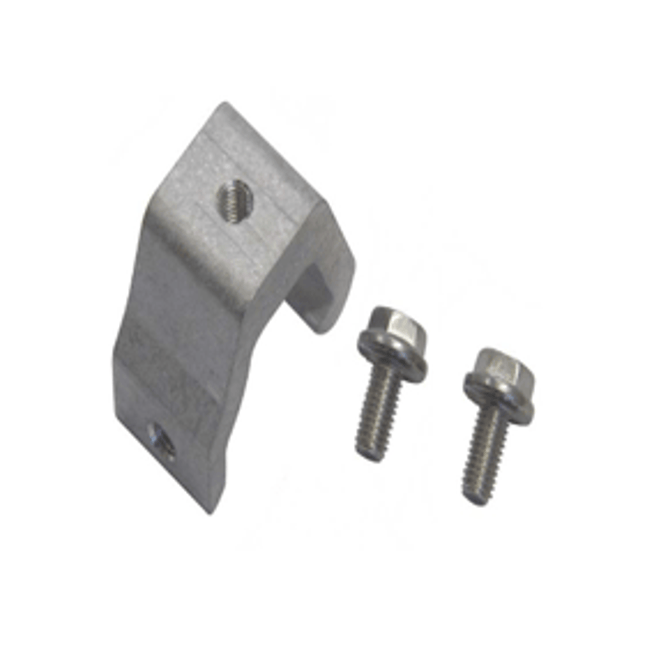

  • Renusol Seam Clamp K-Grip Mini (Without Screws)

    Renusol Renusol Seam Clamp K-Grip Mini (Without Screws)

    Part No: REN-420284 Mounting - Roof Anchor- Seam Clamps Designer note: The Renusol seam clamps are part of the S5 range. You can see more details on manufacturers website HERE  The S-5-K Grip Mini is a bit shorter than the S-5-K Grip and has one base bolt rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!   This Seam clamp is not complete, it requires inserts to work.   UK only: The clamps should meet or exceed the requirements for MCS012 wind uplift values, but since they are not officially MCS012 tested and certified, they should not be used on <50kWp installations.  For SA customers: suited to Klip-lok, Klip-tite and Saflok roofing types

    Read more

    £12.18 Exc. VAT

    £14.62 Inc. VAT

    In stock

  • ConSole Streamliner+

    Renusol ConSole Streamliner+

    Description Material Dimensions Weight Compatible Components To be used on the back row of an installation of ConSole + to reduce the windload and thus ballast required HDPE 1533 x 448 x 361 8,406 kg 520075-K 1 x Streamliner+ 9 x Hexag. screw DIN7504-ST5,5x25-A2-SW8 Keywords: REN520076, Renusol, PV Mounting, Flat Roof Tray

    Read more

    £34.14 Exc. VAT

    £40.97 Inc. VAT

    In stock

  • ConSole+ Ground Mount

    Renusol ConSole+ Ground Mount

    This part is made up of the following items: 1 x REN-520075-K ConSole+ (incl. Mounting material and U-Profile)   The ConSole+ provides an angle of 15 degrees. The ConSole+ assembly system is the ideal solution for installing PV modules on the ground, especially ground that is unstable, for example landfill areas. Most commercially available framed standard PV modules fit the ConSole+. The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual.

    Read more

    £76.31 Exc. VAT

    £91.57 Inc. VAT

    In stock

  • 520075-K Console with Elongation Rail 460196

    Renusol 520075-K Console with Elongation Rail 460196

    This part is made up of the following items: 1 x REN-520075-K ConSole+ (incl. Mounting material and U-Profile)   1 x REN-460196 NEW Elongation rails for ConSole 4.1, 4.2, 5.2, 6.2, CS+ ( x2 )   REN-520075-K Flat Tray Consoles with the Elongation Rail REN-460196

    Read more

    £84.12 Exc. VAT

    £100.94 Inc. VAT

    In stock

The Renusol East-West facing mounting system for framed PV panels offers an exceptionally high level of coverage on flat roofs. The layout also spreads the peak generation more evenly throughout the day providing higher power in the morning and evening than a typical South facing array.

Renusol GmbH based in Cologne (Germany) and is among the fastest  growing businesses on the European market for PV mounting systems. The manufacturer of high-quality mounting solutions is successful with its 4 core mounting options, VarioSole, MetaSole, InterSole and ConSole in many European countries.
