Fastensol Mounting

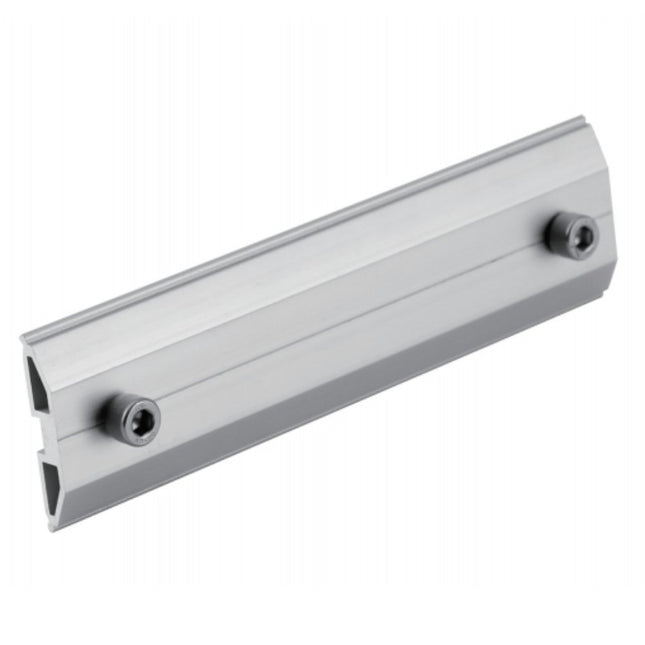

For long rows, simply join lengths of rail using the rail splice kits. Rails can be cut to length with a hacksaw or grinder. System features and specifications: Dimensions: 3550 x 50 x 29 mm Suitable for pitched and flat roofs Cladding type: tiled, slate and sheet metal (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: black MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd 561 rails per pallet cage

Read more less

System features and specifications: Suitable for pitched and flat roofs Cladding type: tiled, slate and sheet metal (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd 50 per box, 200 per carton

Read more less

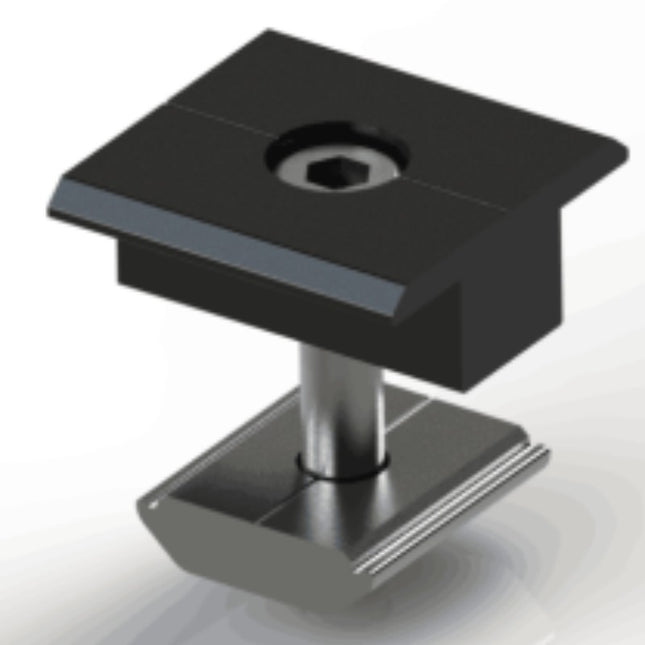

80x to a small carton, 320x to a large carton. Key features: Universal clamp designed for 30-46mm solar panels Constructed from aluminium Suitable for flat or pitched roofs with a maximum slope of 60° Compatible with tiled, slate or metal roofs Wind load: up to 60m/s Snow load: 2.0kN/m2 Maximum building height: 20m Dimensions: 10mm (H) x 40mm (L) x 45mm (W) Weight: 0.06kg 12-year material warranty and five-year warranty on finish

Read more less

To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are simply replaced around the hook ensuring a weatherproof finish. System features and specifications: Suitable for pitched and flat roofs Cladding type: concrete / pan / roman tiles (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: stainless steel Colour: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd 10 per box, 40 per carton

Read more less

End clamps secure the solar panels to the mounting rails, and are used at the ends of the row of panels. Please select the size you require from the drop down box. System features and specifications: Suitable for pitched and flat roofs Cladding type: tiled, slate and sheet metal (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: black MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

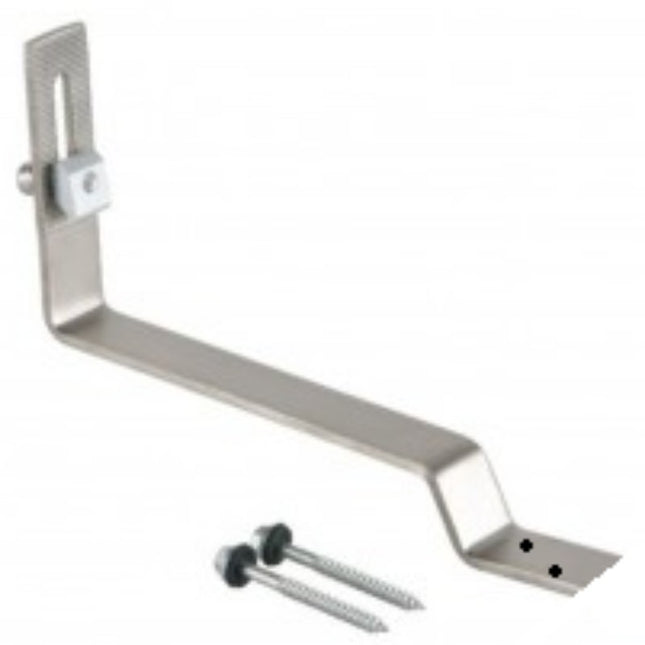

To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are then replaced around the hook. A weatherproof finish can best be achieved using flashing or the Genius Solarflash. Some installers also use Hookstops. System features and specifications: Suitable for pitched and flat roofs Cladding type: flat / plain / rosemary / biscuit / peg tiles (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: stainless steel Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd Packed 15 x to a box 60x to a carton ONLY AVAILABLE IN FULL SYSTEMS

Read more less

System features and specifications: Suitable for pitched and flat roofs Cladding type: tiled, slate and sheet metal (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: black MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

For long rows, simply join lengths of rail using the rail splice kits. Rails can be cut to length with a hacksaw or grinder. System features and specifications: Dimensions: 3550 x 50 x 29 mm Suitable for pitched and flat roofs Cladding type: tiled, slate and sheet metal (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd 561 rails per pallet cage

Read more less

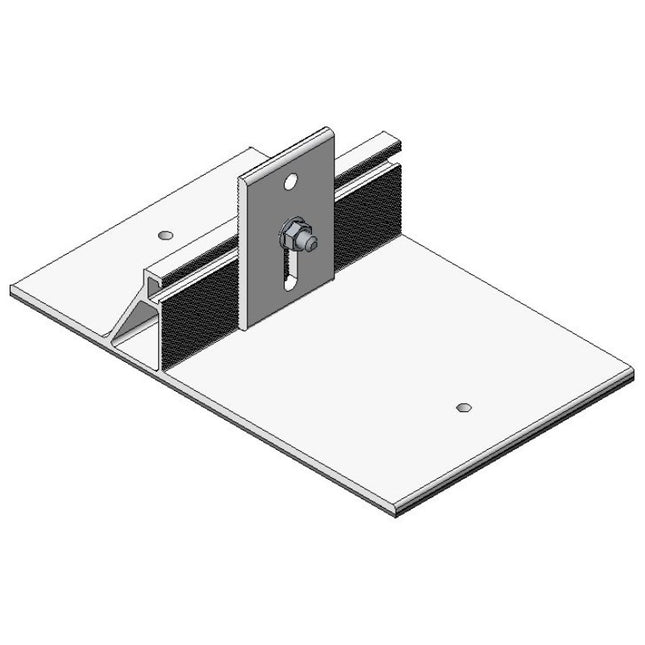

CT1 Sealant to be used with Fastensol A-Slate: CT1 Sealant Features and Specifications: Material: Aluminium Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m² Maximum building height: 20m MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Included in the box: A-slate plate, Rubber Pad, Rail Bolt, 2x screws and 2x spacers

Read more less

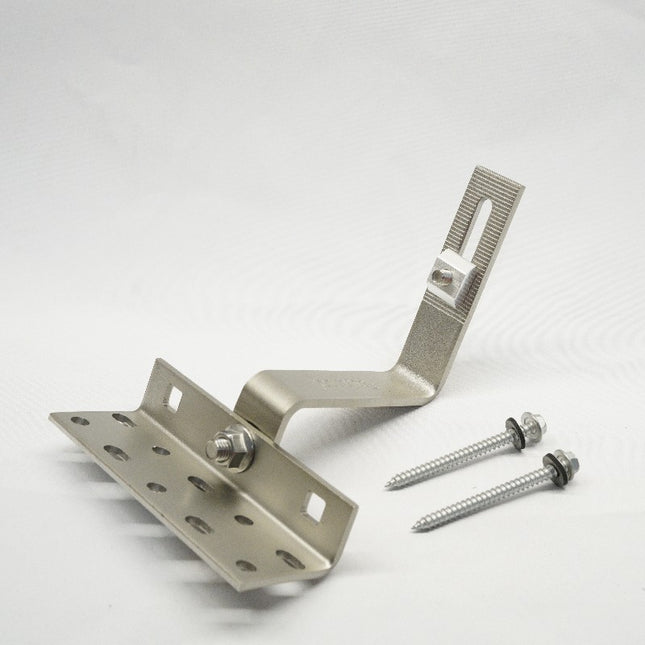

Adjustable concrete tile anchor. Dimensions (mm) a 38-50, b 101, c 158-170, d 55, e 140, f 30, thickness g 5 Price is for one hook. They come in boxes of 10 and cartons of 40.

Read more less

System features and specifications: T?Nut with M8*25mm bolt Material: aluminium nut & stainless steel bolt Color: silver MCS 012 certification Part number: F?TN?GS Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

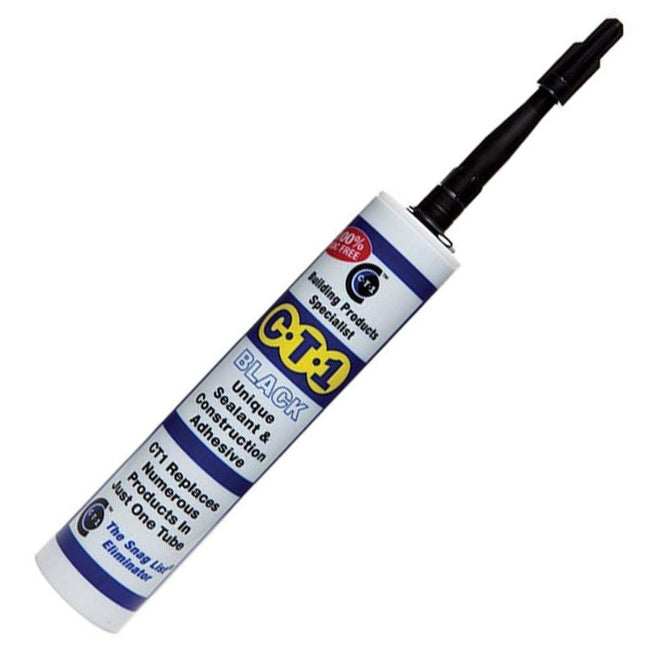

When fixing the slate mate to the slate roof, holes are drilled. This sealant can be used to fill these holes, and seal under and around the A-slate plate. Colour: BlackTime to full cure: 24 hoursVolume: 290ml

Read more less

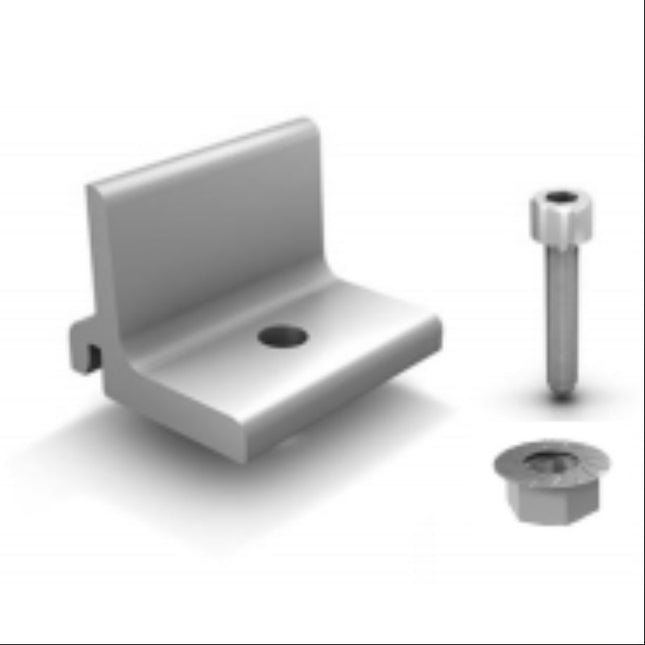

Please purchase an extra fastensol nut if using for cross railing.

Read more less

Dimensions - 140mm x 30mm x 30mm Please be aware that this product is currently awaiting MCS certification. It does not currently have an MCS code Product code: F-MNR-GS

Read more less

The sturdy 6mm stainless bracket is fixed to the rafters. The slate above is replaced above the fixings, so that the roof remains weathertight. Where the bracket is close to the edge of the covering slate, we suggest using a lead soaker over the bracket to ensure the roof remains watertight. System features and specifications: Suitable for pitched and flat roofs Cladding type: slate (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: stainless steel Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd Packed as 20x to a box 80x to a carton

Read more less

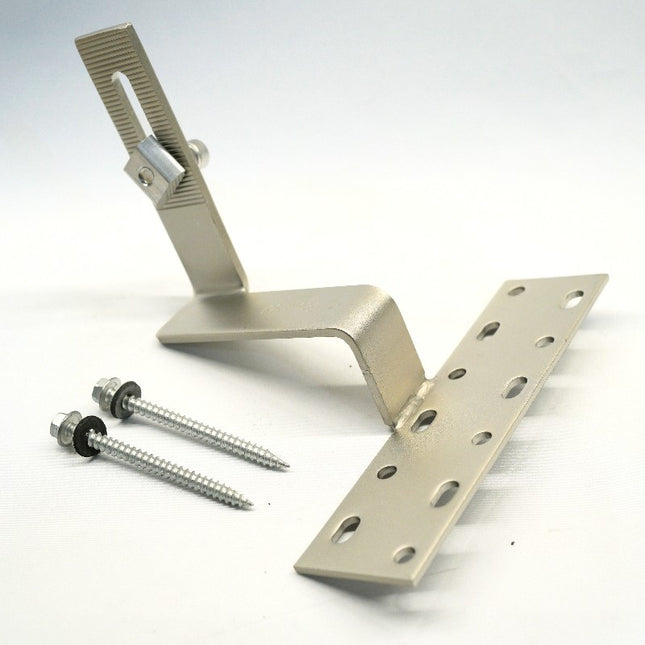

To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are simply replaced around the hook ensuring a weatherproof finish. System features and specifications: Suitable for pitched and flat roofs Cladding type: concrete / pan / roman tiles (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: stainless steel Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

System features and specifications: Suitable for pitched and flat roofs Cladding type: tiled, slate and sheet metal (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

Length 400mm*width 30mm *height 30mm Holes are not pre drilled on the portrait rail. Please be aware that this product is currently awaiting MCS certification. It does not currently have an MCS code Product code: F-MNR-GS

Read more less

System features and specifications: Suitable for GSE Ground Mount only Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: aluminium Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

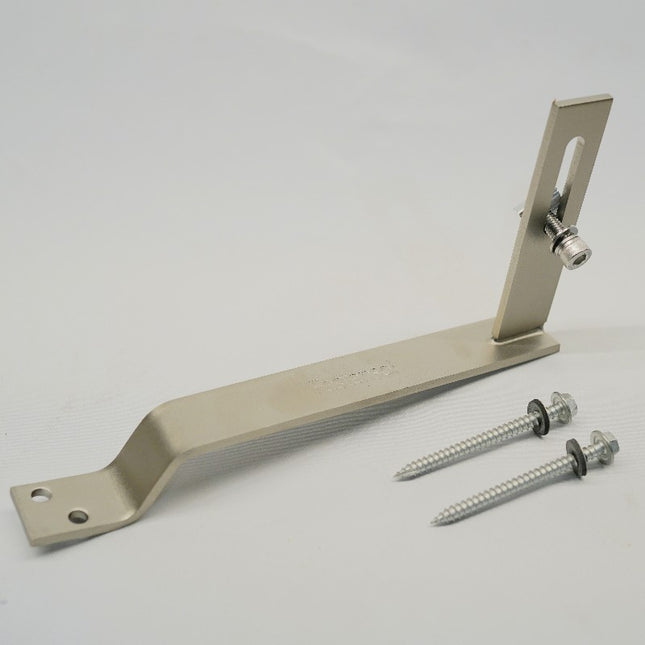

To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are then replaced around the hook. A weatherproof finish can best be achieved using flashing or the Genius Solarflash. Some installers also use Hookstops. System features and specifications: Suitable for pitched and flat roofs Cladding type: flat / plain / rosemary / biscuit / peg tiles (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: stainless steel Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd

Read more less

Not MCS certified.

Read more less

Triangle bracket for flat roof or ground mounted solar systems for panels in portrait orientation with an angle of 30 degrees.  This listing does not come with any screws, or cross connect clamps. Please select these separately, as these brackets can be utilised in a number of ways. Dimensions: rail is 40x40mm in L profile with 3 lengths of 1410, 1350 & 720mm Typically supplied either with: Fastensol rail bolts to attach to H-profile rail.  With cross-rail brackets with hex nuts for attaching normal Fastensol rails. Wood screws, metal screws, or hanger bolts, depending on your fixing requirements.

Read more less

Not MCS certified.

Read more less

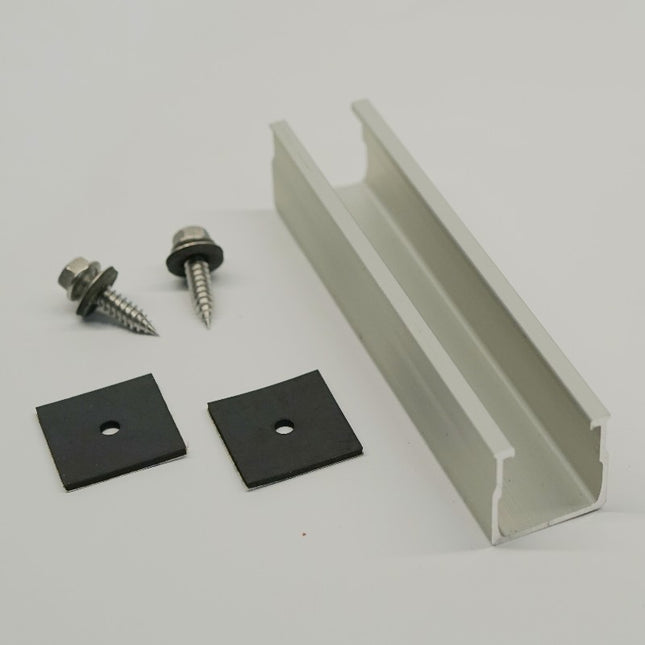

The Fastensol plastic tray can be extended using their mini 140mm rail. This allows panels of widths of up to 1140mm to be mounted in landscape configuration using these Fastensol trays.   Kit Includes: 1 x Fastensol Plastic Tray 4 x 140mm Mini Rail   This kit does not include: Fastensol aluminium End Clamp  (4 per tray) When fixing the 4x 140mm mini rails, you will need to drill additional holes on the side of the plastic trays. Please note that a lower ballast weight than the minimum weight on the datasheet can be used if stated by the ballast calculator

Read more less

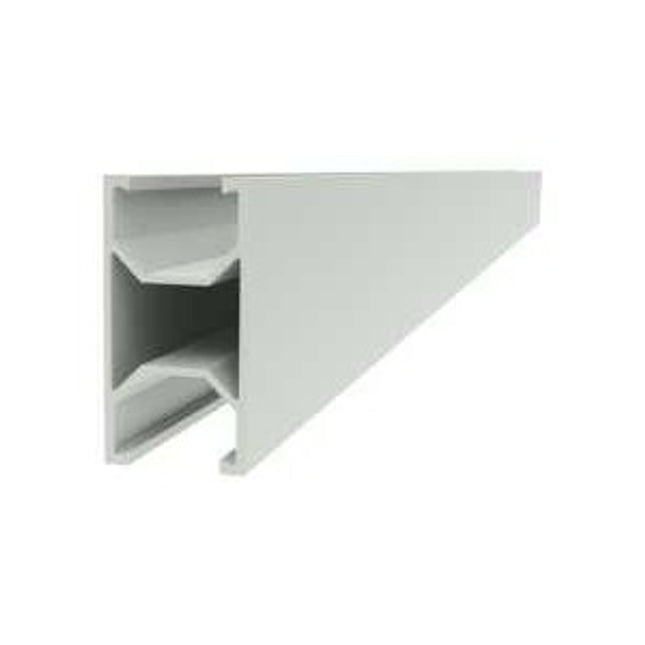

Fastensol offer a splice / joiner for the H rail. System features and specifications: Dimensions: 3300 x 55 x 28 mm Suitable for pitched and flat roofs Material: aluminium Color: Natural

Read more less

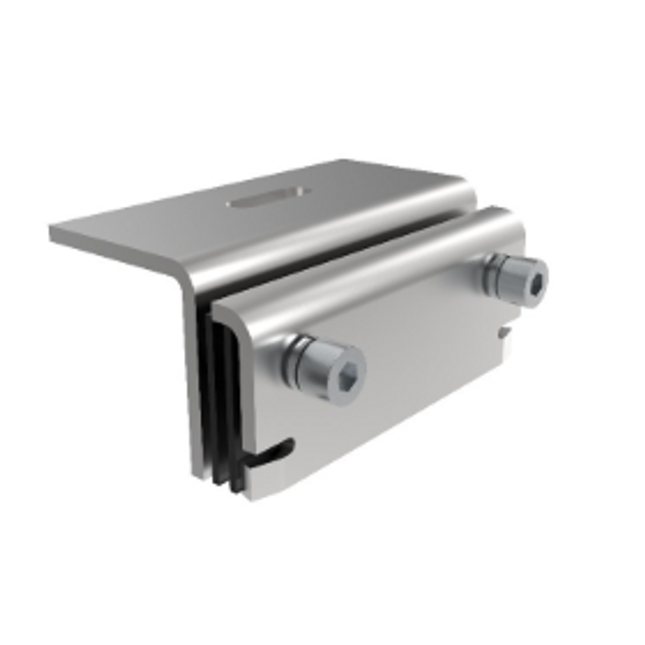

Simply use a 13mm spanner to tighten the bolts on the hook and it will clamp onto the standing seam. You can then attach whatever you wish onto the 11mm slot on the top of the clamp. Needs an L bracket or cross connect to attach to the rail.

Read more less

 Currently we do not have a solution in stock to attach this to Fastensol rails.

Read more less

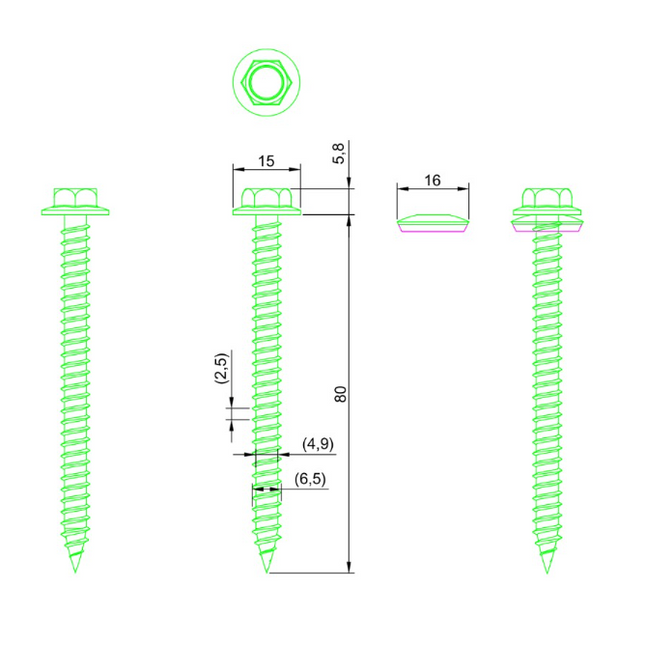

These screws are to be used with all Fastensol roof hooks, with a minimum of two screws per hook.

Read more less

The sturdy 6mm stainless bracket is fixed through one slate to the rafter beneath. The slate above is replaced above the fixings, so that the roof remains weathertight. Where the bracket is close to the edge of the covering slate, we suggest using a lead soaker over the bracket to ensure the roof remains watertight. System features and specifications: Suitable for pitched and flat roofs Cladding type: slate (other roof mounts also available) Maximum slope: 60 degrees Wind load: up to 60m/s Snow load: 2.0kn/m2 Maximum building height: 20m Material: stainless steel Color: silver MCS 012 certification Warranty: 12 years durability on material, 5 years on finish Manufacturer: Xiamen Fasten Solar Technology Co., Ltd
