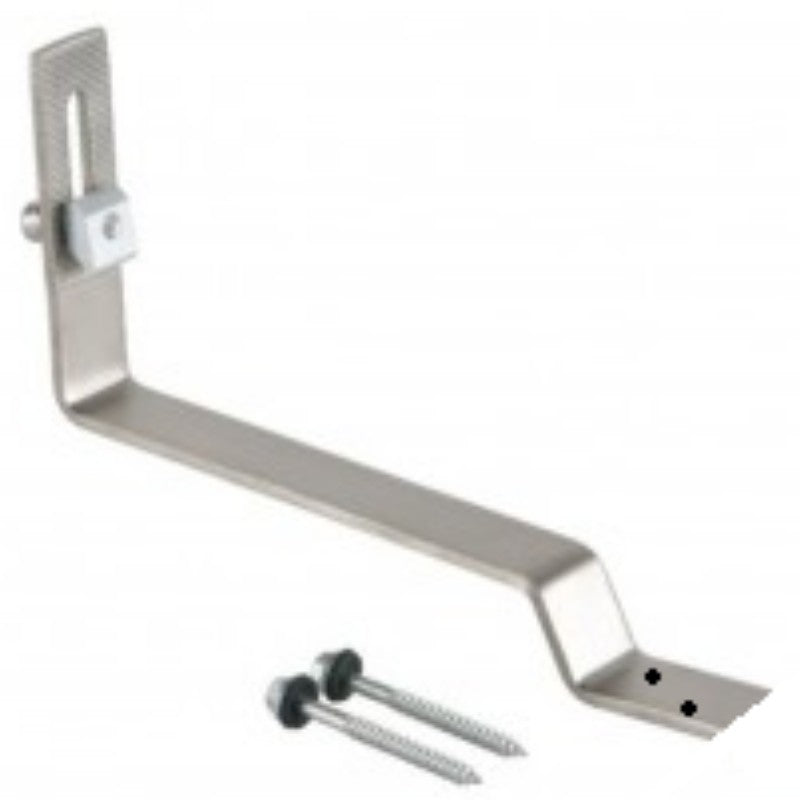

These substantial stainless steel brackets are used to secure the mounting rails to the roof beams. This version is suitable for flat tiles / plain / rosemary / biscuit / peg tiles only.

To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are then replaced around the hook. A weatherproof finish can best be achieved using flashing or the Genius Solarflash. Some installers also use Hookstops.

System features and specifications:

Suitable for pitched and flat roofs
Cladding type: flat / plain / rosemary / biscuit / peg tiles (other roof mounts also available)
Maximum slope: 60 degrees
Wind load: up to 60m/s
Snow load: 2.0kn/m²
Maximum building height: 20m
Material: stainless steel
Color: silver
MCS 012 certification
Warranty: 12 years durability on material, 5 years on finish
Manufacturer: Xiamen Fasten Solar Technology Co., Ltd
Packed 15 x to a box 60x to a carton
