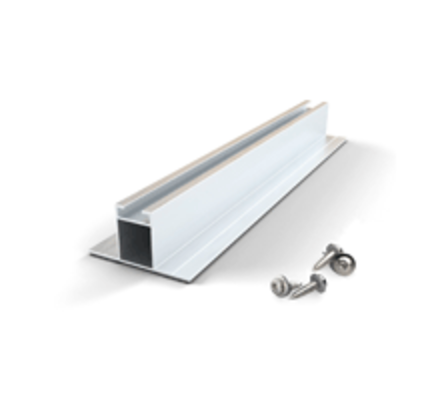

SHORT 400mm RAIL
Material saving solar installation on trapezoidal sheet. Without continuous rails. Suitable for maximum 370mm distance between centres of raised trapezoidal ridges.
VERTICAL PV MODULE ORIENTATION
PV modules with a frame height of 30 to 50 mm are attached to the MS + P mounting system in portrait (standing) on the trapezoidal sheet.
INSTALLATION WITHOUT PILOT DRILLING
Self-tapping screws fix the MS+P PV mounting system directly to the trapezoidal sheet.
FOR TRAPEZOIDAL STEEL AND ALUMINUM METAL SHEET
Readymade kits are suitable for the installation of PV systems on trapezoidal sheet steel and / or aluminium in various thicknesses.
Metasole Portrait kit: consist of Metasole plates and REN-400281 (SW8 6.0x25 E16) screws.
Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
- Supplier Part No: 420421
- Weight: 0.34 kg
- Length: 0.4 m
