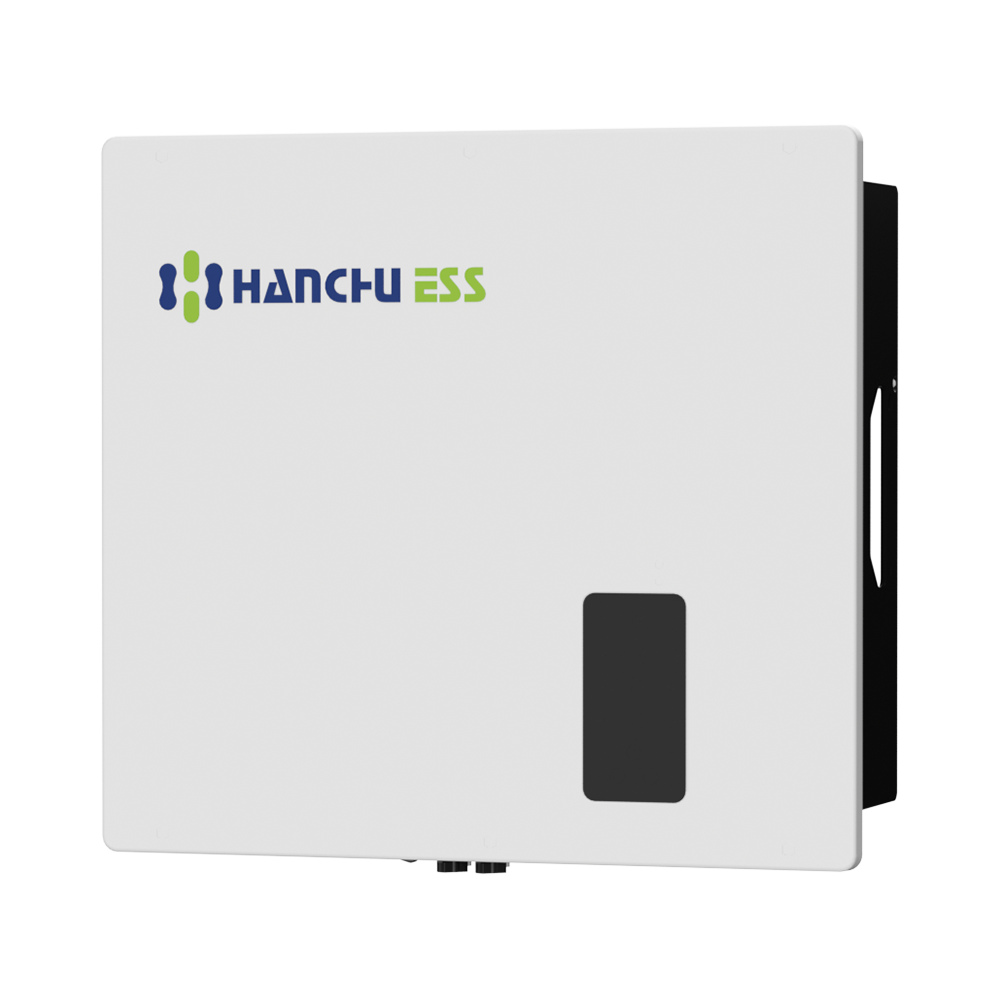

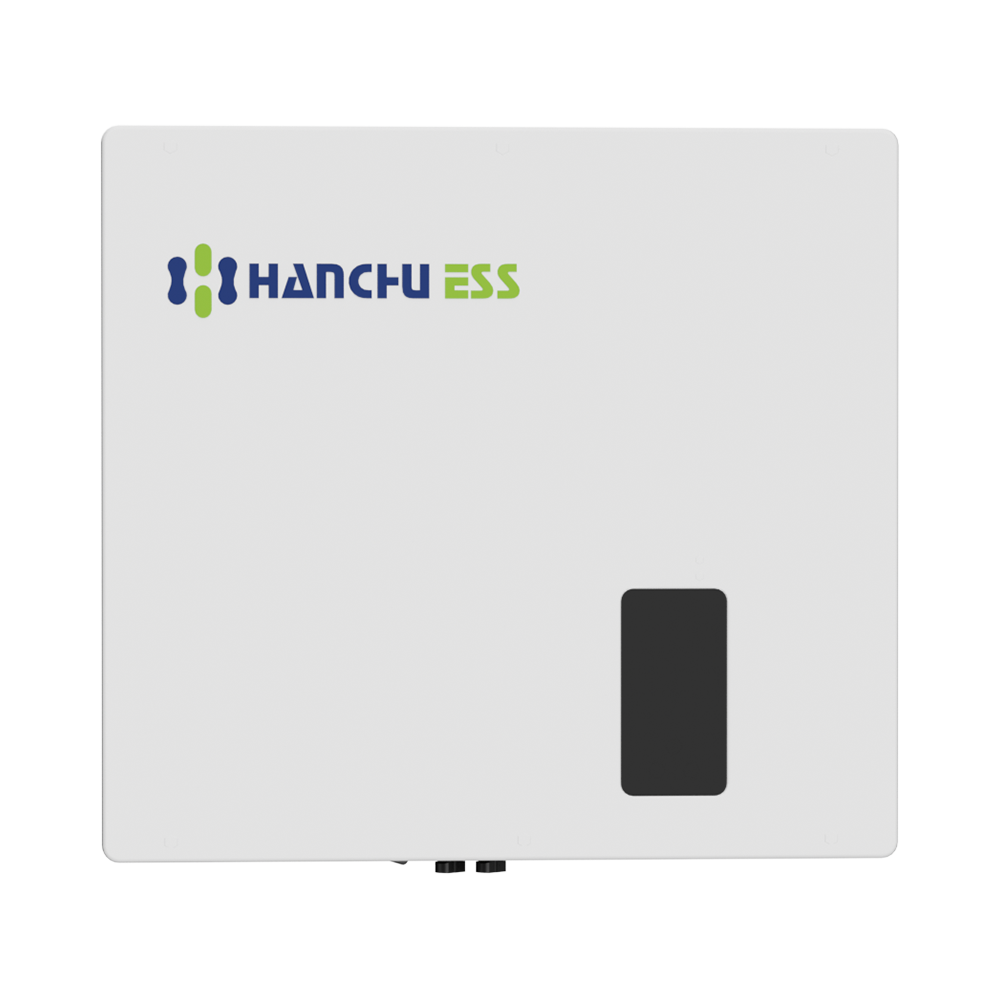

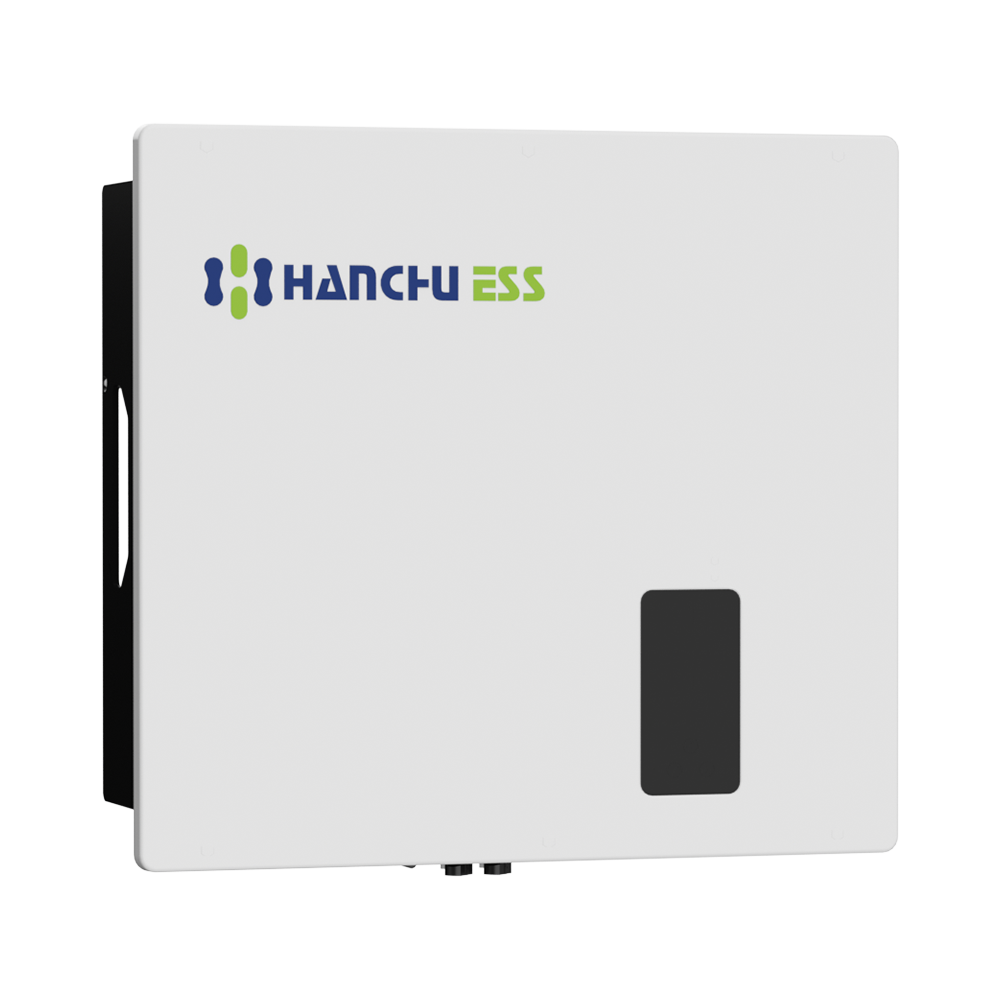

Hanchu ESS 6.0kWh Single Phase Hybrid Inverter

Description

DATA SHEET



USER MANUAL

QUICK INSTALLATION GUIDE



HANCHU ESS - SINGLE PHASE HYBRID INVERTER - CLICK HERE FOR FEATURES



12 Years Warranty On All Hanchu Products.

All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.

HESS-HY-S-6.0K

The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios.

Technical Specifications


Model
HESS-HY-S-3.0K/3.68K/4.0K/5.0K/6.0K

MPPT voltage range / rated input voltage
40V to 530V / 380V

No. of independent MPPT / strings per MPPT
2 / 1

Max. input current per MPPT
16A

Battery voltage range
40V to 60V

Rated AC apparen input power from grid
6000VA

Rated EPS output apparent power
5000VA

Max. switch time
≤10ms

Ingree protection degree
IP66

Certificates
EN 61000/IEC 62109/EN 50549/G98/G99/VDE 4105/VFR 2019/NRS 097/CEI 0-21/NTS
Product form

DATA SHEET   USER MANUAL QUICK INSTALLATION GUIDE   HANCHU ESS - SINGLE PHASE HYBRID INVERTER - CLICK HERE FOR... Read more

£2,388.00 Exc. VAT
£2,865.60 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

DATA SHEET



USER MANUAL

QUICK INSTALLATION GUIDE



HANCHU ESS - SINGLE PHASE HYBRID INVERTER - CLICK HERE FOR FEATURES



12 Years Warranty On All Hanchu Products.

All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.

HESS-HY-S-6.0K

The HESS-HY-S series is a single-phase inverter specifically designed for residential homes, supporting multi-unit parallel operation and perfectly compatible with the Hanchu LV series batteries. It includes multiple power options of 3/3.68/4/5/6kW, catering to various scales and application scenarios.

Technical Specifications


Model
HESS-HY-S-3.0K/3.68K/4.0K/5.0K/6.0K

MPPT voltage range / rated input voltage
40V to 530V / 380V

No. of independent MPPT / strings per MPPT
2 / 1

Max. input current per MPPT
16A

Battery voltage range
40V to 60V

Rated AC apparen input power from grid
6000VA

Rated EPS output apparent power
5000VA

Max. switch time
≤10ms

Ingree protection degree
IP66

Certificates
EN 61000/IEC 62109/EN 50549/G98/G99/VDE 4105/VFR 2019/NRS 097/CEI 0-21/NTS
