Fox ESS

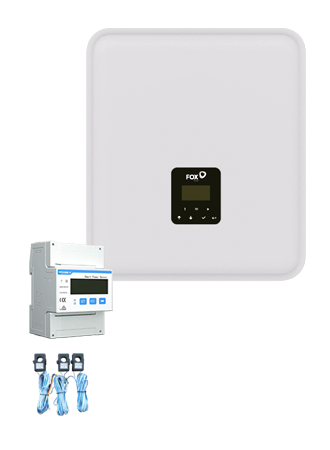

FOX ESS H3 8.0KW 3PH Hybrid Inverter with 3PH CT Meter

Harness the power of the sun day and night with Fox ESS' ground breaking line of hybrid inverters.

  • Easy installation - Plug & Play, built-in fuse protection.
  • Maximum yields - Low starting voltage, 97.3% maximum efficiency
  • Maximum flexibility - 3 battery types to choose from, True 3-phase backup power
  • Monitoring - Monitor remotely via app or web portal.

This part is a special offer made up of the following items:

1 x FE-H3-8.0FOX ESS H3 8.0KW 3PH Hybrid Inverter

1 xFE-3PH-METER-CTFox CT Meter (compatible with AC, HY & AIO ranges)

£1,719.27
£1,719.27
£2,063.12 INC. VAT

In stock

  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • Shop Pay
  • Visa

Fast shipping

Collection available More info

Trustpilot

Overview

Harness the power of the sun day and night with Fox ESS' ground breaking line of hybrid inverters.

  • Easy installation - Plug & Play, built-in fuse protection.
  • Maximum yields - Low starting voltage, 97.3% maximum efficiency
  • Maximum flexibility - 3 battery types to choose from, True 3-phase backup power
  • Monitoring - Monitor remotely via app or web portal.

This part is a special offer made up of the following items:

1 x FE-H3-8.0FOX ESS H3 8.0KW 3PH Hybrid Inverter

1 xFE-3PH-METER-CTFox CT Meter (compatible with AC, HY & AIO ranges)

Part No: FE-H3-8.0-CT Storage Systems - Hybrid Inverter

    FoxESS inverters are configurable with the following batteries:

    • FoxESS inverters are configurable with the following batteries:

      • 1x FE-HV-BMS + (4-8)x FE-HV-2600
      • 1x ECM-2900 (Master) + 2-6x ECS-2900 (Slave)
      • 1x ECM-4100 (Master) + 2-6x ECS-4100 (Slave)
      • 1x ECM-4300 (Master) + 2-6x ECS-4300 (Slave)
      • 1x ECM-4800 (Master) + 2-6x ECS-4800 (Slave)

    FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.

    3PH Smart Meter included in packaging.

    PLEASE NOTE: This product requires the following meter for full operation: FE-3PH-METER-CT

    Weight: 28 kg
    Rated Power: 8,000 W
    Min PPT Voltage: 160 V
    Max PPT Voltage: 1,000 V
    DC Startup Voltage: 160 V
    DC Shutdown Voltage: 160 V
    Max Input Voltage: 1,000 V
    Max DC Power: 10,400 W
    Max AC Power (5 Minutes): 8,000 W
    Surge AC Power (1 Second): 8,800 W
    Max DC Current: 26 A
    Max DC Inputs: 3
    Has DC Fuses: 1
    Connector: MC4
    Included Connectors: 4
    Euro Efficiency: 98 %
    Transformer: N/A
    MPPT Quantity : 2
    Has Integrated DC Switch: Yes
    Warranty: 5 years
