Unparalleled Safety
Multi-Layer Safety Protection
Comprehensive safety design, including high-quality LFP cells, dual-level BMS management, and hardware protection with built-in DC contactors and fuses to ensure stable and safe performance.
Advanced Fire Protection
Equipped with a non-toxic perfluorohexanone gas fire suppression system, along with additional water spray pipes for enhanced safety measures.
Intelligent Monitoring
Local EMS (Energy Management System) continuously communicates with the inverter and battery system, implementing secure operational strategies for real-time safety.
Flexible and Adaptable

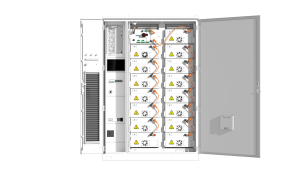

Modular Design
Key components like PCS (Power Conversion System) and battery packs are modular, making maintenance, expansion, and replacement simple and efficient.
Compact Design
Features a compact design, minimising space usage and making it ideal for industrial and commercial sites with limited space.
Multi-Scenario Applications
Supports various use cases, including peak shaving, distribution capacity expansion, microgrid integration, and off-grid systems.
Smart Management
Local EMS Control
Provides comprehensive energy management and monitoring, ensuring optimal energy distribution and system operation.
Intelligent Cooling System
Features a smart industrial air conditioning system with optimised airflow design based on thermal simulations, ensuring batteries operate at optimal temperatures.
Remote Monitoring and Communication
Supports Modbus TCP communication protocol for seamless integration into customers’ energy management systems, enabling remote monitoring and data analysis.
- Rated Capacity: 215kWh
- Rated Voltage: 768Vdc
- Max Charge & Discharge Current: 140A
- Battery Type: LFP(LiFePO4)
- Rated AC Power: 105kW
- Rated Grid Voltage: 400V 3P4W
- Rated Grid Frequency: 50Hz
- Total Harmonic Distortion of Current(%): <3%(Rated Power)
- Power Factor: 0.99
- Protection Level: IP54
- Operating Temperature: -30°C~50°C
- Cooling Mode: Smart air cooling (rated cooling capacity 3.2kW)
- Max Working Altitude: 3000m(De-rating over 2000m)
- EMS Communication Interface: Modbus TCP
- Dimension (W*D*H): 1500*1490*2348mm
- Weight: 2500kg
