HESS-HY-S-7K

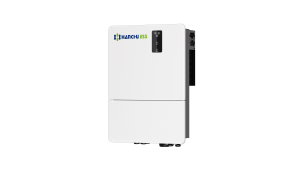

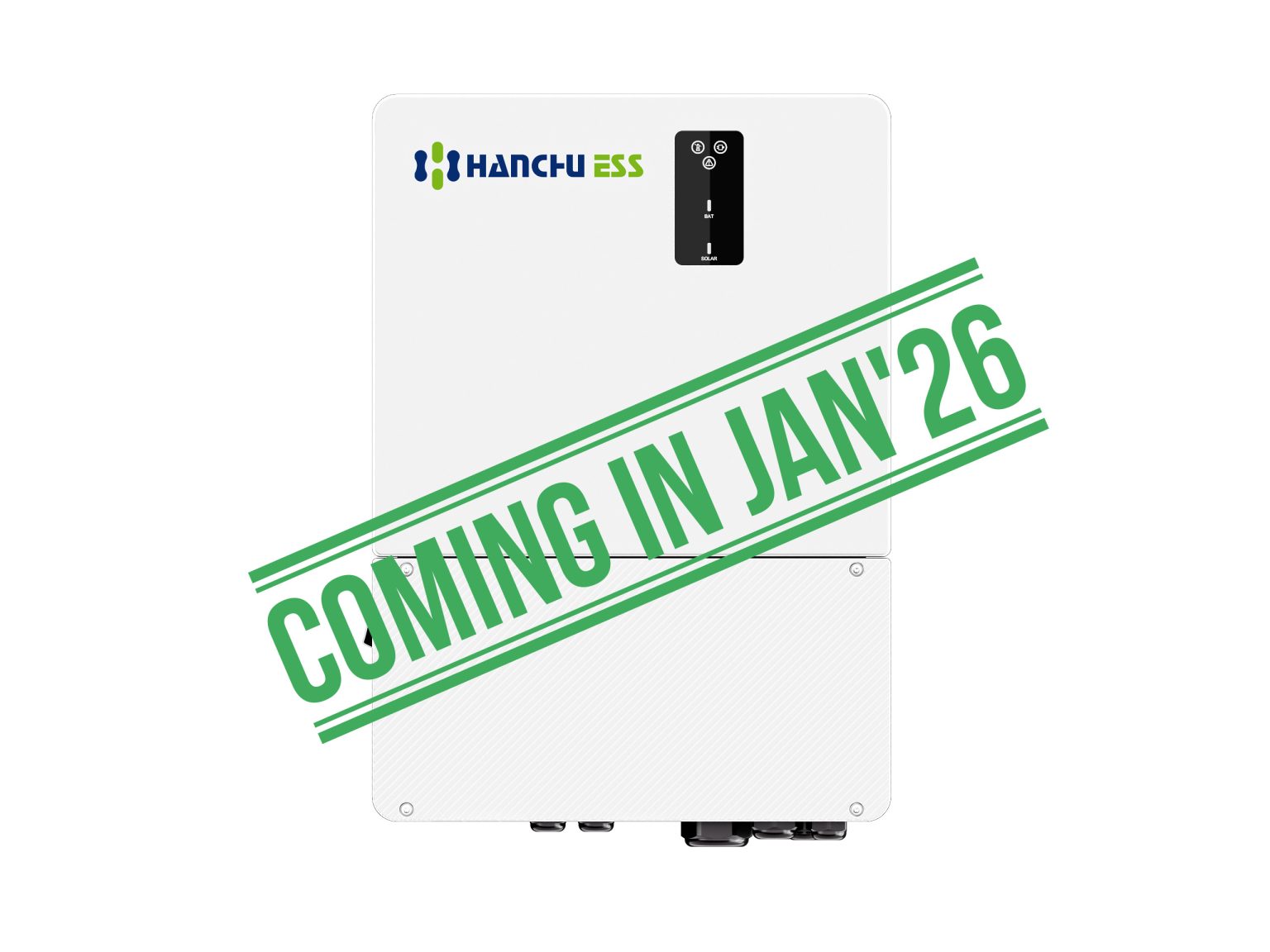

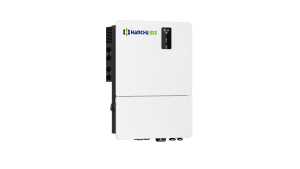

Hanchu Single Phase Hybrid Inverter 7kW

Name: Hanchu Single Phase Hybrid Inverter 7kW
Brand: HANCHUESS
SKU: HESS-HY-S-7K
Price: 1.720.40 GBP

UK-based technical support team, always ready to assist

Reliable national RMA service with a 48-hour response time

12-Year Warranty

1 3

£1,720.40

£2,064.48 INC. VAT

Login or register for trade discounts

Out of stock

Fast shipping

Collection available More info

Overview

UK-based technical support team, always ready to assist

Reliable national RMA service with a 48-hour response time

12-Year Warranty

Compatible Products

Hanchu Low Voltage Battery 3.2kWh

Hanchu Low Voltage Battery 3.68kWh

Hanchu Low Voltage Battery 5.12kWh

Hanchu Low Voltage Battery 9.4kWh

Ultra Performance

High PV Input Capability

Supports up to 200% oversizing to allow maximum annual generation.

Peak Efficiency

Achieves up to 97.6% maximum efficiency, ensuring minimal energy loss and maximum output.

Powerful Charge and Discharge

Handles up to 165A (7kW) charge/discharge from batteries allowing fast charging and covering larger loads.

Reliable Operation

Emergency Power Supply (EPS)

Backup power is available for critical installations that require uninterrupted operation during power outages.

Rapid Switch Time

Switches to backup power in less than 10 milliseconds, providing uninterrupted power supply during outages.

Shadow Scan Feature

Protects the system performance by allowing non shaded panels to operate fully when some panels are in shade.

Smart Energy Management

Remote Management

Easily manage settings and monitor performance via the iESS and Hanchu app, offering convenience and real-time control.

Octopus Tariff Integration

Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.

Smart Weather Compensation

Automatically adjusts settings in response to weather conditions to maximise energy efficiency.

PV Input

Max. PV array power : 14000Wp
Max. input voltage : 550V
MPPT voltage range / rated input voltage : 40V to 530V/380V
Min. input voltage / start voltage : 40V/50V
No. of independent MPPT trackers / strings per MPPT input : 3 | 1
Max. input current per MPP tracker : 20A/10000W
Max. short-circuit current per MPP tracker : 25A

Battery Input

Nominal battery voltage : 48V/51.2V
Battery voltage range : 40V to 60V
Max. charging / discharge power : 7000W
Max. charging current / Max. discharging current : 165A
Battery type : LFP

AC Output

AC voltage range / Nominal AC voltage : 154V to 276V / 220/230/240/ L/N
Rated AC grid frequency : 50Hz / 60Hz
Rated apparent power : 7000VA
Max. apparent power : 7000VA
Rated grid output current (@230V) : 30.4A
Max. grid output current : 32A

AC Input

Rated grid voltage : 220/230/240/ L/N
Rated apparent power :
Max. input apparent power from grid : 14000W
Rated input curent from grid : 30.4A
Max. input current from grid : 60.9A

EPS Output

Nominal output voltage : 220/230/240/ L/N
Nominal output frequency : 50Hz / 60Hz
Rated apparent power : 7000VA
Max. output apparent power : 7000VA
Peak output apparent power : 14000VA
Max. output current : 32A
Max. switch time : <10ms

Efficiency

MPPT efficiency : 99.90%
Euro efficiency / Max. efficiency : 97%/97.6%
Max. battery to load efficiency : /

General Data

Dimensions (W*H*D) (mm) : 484mm*679*230
Device weight : 34.5kg
Operating temperature range : -25C ~+60C
Noise emissions (typical) : 50 dB(A)
Standby consumption : /
Degree of protection (as per lEC 60529) : IP66

Features

User interface : LED & APP
Communication with BMS : CAN
Communication with meter : RS485
Communication with portal : WiFi/LAN/Bluetooth
Other communication :
Communication : Dongle - WiFi(2.4 GHz)/LAN (100 Mbps); Inverter -RS485(ModBus RTU)/LAN (100Mbps/Modbus TCP only)
Integrated power control / Zero export control : Integrated/Integrated
Certifications : EN 61000/IEC 62109/EN 50549/G99/G100
Warranty : 12 years
