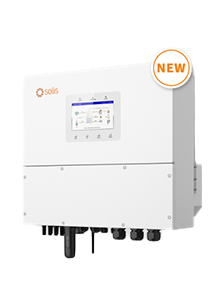

Solis S6 20 kW Three Phase Hybrid High Voltage Inverter

Features:

• Integrated 4 MPPTs for multiple array orientations
• Up to 50A max charge/discharge current
• String current up to 20A, perfectly match large current modules
• 10 second 200% surge power backup overload capability
• Supports Max 6 pcs in parallel
• Up to 200% DC oversizing
• Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
• Supports peak shaving control in both "self-use" and "generator" mode
• 6 customisable charge/discharge time settings
• Automatic UPS switching
• Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

Note: Including 3 current sensors for direct connection to the inverter

Supplier Part No:

S6-EH3P20K-H (Display)

Weight:

53 kg

Rated Power:

20,000 W

Min PPT Voltage:

200 V

Max PPT Voltage:

850 V

DC Startup Voltage:

160 V

DC Shutdown Voltage:

1,000 V

Max Input Voltage:

1,000 V

Max DC Power:

40,000 W

Max AC Power (5 Minutes):

20,000 W

Surge AC Power (1 Second):

22,000 W

Max DC Current:

96 A

Max DC Inputs:

6

Has DC Fuses:

0

Connector:

MC4

Included Connectors:

4

Euro Efficiency:

97.7 %

Transformer:

N/A

MPPT Quantity :

4

Has Integrated DC Switch:

No

Warranty:

5 years
