Photovoltaic

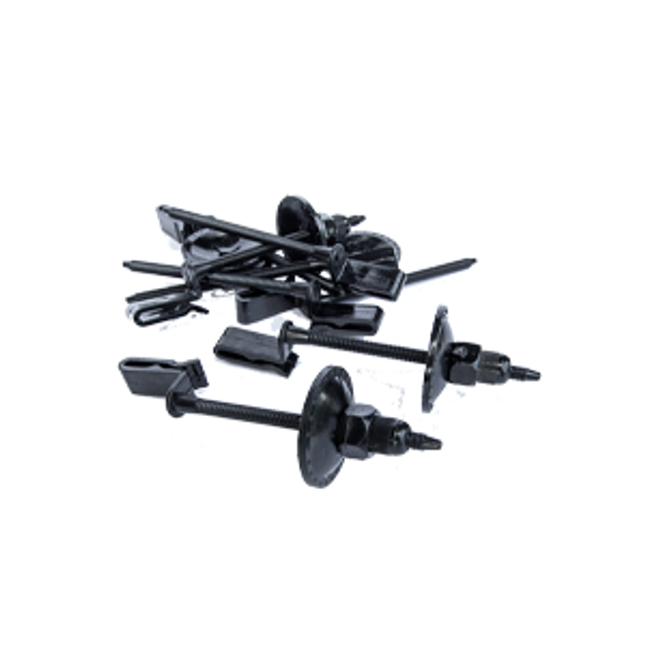

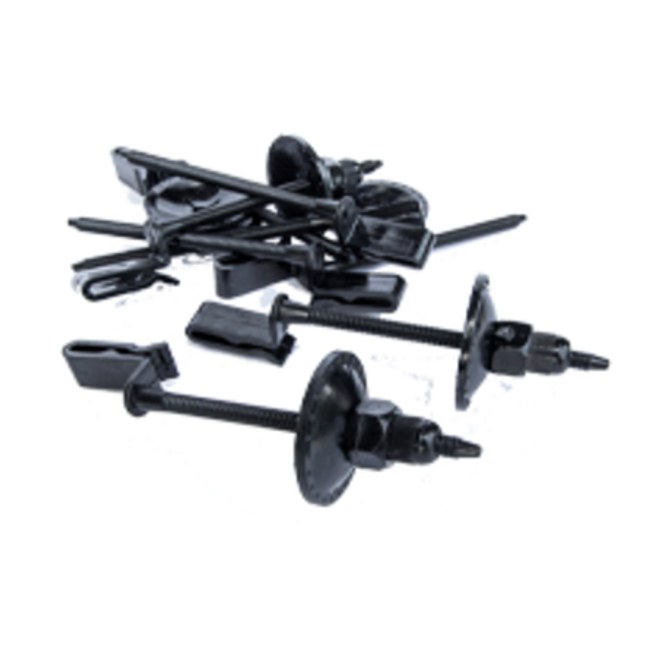

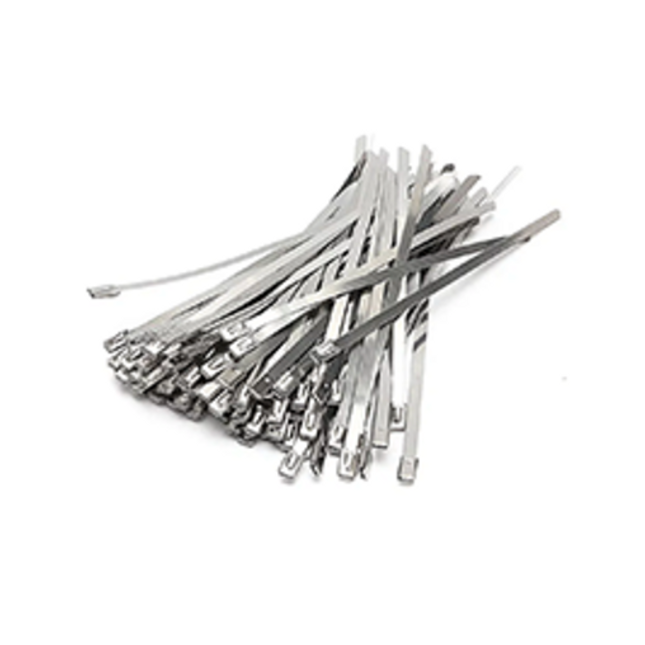

Part No: EG-BIRD-MESH-BLK-KIT Accessories - Bird Protection This part is made up of the following items: 200 x  SolarGuard Spike Fixing Clip 30mm - Black   1 x  PVC Coated Solar Mesh Bird Deterrent - 30m roll   1 x Pack of 20 Stainless steal corner ties for BIRD-MESH     Package Including 30m Solar Panel Bird Exclusion Mesh, 100 x 30mm Fixing Clips and 20 Stainless steal corner ties. Galvanized mesh to prevent bird nesting  30 Meter roll PVC Coated Galvanised Welded Mesh 25 mm X 12.5mm openings on a 200mm X 30m roll This mesh is the correct size to fit our solar panel mesh clips (WM132) Handy 200mm wide roll, saves time and cost in cutting down wider rolls of mesh The solar panel mesh clip holds the weld mesh securely against the solar panel to deter bird entry Manufactured from: 16 gauge / 1.5  mm diameter hot dipped galvanised wire then pvc coated in black SolarGuard Spike Fixing Clip 30mm - Black New and revolutionary clips make applying solar panel proofing spikes quicker and easier than ever!  These clips simply clip on to the side of the solar panel frame and hold the spike system securely in place. Remove warranty conflicts as there is no drilling into the panel frame 20 Stainless steal corner ties for BIRD-MESH They have a patented non-releasable locking feature and offer infinite adjustment within their length.The metal cable ties are ideal for use in challenging conditions or where high tensile strength, reliability, chemical resistance and fire resistance is needed. Self locking ball lock mechanism that can be tightened at any length for a secure and reliable hold. Ideal for jointing straight  and corner joints on solar proofing mesh. These cable ties are fireproof, ensuring the tie remains secure in extreme temperatures. Dimensions of 7.9mm x 200mm

Read more less

Part No: GIV-SP-16-2.4-TC-01 Accessories - Smart Plugs GivEnergy Smart Plug  16A Smart Plug with Energy Monitoring Power and Energy Breakdown WiFi Controlled Model Number: GIV-SP-16-2. 4-TC-01 Working Temp: -10 ~ 60°C WiFi Requirements: 2.4 GHz Only Input Voltage: 230V AC 50Hz - 60Hz Rated Current: 16A Max Max Power: 3680W     Supplier Part No:GIV-SP-16-2.4-TC-01 Weight:0.082 kg

Read more less

Part No: MYEN-EDDI-16A1P02H Accessories - Immersion Controllers eddi 2.1 Eco-Smart Energy Diverter eddi Feautures: 3.68kW / 16A max heater load Expansion module option – 2 extra outputs with temperature control Integral bypass switch Graphical back-lit LCD screen for ease of use Fan-less cooling Built-in programmable boost timers VariSineTM PWM technology Supports two heaters (sequentially) Wall mounting bracket for ease of installation Overload and short-circuit protection Ethernet port and built-in WiFi for connecting to the internet Complies with CE and UKCA Requirements Works alongside battery storage systems Energy monitoring on the go via the myenergi app

Read more less

WEATHER-RESISTANT:  Protect outdoor installed units such as Inverters or Batteries from glaring sun and light-medium rain,   UV RESISTANT: Shields outdoor unit against harmful rays and glaring sun thanks to the surface coating. SIMPLE DESIGN: Suitable for all home and outdoors area main unit installations ACCESSORIES INCLUDED: All necessary hardware included. For fitting on cement walls only. DIMENSIONS: 23H x 100L x 80W cm. Wall bracket: 23H x 75L cm.   Supplier Part No: B70-051V01 Weight: 2.4 kg

Read more less

These brand new and revolutionary clips make applying solar panel proofing spikes quicker and easier than ever!   used with Solarguard  Adjustable Solar Spike    Please Note – We recommend 6 clips for every 1M of spike purchased.

Read more less

This part is made up of the following items: 1 x BIRD-MESH-BLK PVC Coated Solar Mesh Bird Deterrent - 30m roll   100 x EG-FASTEN-CLIP-B SolarGuard Spike Fixing Clip 30mm - Black     Package Including 30m Solar Panel Bird Exclusion Mesh and 100 30mm Fixing Clips.  Galvanized mesh to prevent bird nesting  30 Meter roll PVC Coated Galvanised Welded Mesh 25 mm X 12.5mm openings on a 200mm X 30m roll This mesh is the correct size to fit our solar panel mesh clips (WM132) Handy 200mm wide roll, saves time and cost in cutting down wider rolls of mesh The solar panel mesh clip holds the weld mesh securely against the solar panel to deter bird entry Manufactured from: 16 gauge / 1.5  mm diameter hot dipped galvanised wire then pvc coated in black These brand new and revolutionary clips make applying solar panel proofing spikes quicker and easier than ever!  These clips simply clip on to the side of the solar panel frame and hold the spike system securely in place.

Read more less

Part No: MYEN-EDDI-RLYBD Accessories - Immersion Controllers eddi has the option to install a Relay & Sensor board which allows for many different wiring configurations and includes the following features:   Two independent multi-function relays (16Amp) eSense input (isolated 230V detection for low tariff etc.) Two temperature sensor inputs (PT1000)   The two relays can be independently set for several different functions, or they can be set to operate as a pair. The relay functions include:   – Export Threshold – Import Threshold – Operate when heating – De-stratification pump control – Timed operation – Fault signal for BMS systems   Please refer to the eddi manual for fitting diagrams.   Supplier Part No:MYEN-EDDI-RLYBD Weight:0.5 kg

Read more less

B70-051 WEATHER-RESISTANT:  Protect outdoor installed units such as Inverters or Batteries from glaring sun and light-medium rain,   UV RESISTANT: Shields outdoor unit against harmful rays and glaring sun thanks to the surface coating. SIMPLE DESIGN: Suitable for all home and outdoors area main unit installations ACCESSORIES INCLUDED: All necessary hardware included. For fitting on cement walls only. DIMENSIONS: 23H x 200L x 80Wcm. Wall bracket: 23H x 75Lcm. Supplier Part No: B70-051 Weight:3 kg

Read more less

Part No: EN-Q-TERM-R Accessories - Cable termination caps Enphase round Q Cable Terminator cap for unused cable ends - required to terminate each circuit.  Single item only.   Supplier Part No:EN-Q-TERM-R Weight:0.025 kg

Read more less

Part No: IAC-RBAT-FLRSTD-01 Accessories - DC Battery Storage Supplier Part No: IAC-RBAT-FLRSTD-01 Weight: 18 kg

Read more less

Part No: IAC-RBAT-HANDLE-01 Accessories - DC Battery Storage Can be used for several installations. 4 handles per PN   Supplier Part No: IAC-RBAT-HANDLE-01 Weight: 0.001 kg

Read more less

Part No: IAC-RBAT-5KCNCT-02-1 Storage Systems - Battery Cable Contains: 2 DC Connector (Red) 2 DC Connector (Black) 2 Waterproof RJ45 Connector

Read more less

Part No: IAC-RBAT-5KCNCT-01-1 Storage Systems - Battery Cable IAC-RBAT-5KCNCT-01 1 DC Connector (Red) - Battery Side 1 DC Connector (Black) - Battery Side 1 RJ45 Connector - Inverter Side 1 Waterproof RJ45 - Connector

Read more less

Part No: H1300-MC4 Inverters - Optimisers Groundbreaking versatility. Greater Yields. Optimizer for the SolarEdge TerraMax Inverter 330kW. Cost Effective: Terramax delivers significant CAPEX savings on equipment costs relative to the current 400V L-L range of 3 phase and Synergy inverters. Powerful: This MLPE-based solution features 99% inverter efficiency and offsets module mismatch-related energy losses particularly with bifacial modules. With 200% DC-oversizing and integrated night-time PID rectifiers, it boosts energy yields for lower LCOE. Granular Visibility: Together with the SolarEdge ONE energy optimization platform, it offers smart PV fleet management, precise monitoring and remote troubleshooting. This reduces service visits, increases system uptime and saves O&M expenses. Safe & Secure: Provides a safer working environment for maintenance and emergency crews with built-in SafeDC™, designed to lower high DC voltage to touch safe levels. Its multilayered protection from inverter to cloud complies with global safety and cybersecurity standards.

Read more less

Maximise Self-Consumption eddi+ ensures you use as much of your self-generated solar power as possible by diverting surplus energy to heat your water, or power other resistive heating loads up to 9kW, reducing reliance on the grid. Simple Installation Quick and easy setup. eddi+ can be installed with minimal wiring, and utilises our new installation assistant for commissioning, making it a hassle-free addition to your solar panel system. Energy Monitoring The myenergi app provides real-time data on energy diverted, savings, and overall system performance, helping you make informed decisions about your energy use. Future-Proof Technology eddi+ is designed to work with future upgrades, such as additional solar panels, heat pumps, battery storage, or electric vehicle chargers. Eco-Friendly Living By optimising the use of your solar energy and smart tariffs, you contribute to a greener planet and reduce your home’s carbon emissions. Cost Savings Lower energy bills by using eddi+ to utilise more of your own solar energy or a smart tariff. Silent Operation eddi+ operates silently by utilising passive cooling, ensuring that your home’s peace and quiet are maintained while it works efficiently in the background. Control from Anywhere The myenergi app allows you to monitor and control your eddi+ from anywhere in the world, with live updates on your energy usage. Built-in Connectivity Ethernet and WiFi interfaces are built-in for easy and reliable internet connectivity without needing additional accessories. This device must be supplied by an upstream 3-pole 16A type A or B MCB or equivalent overcurrent device.

Read more less

Part No: SMRT-HOT-WTR-50-S2 Accessories - Immersion Controllers   SolarEdge Home Hot Water Controller - 5kW  SMRT-HOT-WTR-50-S2 Maximizes self-consumption by storing excess solar energy as hot water Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamline logistics & operations. Automatically adjusts power supplied to the heater, using any amount of available PV power (up to 5.0kW). Wireless communication to the inverter using SolarEdge Home Network, reducing wiring, labor, and installation faults. Built-in water tank power consumption meter. Simple wall mount installation. Suitable for powering purely resistive loads only. Optional temperature sensor for optimized heating.   Supplier Part No: SMRT-HOT-WTR-50-S2 Weight: 5.3 kg

Read more less

Part No: SMRT-HOT-WTR-30-S2 Accessories - Immersion Controllers   SolarEdge Home Hot Water Controller - 3kW  SMRT-HOT-WTR-30-S2 Maximizes self-consumption by storing excess solar energy as hot water Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamline logistics & operations. Automatically adjusts power supplied to the heater, using any amount of available PV power (up to 5.0kW). Wireless communication to the inverter using SolarEdge Home Network, reducing wiring, labor, and installation faults. Built-in water tank power consumption meter. Simple wall mount installation. Suitable for powering purely resistive loads only. Optional temperature sensor for optimized heating.   Supplier Part No: SMRT-HOT-WTR-30-S2 Weight: 5.3 kg

Read more less

Part No: ENET-HBPV3D-01 Accessories - DC Battery Storage For the older SolarEdge Home Wave Inverter with LCD or SolarEdge part codes SExxxxH-RWxxxNxxx.   Supplier Part No: ENET-HBPV3D-01 Weight: 0.3 kg

Read more less

Part No: ENET-HBPV3-01 Accessories - DC Battery Storage SolarEdge Energy Net for HD-Wave inverters with Cellular (Home Wave Cellular) Supplier Part No: ENET-HBPV3-01 Weight: 0.3 kg

Read more less

Part No: ENET-HBPV3S-01 Accessories - DC Battery Storage For the StorEdge Single Phase Inverter part codes ending with RWS, or SolarEdge part number SExxxxH-RWSxxBNxx   Supplier Part No: ENET-HBPV3S-01 Weight: 0.3 kg

Read more less

Part No: ENET-HBCL-01 Accessories - DC Battery Storage SolarEdge Energy Net for Home Wave SetApp inverter.  (can be used when the inverter is not using cellular or zigbee device) Supplier Part No: ENET-HBCL-01 Weight: 0.3 kg

Read more less

Part No: ENET-HBNP-01 Accessories - DC Battery Storage SolarEdge Home Network Wireless Mesh Network Model: ENET Supplier Part No: ENET-HBNP-01 Weight: 0.1 kg

Read more less

Part No: IAC-RBAT-RWYCBL-01 Accessories - DC Battery Storage 1x pair - 1x male and 1x female   Supplier Part No: IAC-RBAT-RWYCBL-01 Weight: 0.25 kg

Read more less

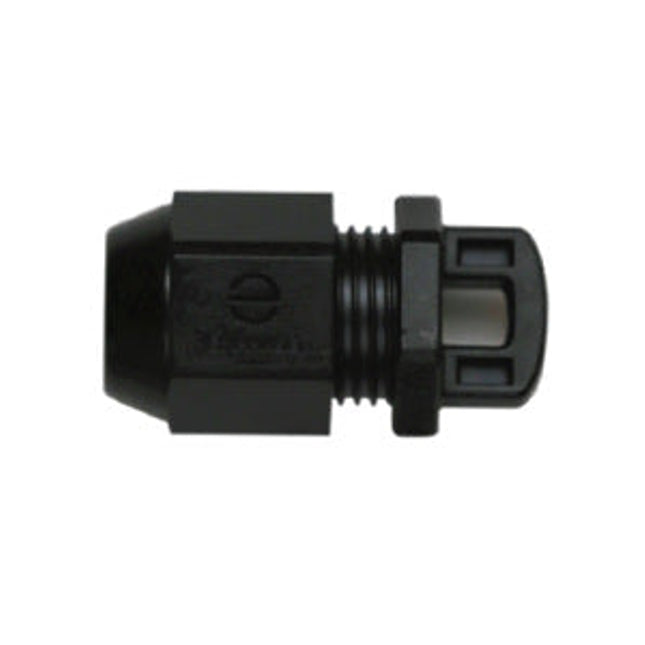

Part No: EN-Q-TERM-3P Accessories - Cable termination caps Enphase round Q Cable 3 phase Terminator cap for unused cable ends - required to terminate each 3 phase circuit.  Single item only.    Supplier Part No:Q-TERM-3P Weight:0.28 kg

Read more less
