Photovoltaic

Part No: MC4-10M-1 Cables - Pre Terminated Cables Keywords: MC410M2, Stäubli, PV Cable, Pre Terminated Cable   Supplier Part No: 32.00226-10M21 Weight: 0.58 kg Length: 10 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 44

Read more less

Part No: MC4-5M-1 Cables - Pre Terminated Cables Snap-in lock     Supplier Part No: 32.0026-50021 Weight: 0.29 kg Length: 5 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 44

Read more less

Part No: MC4-Y-CONN-FEM Cables - Connectors MC4-Evo 2 Y-Splitter is TÜV Rheinland certified and guarantees a long-lasting, stable connection within a PV DC string: Minimal energy loss, low heat generation. Robust housing, safety class IP68 (1 m, 1 h). Cable cross-section 6 mm²   Supplier Part No: 32.0334 Weight: 0.25 kg

Read more less

Part No: MC4-Y-CONN-MAL Cables - Connectors mC4-Evo 2 Y-Splitter is TÜV Rheinland certified and guarantees a long-lasting, stable connection within a PV DC string: Minimal energy loss, low heat generation. Robust housing, safety class IP68 (1 m, 1 h). Cable cross-section 6 mm²   Supplier Part No: 32.0333 Weight: 0.25 kg

Read more less

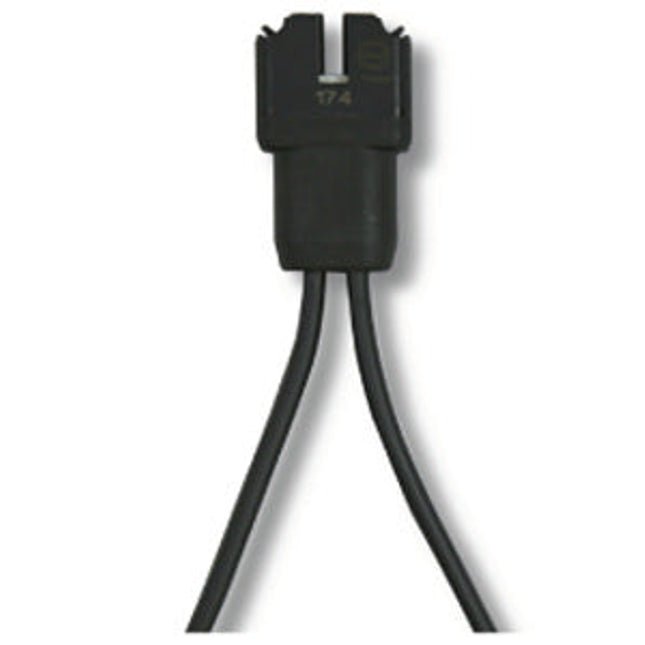

Part No: EN-Q-25-10-3P-1 Cables - Cables Enphase Q Cable 3ph 1.3m Portrait (price per connector)   Supplier Part No:Q-25-10-3P-200 Weight:0.32 kg

Read more less

Part No: EN-Q-25-17-1   Cables - Single Phase AC Cable Enphase Q Cable 1ph 2.0m Landscape 60-cell (price per connector)   Supplier Part No:Q-25-17-240 Weight:0.312 kg

Read more less

Part No: MC4-SPL-2 Cables - Connectors MC-4 contact doubler - Pack of 2 Pairs MC-4 splitter kit, consisting of: 2 x MC-T splitter sockets (2 x female connectors, 1 x male connector) 2 x MC-T4 splitter plugs (2 x male connectors, 1 x female connector) For time-saving, safe contact duplication without additional connectors. Branch connectors.  Keywords: MC4SPL2, Stäubli, PV Cable   Supplier Part No: 95036 Weight: 0.25 kg

Read more less

Part No: MC4-10M-2PACK Cables - Pre Terminated Cables 2x10m cable, 1xMale, 1xFemale each MC4 Pre-terminated. Keywords: MC410M2, Stäubli, PV Cable, Pre Terminated Cable   Weight: 1.16 kg Length: 10 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 44

Read more less

Part No: EN-Q-25-17-3P-1 Cables - Cables Enphase Q Cable 3ph 2.0m Landscape 60-cell (price per connector)   Supplier Part No:Q-25-17-3P-160 Weight:0.412 kg

Read more less

Part No: MC4-SPL-Y-CONN Cables - Connectors MC4-Evo 2 Y-Splitter is TÜV Rheinland certified and guarantees a long-lasting, stable connection within a PV DC string: Minimal energy loss, low heat generation. Robust housing, safety class IP68 (1 m, 1 h). Cable cross-section 6 mm² MC-4 splitter kit, consisting of: MC4-Y-CONN-FEM and MC4-Y-CONN-MAL For time-saving, safe contact duplication without additional connectors. Branch connectors.  Keywords: MC4SYPL2, Stäubli, PV Cable   Weight: 0.5 kg

Read more less

Part No: CABLE4-1-100 Cables - DC Cables 4 mm², single-core, black, 100m NEW H1Z2Z2-K certified 100m solar cable with length label.  Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40°C to +90°C. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor          Flexible tinned copper (Class 5) Insulation           Halogen-free cross-linked compound Outersheath      Halogen-free cross-linked flame retardant compound   The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire.   Supplier Part No: CABLE4-1-100 Weight: 5 kg Length: 100 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 32 Max Voltage: 1800

Read more less

Part No: CABLE4-1-250 Cables - DC Cables 4 mm², single-core, black, 250m NEW H1Z2Z2-K certified 250m solar cable with length label.  Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40°C to +90°C. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor          Flexible tinned copper (Class 5) Insulation           Halogen-free cross-linked compound Outersheath      Halogen-free cross-linked flame retardant compound The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire.   Supplier Part No: CABLE4-1-250 Weight: 14.81 kg Length: 250 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 32 Max Voltage: 1800

Read more less

Part No: CABLE4-1-500 Cables - DC Cables 4 mm², single-core, black, 500m NEW H1Z2Z2-K certified 500m solar cable with length label. Supplied on a reusable spool. Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor          Flexible tinned copper (Class 5) Insulation           Halogen-free cross-linked compound Outersheath      Halogen-free cross-linked flame retardant compound   The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human life in the event of fire.   Supplier Part No: 26036 Weight: 30 kg Length: 500 m Area: 4 mm2 Colour: Black Cores: 1 - N Max Current: 32 Max Voltage: 1800

Read more less

Part No: CABLE6-1-500 Cables - DC Cables 6 mm², single-core, black, 500m 500m solar cable with length label. Supplied on a reusable spool. Conductor cross-section: 6 mm²  (this is not the cable diameter, but rather the cross-sectional area).  System voltage: 1800 V Rated current: 70 A according to DIN VDE 0298 part 4 Operating temperature range: -40 - 120 °C Solar cable, high temperature and UV-resistant, reliable for inside and outside use. Resistant to ammonia, ozone, mineral oil and acid. Excellent fire-resistance. Colour: Black It's important to choose the correct cable spec for your project. We can provide assistance with this if needed.  Important Alternative cable is BC-CABLE6-1-500 Supplier Part No: 26038 Weight: 38 kg Length: 500 m Area: 6 mm2 Colour: Black Cores: 1 - N Max Current: 41 Max Voltage: 1800

Read more less

Part No: CABLE6-1-1000 Cables - DC Cables 6 mm², single-core, black, 1000m NEW H1Z2Z2-K certified 1000m solar cable with length label.  Manufactured against the latest European Standard EN 50618 and with the harmonised designation H1Z2Z2-K, these Solar DC Cable are specified cables for use in Photovoltaic (PV) systems, and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800V. EN 50618 requires cables to be low smoke zero halogen and be flexible tin-coated copper conductors with a single core and cross-linked insulation and sheath. Cables are required to be tested at a voltage of 11kV AC 50Hz and have an operating temperature range of -40oC to +90oC. H1Z2Z2-K supersedes the previous TÜV approved PV1-F cable. H1Z2Z2-K PHOTOVOLTAIC CABLE CONSTRUCTION Conductor          Flexible tinned copper (Class 5) Insulation           Halogen-free cross-linked compound Outersheath      Halogen-free cross-linked flame retardant compound   The compounds used in these solar cable's insulation and outersheath are halogen free cross-linked, hence the reference to these cables as "cross-linked solar power cables". The EN50618 standard sheathing has a thicker wall than the PV1-F cable version. As with the TÜV PV1-F cable, the EN50618 cable benefits from a double-insulation offering increased safety. The Low Smoke Zero Halogen (LSZH) insulation and sheathing makes them suitable for use in environments where corrosive smoke would present a risk to human.   Supplier Part No: CABLE6-1-1000 Weight: 74 kg Length: 1,000 m Area: 6 mm2 Colour: Black Cores: 1 - N Max Current: 41 Max Voltage: 1800

Read more less

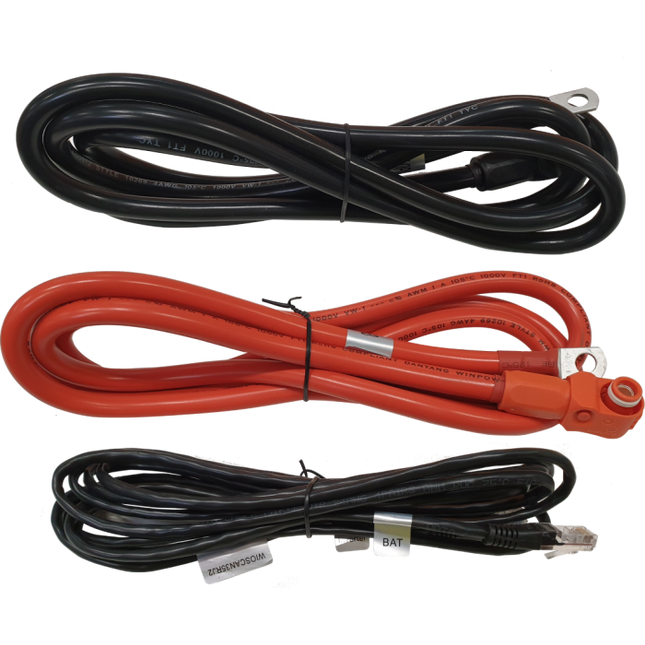

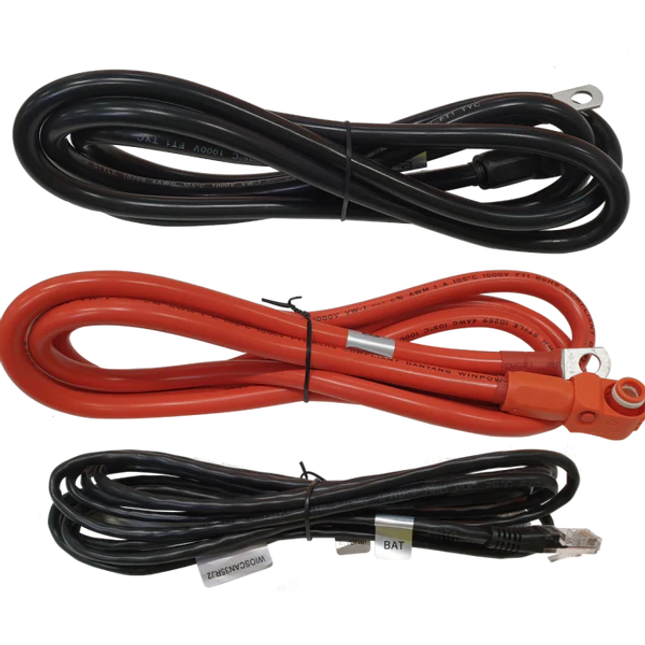

Part No: SUN-CABLE-PACK Storage Systems - Accessory Inverter to Battery long cable pack for Sunsynk CATL battery only.  Does not work with Sunsynk BYD battery.  Supplier Part No: Battery Cable Pack Long for Sunsynk Weight: 1 kg

Read more less
