SUN-16.0

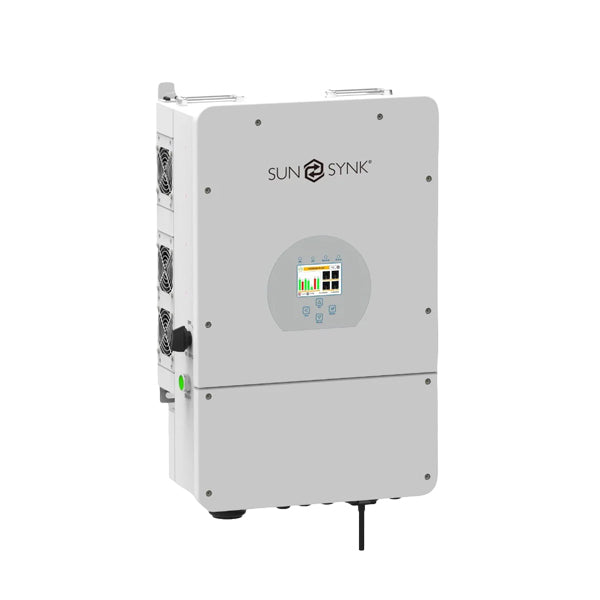

Sunsynk MAX 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
Product form
Regular price
£3,036.94
Regular price
Sale price
£3,036.94
Unit price
/
£3,644.33 INC. VAT
In stock
Fast shipping
Collection available More info
Overview
-
Additional features:
- A total of 15x inverters can be connected in a three-phase configuration (five units per phase) - giving a maximum power output of 240kW
- Three inverters can be connected in a single-phase configuration giving a total power of 48kW
- Contains 3x MPPTs to allow for flexible PV array designs and improved efficiency
- Programmable multiple operation modes: on-grid/off-grid & UPS
- IP65 protection rating
- Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
- Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedomwon and Kodak (BL3.6)
Sunsynk inverter and Freedom Won battery pairing : 10-year extended warranty.
For installations with Pylontech, REVOV and Hubble Lithium batteries use this BMS cable
For installations with Freedom Won batteries use this BMS cable
Installations with Sunsynk products need to be registered to gain full activation of the warranty.
Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.
- Supplier Part No:
- SUNSYNK-16K-SG01LP1
- Weight:
- 56 kg
- Rated Power:
- 16,000 W
- Min PPT Voltage:
- 250 V
- Max PPT Voltage:
- 450 V
- DC Startup Voltage:
- 150 V
- DC Shutdown Voltage:
- 0 V
- Max Input Voltage:
- 450 V
- Max DC Power:
- 18,000 W
- Max AC Power (5 Minutes):
- 16,001 W
- Surge AC Power (1 Second):
- 32,000 W
- Max DC Current:
- 66 A
- Max DC Inputs:
- 6
- Has DC Fuses:
- 0
- Connector:
- Screw Terminal
- Included Connectors:
- 12
- Euro Efficiency:
- 97.6 %
- Transformer:
- None
- MPPT Quantity :
- 3
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
