Solis / V-TAC 80kWh/208kWh Bess Cabinet with liquid cooling IP65

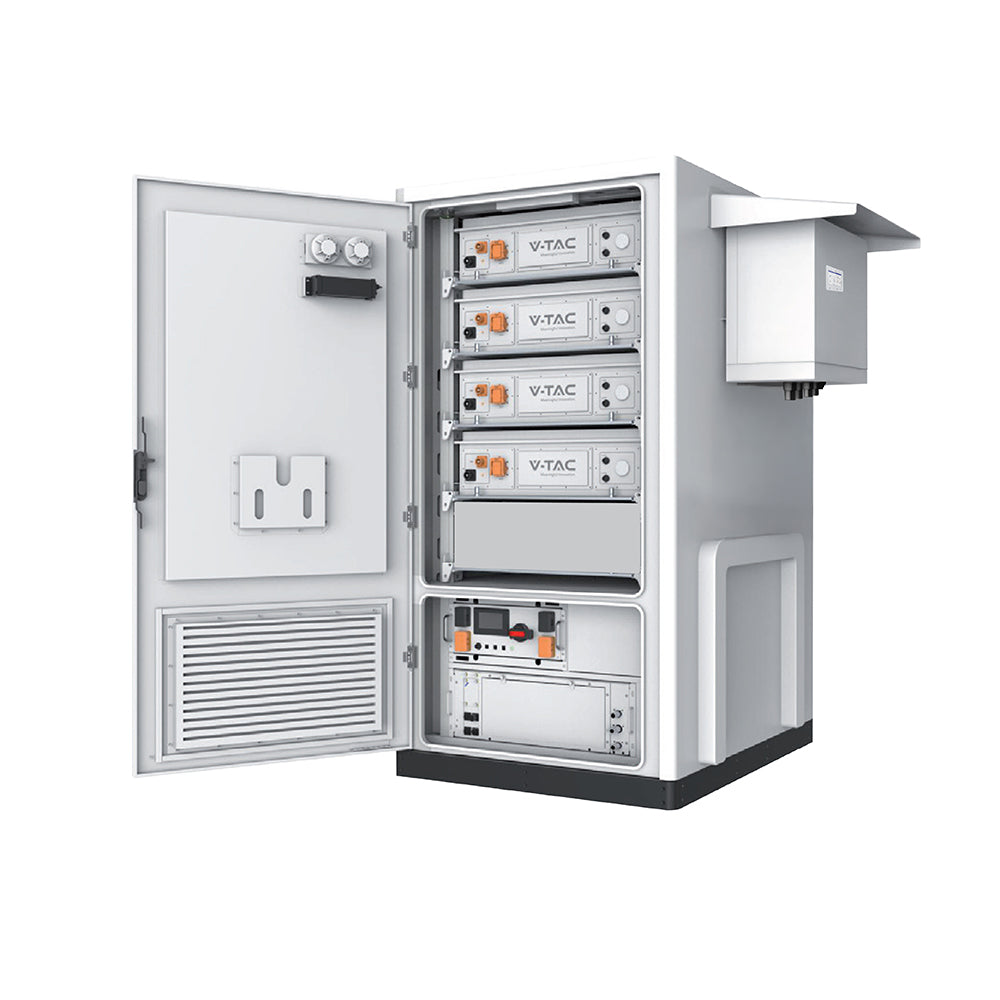

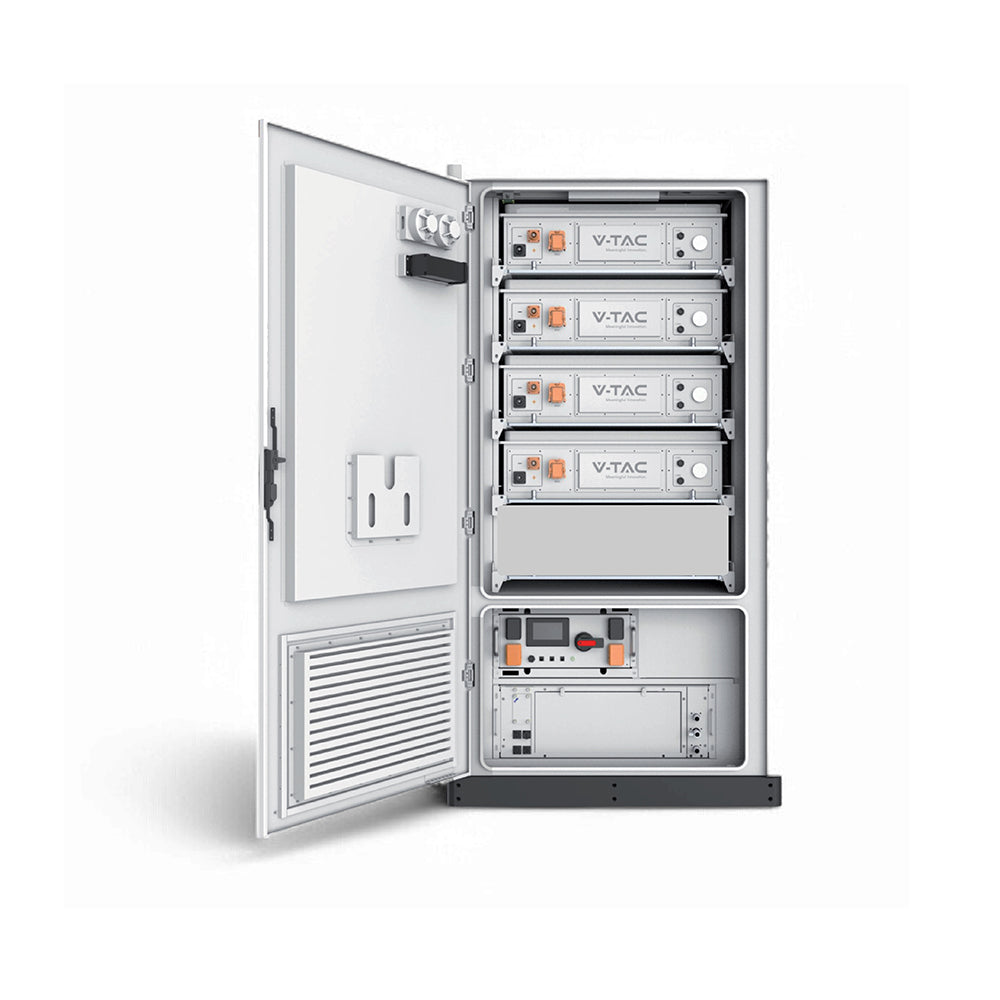

Solis/V-TAC 80kW/208kWh BESS Cabinet with Liquid Cooling (IP65)



Advance your energy management with the Solis/V-TAC 80kW/208kWh Battery Energy Storage System (BESS) Cabinet, a robust all-in-one solution engineered for commercial and industrial environments. Equipped with state-of-the-art liquid cooling and an IP65-rated enclosure, this cabinet offers 208kWh nominal capacity and 80kW power output, perfect for peak shaving, renewable energy integration, microgrid functionality, and secure backup power. Its resilient design guarantees superior efficiency and performance in rigorous settings, supporting cost reductions and eco-conscious operations for innovative enterprises.

 Key Features:

- **Advanced Liquid Cooling**: Utilizes precise thermal management with 50% ethylene glycol solution to ensure uniform battery temperatures, enhancing efficiency, performance, and extended service life during high-demand scenarios.

- **Exceptional Efficiency**: Delivers high system efficiency with a cycle life surpassing 10,000 cycles at 0.5C, fostering durability and lowered maintenance expenses over time.

- **Superior Protection**: IP65 enclosure provides outstanding dust and water resistance, with optional corrosion-resistant upgrades. Incorporates integrated fire suppression, smoke detection, and audible/visual alarms for unparalleled safety.

- **Intelligent Connectivity**: Equipped with RS485, CAN, Modbus, Ethernet, WIFI, and optional wireless features for comprehensive real-time monitoring, AI-powered diagnostics, and cloud-based oversight.

- **Modular Compact Design**: Optimizes space usage with scalable modularity, facilitating straightforward expansions to meet evolving energy demands without extensive modifications.

- **Compliance and Safety**: Adheres to IEC/EN 62619, IEC/EN 61000, UN38.3, MSDS, and other international standards, including safeguards against overcharge, overdischarge, short circuits, and temperature extremes.

 Technical Specifications:

- **DC-Side**: 208kWh nominal capacity, 80kW nominal power, 665.6V nominal voltage, 582.4–759.2Vdc operating range, LFP cells (LiFePO₄ chemistry), modular configuration.

- **AC-Side**: 80kW nominal power, low THD (<3%), 400Vac nominal voltage (340–460Vac range), 50±5Hz frequency.

- **Environmental**: Operating temperature charging 0°C to 50°C, discharging -20°C to 50°C (derating >45°C), storage -30°C to 45°C, 5–95% RH (non-condensing), max altitude 2000m.

- **Cooling**: Efficient liquid-cooled system with advanced thermal regulation for even temperature distribution.

- **Dimensions & Weight**: 1300 × 1450 × 2340 mm (W × D × H), approximately 2500 kg.



Benefits and Applications:

The Solis/V-TAC BESS Cabinet enables intelligent energy optimization through dynamic scaling, top-tier conversion efficiency, and predictive maintenance, cutting costs and elevating returns on investment. Ideal for commercial spaces, EV charging networks, renewable energy installations, manufacturing plants, and off-grid applications, it promotes grid stability, energy trading, and sustainable practices. Take advantage of adaptable configurations and dedicated support for effortless implementation.



Available now at Powerland.co.uk – connect with us for bespoke advice, installation expertise, and compelling offers!
