AIK-A-MCE54-485-AB-G3
485W Neostar 3S N-Type Mono-Glass ABC 54 Cell All Black MC4 Gen 3
Product form
Regular price
£118.99
Regular price
Sale price
£118.99
Unit price
/
£142.79 INC. VAT
In stock
Fast shipping
Collection available More info
Overview
Part No: AIK-A-MCE54-485-AB-G3 Panels - Monocrystallines
- Rating: 485W
- Efficiency: 24.3%
- Width: 1,134mm
- Height: 1,762mm

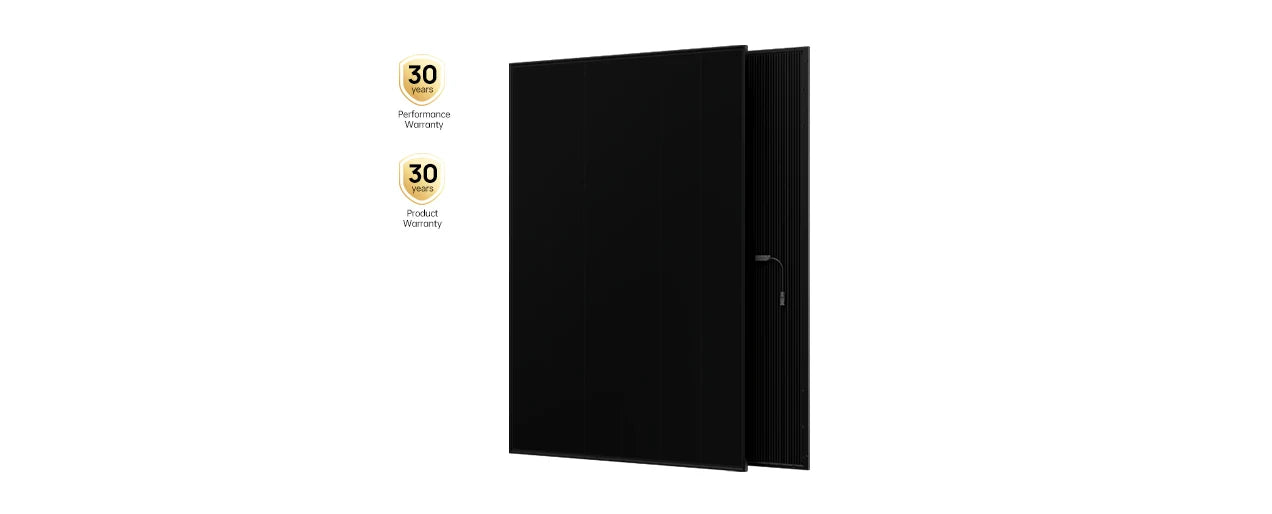

Aiko Monocrystalline N-Type ABC – Neostar Gen 3
Model: AIKO-A485-MCE54Mb
New for Summer 2025: The third generation of AIKO modules offers even higher efficiency, a larger energy-generating surface, and a power increase of 15–20 kW compared to Gen2 modules!
Thanks to Precision Overlap Soldering, gaps between cells have been eliminated. Combined with hidden busbars, Gen3 modules not only feature a sleek, true-black appearance but also a larger active surface area.
Technical Specifications
- Maximum System Voltage: DC1500V
- Module Power (485 W), Efficiency: 24.3%
- Cable Length: 1.2 m
- Connector: Staubli MC4 EVO2
- Product Warranty: 25 years (see manufacturer’s warranty terms for details)
- Performance Warranty: 30 years (see manufacturer’s warranty terms for details)
Key Features
- Winner of the Intersolar Innovation Award 2023, Red Dot Design Award 2023, and ESG Transparency Award 2024
- No. 1 efficiency on the market
- Cell-level partial shading optimization (unique in the industry)
- High temperature limit for enhanced fire safety
- Micro-crack resistance
- Superior temperature coefficient of -0.26 (best in CEA PV Tech lab test)
- Elegant no-busbar design
Note: 1200mm landscape cable included
