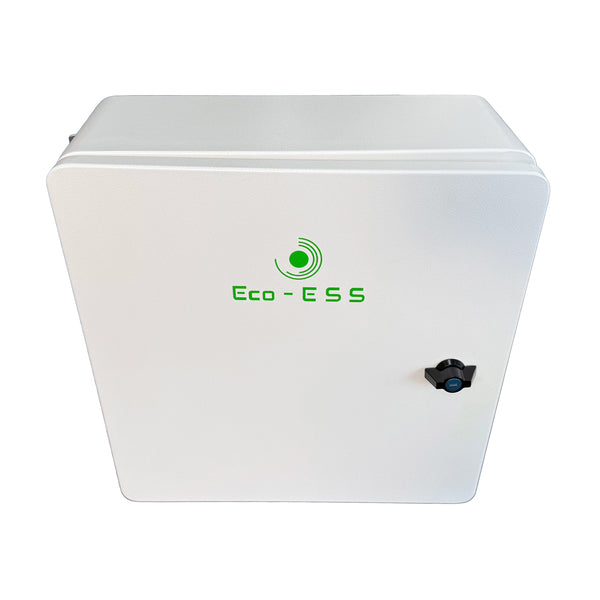

Eco-ESS 40A Single-Phase EPS/ATS Gateway

The Eco-ESS single-phase emergency power supply box contains an automatic transfer switch and ensures a smooth transition to your backup power supply in the event of a power outage. Housed inside an IP66-rated steel enclosure, this durable and weather-resistant EPS box is ideal for locating outdoors.

Its universal design means it's compatible with any brand of single-phase inverter and battery system and is designed to handle the property's entire load, not just the essentials. Plus, unlike other equivalent products, it includes a removable earth-neutral bond which can be used when there isn't one present in the inverter.

Key features:

1. Emergency power supply (EPS) box with automatic transfer switch (ATS)
2. Compatible with any brand of single-phase hybrid or AC-coupled inverter
3. Sheet steel enclosure
4. Wall-mountable
5. Features removable earth-neutral bond
6. Switchover time of <15ms to ensure continuity of supply
7. Ingress protection: IP66
8. Current rating: 100A
9. Back-up current rating: 40A
10. Rated voltage: 230V
11. Dimensions: 410mm (W) x 410mm (H) x 195mm (D)
12. Weight: 19kg
13. Two-year warranty
