Safety and Power Independence in Every Charge
The EcoFlow PowerOcean DC Fit System redefines home energy storage with an advanced safety system, LFP battery tech, active fire protection module, and an IP65-certified design. Expandable up to 15kWh, it offers over 6000 charge cycles and a 15-year warranty— a secure, scalable, and future-proof power investment for your home.
DC Fit Converter
Retrofit Battery Storage Solution
No additional storage inverter is needed

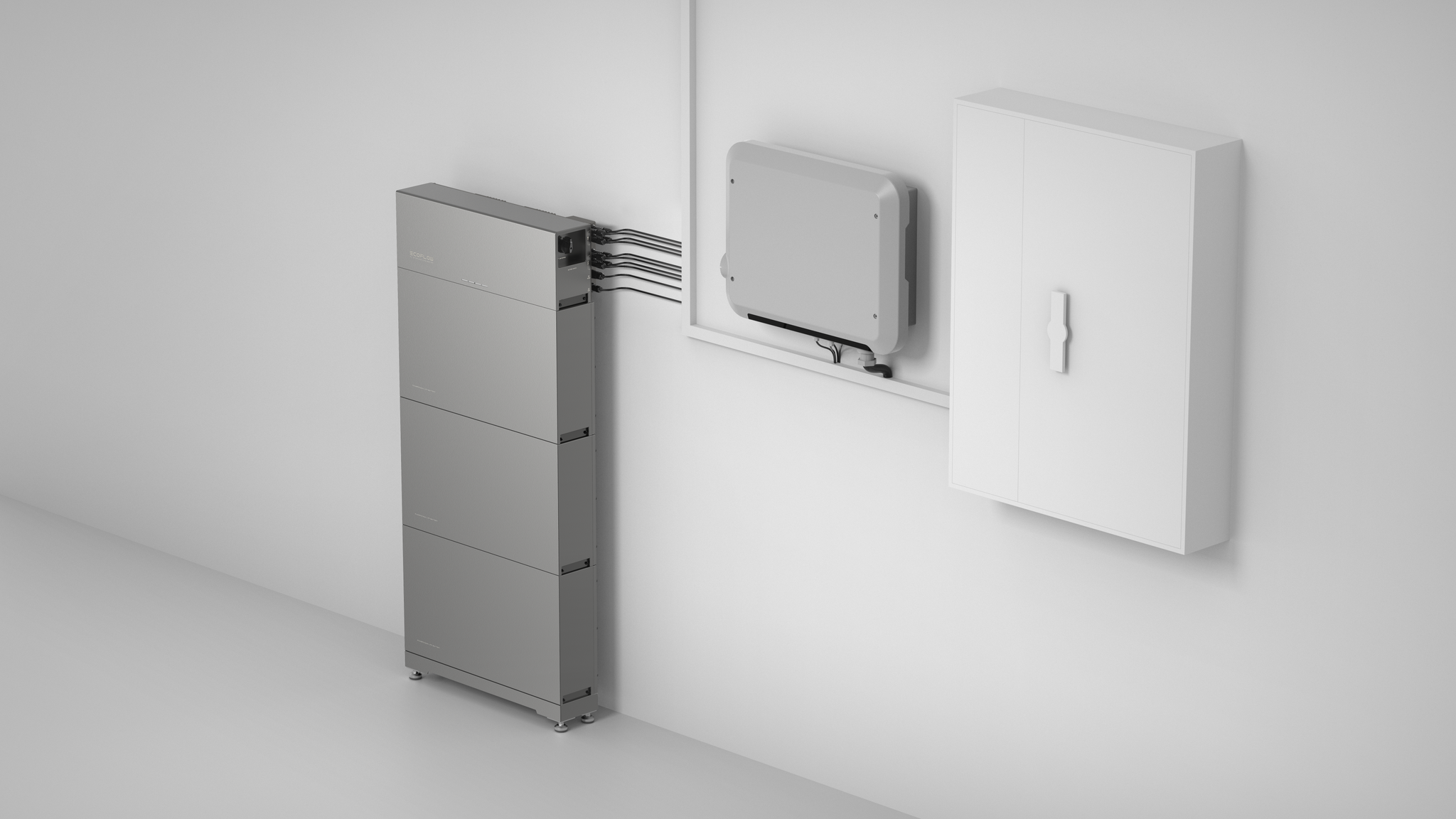

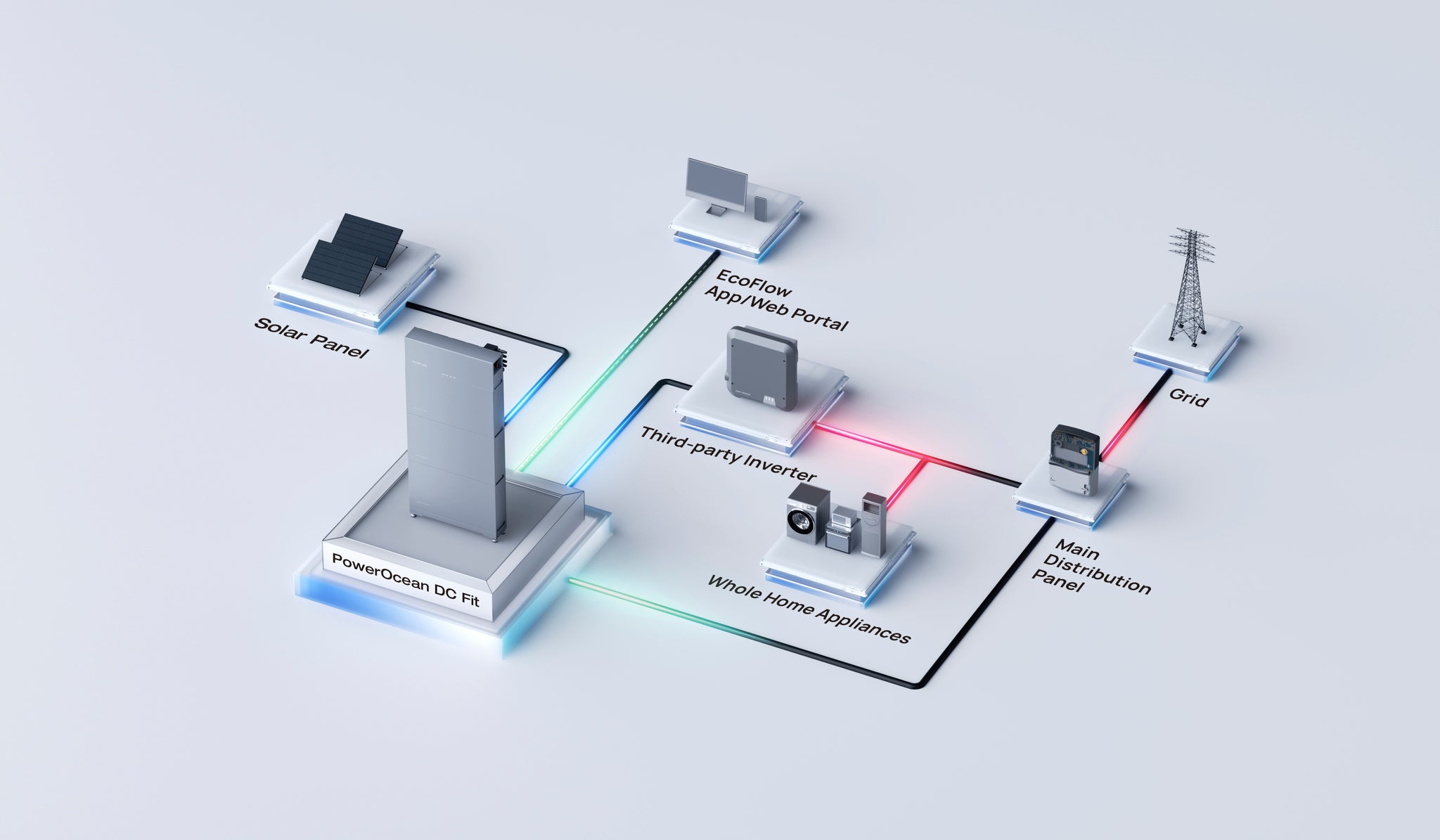

Seamlessly adding battery storage to your existing solar
system without installing an additional storage inverter.
No need to replace the existing solar inverter
Investing less to store more solar power.
No need to change the AC wiring
Significantly reducing installation time.
No on-grid permit required
Saving weeks of waiting time for on-grid permit
applications. (Notifying the power provider of this change is advised.
Regulations may vary region to region)
Battery
- Nominal capacity: 10.2 kWh
- Usable capacity: 9.6 kWh
- Depth of discharge (DoD): 95%
- Max Output power: Two Batteries 6.6kw
- Round trip efficiency: 94%
- Nominal voltage: 800V
- Charging Range: 720 - 960V
- Max Charge/discharge current: up to 100A depending on inverter [see datasheet]
- Cycle Life: 6000 cycles
- Dimensions: (W x D x H)mm 680 x 183 x 1245
- Weight: 114.5 kg
- Floor Standing or Wall Mounted
- IP65: protection grade
- Warranty: 15 years
DC Fit Converter
- Max. input charging power: 5kW (2.5kW per string)
- Max. input charging current: 12A per string
- Max. input voltage (absolute maximum): 1000V d.c.
- Operating voltage range: 150-800V d.c.
- Supported solar inverter type: Single phase / Three phase
- Bypass power: 15kW per string
- Max. output current: 20A per string
- Max. output voltage: 1000V d.c.
- Max. output discharging power: 5kW (2.5kW per string)
- IP rating: IP65
Included in kit:
1 x Ecoflow PowerOcean DC Fit Converter
3 x Ecoflow PowerOcean 5kWh Battery
1 x Ecoflow PowerOcean Battery Base
(For installation with solar only not standalone)
