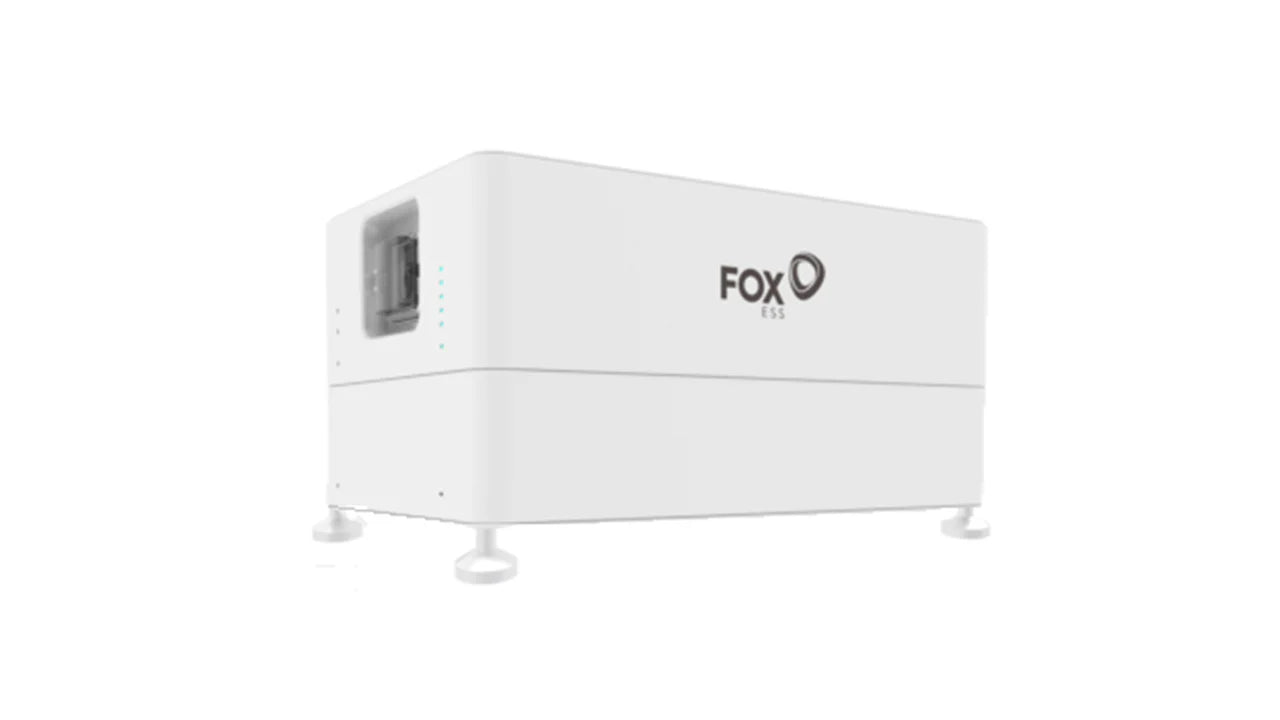

Fox EQ 4.66kWh - Stack of 2 (9.32kWh Useable Storage) Incl. Master
EQ4800-L2
- 4.66kWh capacity
- Scalable to 41.94 kWh
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN communication
- High voltage
The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.
Weight: 83.5kg
Dimensions (Width, Hight, Depth): 570mm x 386mm x 380mm
Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.
- Weight: 83.5 kg
- Battery Type: Lithium Ion
- Nominal Energy: 9320 Wh
- Depth of discharge: 90.00 %
- Voltage: 89 V
- Continuous Discharge Rate (Normal Use): 2240 W
- Maximum Discharge Rate (5 Minutes): 4480 W
- Surge Discharge Rate (15 Seconds): 5785 W
- Maximum Charge Rate (5 Minutes): 4480 W
