FE-H3-PRO-30.0

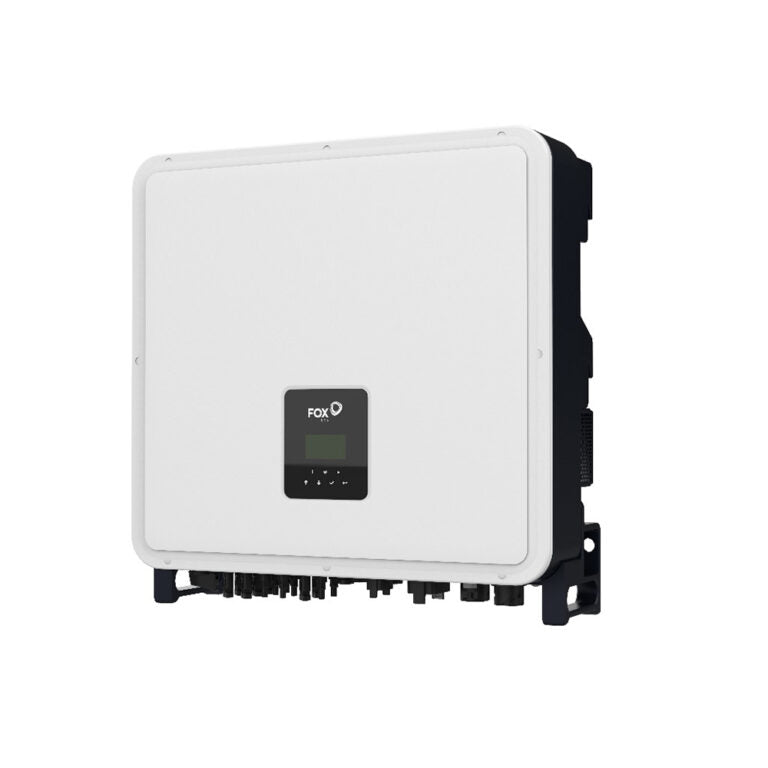

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

Easy installation - Flexible configuration, Plug & Play, built-in fuse protection.
High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
Remote Monitoring - Monitor remotely via app or web portal.

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh. A max. of 10 storage inverters can be connected in parallel which allows you to enlarge the system scale based on different installation requirements.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

£3,194.27

£3,833.12 INC. VAT

Login or register for trade discounts

1 in stock. Contact us for more.

Fast shipping

Collection available More info

Overview

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

Easy installation - Flexible configuration, Plug & Play, built-in fuse protection.
High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
Remote Monitoring - Monitor remotely via app or web portal.

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh. A max. of 10 storage inverters can be connected in parallel which allows you to enlarge the system scale based on different installation requirements.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.

Part No: FE-H3-PRO-30.0 Storage Systems - Hybrid Inverter

Supplier Part No: FE-H3-PRO-30.0
Weight: 57.5 kg
Rated Power: 30,000 W
Min PPT Voltage: 160 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 160 V
DC Shutdown Voltage: 1,000 V
Max Input Voltage: 1,000 V
Max DC Power: 45,000 W
Max AC Power (5 Minutes): 30,000 W
Surge AC Power (1 Second): 33,000 W
Max DC Current: 96 A
Max DC Inputs: 6
Has DC Fuses: 1
Connector: MC4
Included Connectors: 6
Euro Efficiency: 97.4 %
Transformer: N/A
MPPT Quantity : 6
Has Integrated DC Switch: Yes
Warranty: 5 years
