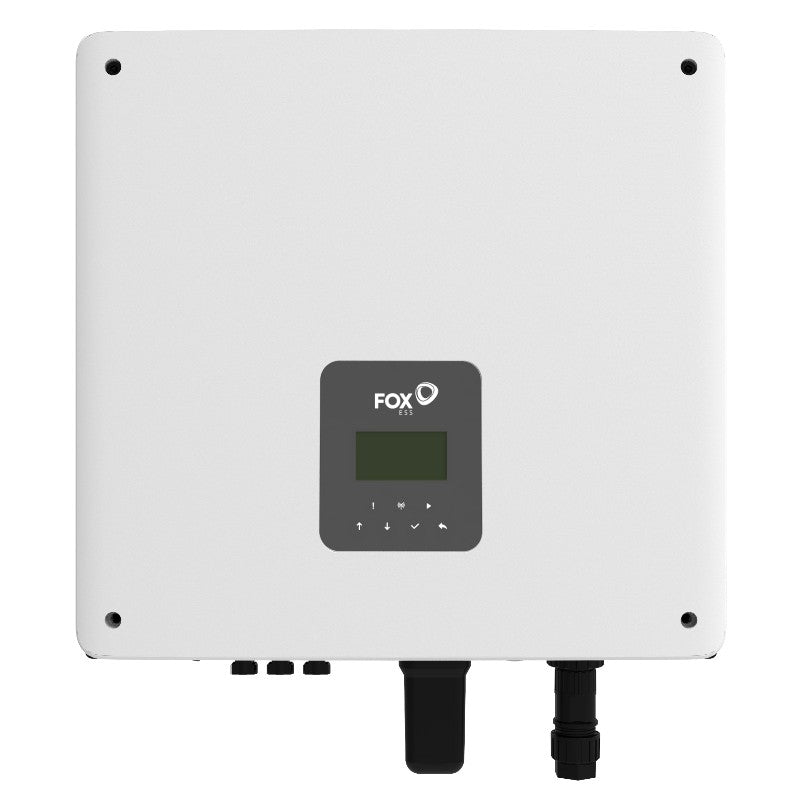

Part No: FE-H1-3.0-G2 Storage Systems - Hybrid Inverter
The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also avalible via your smartphone or web portal.
- Compatible with: ECS2900
- Compatible with: ECS4100
- Compatible with: ECS4300
- Compatible with: ECS4800
- Compatible with: HV2600
- IP65 rated - suitable for outdoor installations
- Remote monitoring via web portal or smartphone
- Easy to expand battery capacity
- Dual MPPT - ensure optimal solar production
- High round-trip efficiency of 97%
CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).

A meter will be required for >30m distance between inverter and incoming power connection point.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
Supplier Part No:

FE-H1-3.0-G2

Weight:

22 kg

Rated Power:

3,000 W

Min PPT Voltage:

80 V

Max PPT Voltage:

550 V

DC Startup Voltage:

75 V

DC Shutdown Voltage:

601 V

Max Input Voltage:

600 V

Max DC Power:

4,500 W

Max AC Power (5 Minutes):

3,000 W

Surge AC Power (1 Second):

3,300 W

Max DC Current:

32 A

Max DC Inputs:

2

Has DC Fuses:

0

Connector:

MC4

Included Connectors:

4

Euro Efficiency:

97 %

Transformer:

None

MPPT Quantity :

2

Has Integrated DC Switch:

Yes

Warranty:

5 years
