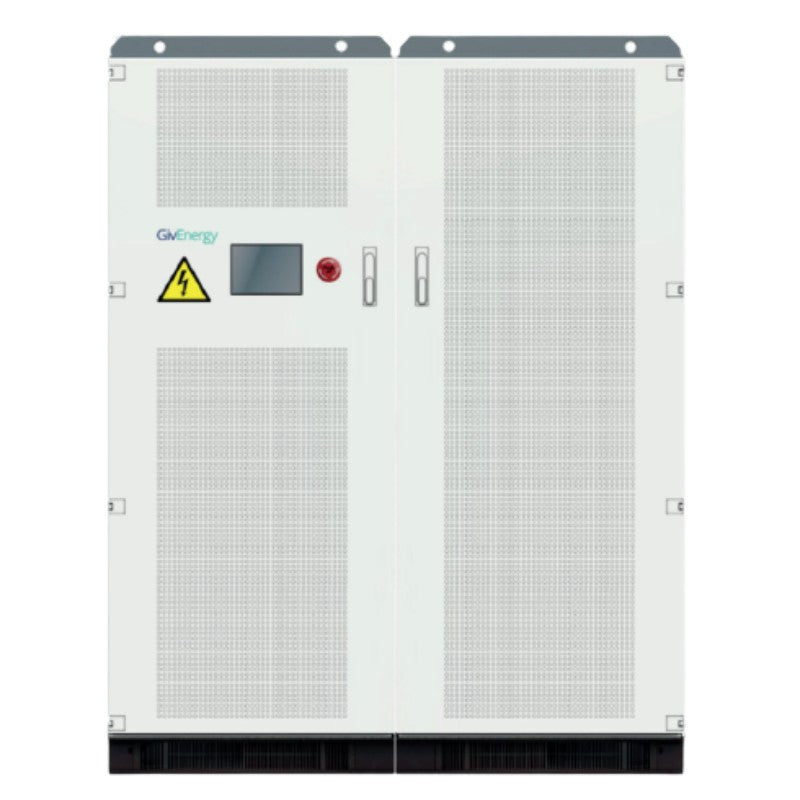

GivEnergy 3ph 30kW PCS with 207kWh Storage

Description

Commissioning by GivEnergy is included Mainland UK.

The GivPCS 30kW controller with scalable 69kWh battery options, is a small to medium enterprise energy storage system. The use of modular battery packs (9.6kWh each) that use the latest in LiFePO4 prismatic cell technology with a plug and play design make scaling the system to the perfect capacity simple. For larger projects up to 4 battery racks (69 kWh each) can be added the the system, giving a total combined capacity of 276 kWh.

Features:

  • Flexible Control - System can be controlled and monitored via GivEnergy cloud or via external signal.
  • Adjustable Power Rating - EMS allows control of charge and discharge rates.
  • Industrial & Commercial - Suitable instalation for a wide range of applications.
  • Modular Design - Multiple units can be installed in parallel.

The system can be monitored and controlled using the energy management system (EMS) on the GivEnergy platform with additional monitoring points available to integrate to give more specific data e.g. renewable energy generation on site.

Bespoke software modification available on request - please get in touch for prices.

DC (Battery)
Battery Voltage range:
300 - 850V
Max current:



Communication
BMS Interface
Device Interface

43A




RS485/CAN
RS485, TCP/IP

AC (On-grid)
Max. Output Power:
33kVA
Rated Power:
30KW
Rated Voltage:
400V
Voltage Range:
320V - 460V
Rated Current:
43A
Max. Output Current:
Rated Frequency:
THDI:
PF:
48A
50 / 60Hz
<3%
1 lagging - 1 leading
AC (Off-grid)
Rated Voltage:
400V
Rated Frequency:
50 / 60Hz
Overload Capability:
110%-continuous
General Information

  • Efficiency - 96.3%
  • Weight - 600Kg
  • Dimensions - 800 x 800 x 2050 (mm)
  • Protection Degree - IP21

This product does not have G99 certification without a dedicated G99 protection relay, that can be made part of the installation costs.



GivEnergy
Product form

Commissioning by GivEnergy is included Mainland UK. The GivPCS 30kW controller with scalable 69kWh battery options, is a small to... Read more

£92,199.00 Exc. VAT
£110,638.80 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Commissioning by GivEnergy is included Mainland UK.

The GivPCS 30kW controller with scalable 69kWh battery options, is a small to medium enterprise energy storage system. The use of modular battery packs (9.6kWh each) that use the latest in LiFePO4 prismatic cell technology with a plug and play design make scaling the system to the perfect capacity simple. For larger projects up to 4 battery racks (69 kWh each) can be added the the system, giving a total combined capacity of 276 kWh.

Features:

  • Flexible Control - System can be controlled and monitored via GivEnergy cloud or via external signal.
  • Adjustable Power Rating - EMS allows control of charge and discharge rates.
  • Industrial & Commercial - Suitable instalation for a wide range of applications.
  • Modular Design - Multiple units can be installed in parallel.

The system can be monitored and controlled using the energy management system (EMS) on the GivEnergy platform with additional monitoring points available to integrate to give more specific data e.g. renewable energy generation on site.

Bespoke software modification available on request - please get in touch for prices.

DC (Battery)
Battery Voltage range:
300 - 850V
Max current:



Communication
BMS Interface
Device Interface

43A




RS485/CAN
RS485, TCP/IP

AC (On-grid)
Max. Output Power:
33kVA
Rated Power:
30KW
Rated Voltage:
400V
Voltage Range:
320V - 460V
Rated Current:
43A
Max. Output Current:
Rated Frequency:
THDI:
PF:
48A
50 / 60Hz
<3%
1 lagging - 1 leading
AC (Off-grid)
Rated Voltage:
400V
Rated Frequency:
50 / 60Hz
Overload Capability:
110%-continuous
General Information

  • Efficiency - 96.3%
  • Weight - 600Kg
  • Dimensions - 800 x 800 x 2050 (mm)
  • Protection Degree - IP21

This product does not have G99 certification without a dedicated G99 protection relay, that can be made part of the installation costs.



GivEnergy
