HESS-Gateway-M1

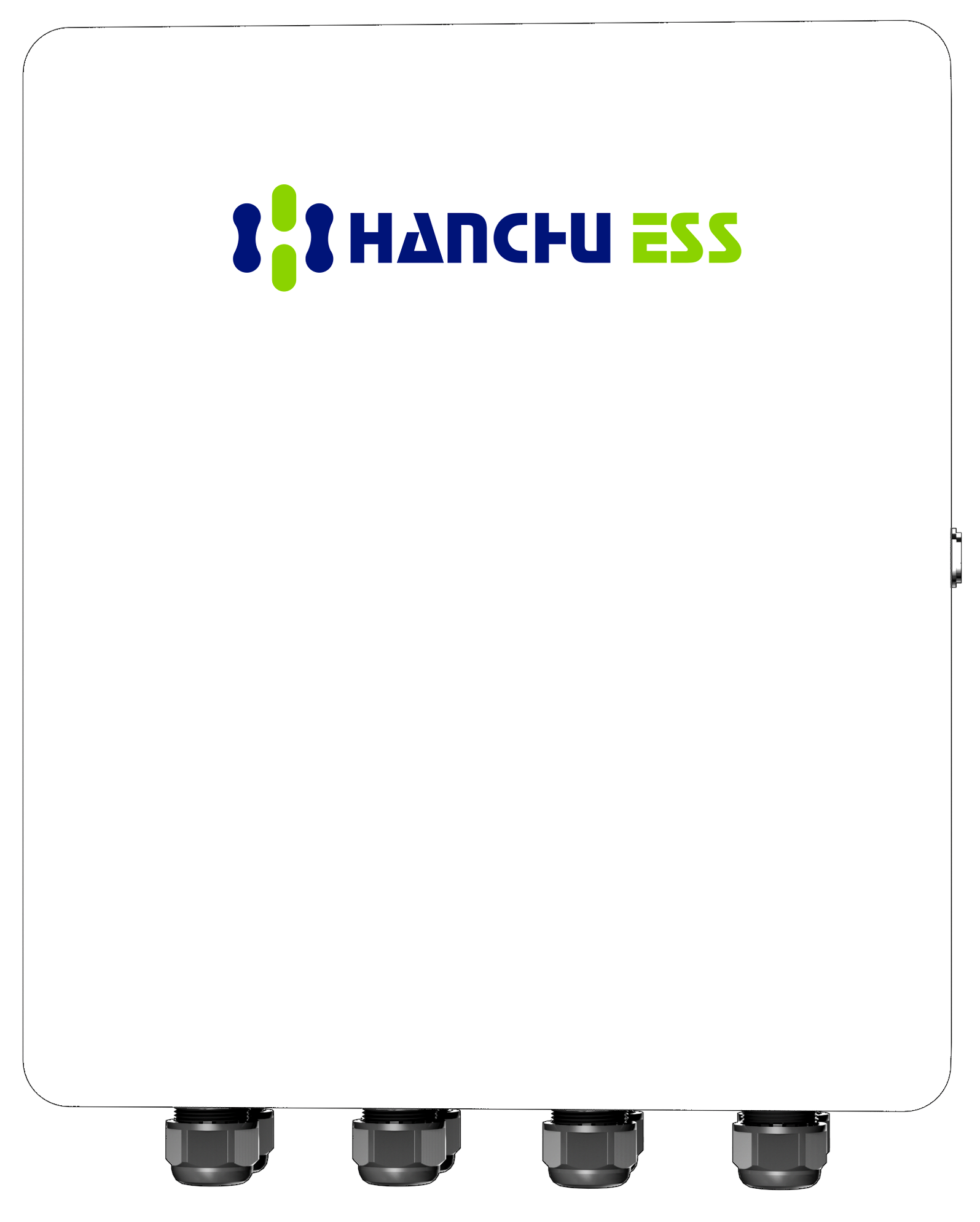

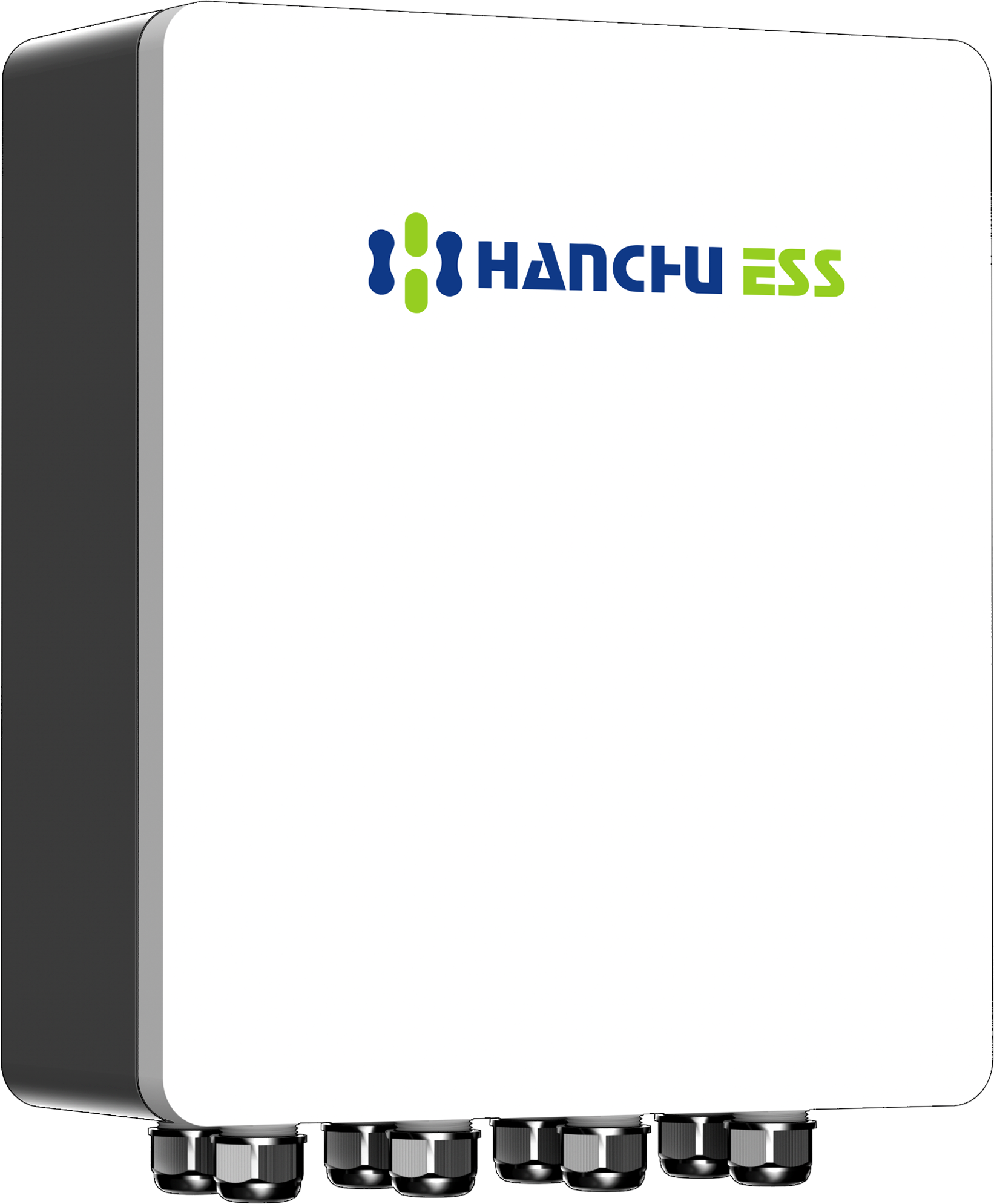

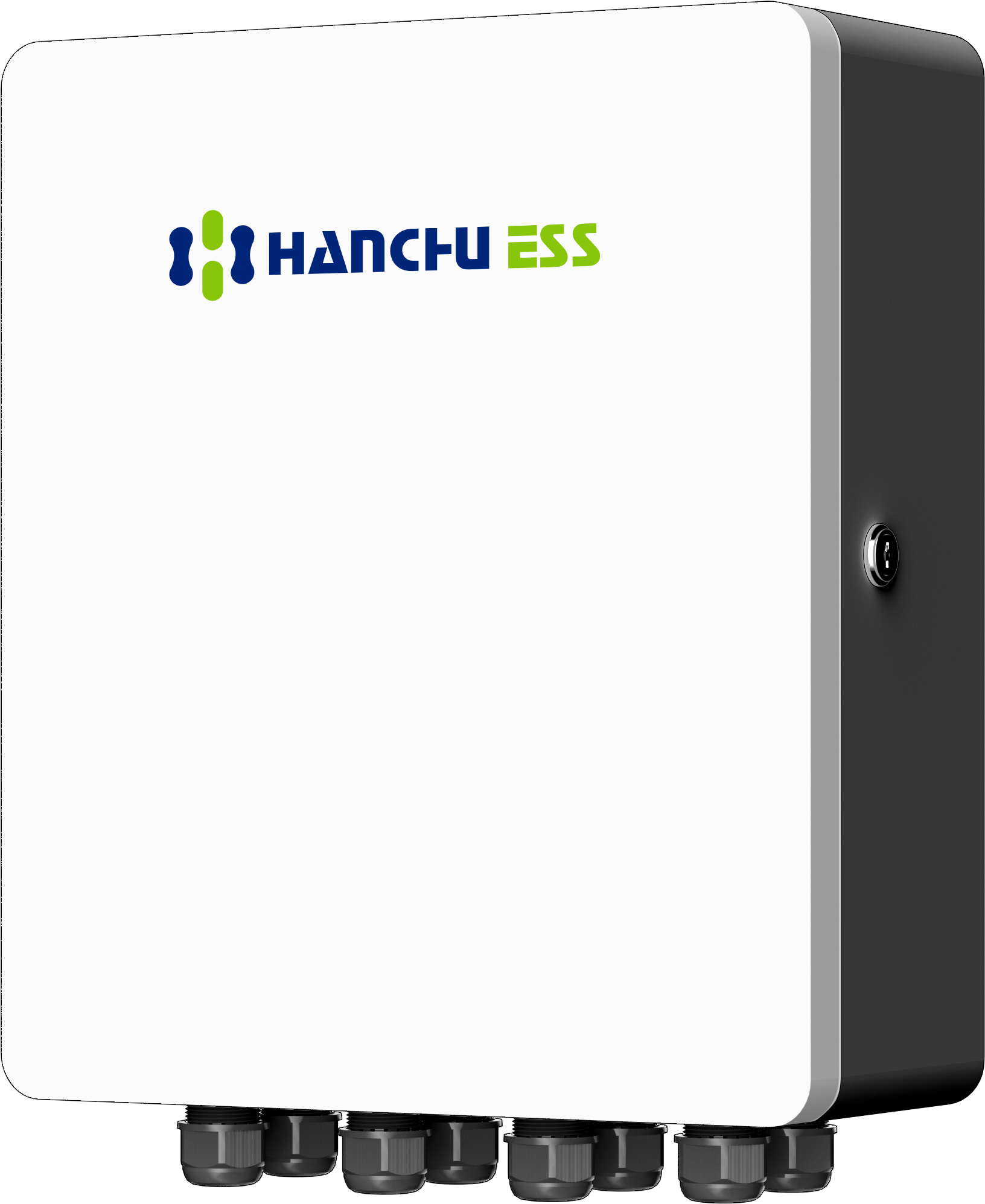

Hanchu ESS Single Phase Gateway - HESS-Gateway-M1

Name: Hanchu ESS Single Phase Gateway - HESS-Gateway-M1
Brand: HANCHUESS
SKU: HESS-Gateway-M1
Price: 1.143.76 GBP
Availability: InStock

UK-based technical support team, always ready to assist

Reliable national RMA service with a 48-hour response time

12-Year Warranty

1 3

£1,143.76

£1,372.51 INC. VAT

Login or register for trade discounts

3 in stock. Contact us for more.

Fast shipping

Collection available More info

Overview

UK-based technical support team, always ready to assist

Reliable national RMA service with a 48-hour response time

12-Year Warranty

Superior Performance

HESS-Gateway-M1 supports whole-home backup power and tiered backup power and 80ms UPS-level switching.

User-Friendly

Pre-installed meters make installation easier, and supports connection to heat pumps, EV chargers, and other controllable loads.

Greater Functionality

Supports PV Inverter for load power supply and bypass load function

Technical Specifications

Model: HESS-Gateway-M1

Nominal AC Input Voltage Range: 220/230/240V

Max. AC Input Current (Grid): 100A

Max. AC Input Current (PV INV): 32A

Max. AC Output Current (Load): 100A

Max. AC Output Current (Backup): 32A

Max. AC Output Current (EV Charger): 32A

Activation Methods: Grid Startup + Inverter Startup

Operating Modes: On Grid + Off Grid

Bypass Mode: Manual

Ingress Protection Degree: IP65

Downloads

Hanchu Gateway Datasheet
