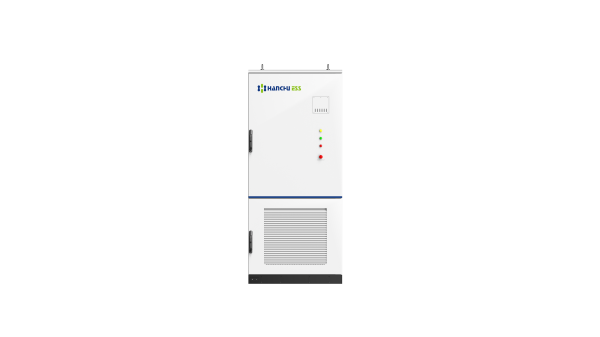

Liquid-cooling BESS Cabinet 261kWh

Name: Liquid-cooling BESS Cabinet 261kWh
Brand: Hanchu ESS

£0.00

£0.00 INC. VAT

Login or register for trade discounts

In stock

Fast shipping

Collection available More info

Overview

Unparalleled Safety

Short-Circuit Safeguards

Integrated fuses ensure instant disconnection in the event of short circuits, minimising risks to personnel and property.

Comprehensive Fire Protection

Equipped with a non-toxic perfluorohexanone gas fire suppression system, and optional water spray pipelines for enhanced safety measures.

Battery Safety

Uses high-temperature-resistant and environmentally friendly LFP batteries to establish a robust safety barrier for the system.

Flexible and Adaptable

Modular and Quick Installation

Delivered as a fully integrated unit, supporting modular deployment for fast delivery and easy scalability.

Compact Design

Saves 20% of the required space compared to traditional systems, offering flexibility for constrained industrial and commercial applications.

Durability and Environmental Resilience

With IP55 protection, the cabinet is built to withstand harsh environments, ensuring stable and reliable operation even in challenging conditions.

Optimal Performance

Increased Energy Density

The energy density has been significantly enhanced, saving 20% of the footprint compared to traditional systems.

Eco-Friendly and Energy-Efficient

Designed to optimise performance while prioritising environmental sustainability.

Instantaneous Response

With second-level reaction time, it can rapidly respond to sudden load changes or disruptions, ensuring system stability and reliability in various scenarios.

DC Side

Rated Battery Energy Storage Capacity: 261kWh
System Rated Voltage: 832V
System Voltage Range: 728V~936V
Battery Type: LFP(LiFePO4)
Battery String in Series Parallel Mode: 1P*52S*5
Max Charge & Discharge Current: 157A

AC Side

Rated AC Power: 125kW
Maximum AC Current: 200A
Rated AC Voltage: 400Vac 3P4W
Rated AC Frequency: 50/60hHz
Total Harmonic Distortion of Current: <3%

Conventional Parameter

Protection Level: IP55
Relative Humidity: 5%RH~95% RH, non-condensing
Operating Temperature: -25°C~55°C
Cooling Mode: Liquid-cooling
Altitude: <2000m (De-rating >2000m)
BMS Communication Interface: Ethernet/RS485
Dimension (W*D*H): 1050*1350*2400mm
Weight: 2600kg

Product form
