LuxPower AC Retrofit Inverter 3.6kW - Squirrel pod
Product form
2 in stock. Contact us for more.
Fast shipping
Collection available More info
Overview
Manufacturer Code: Squirrel pod
Order Code: LUX-AC-SQPD
Compatible Products
Hanchu Low Voltage Battery 3.2kWh
Hanchu Low Voltage Battery 3.68kWh
Hanchu Low Voltage Battery 5.12kWh
Hanchu Low Voltage Battery 9.4kWh
Introduction

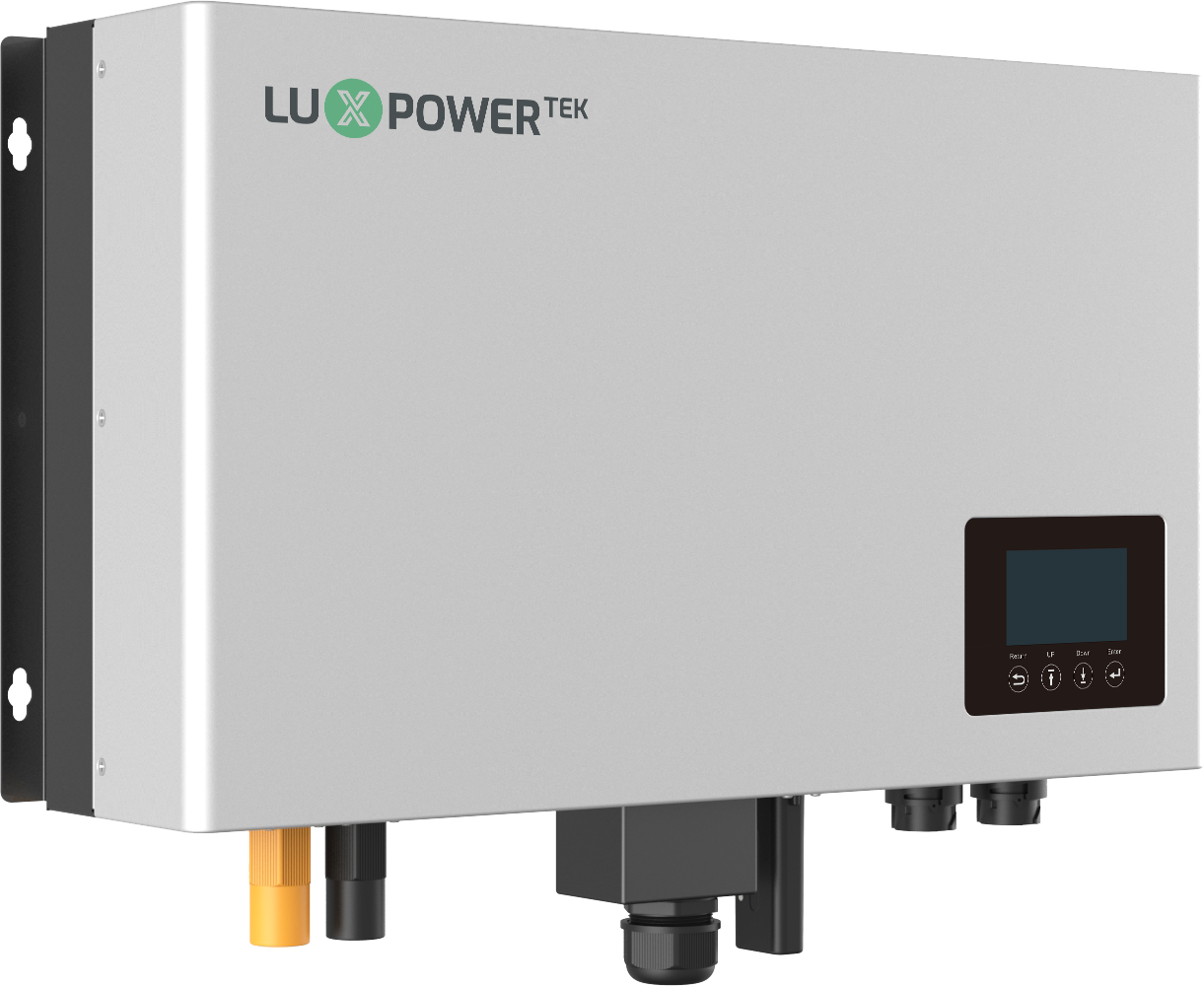

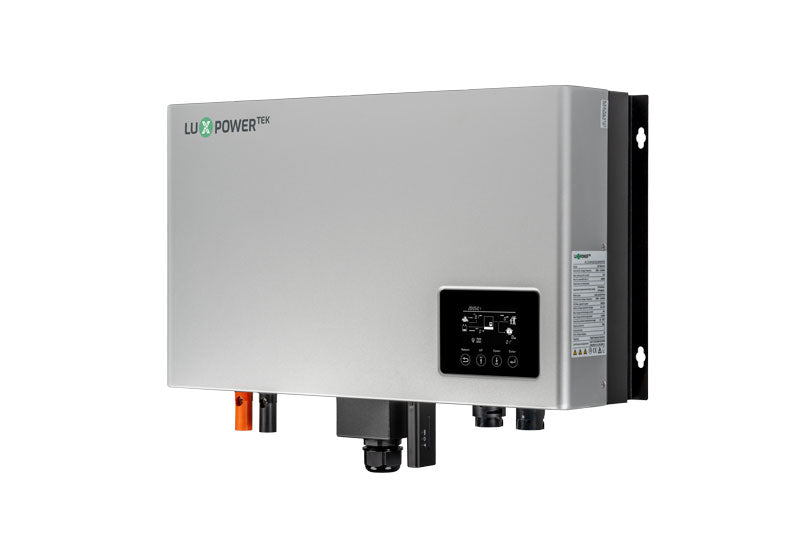

Luxpower’s Squirrel Pod Inverter is a retrofit solution designed for transforming existing on-grid systems into efficient energy storage systems. This lightweight and compact inverter serve as the ideal choice for retrofitting and upgrading your current on-grid setup. While it cannot directly connect to PV panels, its primary purpose is to facilitate the transformation of your existing grid-tied system.
Different to ACS 3600, the Squirrel Pod has additional hardware that allows it to have up to six controllers attached to them, multiplying their power. Requiring their own battery, it can be connected individually or through a combined connection to a main fuse box.
The Squirrel Pod works in parallel, meaning that only the primary controller has CT clamps fitted, with other units all set to subordinate working mode. All Squirrel Pod units are listed on the ENA Register, with G100 certification.
Key Features
- Retrofit any on-grid/micro-grid system to energy storage system
- Modular expansion – link up to 6 units together
- Allows up to eight batteries connected
- Battery charging/discharging current: 70A
- Compatible with dynamic Octopus energy pricing
- Advanced weather compensation programming
- On/off grid seamless switching

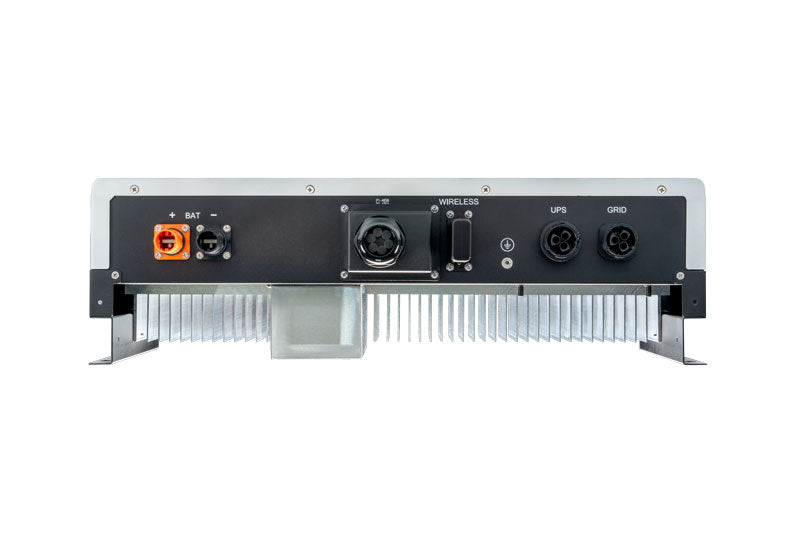

- Separate EPS port for flexible load management
- Free monitoring – For mobile & web portal (PC)
- Max. PV array power : N/A
- Max. input voltage : N/A
- MPPT voltage range / rated input voltage : N/A
- Min. input voltage / start voltage : N/A
- No. of independent MPPT trackers / strings per MPPT input : N/A
- Max. input current per MPP tracker : N/A
- Max. short-circuit current per MPP tracker : N/A
- Nominal battery voltage : 48V
- Battery voltage range : 40V to 60V
- Max. charging / discharge power : 3600W
- Max. charging current / Max. discharging current : 70A
- Battery type : Lithium-ion
- AC voltage range / Nomlnal AC voltage : 230V
- Rated AC grid frequency : 50Hz/ 60Hz
- Rated apparent power : 3600W
- Max. apparent power :
- Rated grid output current (@230V) : 16A
- Max. grid output current :
- Rated grid voltage : 230V
- Rated apparent power : 6000W
- Max. input apparent power from grid :
- Rated input curent from grid :
- Max. input current from grid : 26A
- Nominal output voltage : 230V
- Nominal output frequency : 50Hz/ 60Hz
- Rated apparent power :
- Max. output apparent power : 3600w
- Peak output apparent power : 4500W | 30s
- Max. output current : 16A
- Max. switch time : 20ms
- MPPT efficiency :
- Euro efficiency / Max. efficiency : 97.0%/97.3%
- Max. battery to load efficiency : 94.50%
- Dimensions (W*H*D) (mm) : 550*320*110
- Device weight : 15.6Kg
- Operating temperature range : -25℃~+60℃
- Noise emissions (typical) : <25dB
- Standby consumption : <10
- Degree of protection (as per lEC 60529) : IP65
- User interface : LCD & APP
- Communication with BMS : RS485/WiFi/CAN
- Communication with meter :
- Communication with portal :
- Other communication : Wi-Fi
- Communication : LCD/ LED/RS485/ Wi-Fi/ CAN
- Integrated power control / Zero export control :
- Certifications : IEC62109-1 | IEC62040| EN 61000-6-1:2007 | EN 61000-6-3:2007+A1:2011+ AC:2012 | EN 61000-3-2:2014 | EN 61000-3-3:2013 | VDE-AR-N 4105
- Warranty : 12 years
