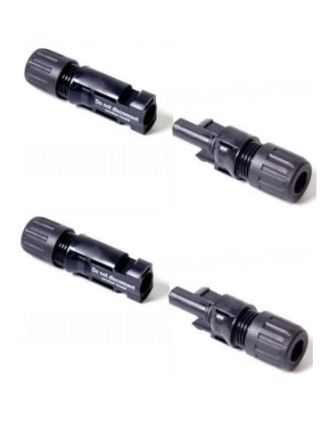

MC4 Female Connector 10 Pack

Supplier Code:32.0014P0001: Female cable coupler as individual part (including insulating part)

• Snap-in lock
• Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
• Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
• Tried and tested plug connectors, 14 years of experience in the field
• Suitable for assembly with cross-sections of 4 and 6 mm²

Rated current: 39 A (for 4 and 6mm2 cable)

Please use correct MC4 approved tools to crimp these connectors on to bare cables.

Supplier Part No: 32.0014P0010-UR

Weight: 0.01 kg
