SolarEdge 66.6kW Synergy Manager SWITCH DC Switch, MC4, DC SPD

Description

Part No: SE-66600-SWITCH-FULL Inverters - Main Units
  • Rating: 66,600W
  • Phases: 3

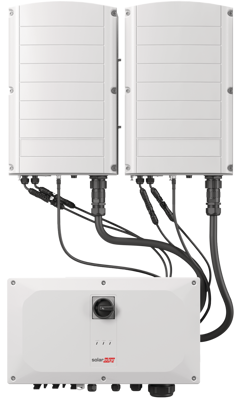

This part is made up of the following items:
2 x SE-SYNERGY Synergy Secondary Unit with RapidShutdownDevice
1 x SE-66600-MNGR-S 66.6kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD

Three Phase Synergy Inverter

Main Features:

  • Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection.
  • Easy 2-person installation with lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager).
  • Independent operation of each Synergy Unit enables higher uptime and easy serviceability.
  • Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety.
  • Built-in arc fault protection and optional rapid shutdown (depending on Synergy Manager used)
  • Built-in PID mitigation for maximized system performance.
  • Monitored and field-replaceable surge protection devices: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD.
  • Integrated DC safety switch eliminates the need for external DC isolators.
Please note FULL parts consist of 1x Synergy Manager and 2x Synergy Units ( 3x for 90 and 100kW)


Weight: 82 kg
Rated Power: 66,600 W
Min PPT Voltage: 0 V
Max PPT Voltage: 0 V
DC Startup Voltage: 0 V
DC Shutdown Voltage: 0 V
Max Input Voltage: 0 V
Max DC Power: 0 W
Max AC Power (5 Minutes): 666,000 W
Surge AC Power (1 Second): 0 W
Max DC Current: 96.5 A
Max DC Inputs: 0
Has DC Fuses: 12
Connector: MC4
Included Connectors: 12
Euro Efficiency: 98 %
Transformer: None
MPPT Quantity : 0
Has Integrated DC Switch: Yes
Warranty: 12 years
Product form

Part No: SE-66600-SWITCH-FULL Inverters - Main Units Rating: 66,600W Phases: 3 This part is made up of the following items: 2... Read more

£3,767.00 Exc. VAT
£4,520.40 Inc. VAT
