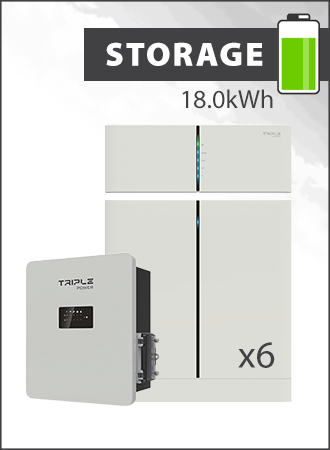

Package of: Solax BMS Parallel Box and SolaX Triple Power 3.0 BMS and Module Batteries
The Solax BMS Parallel Box is an advanced battery management system that enables seamless parallel connection of multiple batteries, ensuring efficient energy utilisation and enhanced performance. With its cutting-edge technology and robust design, this parallel box is the ideal choice for residential and commercial applications.
Possible System Configurations
T30
- X1 – Single Phase: 2, 4 or 6 Triple Power 3.0kWh batteries. First battery requires BMS (MC0600 & HV10230)
- X3 – Three Phase: 4, 6, 8 Triple Power 3.0kWh batteries. First battery requires BMS (MC0600 & HV10230)
BMS Parallel Box II G2 Installation Video
Please note:
- A minimum of 2 batteries (single phase) and 4 batteries (three-phase) must be used with this product.
- Weight: 223.2 kg
- Battery Type: Lithium Ion
- Nominal Energy: 18400 Wh
- Depth of discharge: 90.00 %
- Voltage: 614 V
- Continuous Discharge Rate (Normal Use): 6000 W
- Maximum Discharge Rate (5 Minutes): 5500 W
- Surge Discharge Rate (15 Seconds): 8000 W
- Maximum Charge Rate (5 Minutes): 6100 W
