Part No: SOLAX-BMS-G2-HV-T58-2-11.6 Storage Systems - Li-ion Battery Pack

This part is made up of the following items:


1 x HV-T-BAT-H-58-MASTER-V2	SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2
1 x HV11550-58-SLAVE-V2	SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2
1 x SOLAX-BMS-PB-G2	SOLAX BMS Parallel Box G2

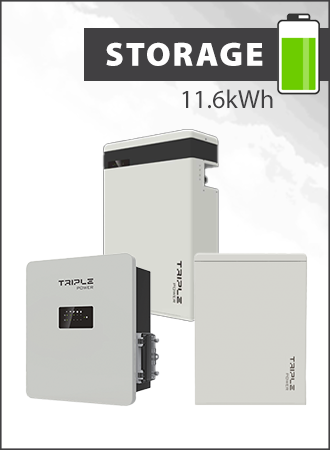

Package of: Solax BMS Parallel Box and SolaX Triple Power 5.8 Master and Slave Batteries

The Solax BMS Parallel Box is an advanced battery management system that enables seamless parallel connection of multiple batteries, ensuring efficient energy utilisation and enhanced performance. With its cutting-edge technology and robust design, this parallel box is the ideal choice for residential and commercial applications.

Possible System Configurations

T58

X1 – Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries.
X3 – Three Phase: 4, 6, 8 Triple Power 5.8kWh batteries.

BMS Parallel Box II G2 Installation Video

Weight: 153.1 kg
Battery Type: Lithium Ion
Nominal Energy: 11600 Wh
Depth of discharge: 90.00 %
Voltage: 230 V
Continuous Discharge Rate (Normal Use): 5750 W
Maximum Discharge Rate (5 Minutes): 3500 W
Surge Discharge Rate (15 Seconds): 800 W
Maximum Charge Rate (5 Minutes): 3500 W
