SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER - V2

Description

Part No: HV-T-BAT-H-58-MASTER-V2 Storage Systems - Li-ion Battery Pack

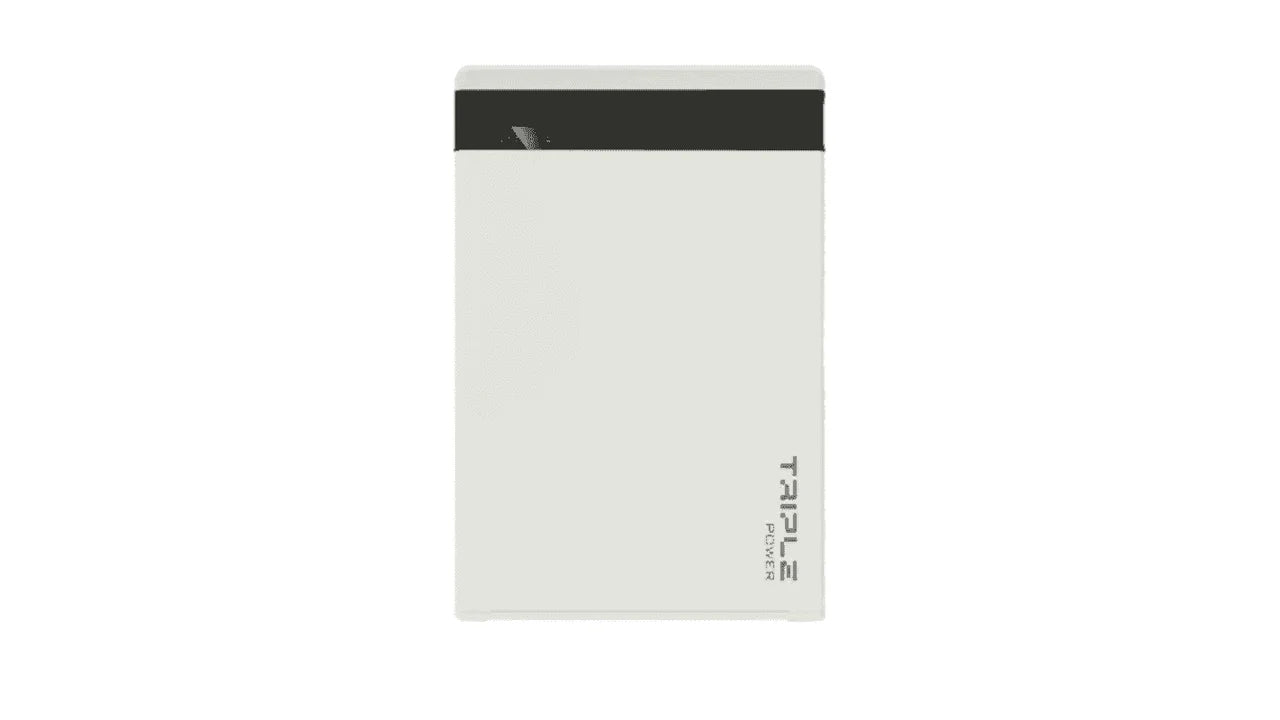

    Solax Triple Power LFP Main Battery (Master)

    T-BAT-H-58

    The perfect match to X1-Hybrid, X3-Hybrid, and X1-AC, the SolaX Triple Power LFP battery is available as a Master Battery 5.8kWh and a Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.

    Please note: Only 1 or 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 2 or 3 Slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).   Additional features:

    • Scalable to 23.2kWh
    • Up to 4kW charge/discharge
    • High Voltage means thinner cables are required.
    • Compact Design
    • 90% Depth of discharge
    • 6000 life cycles
    • Easy installation – plug and play with all cables supplied

    Triple Power LFP 5.8kWh Slave batteries can only be matched with LFP 5.8kWh Master batteries.  They are NOT compatible with Generation 1 or 2 BMS or Batteries!

    Additionally;

    T58 Master V2 + T58 Slave V1 / T58 Slave V2 ==> works normal

    T58 Master V1 + T58 Slave V2 ==> works but considering the better performance and compatibility, suggest to use slave V1 if there is existing V1 Master installed.

    Supplier Part No: Triple Power 5.8kWh Master V2
    Weight: 72.2 kg
    Battery Type: Lithium Ion
    Nominal Energy: 5800 Wh
    Depth of discharge: 100.00 %
    Voltage: 115 V
    Continuous Discharge Rate (Normal Use): 2875 W
    Maximum Discharge Rate (5 Minutes): 4000 W
    Surge Discharge Rate (15 Seconds): 4000 W
    Maximum Charge Rate (5 Minutes): 4000 W
    SolaX
    Product form

    Part No: HV-T-BAT-H-58-MASTER-V2 Storage Systems - Li-ion Battery Pack Solax Triple Power LFP Main Battery (Master)  T-BAT-H-58   The perfect match to... Read more

    £1,986.00 Exc. VAT
    £2,383.20 Inc. VAT
