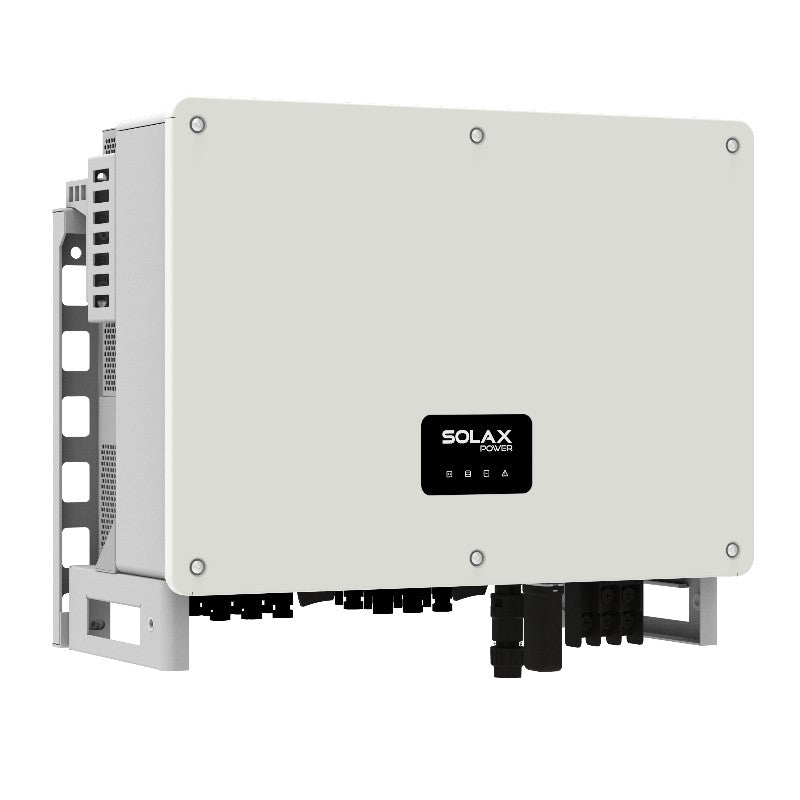

SolaX X3 MEGA 3 Phase Inverter 60kW

Description

Part No: X3-MEGA-60K Inverters - Main Units
  • Rating: 60,000W
  • Phases: 3

X3-MEGA-60K

Superior Efficiency

  • Max efficiency 98.3%, European efficiency 98.0%
  • 4 independent MPPTs
  • ECO Invention patent technology

High Reliability

  • Top-ranking high quality components
  • Integrated type II DC &AC surge arresters

Intelligent Maintenance

  • Intelligent monitoring via APP & Web
  • Multiple-string monitoring for easy trouble shooting (Optional)

Excellent Grid Compatibility

  • Advanced grid impedance algorithm for large-scale power stations
  • Active power/reactive power control option (Remotely)

When installing under G100 there is a requirement to install Solax Chint Three Phase Meter to be compliant.





Supplier Part No: X3 Mega 60kW

Weight: 67 kg

Rated Power: 60,000 W

Min PPT Voltage: 200 V

Max PPT Voltage: 960 V

DC Startup Voltage: 200 V

DC Shutdown Voltage: 200 V

Max Input Voltage: 1,000 V

Max DC Power: 78,000 W

Max AC Power (5 Minutes): 60,000 W

Surge AC Power (1 Second): 60,000 W

Max DC Current: 156 A

Max DC Inputs: 12

Has DC Fuses: 0

Connector: MC4

Included Connectors: 2

Euro Efficiency: 98 %

Transformer: None

MPPT Quantity : 12

Has Integrated DC Switch: No

Warranty: 5 years

Product form

Part No: X3-MEGA-60K Inverters - Main Units Rating: 60,000W Phases: 3 X3-MEGA-60K Superior Efficiency Max efficiency 98.3%, European efficiency 98.0% 4... Read more

£2,144.54 Exc. VAT
£2,573.45 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Part No: X3-MEGA-60K Inverters - Main Units
  • Rating: 60,000W
  • Phases: 3

X3-MEGA-60K

Superior Efficiency

  • Max efficiency 98.3%, European efficiency 98.0%
  • 4 independent MPPTs
  • ECO Invention patent technology

High Reliability

  • Top-ranking high quality components
  • Integrated type II DC &AC surge arresters

Intelligent Maintenance

  • Intelligent monitoring via APP & Web
  • Multiple-string monitoring for easy trouble shooting (Optional)

Excellent Grid Compatibility

  • Advanced grid impedance algorithm for large-scale power stations
  • Active power/reactive power control option (Remotely)

When installing under G100 there is a requirement to install Solax Chint Three Phase Meter to be compliant.





Supplier Part No: X3 Mega 60kW

Weight: 67 kg

Rated Power: 60,000 W

Min PPT Voltage: 200 V

Max PPT Voltage: 960 V

DC Startup Voltage: 200 V

DC Shutdown Voltage: 200 V

Max Input Voltage: 1,000 V

Max DC Power: 78,000 W

Max AC Power (5 Minutes): 60,000 W

Surge AC Power (1 Second): 60,000 W

Max DC Current: 156 A

Max DC Inputs: 12

Has DC Fuses: 0

Connector: MC4

Included Connectors: 2

Euro Efficiency: 98 %

Transformer: None

MPPT Quantity : 12

Has Integrated DC Switch: No

Warranty: 5 years
