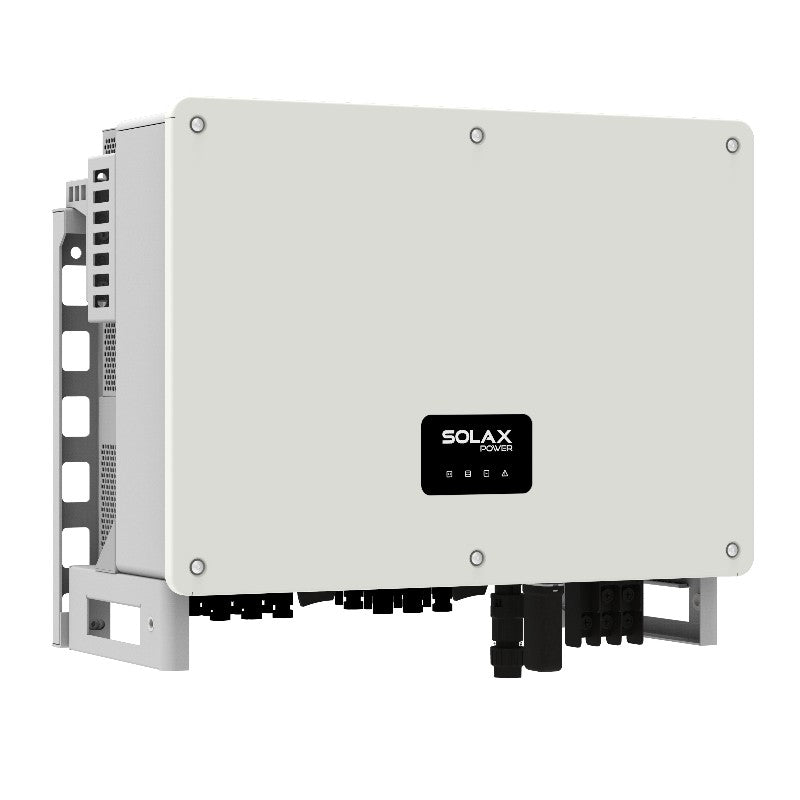

Solax X3 MEGA G2 50kW 3ph solar inverter, which delivers up to 98.4% efficiency and a maximum input voltage of 1100V as well as outstanding energy performance with its wide MPPT voltage range, enhancing power yield. The Solax X3 Mega G2 is IP66 rated, and equipped with safety and security features such as Arc-fault circuit interrupter and SPD protection.
AC attributes
Max rated power:
50kW
Max rated current:
72.5A
Number of phases:
3
DC attributes
Max power
75kW
Max Isc current
MPPT range
46A
180-1000V
Max voltage
1100V
Start up voltage
200V
System
Max efficiency
98.4%
IP rating
IP66
Weight
44.5kg
Dimensions
630 x 521 x 286mm
Key features
IP66 ProtectionAFCI ProtectionOver current and temperature protectionOver/under voltage protectionBuilt-in export power control
