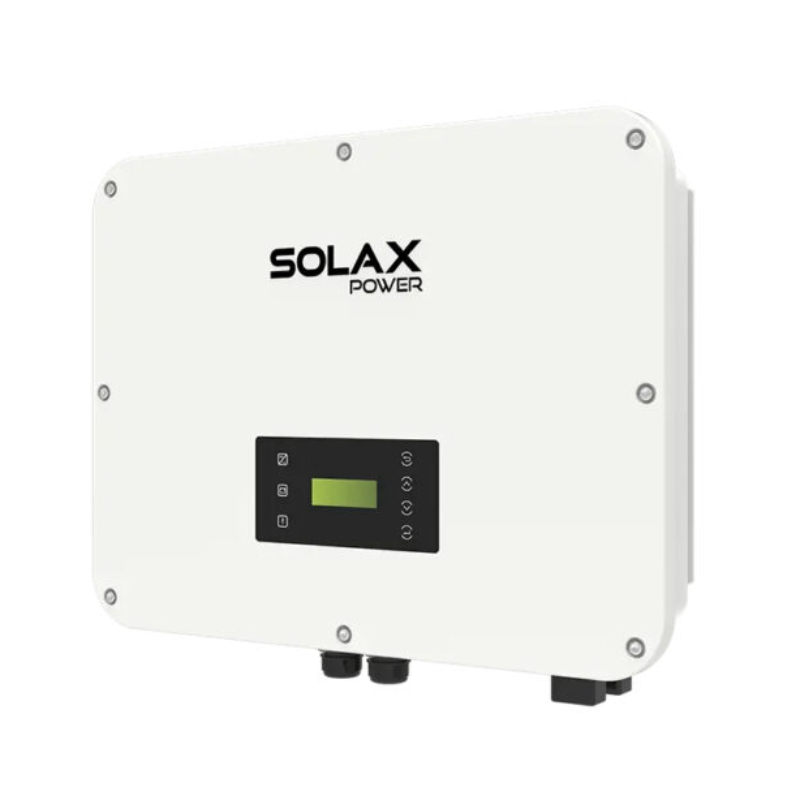

The X3-ULTRA is a versatile 3ph hybrid inverter that includes inversion, solar charging, and battery charging. The X3 ULTRA series can be used with different capacities of SolaX battery.
The X3 Ultra can also store surplus energy in batteries for later use. It is important to understand that this is a hybrid solar PV inverter and battery storage controller. This means it needs to be sized just like a regular inverter would be and, if it is being retrofitted, will replace the existing inverter.
For G100 Applications, please contact SolaX to perform a software update remotely when the product is installed. Additionally, the SolaX CHINT three phase CT energy meter is recommended.
AC attributes
Max power:
30000W
Max current:
39.9A
Number of phases:
3
DC attributes
Number of MPPT
3
V range of MPPT
160-950V
Max power
60kW
Max voltage
1000V
Start up voltage
200V
System
Max efficiency
98%
IP rating
IP66
Weight
47kg
Dimensions
696 x 529 x 240 mm
Communication
Warranty
5 years
