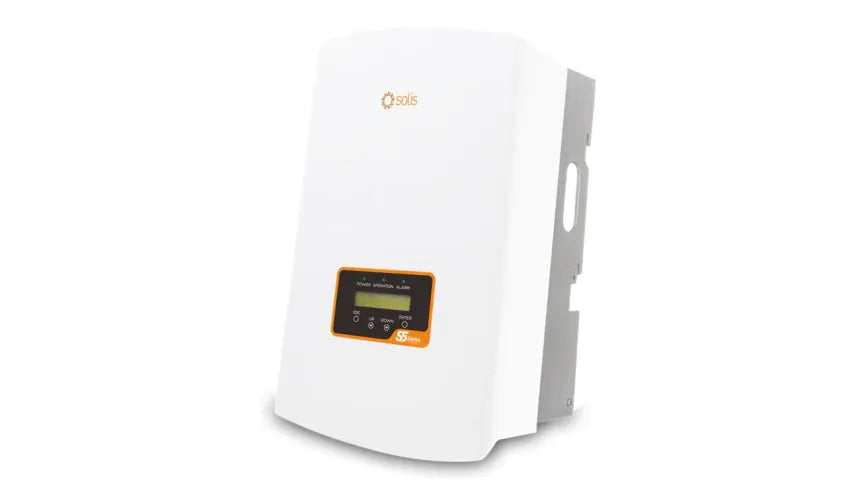

Solis 12kW S5 3 Phase Dual MPPT - DC

Description

Part No: SOL-S5-GR3P-12K-DC Inverters - Main Units
  • Rating: 12,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.6%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 4
  • Maximum AC output power of 13.2kW
  • Max PV DC Power of 18kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standardSupplier Part No: SOL-S5-GR3P-12K-DC
  • Weight: 21.78 kg
  • Rated Power: 12,000 W
    Min PPT Voltage: 180 V
    Max PPT Voltage: 1,000 V
    DC Startup Voltage: 180 V
    DC Shutdown Voltage: 160 V
    Max Input Voltage: 1,100 V
    Max DC Power: 18,000 W
    Max AC Power (5 Minutes): 13,200 W
    Surge AC Power (1 Second): 13,200 W
    Max DC Current: 64 A
    Max DC Inputs: 4
    Has DC Fuses: 0
    Connector: MC4
    Included Connectors: 8
    Euro Efficiency: 98 %
    Transformer: None
    MPPT Quantity : 2
    Has Integrated DC Switch: Yes
    Warranty: 5 years warranty
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.
Product form

Part No: SOL-S5-GR3P-12K-DC Inverters - Main Units Rating: 12,000W Phases: 3 Series 5 GR3P Three Phase Grid-Tied Inverter Product Features: Max.... Read more

£880.00 Exc. VAT
£1,056.00 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Part No: SOL-S5-GR3P-12K-DC Inverters - Main Units
  • Rating: 12,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.6%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 4
  • Maximum AC output power of 13.2kW
  • Max PV DC Power of 18kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standardSupplier Part No: SOL-S5-GR3P-12K-DC
  • Weight: 21.78 kg
  • Rated Power: 12,000 W
    Min PPT Voltage: 180 V
    Max PPT Voltage: 1,000 V
    DC Startup Voltage: 180 V
    DC Shutdown Voltage: 160 V
    Max Input Voltage: 1,100 V
    Max DC Power: 18,000 W
    Max AC Power (5 Minutes): 13,200 W
    Surge AC Power (1 Second): 13,200 W
    Max DC Current: 64 A
    Max DC Inputs: 4
    Has DC Fuses: 0
    Connector: MC4
    Included Connectors: 8
    Euro Efficiency: 98 %
    Transformer: None
    MPPT Quantity : 2
    Has Integrated DC Switch: Yes
    Warranty: 5 years warranty
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.
