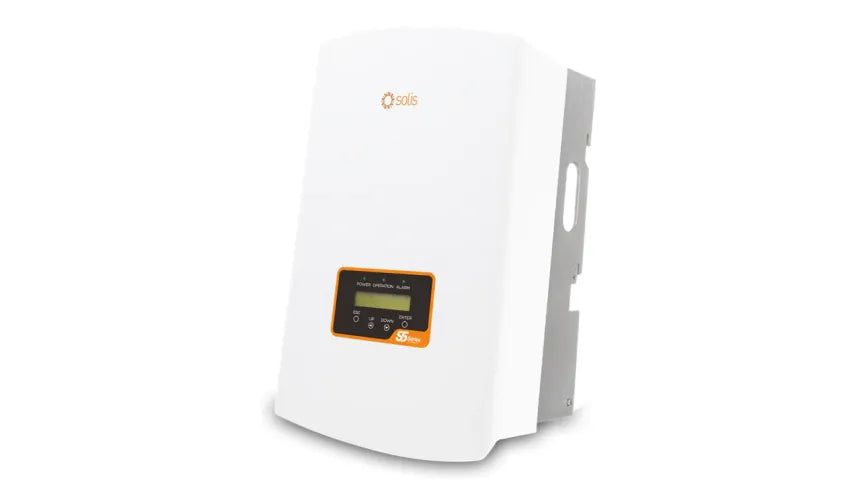

Solis 20kW S5 3 Phase Dual MPPT - DC

Description

Part No: SOL-S5-GR3P-20K-DC Inverters - Main Units
  • Rating: 20,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 4
  • Maximum AC output power of 22kW
  • Max PV DC Power of 30kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.
Supplier Part No: SOL-S5-GR3P-20K-DC
Weight: 22.94 kg
Rated Power: 20,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 180 V
DC Shutdown Voltage: 160 V
Max Input Voltage: 1,100 V
Max DC Power: 30,000 W
Max AC Power (5 Minutes): 22,000 W
Surge AC Power (1 Second): 22,000 W
Max DC Current: 64 A
Max DC Inputs: 4
Has DC Fuses: 0
Connector: MC4
Included Connectors: 8
Euro Efficiency: 98.1 %
Transformer: None
MPPT Quantity :2
Has Integrated DC Switch: Yes
Warranty: 5 years
Product form

Part No: SOL-S5-GR3P-20K-DC Inverters - Main Units Rating: 20,000W Phases: 3 Series 5 GR3P Three Phase Grid-Tied Inverter Product Features: Max.... Read more

£1,238.38 Exc. VAT
£1,486.06 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Part No: SOL-S5-GR3P-20K-DC Inverters - Main Units
  • Rating: 20,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 4
  • Maximum AC output power of 22kW
  • Max PV DC Power of 30kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.
Supplier Part No: SOL-S5-GR3P-20K-DC
Weight: 22.94 kg
Rated Power: 20,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 180 V
DC Shutdown Voltage: 160 V
Max Input Voltage: 1,100 V
Max DC Power: 30,000 W
Max AC Power (5 Minutes): 22,000 W
Surge AC Power (1 Second): 22,000 W
Max DC Current: 64 A
Max DC Inputs: 4
Has DC Fuses: 0
Connector: MC4
Included Connectors: 8
Euro Efficiency: 98.1 %
Transformer: None
MPPT Quantity :2
Has Integrated DC Switch: Yes
Warranty: 5 years
