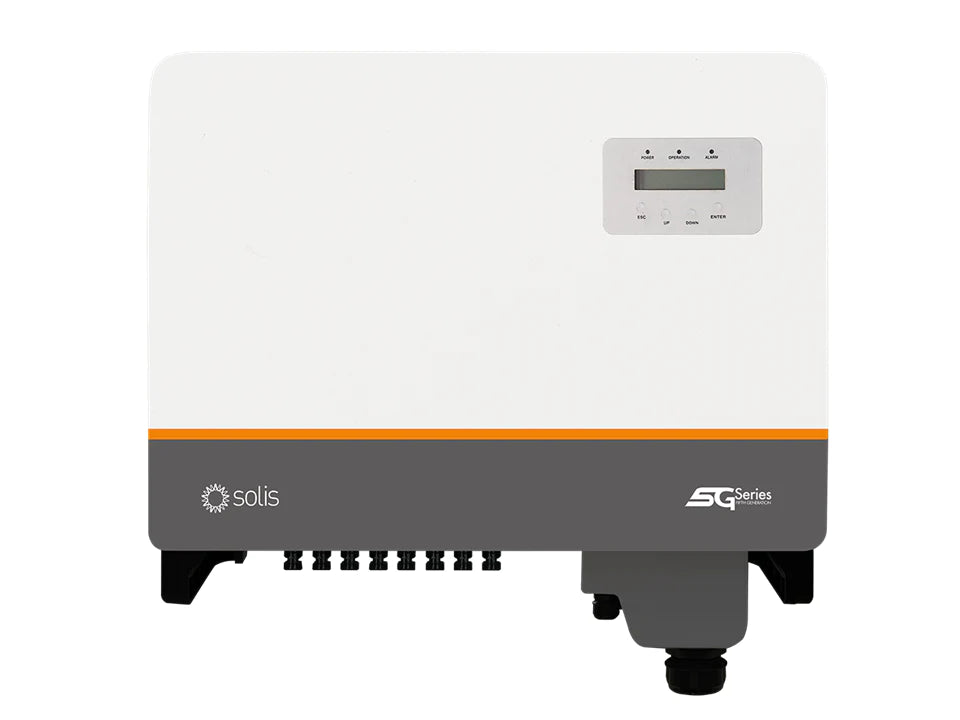

Solis 30kW S5 3 Phase Triple MPPT - DC

Description

Part No: SOL-S5-GC30K-DC Inverters - Main Units
Rating: 30,000W
Phases: 3
S5-GC30K - Series 5 Three Phase Grid-Tied Inverter

Product Features:
Max. efficiency of 98.5%
Type-II over-voltage surge protection for both DC and AC
Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
32A input per MPPT, 16A input for each PV string
Maximum AC output power of 33kW
3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
Intelligent monitoring, Smart I-V Curve Diagnosis
Integrated AFCI (DC arc-fault circuit protection)
IP66 Rated
DC reverse-polarity protection
5-year standard warranty
Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified

EU: German installation manual stlll pending from manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.



This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Supplier Part No: SOL-S5-GC30K-DC
Weight: 44 kg
Rated Power: 30,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,100 V
Max DC Power: 45,000 W
Max AC Power (5 Minutes): 33,000 W
Surge AC Power (1 Second): 33,000 W
Max DC Current: 96 A
Max DC Inputs: 6
Has DC Fuses: 0
Connector: MC4
Included Connectors: 12
Euro Efficiency: 98.1 %
Transformer: None
MPPT Quantity : 3
Has Integrated DC Switch: Yes
Warranty: 5 years
Click Here For Specs
Product form

Part No: SOL-S5-GC30K-DC Inverters - Main UnitsRating: 30,000WPhases: 3S5-GC30K - Series 5 Three Phase Grid-Tied InverterProduct Features:Max. efficiency of 98.5%... Read more

£1,425.00 Exc. VAT
£1,710.00 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Part No: SOL-S5-GC30K-DC Inverters - Main Units
Rating: 30,000W
Phases: 3
S5-GC30K - Series 5 Three Phase Grid-Tied Inverter

Product Features:
Max. efficiency of 98.5%
Type-II over-voltage surge protection for both DC and AC
Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
32A input per MPPT, 16A input for each PV string
Maximum AC output power of 33kW
3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
Intelligent monitoring, Smart I-V Curve Diagnosis
Integrated AFCI (DC arc-fault circuit protection)
IP66 Rated
DC reverse-polarity protection
5-year standard warranty
Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified

EU: German installation manual stlll pending from manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.



This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Supplier Part No: SOL-S5-GC30K-DC
Weight: 44 kg
Rated Power: 30,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,100 V
Max DC Power: 45,000 W
Max AC Power (5 Minutes): 33,000 W
Surge AC Power (1 Second): 33,000 W
Max DC Current: 96 A
Max DC Inputs: 6
Has DC Fuses: 0
Connector: MC4
Included Connectors: 12
Euro Efficiency: 98.1 %
Transformer: None
MPPT Quantity : 3
Has Integrated DC Switch: Yes
Warranty: 5 years
Click Here For Specs
