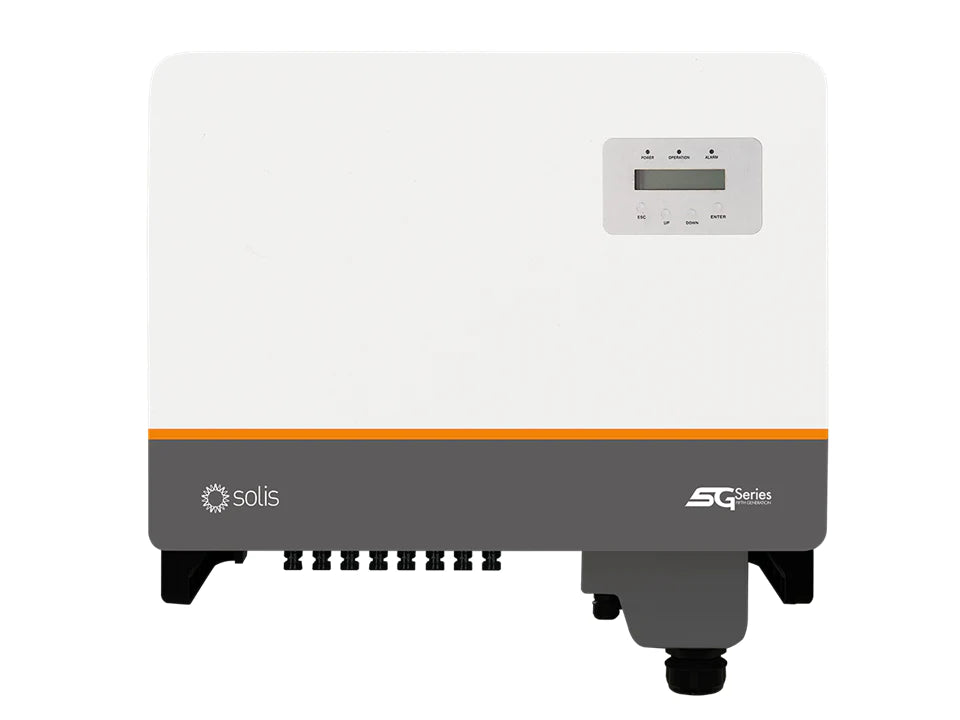

Solis 36kW S5 3 Phase Quad MPPT - DC

Description

Part No: SOL-S5-GC36K-DC Inverters - Main Units
  • Rating: 36,000W
  • Phases: 3

S5-GC36K - Series 5 Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 32A input per MPPT, 16A input for each PV string
  • Maximum AC output power of 39.6kW
  • 4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified

EU: German installation manual stlll pending from manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

Supplier Part No: SOL-S5-GC36K-DC
Weight: 48 kg
Rated Power: 36,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,100 V
Max DC Power: 54,000 W
Max AC Power (5 Minutes): 39,600 W
Surge AC Power (1 Second): 39,600 W
Max DC Current: 128 A
Max DC Inputs: 8
Has DC Fuses: 0
Connector: MC4
Included Connectors: 16
Euro Efficiency: 98.3 %
Transformer: None
MPPT Quantity : 4
Has Integrated DC Switch: Yes
Warranty: 5 years
Product form

Part No: SOL-S5-GC36K-DC Inverters - Main Units Rating: 36,000W Phases: 3 S5-GC36K - Series 5 Three Phase Grid-Tied Inverter Product Features:... Read more

£1,625.00 Exc. VAT
£1,950.00 Inc. VAT
