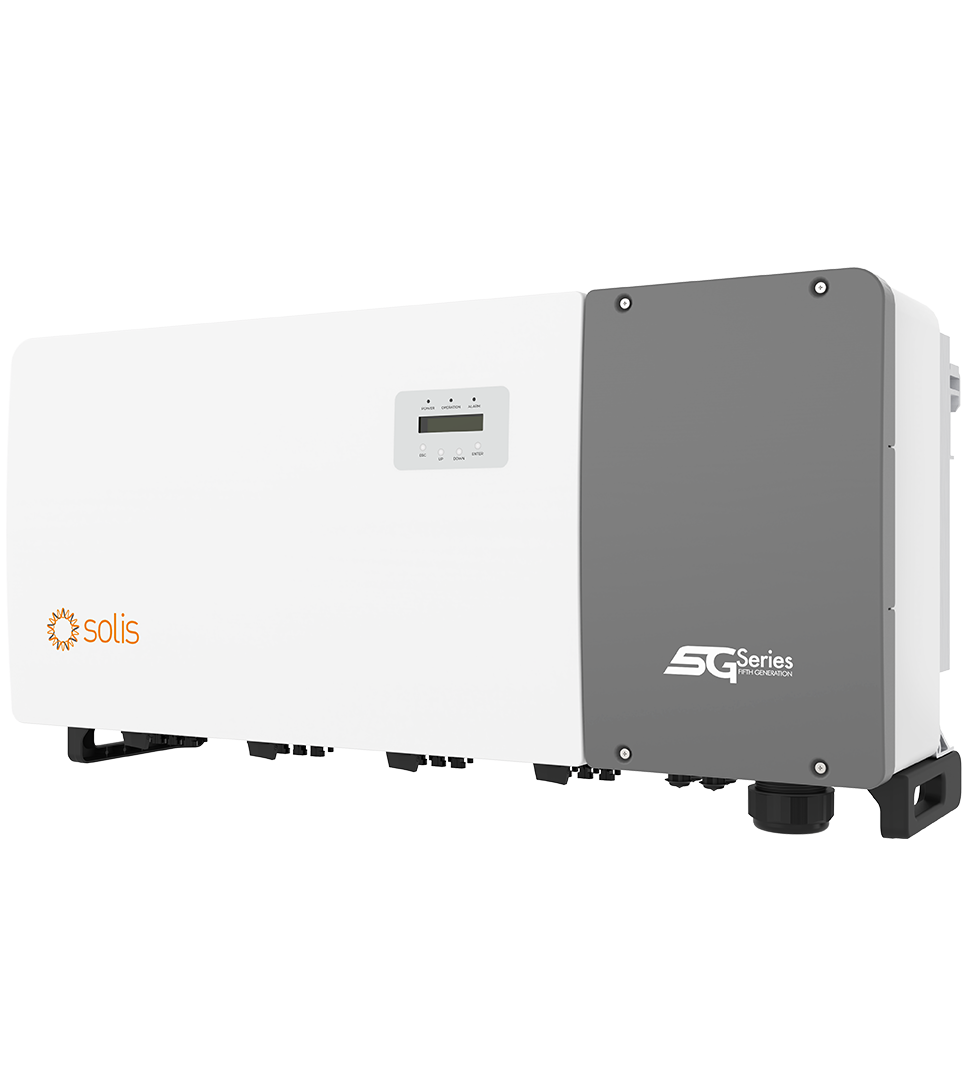

SOLIS 5G PRO 110KW 3PH INVERTER

Description

Part No: SOL-110K-5G-PRO-DC Inverters - Main Units
  • Rating: 110,000W
  • Phases: 3

SOL-110K-5G-PRO

Efficient:

  • 6/8 MPPTs, max. efficiency 98.5%
  • 150% DC/AC ratio
  • Compatible with bifacial modules

Safe

  • IP66
  • AFCI protection, proactively reduces fire risk
  • Globally recognised branded componentry for longer life

Smart

  • Night SVG function
  • Intelligent string monitoring, smart I-V curve scan
  • Remote firmware upgrade with simple operation

Economic

  • Power line communication (PLC) (optional)
  • DC side supports "Y" connector
  • Supports aluminium wire access to reduce cost

Note: Pro 5G Solis 100kW come with integrated DC isolators but not the AC option -  AC Isolator is required



Supplier Part No: Solis-110K-5G-DC-AC-PID

Weight: 93 kg

Rated Power: 110,000 W

Min PPT Voltage: 160 V

Max PPT Voltage: 1,000 V

DC Startup Voltage: 180 V

DC Shutdown Voltage: 160 V

Max Input Voltage: 11,000 V

Max DC Power: 110,000 W

Max AC Power (5 Minutes): 110,000 W

Surge AC Power (1 Second): 121,000 W

Max DC Current: 272 A

Max DC Inputs: 16

Has DC Fuses: 0

Connector: MC4

Included Connectors: 32

Euro Efficiency: 98 %

Transformer: None

MPPT Quantity : 16

Has Integrated DC Switch: Yes

Warranty: 5 years

Product form

Part No: SOL-110K-5G-PRO-DC Inverters - Main Units Rating: 110,000W Phases: 3 SOL-110K-5G-PRO Efficient: 6/8 MPPTs, max. efficiency 98.5% 150% DC/AC ratio... Read more

£3,322.08 Exc. VAT
£3,986.50 Inc. VAT

  • Quality
  • Reliabilty
  • Trusted

Description

Part No: SOL-110K-5G-PRO-DC Inverters - Main Units
  • Rating: 110,000W
  • Phases: 3

SOL-110K-5G-PRO

Efficient:

  • 6/8 MPPTs, max. efficiency 98.5%
  • 150% DC/AC ratio
  • Compatible with bifacial modules

Safe

  • IP66
  • AFCI protection, proactively reduces fire risk
  • Globally recognised branded componentry for longer life

Smart

  • Night SVG function
  • Intelligent string monitoring, smart I-V curve scan
  • Remote firmware upgrade with simple operation

Economic

  • Power line communication (PLC) (optional)
  • DC side supports "Y" connector
  • Supports aluminium wire access to reduce cost

Note: Pro 5G Solis 100kW come with integrated DC isolators but not the AC option -  AC Isolator is required



Supplier Part No: Solis-110K-5G-DC-AC-PID

Weight: 93 kg

Rated Power: 110,000 W

Min PPT Voltage: 160 V

Max PPT Voltage: 1,000 V

DC Startup Voltage: 180 V

DC Shutdown Voltage: 160 V

Max Input Voltage: 11,000 V

Max DC Power: 110,000 W

Max AC Power (5 Minutes): 110,000 W

Surge AC Power (1 Second): 121,000 W

Max DC Current: 272 A

Max DC Inputs: 16

Has DC Fuses: 0

Connector: MC4

Included Connectors: 32

Euro Efficiency: 98 %

Transformer: None

MPPT Quantity : 16

Has Integrated DC Switch: Yes

Warranty: 5 years
