Solis 60kW S5 3 Phase 6x MPPT - DC

Description

Part No: SOL-S5-GC60K-DC Inverters - Main Units
  • Rating: 60,000W
  • Phases: 3

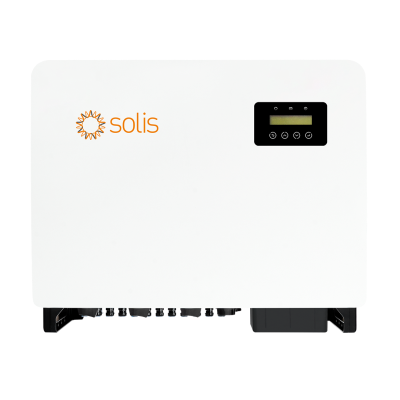

S5-GC60K - Series 5 Three Phase Grid-Tied Inverter

Product Features

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
  • Max PV DC Power of 90kW
  • 32A input per MPPT, 16A input for each PV string
  • Maximum output power of 66kW
  • 6 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated and C5 Anti-Corrosion Level
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • DC reverse-polarity protection
  • Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.



Supplier Part No: SOL-S5-GC60K-DC

Weight: 54.5 kg

Rated Power: 60,000 W

Min PPT Voltage: 195 V

Max PPT Voltage: 1,000 V

DC Startup Voltage: 195 V

DC Shutdown Voltage: 180 V

Max Input Voltage: 1,100 V

Max DC Power: 90,000 W

Max AC Power (5 Minutes): 66,000 W

Surge AC Power (1 Second): 66,000 W

Max DC Current: 192 A

Max DC Inputs: 12

Has DC Fuses: 0

Connector: MC4

Included Connectors: 24

Euro Efficiency: 98.4 %

Transformer: None

MPPT Quantity : 6

Has Integrated DC Switch: Yes

Warranty: 5 years

Product form

Part No: SOL-S5-GC60K-DC Inverters - Main Units Rating: 60,000W Phases: 3 S5-GC60K - Series 5 Three Phase Grid-Tied Inverter Product Features... Read more

£2,303.00 Exc. VAT
£2,763.60 Inc. VAT
