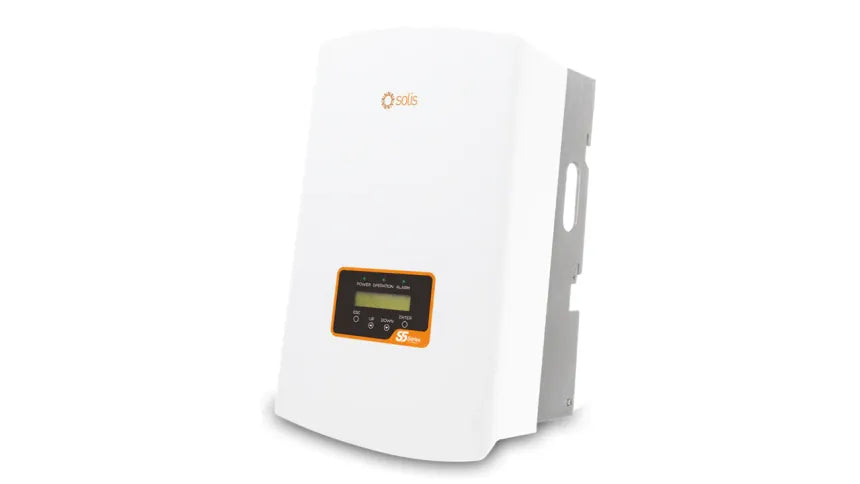

Series 5 GR3P Three Phase Grid-Tied Inverter
Product Features:
- Max. efficiency of 98.3%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 2
- Maximum AC output power of 6.6kW
- Max PV DC Power of 9kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty
Register on SolisCloud, to support remote upgrade and control.
NRS-097-2-1 Certified
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Supplier Part No: SOL-S5-GR3P-6K-DC
Weight: 19.48 kg
Rated Power: 6,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 180 V
DC Shutdown Voltage: 160 V
Max Input Voltage: 1,100 V
Max DC Power: 9,000 W
Max AC Power (5 Minutes): 6,600 W
Surge AC Power (1 Second): 6,600 W
Max DC Current: 32 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.7 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
