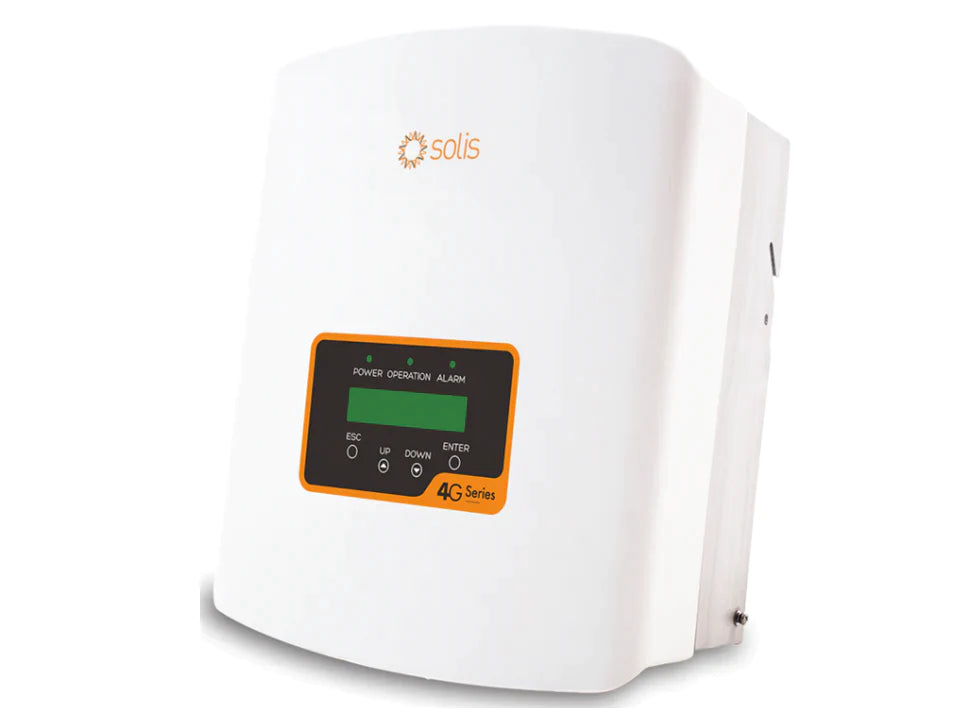

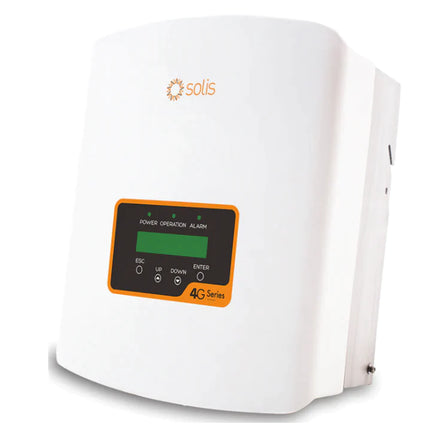

Solis 6kW S6 Dual MPPT - Single Phase with DC

Description

Part No: SOL-6.0-S6-DT-DC Inverters - Main Units
  • Rating: 6,000W
  • Phases: 1

Solis S6 is the latest generation of residential inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.

Product Features

  •   Maximum string input current 14A
  •   Easy installation: Integrate with export power control function and DRM function.
  •   Max. Efficiency over 97.7% European efficiency over 97.1%
  •   Wide input voltage range for better generation and low startup
  •   Dual MPPT design with precise MPPT algorithm
  •   Export Limitation built in - Requires CT clamp (sold separately)
  •   Integrated AFCI (DC arc-fault circuit protection)
  •   Rated IP66

With built in DC switch.

Need monitoring?  The Solis WIFI adaptor is compatible with all Solis inverters, click here for details.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a  result of incorrectly installed systems.
Supplier Part No: S6-GR1P6K-DC
Weight: 12 kg
Rated Power: 6,000 W
Min PPT Voltage: 120 V
Max PPT Voltage: 520 V
DC Startup Voltage: 120 V
DC Shutdown Voltage: 90 V
Max Input Voltage: 600 V
Max DC Power: 9,000 W
Max AC Power (5 Minutes): 6,000 W
Surge AC Power (1 Second): 6,000 W
Max DC Current: 28 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.1 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 years
