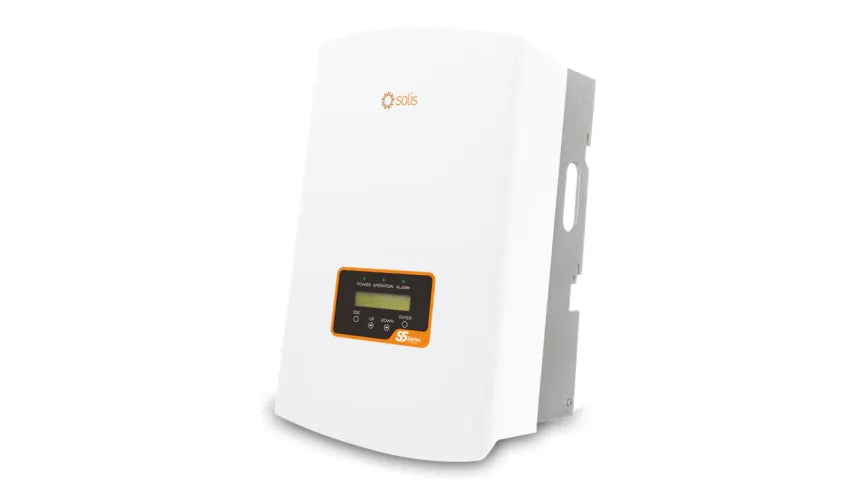

Solis 8kW S5 3 Phase Dual MPPT - DC

Description

Part No: SOL-S5-GR3P-8K-DC Inverters - Main Units
  • Rating: 8,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.5%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 2
  • Maximum AC output power of 8.8kW
  • Max PV DC Power of 12kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.



Supplier Part No: SOL-S5-GR3P-8K-DC

Weight: 20.25 kg

Rated Power: 8,000 W

Min PPT Voltage: 180 V

Max PPT Voltage: 1,000 V

DC Startup Voltage: 180 V

DC Shutdown Voltage: 160 V

Max Input Voltage: 1,100 V

Max DC Power: 12,000 W

Max AC Power (5 Minutes): 8,800 W

Surge AC Power (1 Second): 8,800 W

Max DC Current: 32 A

Max DC Inputs: 2

Has DC Fuses: 0

Connector: MC4

Included Connectors: 4

Euro Efficiency: 97.9 %

Transformer: None

MPPT Quantity : 2

Has Integrated DC Switch: Yes

Warranty: 5 years

Product form

Part No: SOL-S5-GR3P-8K-DC Inverters - Main Units Rating: 8,000W Phases: 3 Series 5 GR3P Three Phase Grid-Tied Inverter Product Features: Max.... Read more

£758.00 Exc. VAT
£909.60 Inc. VAT
