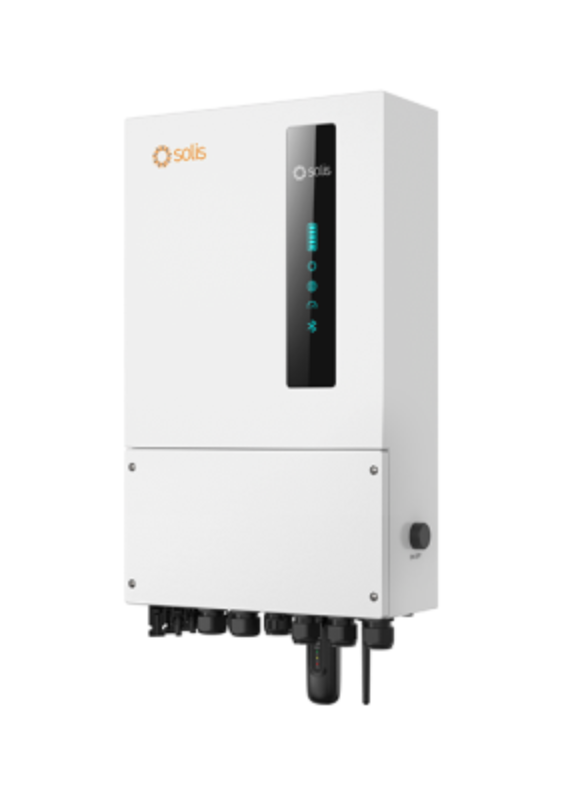

Solis Three Phase High Voltage Energy Storage Inverters Models:
Features:
- 4 Integrated MPPTs with string current capacity of up to 20A
- Maximum charge/discharge current of up to 70A+70A on two independently controlled battery ports
- Supports peak shaving control in both "self-use" and "generator" mode
- Backup port supports 1.6 times overload for short durations
- Generator connectivity with multiple input methods and automatic generator On/Off control
- Allows parallel operation of up to 6 units for both on-grid and off-grid applications
- Support to work as grid-tied inverter without battery connection during on-grid
- Compatible with a wide voltage range to accommodate various batteries
Supplier Part No:S6-EH3P40K-H-EUWeight:73 kgRated Power:40,000 WMin PPT Voltage:180 VMax PPT Voltage:850 VDC Startup Voltage:180 VDC Shutdown Voltage:150 VMax Input Voltage:1,000 VMax DC Power:80,000 WMax AC Power (5 Minutes):40,000 WSurge AC Power (1 Second):64,000 WMax DC Current:160 AMax DC Inputs:8Has DC Fuses:0Connector:MC4 Included Connectors:8Euro Efficiency:97.4 %Transformer:NoneMPPT Quantity :4Has Integrated DC Switch:YesWarranty:5 years
